SILENCER SHEET INSTALLATION AREAS

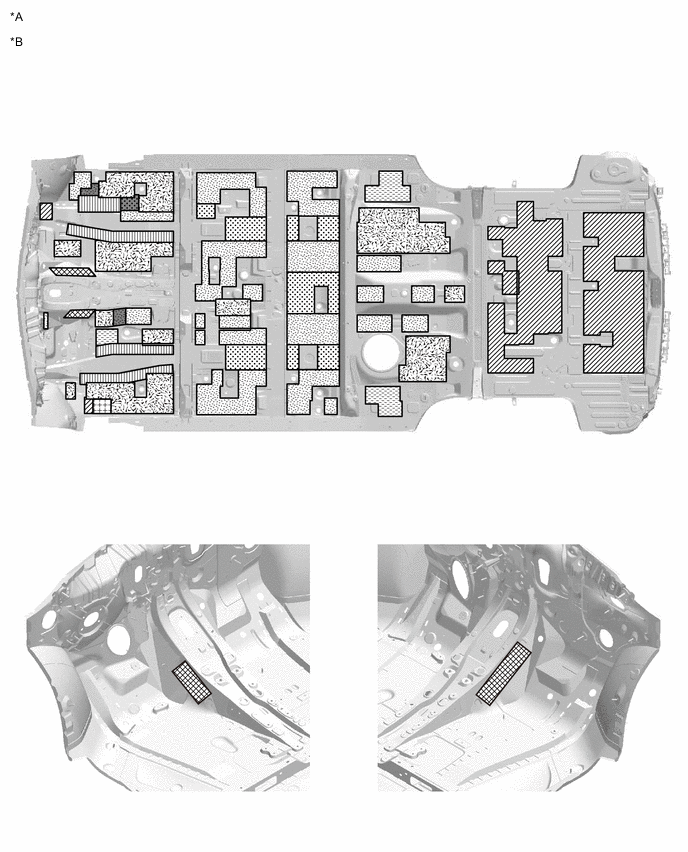

B00555SC02

*A

w/o Rear No. 2 Seat

*B

for LHD

Substitute silencer sheets for the laminate coat application areas.

Thickness of Silencer Sheet

	1.2 mm (0.047 in.)		1.4 mm (0.055 in.)
	1.8 mm (0.071 in.)		2.0 mm (0.079 in.)
	2.5 mm (0.098 in.)		2.7 mm (0.106 in.)
	2.9 mm (0.114 in.)		3.0 mm (0.118 in.)
	3.1 mm (0.122 in.)		4.2 mm (0.165 in.)

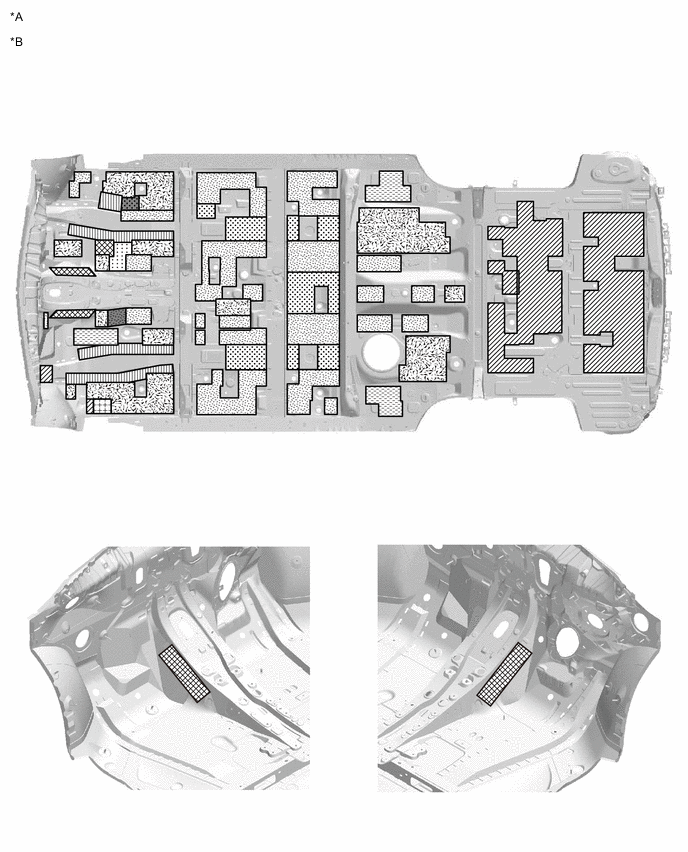

B005572C01

*A

w/o Rear No. 2 Seat

*B

for RHD

Substitute silencer sheets for the laminate coat application areas.

Thickness of Silencer Sheet

	1.2 mm (0.047 in.)		1.4 mm (0.055 in.)
	1.8 mm (0.071 in.)		2.0 mm (0.079 in.)
	2.5 mm (0.098 in.)		2.7 mm (0.106 in.)
	2.9 mm (0.114 in.)		3.0 mm (0.118 in.)
	3.1 mm (0.122 in.)		3.6 mm (0.142 in.)
	4.2 mm (0.165 in.)	-	-

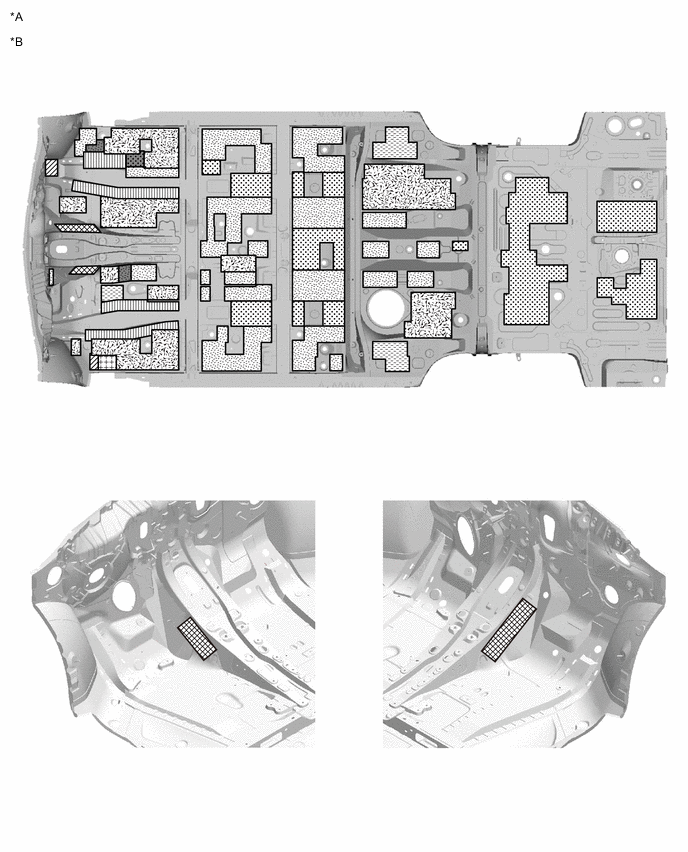

B00550MC02

*A

w/ Rear No. 2 Seat

*B

for LHD

Substitute silencer sheets for the laminate coat application areas.

Thickness of Silencer Sheet

	1.2 mm (0.047 in.)		1.4 mm (0.055 in.)
	1.8 mm (0.071 in.)		2.0 mm (0.079 in.)
	2.5 mm (0.098 in.)		2.7 mm (0.106 in.)
	2.9 mm (0.114 in.)		3.0 mm (0.118 in.)
	3.1 mm (0.122 in.)		4.2 mm (0.165 in.)

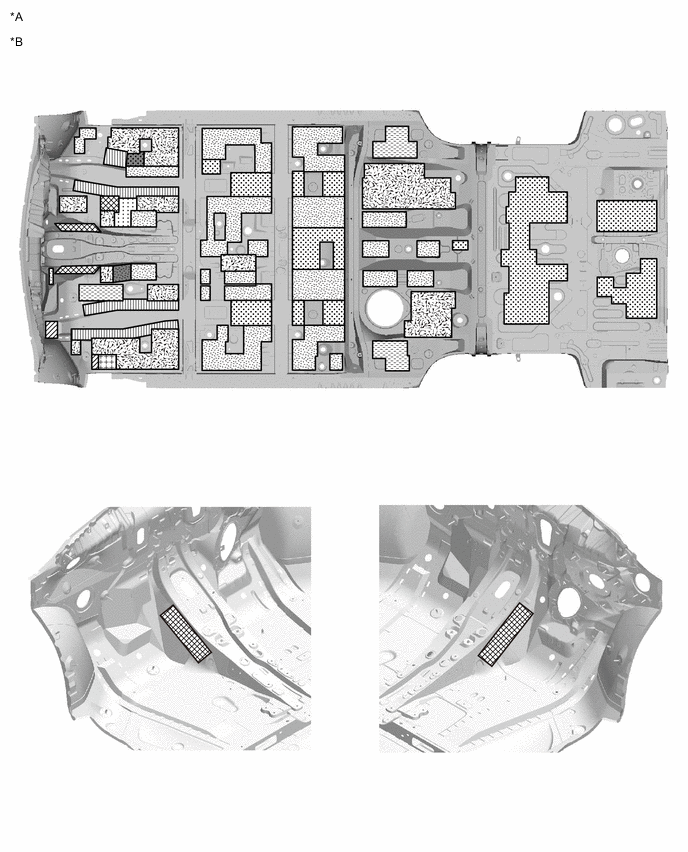

B005558C01

*A

w/ Rear No. 2 Seat

*B

for RHD

Substitute silencer sheets for the laminate coat application areas.

Thickness of Silencer Sheet

	1.2 mm (0.047 in.)		1.4 mm (0.055 in.)
	1.8 mm (0.071 in.)		2.0 mm (0.079 in.)
	2.5 mm (0.098 in.)		2.7 mm (0.106 in.)
	2.9 mm (0.114 in.)		3.0 mm (0.118 in.)
	3.1 mm (0.122 in.)		3.6 mm (0.142 in.)
	4.2 mm (0.165 in.)	-	-
