BODY PANEL UNDERCOATING APPLICATION AREAS
CAUTION:
Work must be performed while wearing the appropriate protective gear and in a well-ventilated area.
-
Apply undercoating to the chassis, floor underside, sheet metal fitting weld points of the body, and inside of the wheel house to prevent rust and noise, as well as protect the body from gravel.
Note
Do not coat high temperature areas, such as the tailpipe, or moving parts, such as the drive shaft.
Tech Tips
-
Apply degreasing agent to a clean cloth and clean any dirt and oil from the application areas.
-
Cover the surrounding areas of the application areas with masking paper to avoid coating unnecessary areas.
-
Apply body sealer to the panel joints in advance.
-
Do not leave any gaps between the panel joints.
-
Referring to the notes above, undercoating should be applied according to the specifications for your country.
-

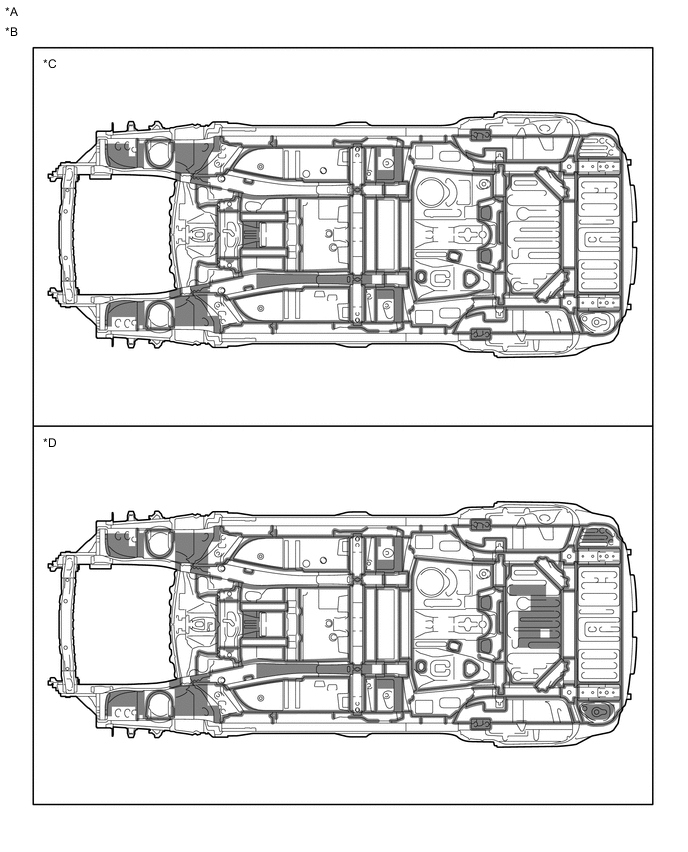

| *A | w/o Rear No. 2 Seat | *B | for 2WD |
| *C | except Europe | *D | for Europe |

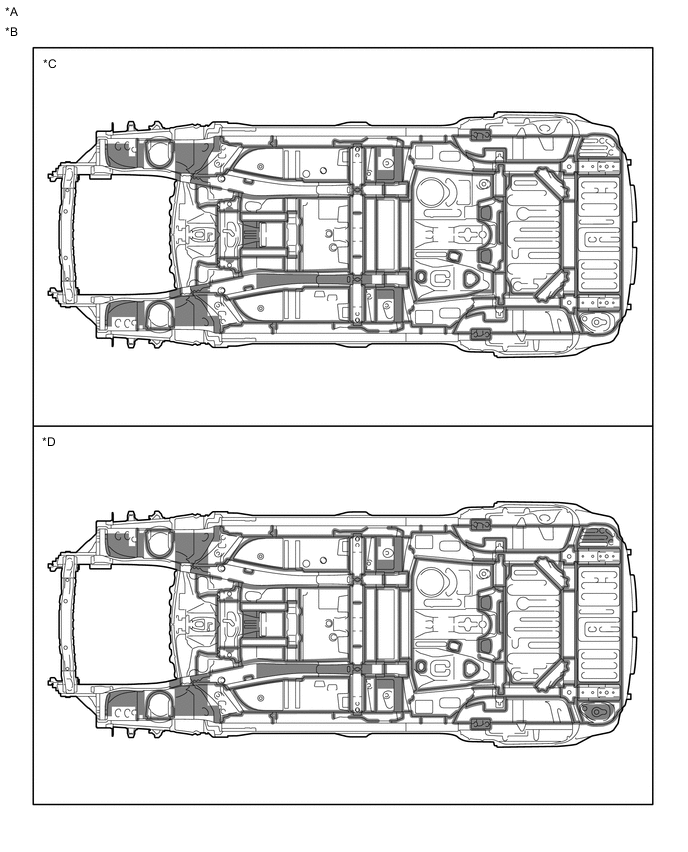

| *A | w/o Rear No. 2 Seat | *B | for AWD |
| *C | except Europe | *D | for Europe |

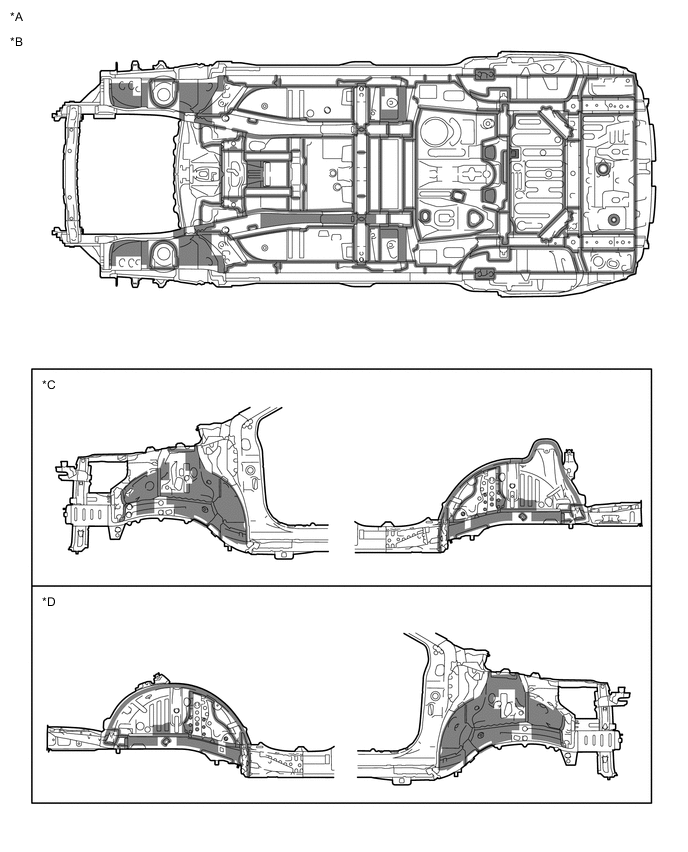

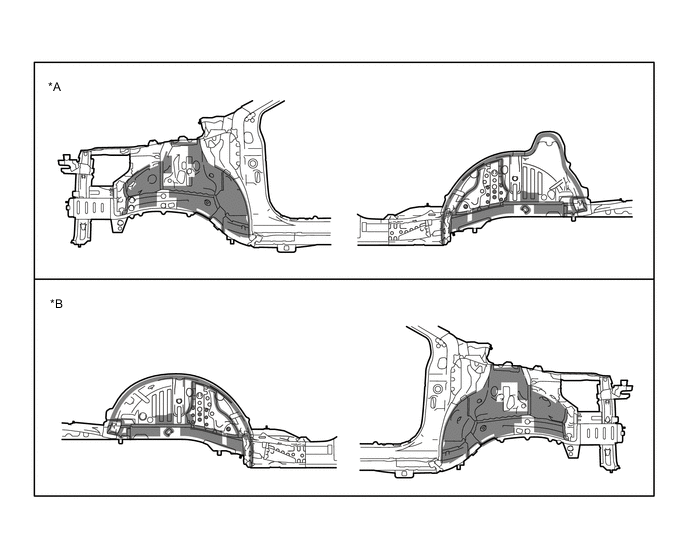

| *A | w/o Rear No. 2 Seat | *B | LH Side |
| *C | RH Side | - | - |
| *A | w/ Rear No. 2 Seat | *B | w/o Spare Tire |
| *C | LH Side | *D | RH Side |

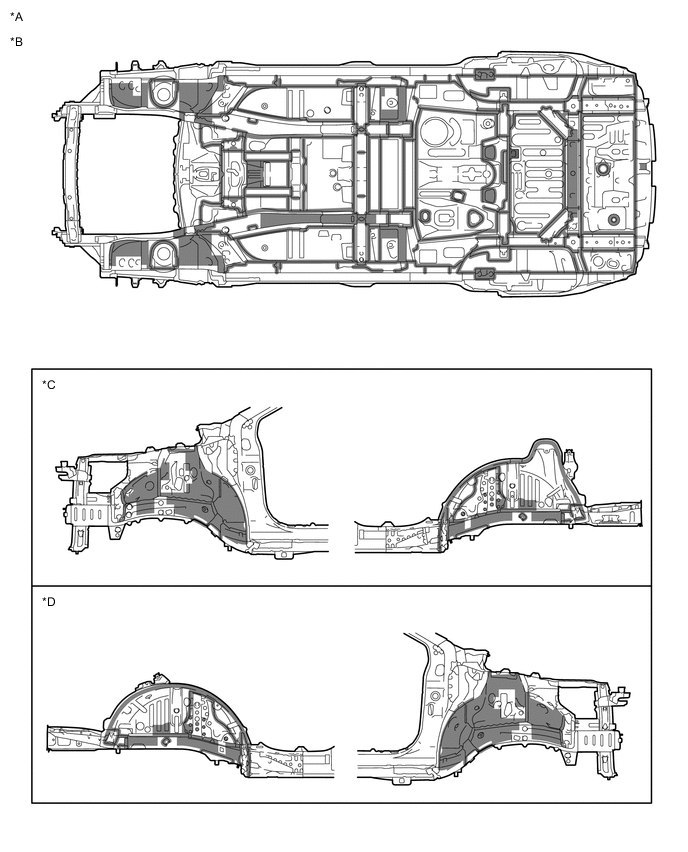

| *A | w/ Rear No. 2 Seat | *B | w/ Spare Tire |
| *C | LH Side | *D | RH Side |
