BODY PANEL SEALING APPLICATION AREAS


  1. Be sure to apply body sealer to the body panel joints and door edges (tip of outer panel folded part), etc., to waterproof and rustproof them.

    Tech Tips


    • Apply degreasing agent to a clean cloth and clean the sealer application areas.

    • After removing the applied spot sealer from the sealer application areas using thinner or equivalent, rustproof the areas by applying primer or equivalent. Then apply body sealer.

    • If sealer is unnecessarily applied to an area, apply degreasing agent to a clean cloth and clean off the body sealer immediately.

B005557 Flat Finishing B005518 No Flat Finishing

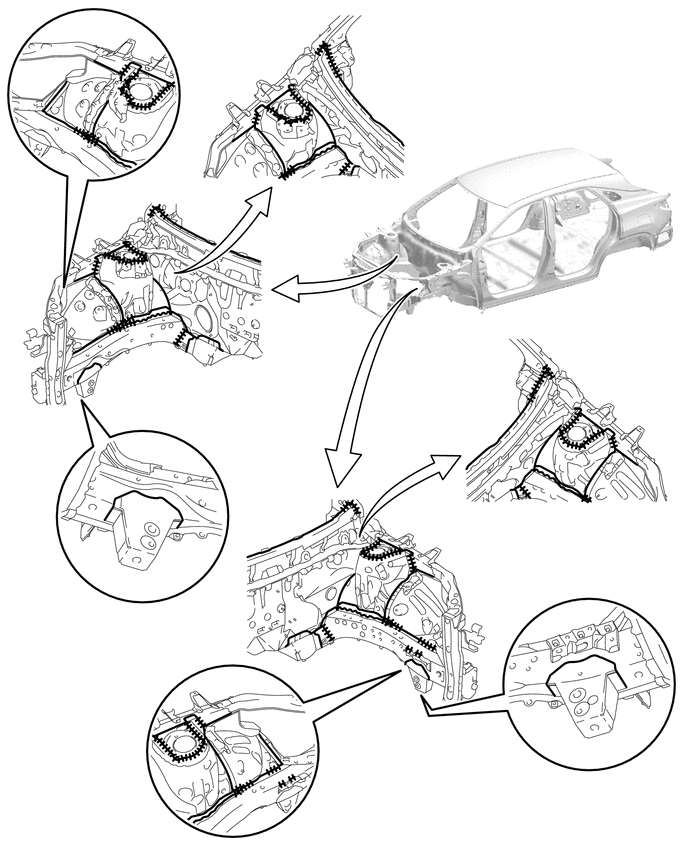

B00559B

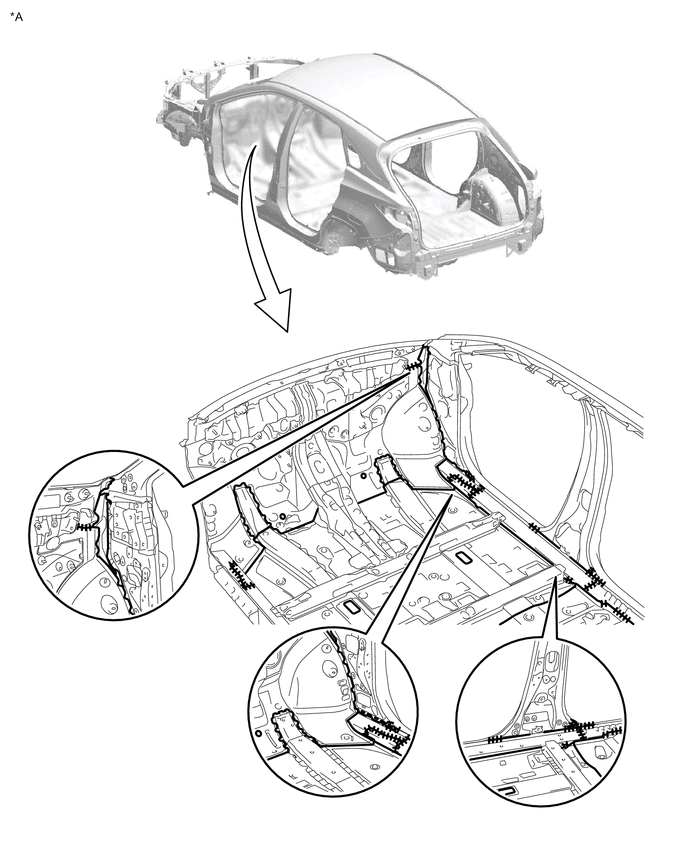

B0054ZSC01
*A for LHD - -
B0055A4C01
*A for RHD - -

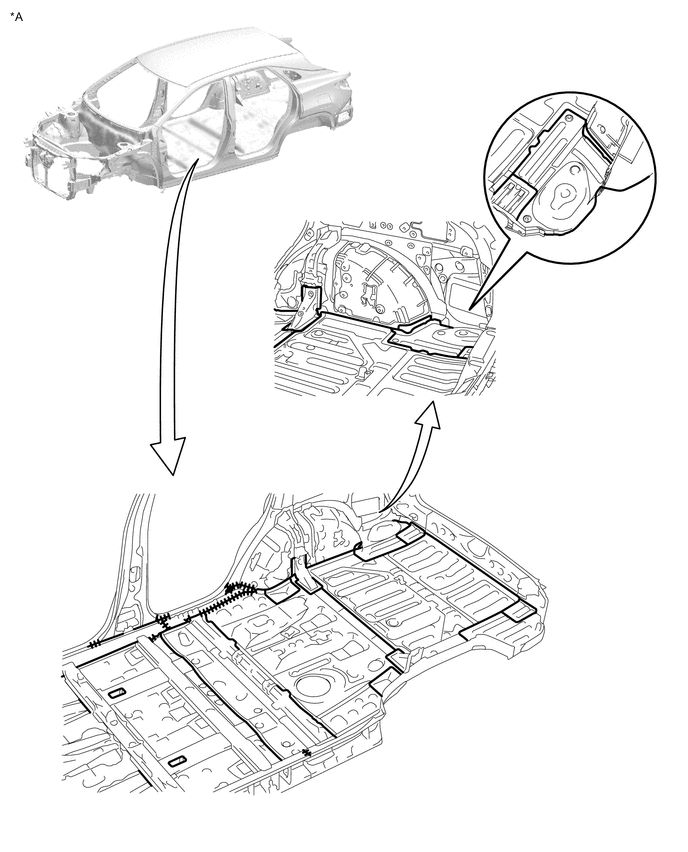

B00552JC02
*A w/o Rear No. 2 Seat - -

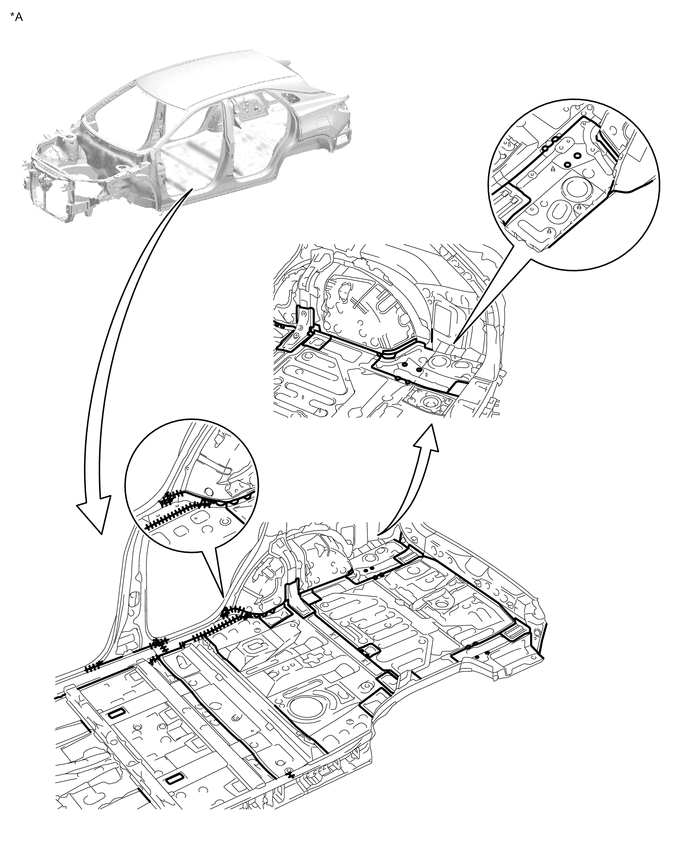

B00558AC02
*A w/ Rear No. 2 Seat - -

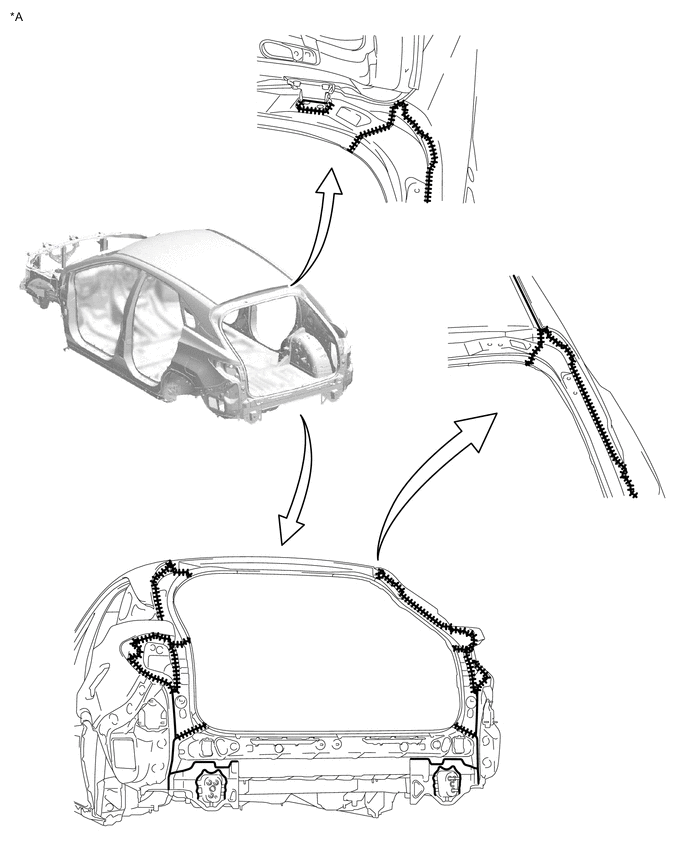

B0055A7C03
*A w/o Rear No. 2 Seat - -

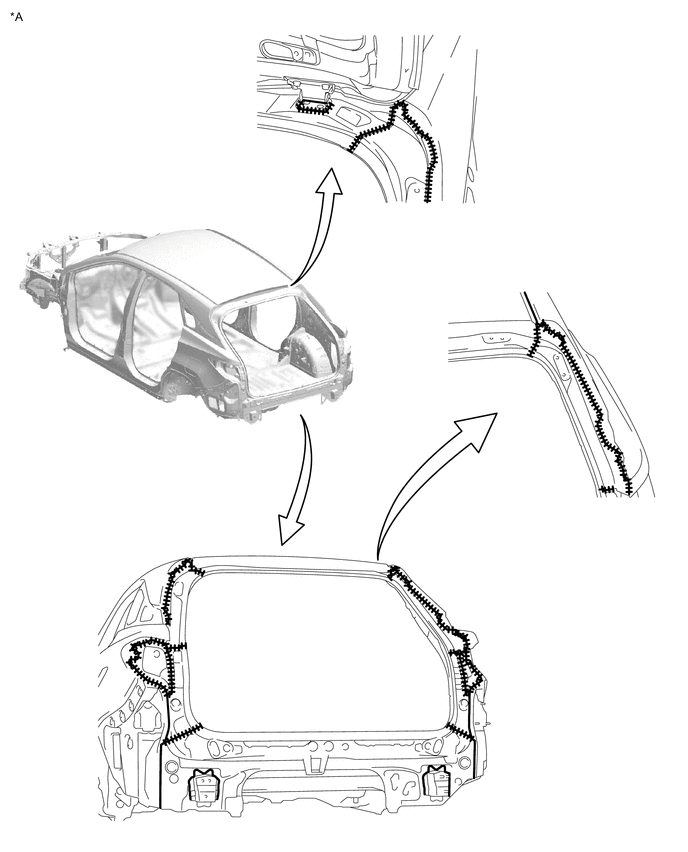

B00554GC03
*A w/ Rear No. 2 Seat - -

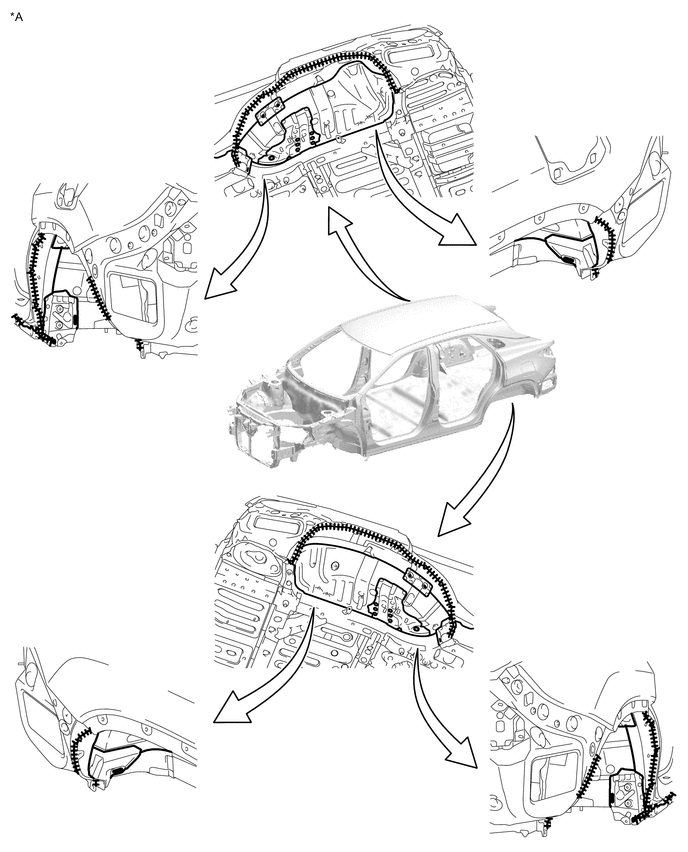

B0054YXC03
*A w/o Rear No. 2 Seat - -

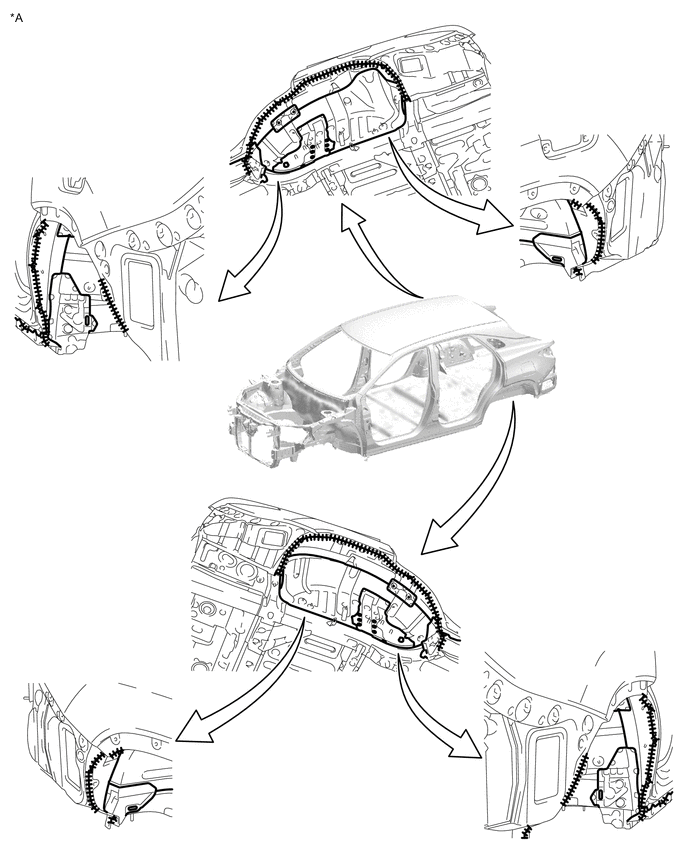

B00550BC03
*A w/ Rear No. 2 Seat - -
B00554IC02
*A w/o Glass Roof *B w/ Glass Roof

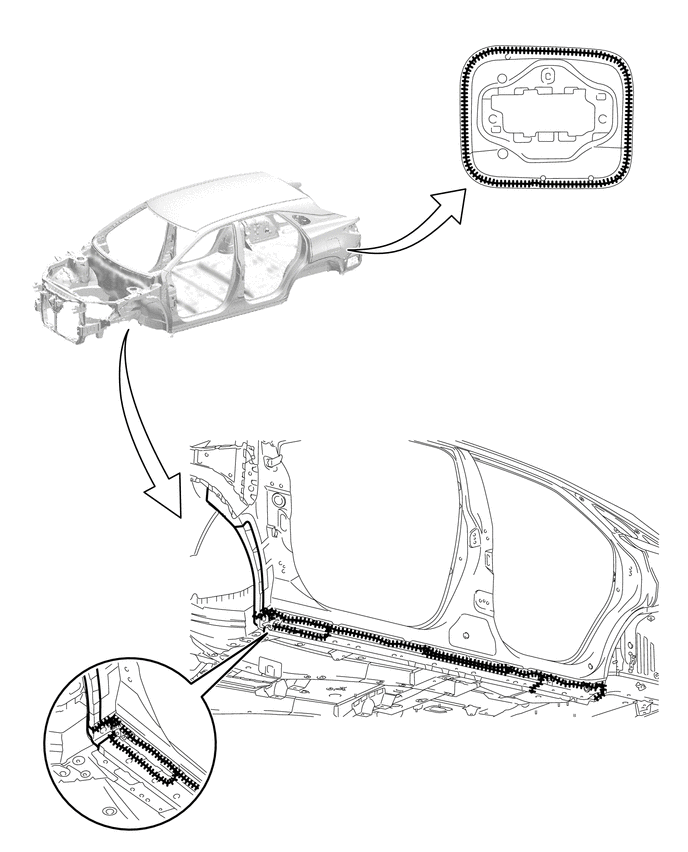

B00559G
B00553H
B00559U
B00557Z
B00552IC03
*A w/o Rear No. 2 Seat - -

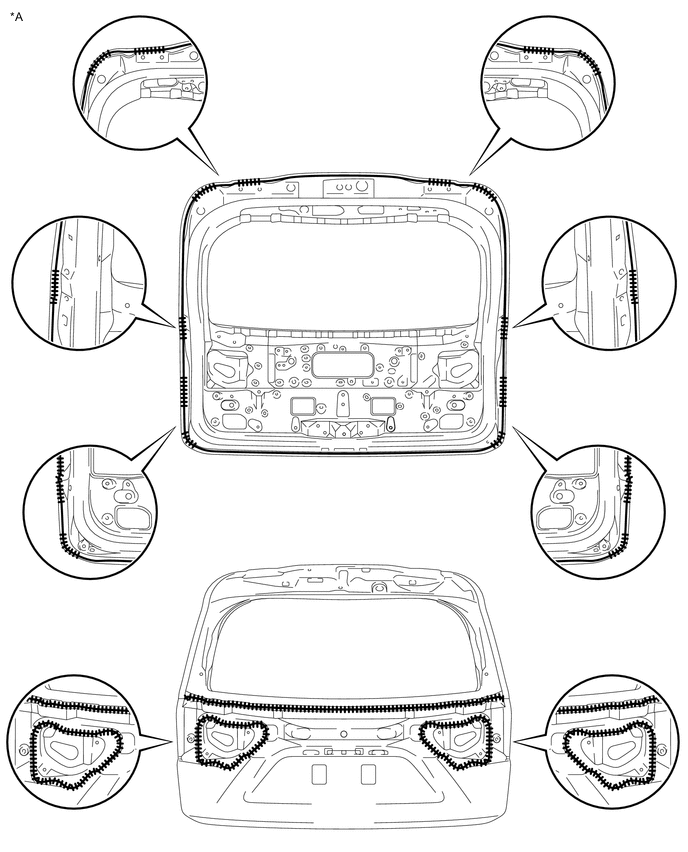

B005554C03
*A w/ Rear No. 2 Seat - -
