ABOUT THIS VEHICLE STRUCTURAL OUTLINE

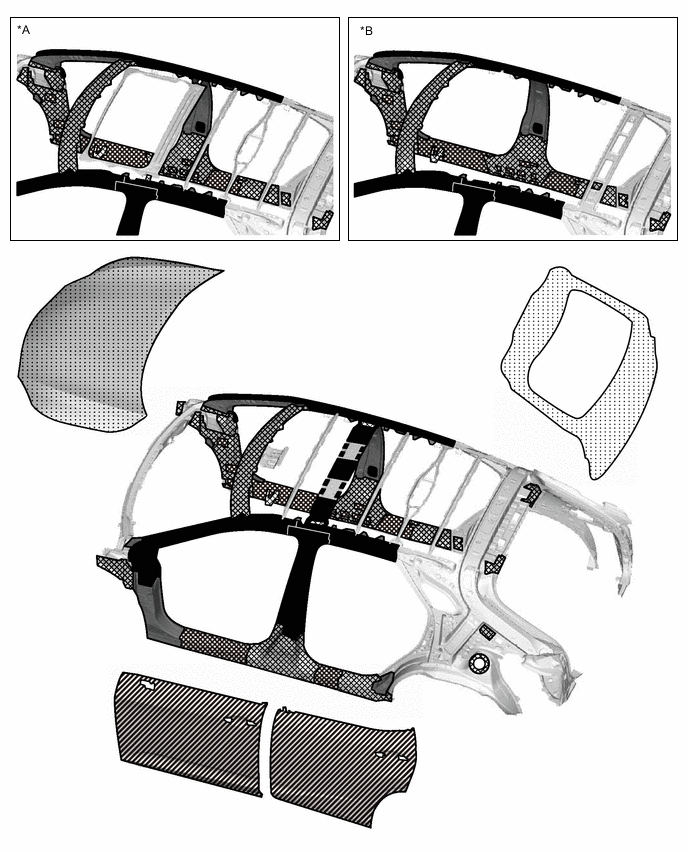

  1. B00558LC01
    *A for Sliding Roof *B for Glass Roof
    B00556E 1500 MPa Ultra High Strength Steel B00553P 980 MPa Ultra High Strength Steel
    B00558R 590 MPa High Strength Steel B005506 440 MPa High Strength Steel
    B00556X 340 MPa High Strength Steel B00551X Aluminium

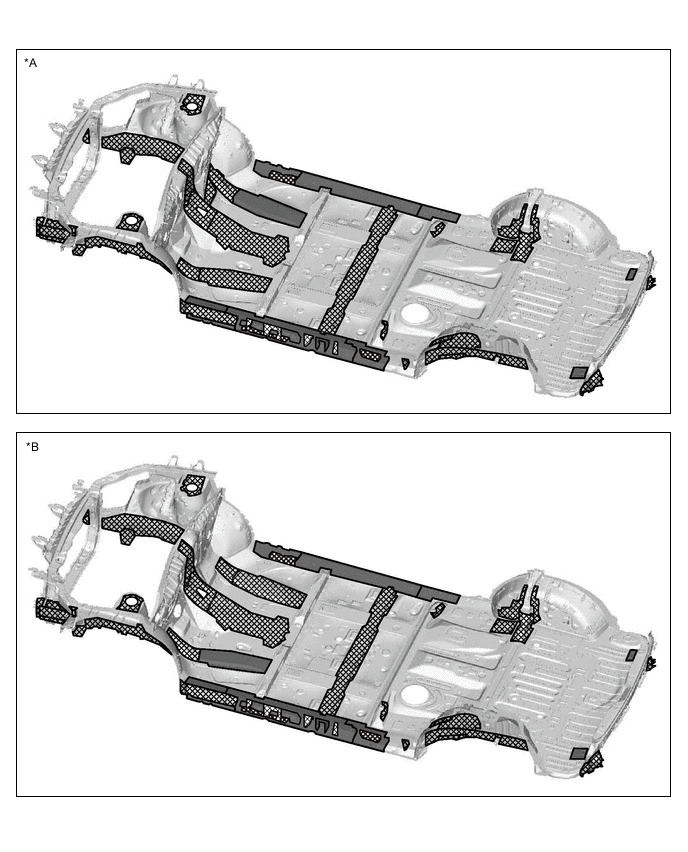

    B005547C01
    *A for RHD *B for LHD
    B00553P 980 MPa Ultra High Strength Steel B00558R 590 MPa High Strength Steel
    B005506 440 MPa High Strength Steel - -

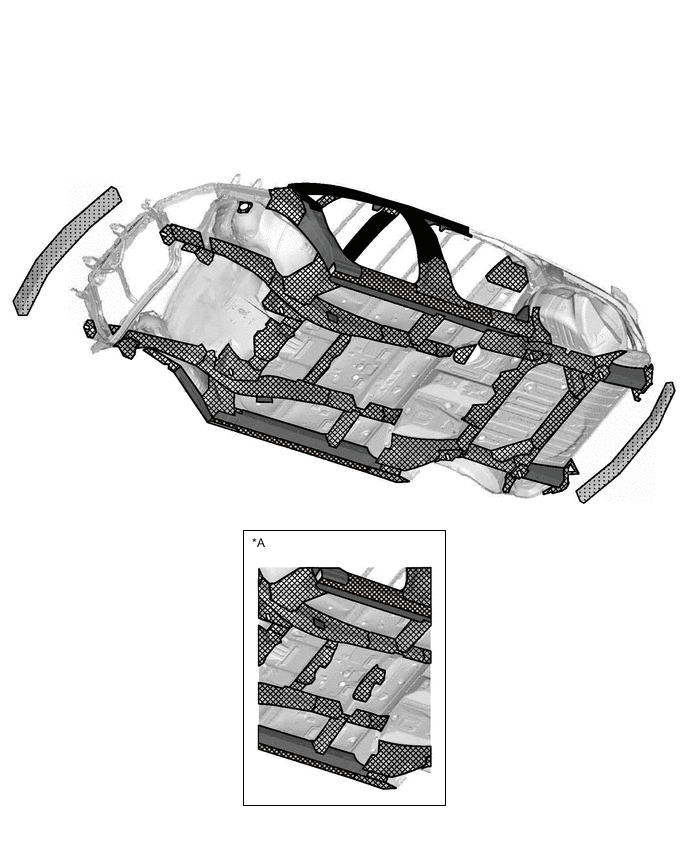

    B00554HC01
    *A for AWD - -
    B00556E 1500 MPa Ultra High Strength Steel B00553P 980 MPa Ultra High Strength Steel
    B00558R 590 MPa High Strength Steel B005506 440 MPa High Strength Steel
    B00551X Aluminium - -

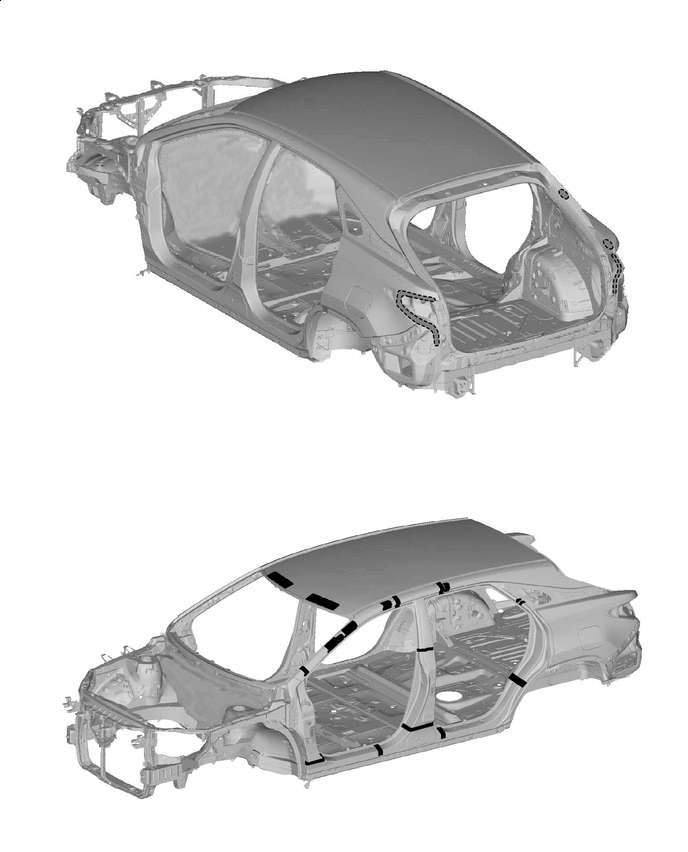

    B00552KC01
    B00556E Foamed Sealing Material Application Areas (See the painting/coating) B00555B Laser Welding

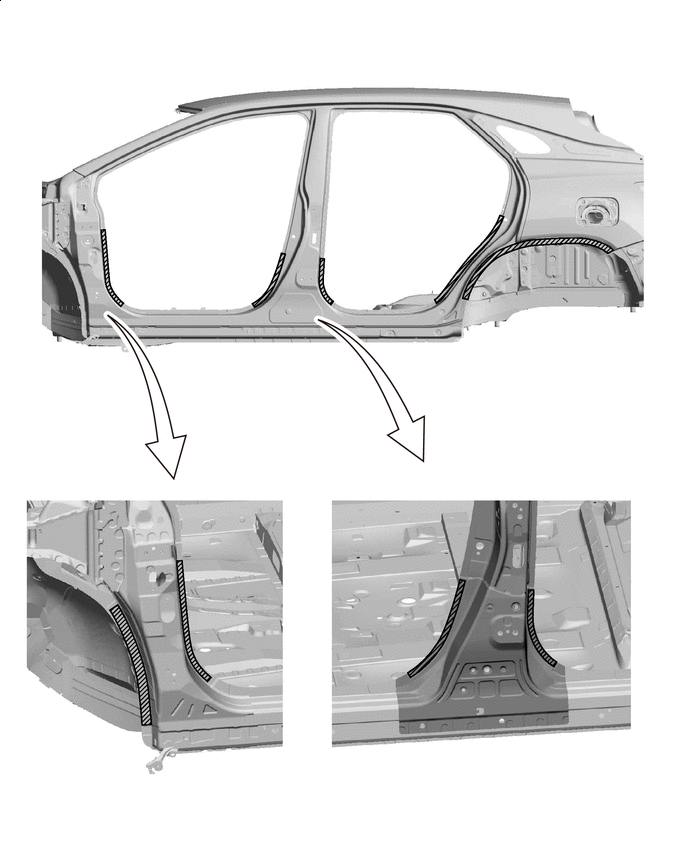

    B00551GC01
    B00550G Adhesive Application Area - -

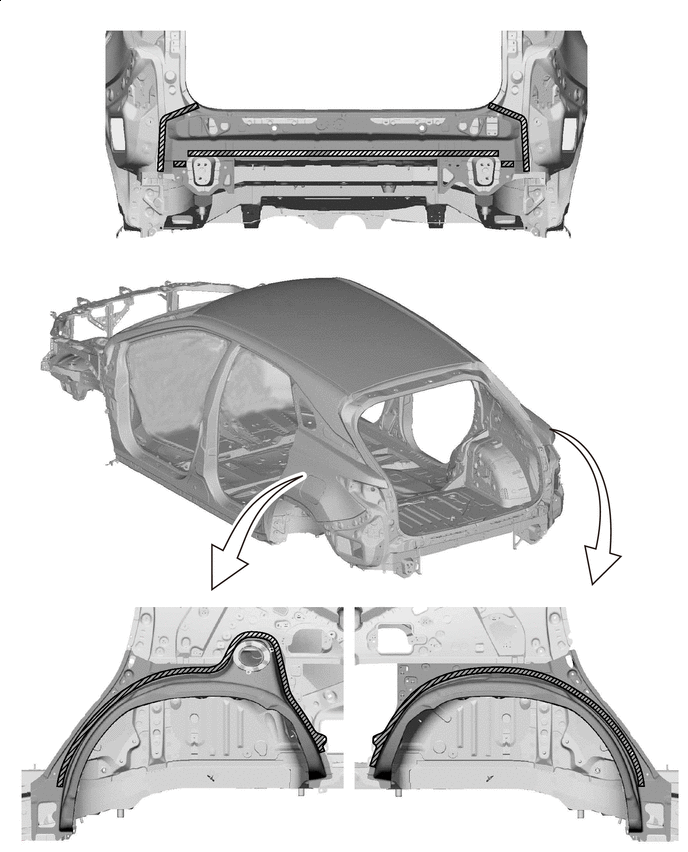

    B005503C01
    B00550G Adhesive Application Area - -

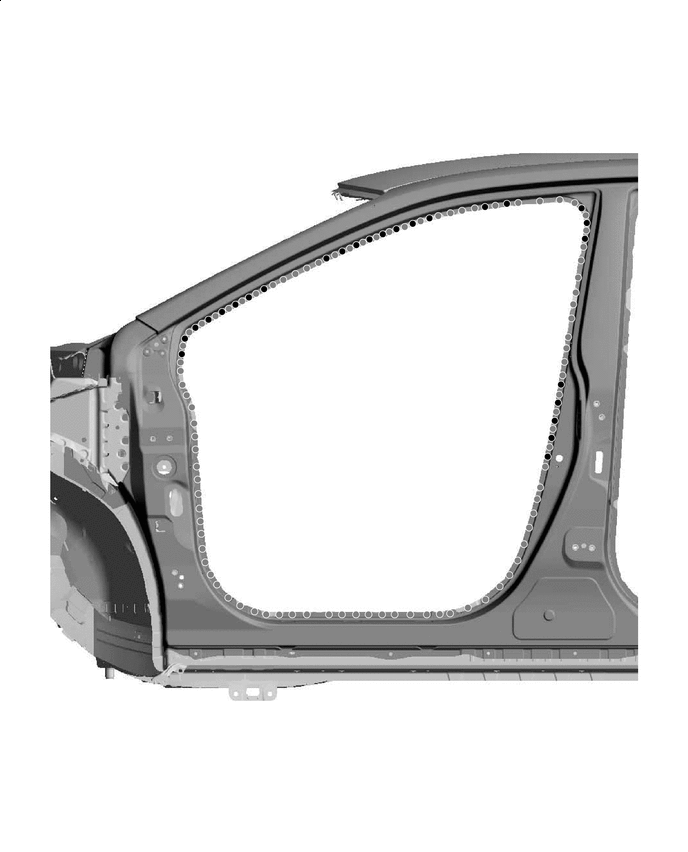

    B005561C01
    B00556E Laser Screw Welding B00555V Spot Weld
    B00555TC01
    B00556E Laser Screw Welding B00555V Spot Weld

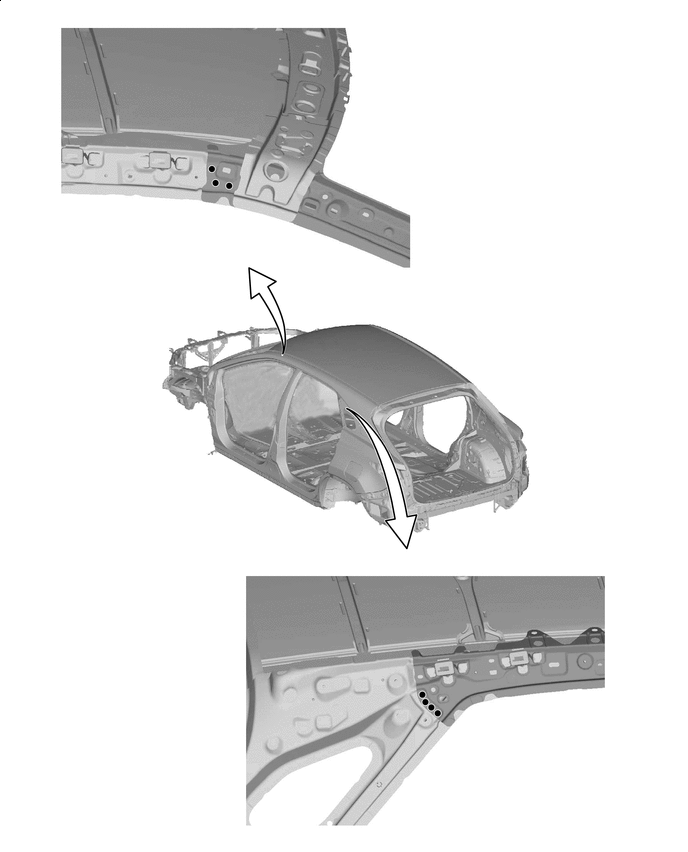

    B005516C01
    B00556E Laser Screw Welding - -
