ABOUT THIS VEHICLE STRUCTURAL OUTLINE

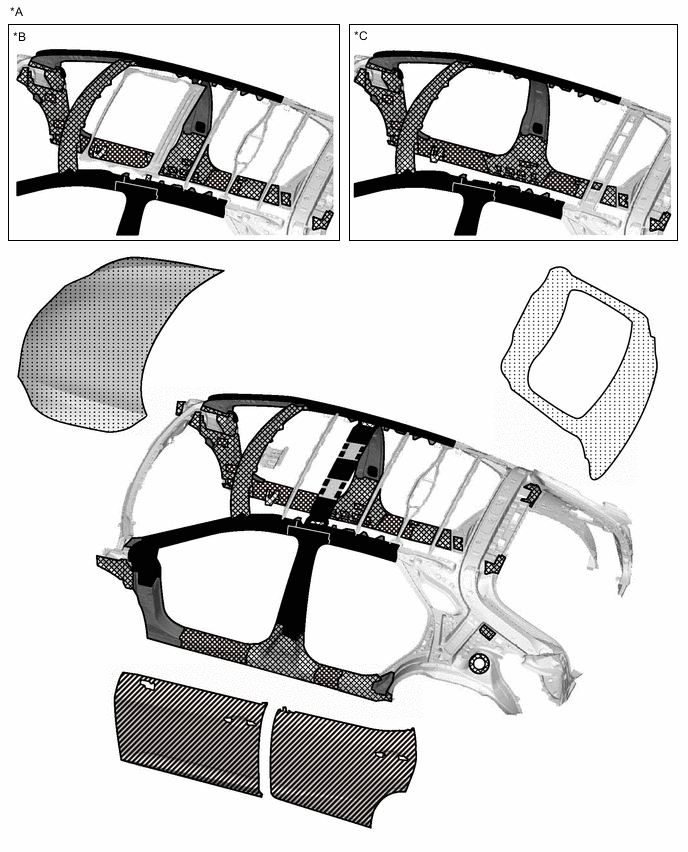

B00558LC03

*A	w/o Rear No. 2 Seat	*B	for Sliding Roof
*C	for Glass Roof	-	-
	1500 MPa Ultra High Strength Steel		980 MPa Ultra High Strength Steel
	590 MPa High Strength Steel		440 MPa High Strength Steel
	340 MPa High Strength Steel		Aluminium

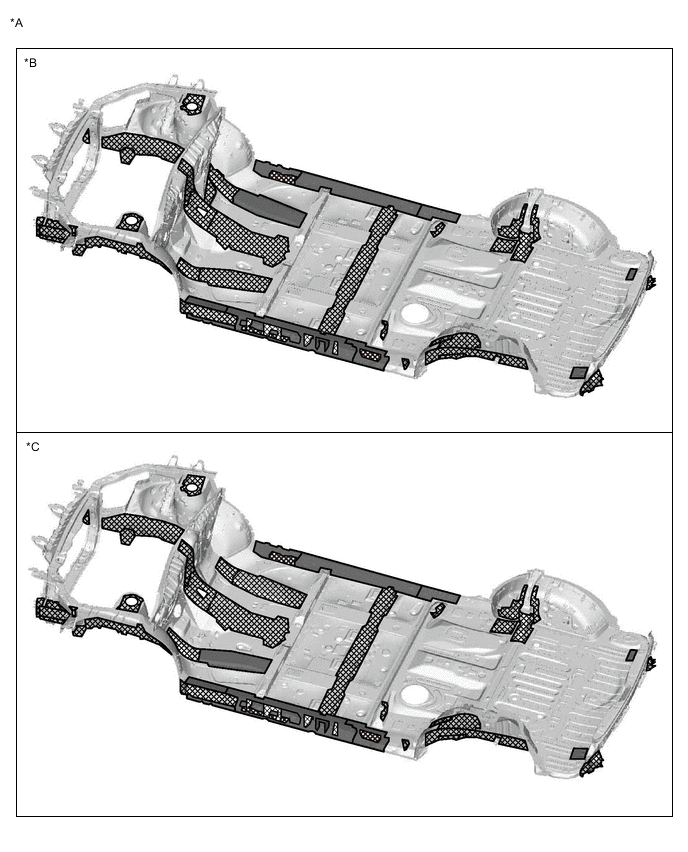

B005547C02

*A	w/o Rear No. 2 Seat	*B	for RHD
*C	for LHD	-	-
	980 MPa Ultra High Strength Steel		590 MPa High Strength Steel
	440 MPa High Strength Steel	-	-

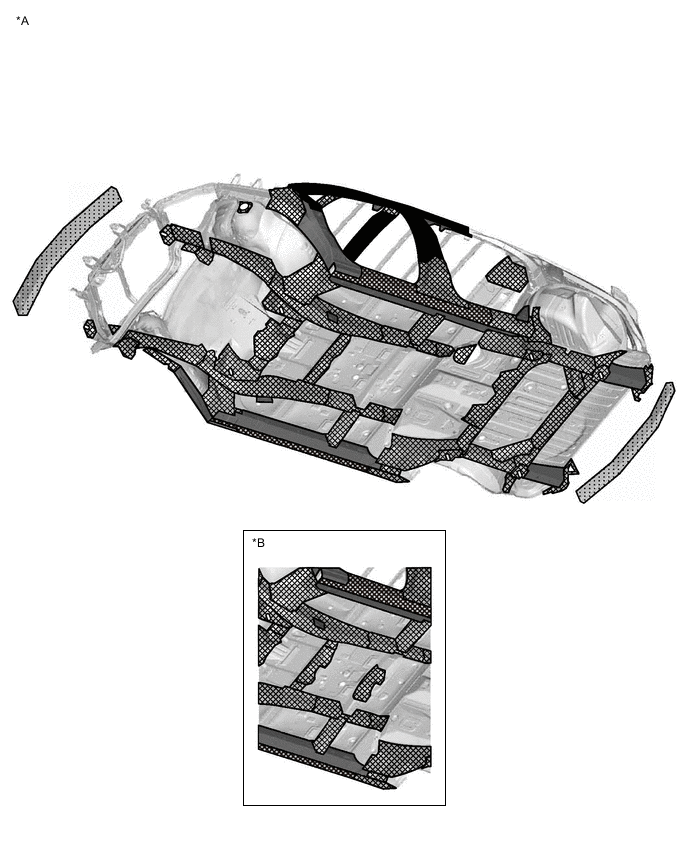

B00554HC02

*A	w/o Rear No. 2 Seat	*B	for AWD
	1500 MPa Ultra High Strength Steel		980 MPa Ultra High Strength Steel
	590 MPa High Strength Steel		440 MPa High Strength Steel
	Aluminium	-	-

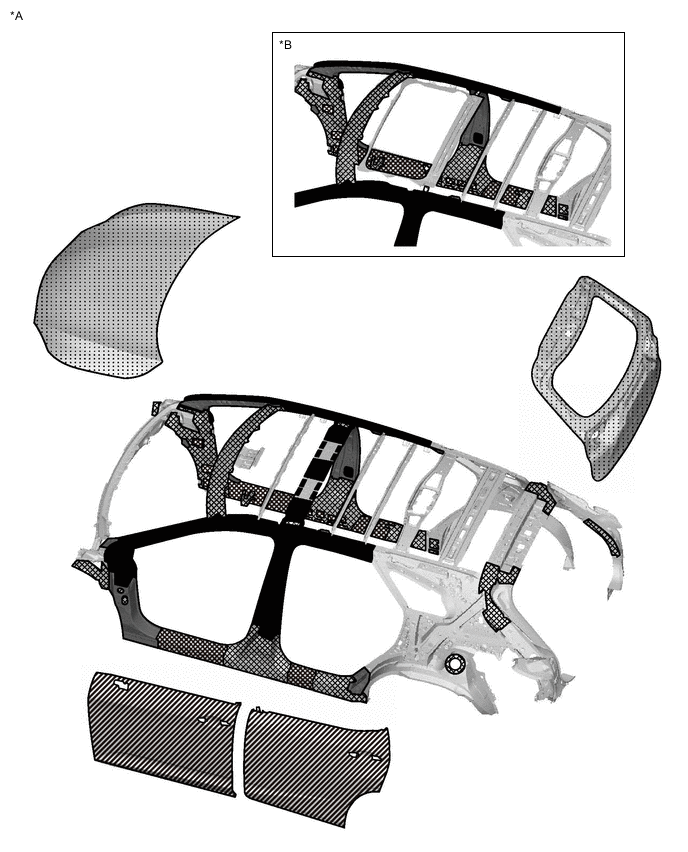

B00555PC02

*A	w/ Rear No. 2 Seat	*B	for Sliding Roof
	1500 MPa Ultra High Strength Steel		980 MPa Ultra High Strength Steel
	590 MPa High Strength Steel		440 MPa High Strength Steel
	340 MPa High Strength Steel		Aluminium

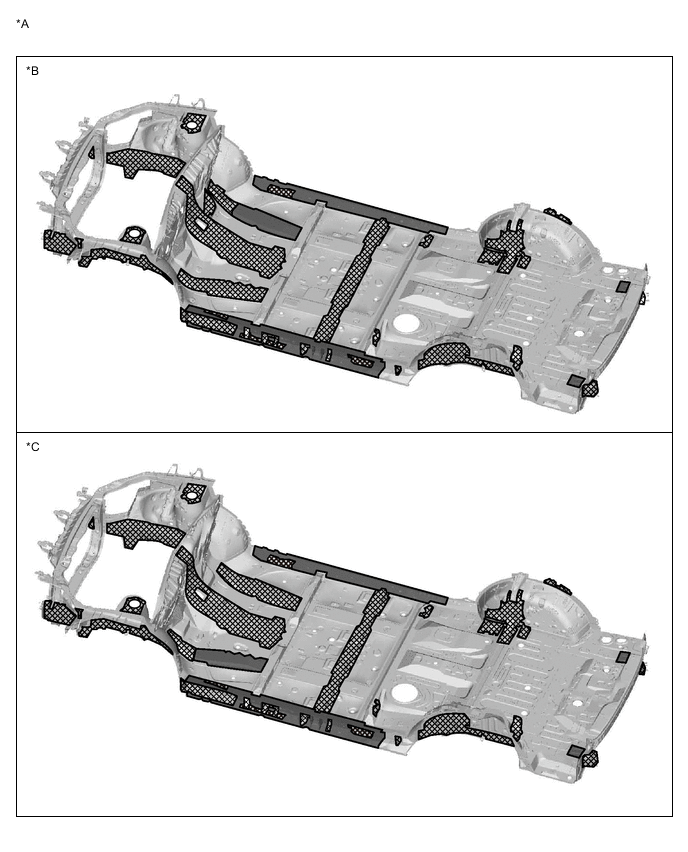

B00554SC01

*A	w/ Rear No. 2 Seat	*B	for RHD
*C	for LHD	-	-
	980 MPa Ultra High Strength Steel		590 MPa High Strength Steel
	440 MPa High Strength Steel	-	-

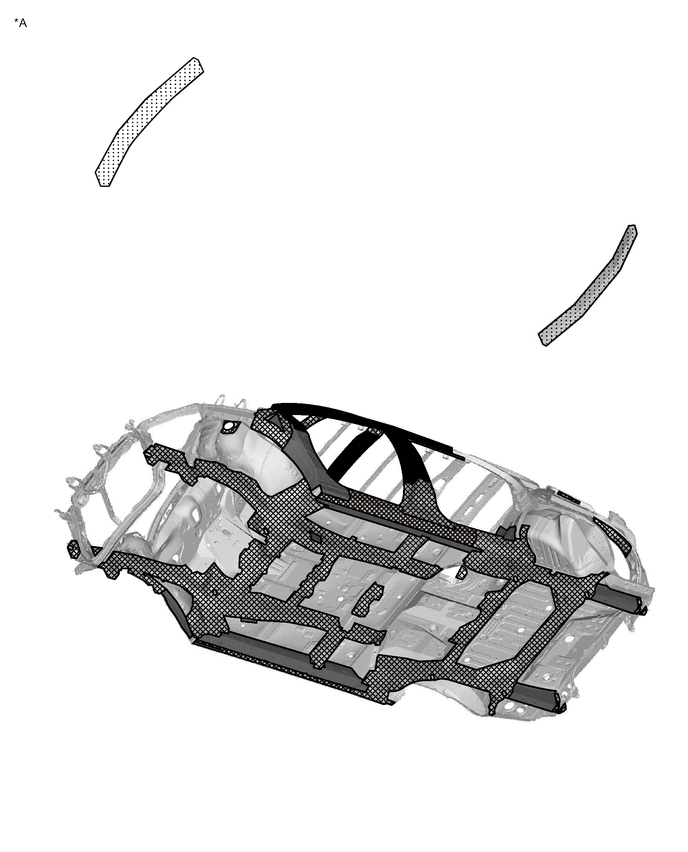

B00553UC01

*A	w/ Rear No. 2 Seat	-	-
	1500 MPa Ultra High Strength Steel		980 MPa Ultra High Strength Steel
	590 MPa High Strength Steel		440 MPa High Strength Steel
	Aluminium	-	-

B0054ZTC02

B00556E

Foamed Sealing Material Application Areas (See the painting/coating)

-

-

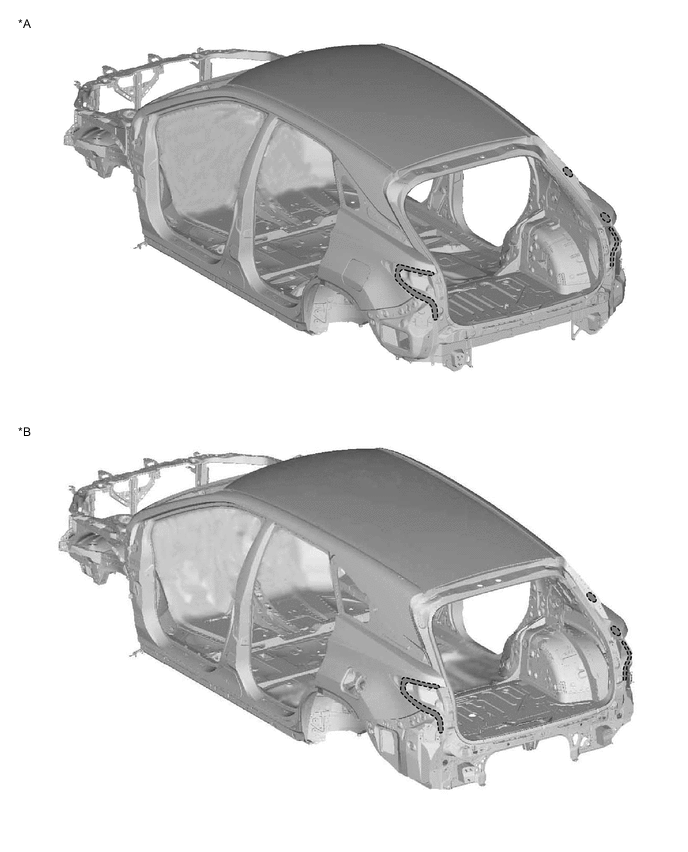

B005565C02

*A	w/o Rear No. 2 Seat	*B	w/ Rear No. 2 Seat
	Laser Welding	-	-

B00551GC01

B00550G

Adhesive Application Area

-

-

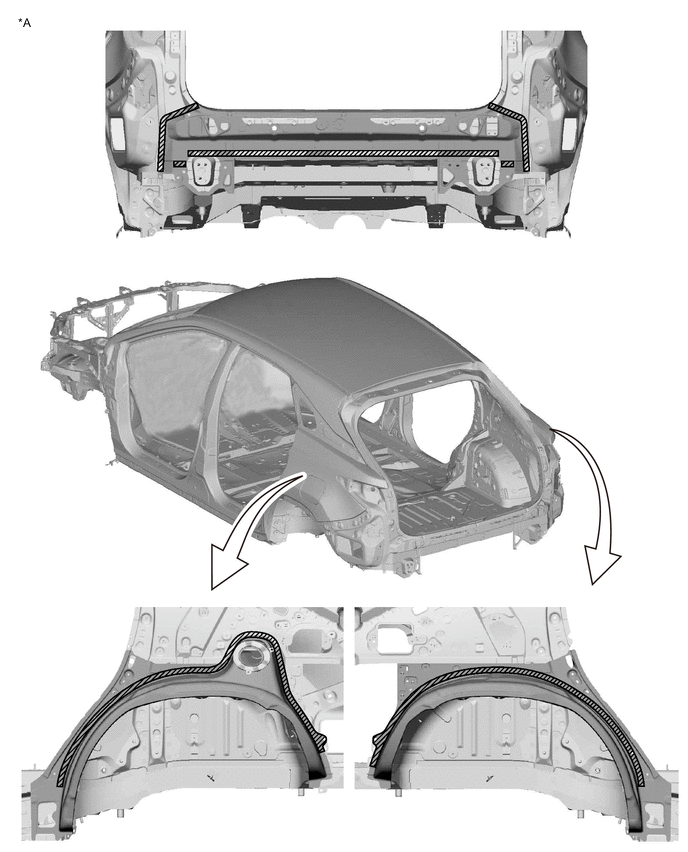

B005503C03

*A	w/o Rear No. 2 Seat	-	-
	Adhesive Application Area	-	-

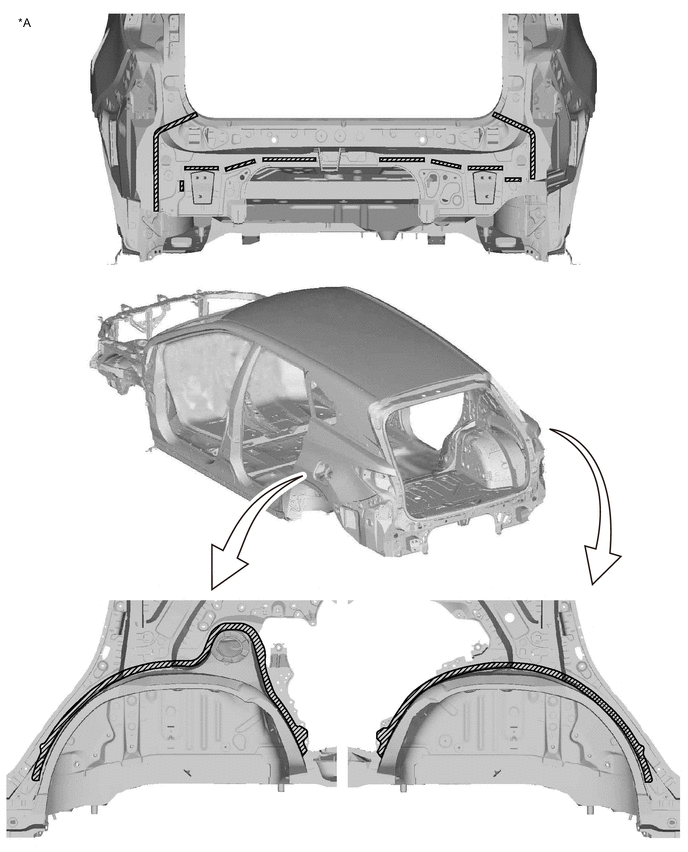

B00557LC02

*A	w/ Rear No. 2 Seat	-	-
	Adhesive Application Area	-	-

B005561C01

B00556E

Laser Screw Welding

B00555V

Spot Weld

B00555TC01

B00556E

Laser Screw Welding

B00555V

Spot Weld

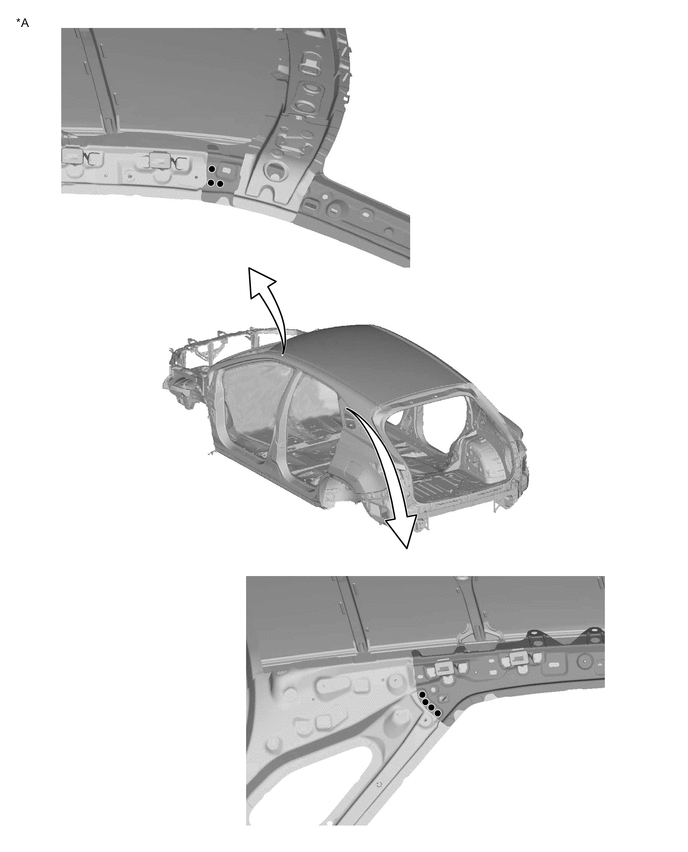

B00553IC02

*A	w/o Rear No. 2 Seat	-	-
	Laser Screw Welding	-	-

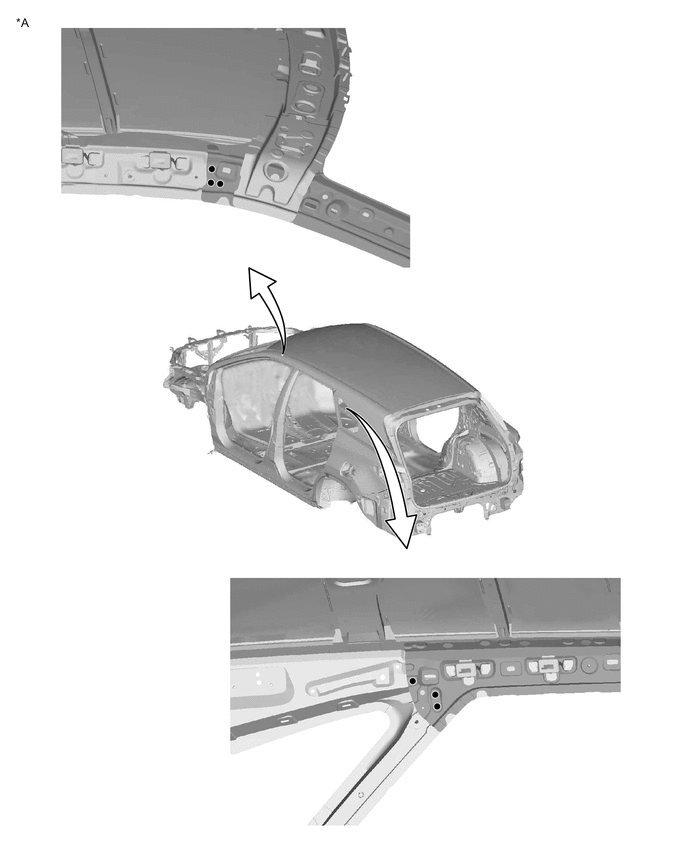

B0054ZMC02

*A	w/ Rear No. 2 Seat	-	-
	Laser Screw Welding	-	-
