FRONT APRON TO COWL SIDE MEMBER ASSEMBLY REPLACEMENT

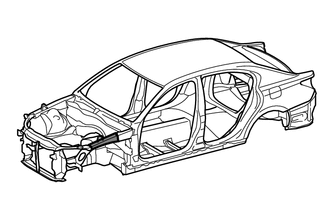

A01Q0EQ


  1. REMOVAL

    Symbol Meaning
    A01Q0FO Remove Weld Points
    A01Q0EY Remove Weld Points
    A01Q0HQ Remove Weld Points

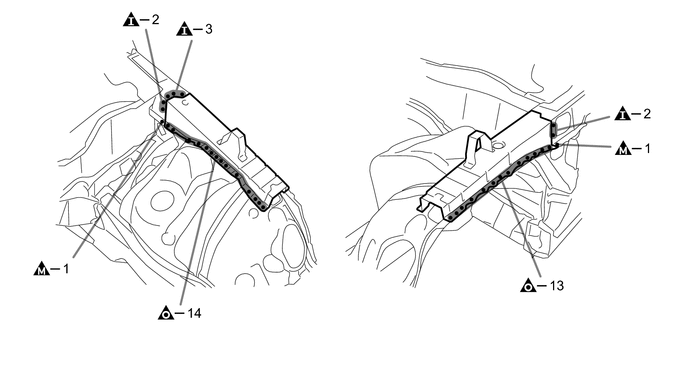

    A01Q0FW

  2. INSTALLATION

    Symbol Meaning
    A01Q0J0 Plug Weld
    A01Q0D7 Plug Weld
    A01Q0E4 Plug Weld

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

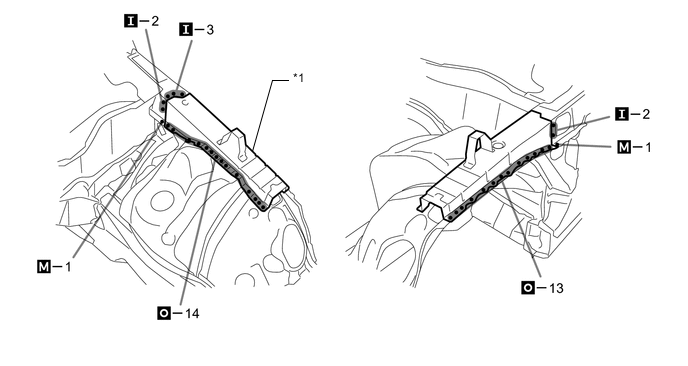

      A01Q0JVC01
      *1 FRONT APRON TO COWL SIDE MEMBER UPPER - -

    3. After welding, apply body sealer to the corresponding parts. (See the painting/coating)

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
