EMISSION CONTROL SYSTEM PARTS LOCATION

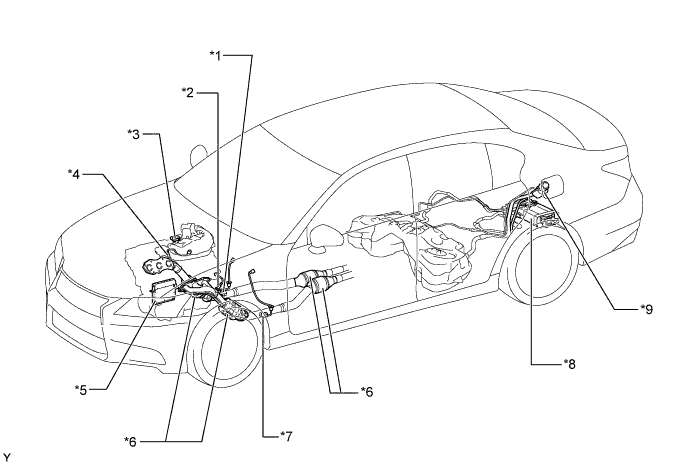

| *1 | Oxygen Sensor (Bank 1, Sensor 2) | *2 | Air Fuel Ratio Sensor (Bank 2, Sensor 1) |
| *3 | VSV (for EVAP) | *4 | Air Fuel Ratio Sensor (Bank 1, Sensor 1) |
| *5 | ECM | *6 | TWC |
| *7 | Oxygen Sensor (Bank 2, Sensor 2) | *8 | Charcoal Canister Assembly - Vent Valve - Leak Detection Pump - Canister Pressure Sensor |
| *9 | Canister Filter | - | - |

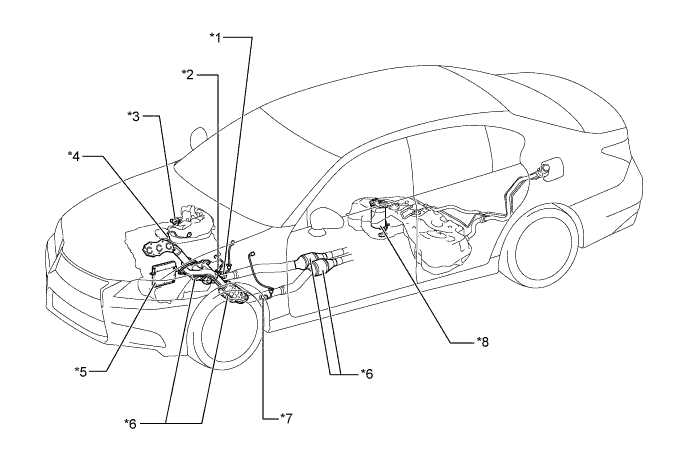

| *1 | Oxygen Sensor (Bank 1, Sensor 2) | *2 | Air Fuel Ratio Sensor (Bank 2, Sensor 1) |
| *3 | VSV (for EVAP) | *4 | Air Fuel Ratio Sensor (Bank 1, Sensor 1) |
| *5 | ECM | *6 | TWC |
| *7 | Oxygen Sensor (Bank 2, Sensor 2) | *8 | Charcoal Canister Assembly |
