CRUISE CONTROL SYSTEM PARTS LOCATION
| *A | Models with 1AZ-FE Engine | *B | Models with 2AR-FE Engine |
| *C | Models with 2GR-FE Engine | - | - |
| *1 | Throttle Body with Motor Assembly - Throttle Control Motor - Throttle Position Sensor |
*2 | ECM |
| *3 | Brake Actuator Assembly - Skid Control ECU |
*4 | Park/Neutral Position Switch Assembly |

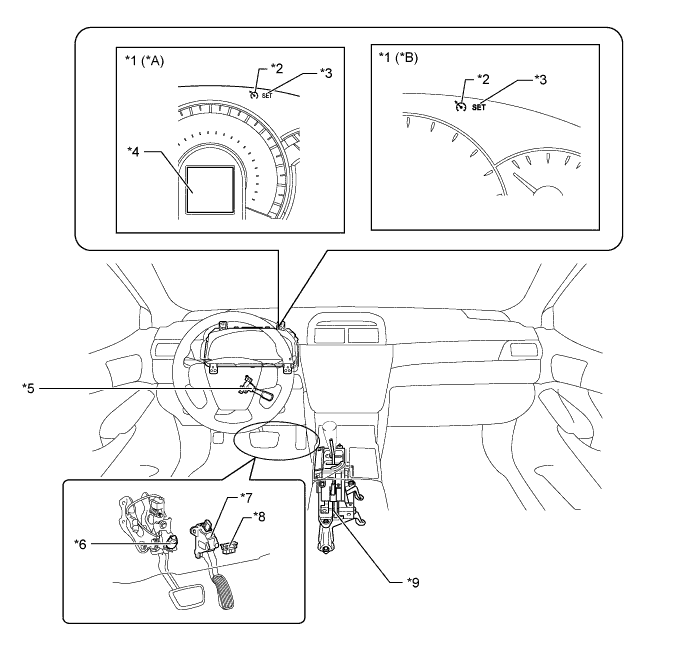

| *A | Models with Multi-information Display | *B | Models without Multi-information Display |
| *1 | Combination Meter Assembly | *2 | Cruise Control Indicator Light |
| *3 | Cruise Control SET Indicator Light | *4 | Multi-information Display |
| *5 | Cruise Control Switch | *6 | Stop Light Switch Assembly |
| *7 | Accelerator Pedal Sensor Assembly | *8 | DLC3 |
| *9 | Lower Shift Lever Assembly - Transmission Control Switch |
- | - |
| *A | Models with Multi-information Display | *B | Models without Multi-information Display |
| *1 | Combination Meter Assembly | *2 | Cruise Control Indicator Light |
| *3 | Cruise Control SET Indicator Light | *4 | Multi-information Display |
| *5 | Cruise Control Switch | *6 | Stop Light Switch Assembly |
| *7 | Accelerator Pedal Sensor Assembly | *8 | DLC3 |
| *9 | Lower Shift Lever Assembly - Transmission Control Switch |
- | - |
