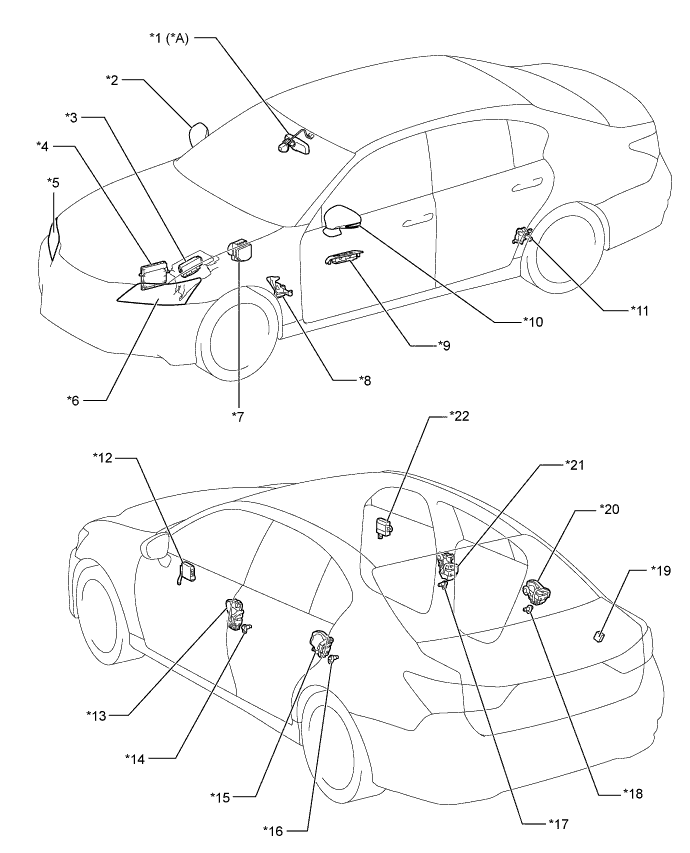

LIGHTING SYSTEM PARTS LOCATION
| *A | Models with Automatic High Beam System | - | - |
| *1 | Inner Rear View Mirror Assembly - Automatic High Beam Sensor |
*2 | Outer Rear View Mirror Assembly RH - Door Mirror Foot Light |
| *3 | Integration Relay - Dimmer Relay - DRL Relay - Taillight Relay - Stop Light Relay |
*4 | ECM |
| *5 | Headlight Assembly RH - Headlight Swivel Motor RH - Light Control ECU |
*6 | Headlight Assembly LH - Headlight Swivel Motor LH - Light Control ECU |
| *7 | Skid Control ECU Assembly | *8 | Headlight Swivel ECU Assembly |
| *9 | Multiplex Network Master Switch Assembly | *10 | Outer Rear View Mirror Assembly LH - Door Mirror Foot Light |
| *11 | Rear Height Control Sensor Sub-assembly LH | *12 | Multiplex Network Door ECU Assembly LH |
| *13 | Front Door Lock Assembly LH - Door Unlock Detection Switch |
*14 | Front Door Courtesy Light Switch Assembly LH |
| *15 | Rear Door Lock Assembly LH - Door Unlock Detection Switch |
*16 | Rear Door Courtesy Light Switch Assembly LH |
| *17 | Front Door Courtesy Light Switch Assembly RH | *18 | Rear Door Courtesy Light Switch Assembly RH |
| *19 | Door Control Receiver | *20 | Rear Door Lock Assembly RH - Door Unlock Detection Switch |
| *21 | Front Door Lock Assembly RH - Door Unlock Detection Switch |
*22 | Multiplex Network Door ECU Assembly RH |

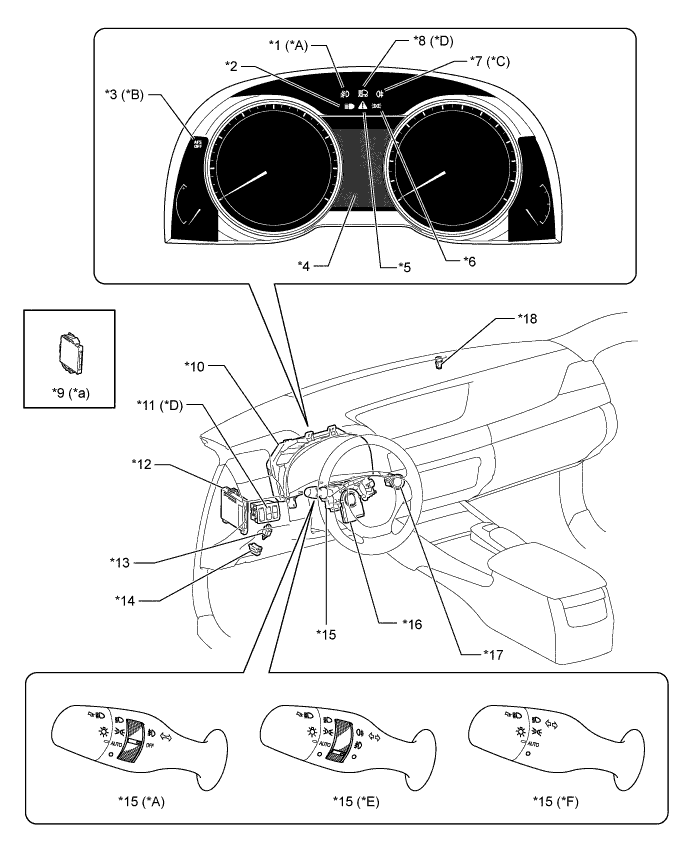

| *A | Models with Front Fog Light | *B | Models with Intelligent Adaptive Front Light System (AFS) |
| *C | Models with Rear Fog Light | *D | Models with Automatic High Beam System |
| *E | Models with Fog Light and Rear Fog Light | *F | Models without Fog Light |
| *1 | Front Fog Light Indicator Light | *2 | High Beam Indicator Light |
| *3 | AFS OFF Indicator Light | *4 | Multi-information Display |
| *5 | Master Warning Light | *6 | Taillight Indicator Light |
| *7 | Rear Fog Light Indicator Light | *8 | Automatic High Beam Indicator Light |
| *9 | Certification ECU (Smart Key ECU Assembly) | *10 | Combination Meter Assembly |
| *11 | Integration Control and Panel Assembly - Automatic High Beam Switch |
*12 | Main Body ECU (Multiplex Network Body ECU) |
| *13 | Stop Light Switch Assembly | *14 | DLC3 |
| *15 | Headlight Dimmer Switch Assembly - Light Control Switch - Fog Light Switch - Dimmer Switch |
*16 | Steering Sensor |
| *17 | Engine Switch (Push Start Switch) | *18 | Automatic Light Control Sensor |
| *a | Refer to the Service Bulletin for the installation of the part. | - | - |
