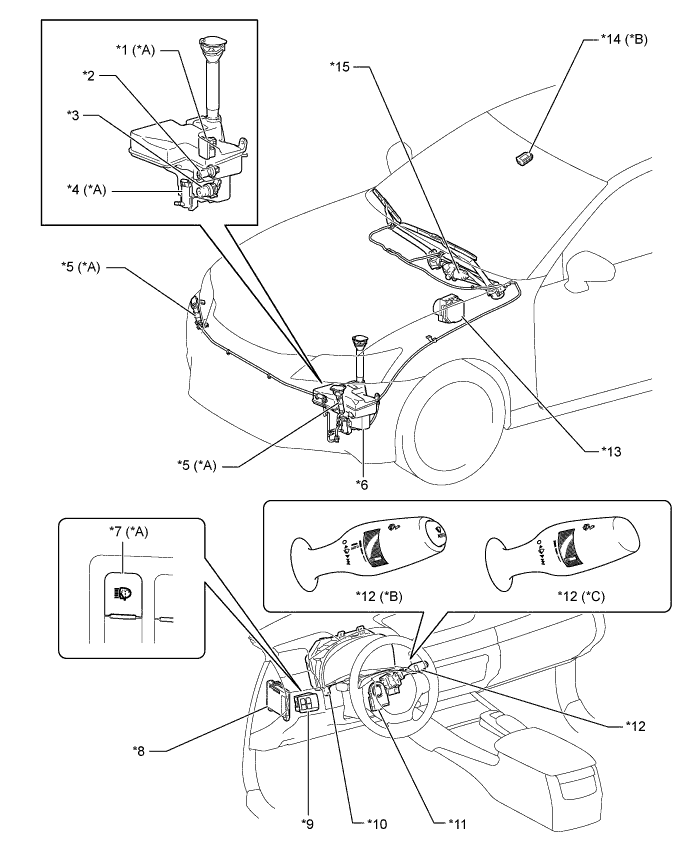

WIPER AND WASHER SYSTEM PARTS LOCATION
| *A | Models with Headlight Cleaner System | *B | Models with Rain Sensing Function |
| *C | Models without Rain Sensing Function | - | - |
| *1 | Headlight Cleaner Control Relay | *2 | Level Warning Switch Assembly |
| *3 | Windshield Washer Motor and Pump Assembly | *4 | Headlight Cleaner Motor and Pump Assembly |
| *5 | Headlight Washer Actuator Sub-assembly | *6 | Windshield Washer Jar Assembly |
| *7 | Headlight Cleaner Switch Assembly | *8 | Main Body ECU (Multiplex Network Body ECU) |
| *9 | Integration Control and Panel Assembly | *10 | Combination Meter Assembly |
| *11 | Steering Sensor | *12 | Windshield Wiper Switch Assembly |
| *13 | Brake Actuator Assembly - Skid Control ECU Assembly |
*14 | Rain Sensor |
| *15 | Windshield Wiper Motor Assembly | - | - |
