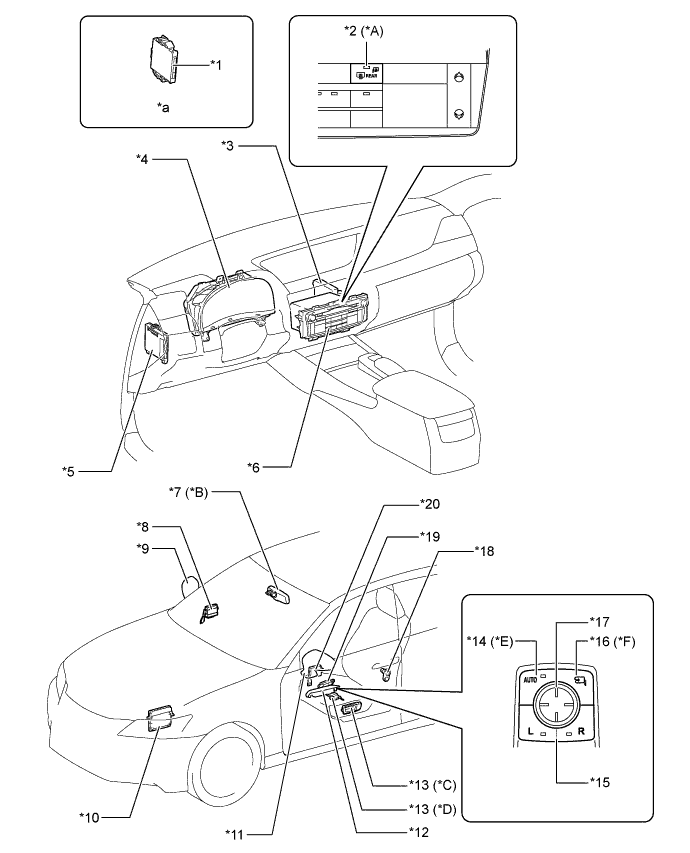

| *A |
Models with Mirror Heater Function |
*B |
Models with Automatic Glare-resistant (EC) Dimming Function |
| *C |
Models with 10-way Power Seat Control System |
*D |
Models with 16-way or 18-way Power Seat Control System |
| *E |
Models with Automatic Retractable Function |
*F |
Models with Manual Retractable Function |
| *1 |
Certification ECU (Smart Key ECU) |
*2 |
Defogger Switch |
| *3 |
Air Conditioning Amplifier Assembly |
*4 |
Combination Meter Assembly |
| *5 |
Main Body ECU (Multiplex Network Body ECU) |
*6 |
Multi-media Module Receiver Assembly |
| *7 |
Inner Rear View Mirror Assembly |
*8 |
Front Passenger Side Multiplex Network Door ECU |
| *9 |
Front Passenger Side Outer Rear View Mirror Assembly |
*10 |
ECM |
| *11 |
Driver Side Outer Rear View Mirror Assembly |
*12 |
Multiplex Network Master Switch Assembly |
| *13 |
Driver Side Position Control ECU |
*14 |
Auto Switch |
| *15 |
Mirror Select Switch |
*16 |
Mirror Fold Switch |
| *17 |
Mirror Surface Switch |
*18 |
Driver Side Door Courtesy Light Switch Assembly |
| *19 |
Seat Memory Switch |
*20 |
Driver Side Multiplex Network Door ECU |
| *a |
Refer to the Service Bulletin for the installation of the part. |
- |
- |
