BLIND SPOT MONITOR SYSTEM PARTS LOCATION
| *1 | Outer Rear View Mirror Indicator Light | *2 | Outer Rear View Mirror Assembly LH |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Blind Spot Monitor Main Switch |
| *5 | Combination Meter Assembly | *6 | Steering Sensor |
| *7 | Outer Rear View Mirror Assembly RH | *8 | Network Gateway ECU |
| *9 | Combination Switch Assembly | - | - |
| *A | Models with RCTA Function | - | - |

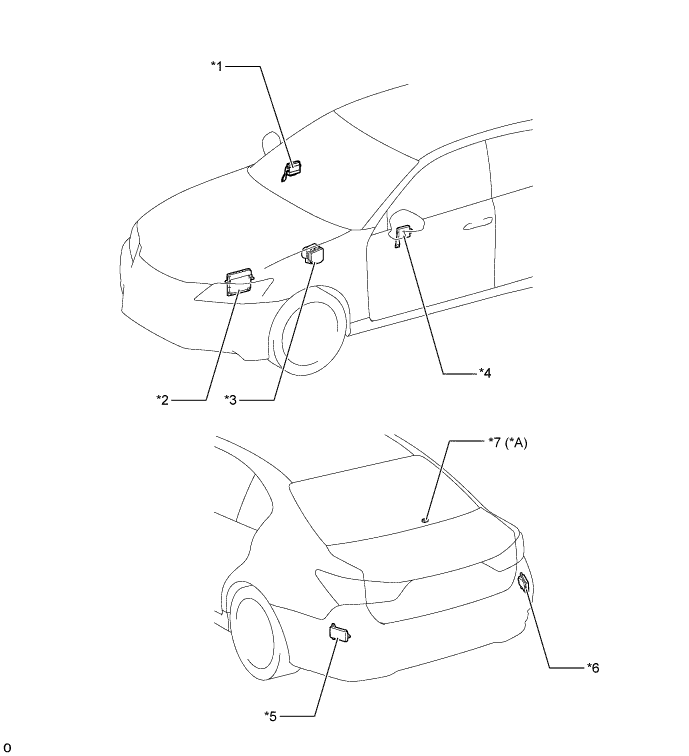

| *1 | Multiplex Network Door ECU RH | *2 | ECM |
| *3 | Skid Control ECU Assembly | *4 | Multiplex Network Door ECU LH |
| *5 | Blind Spot Monitor Sensor LH | *6 | Blind Spot Monitor Sensor RH |
| *7 | RCTA Buzzer | - | - |
