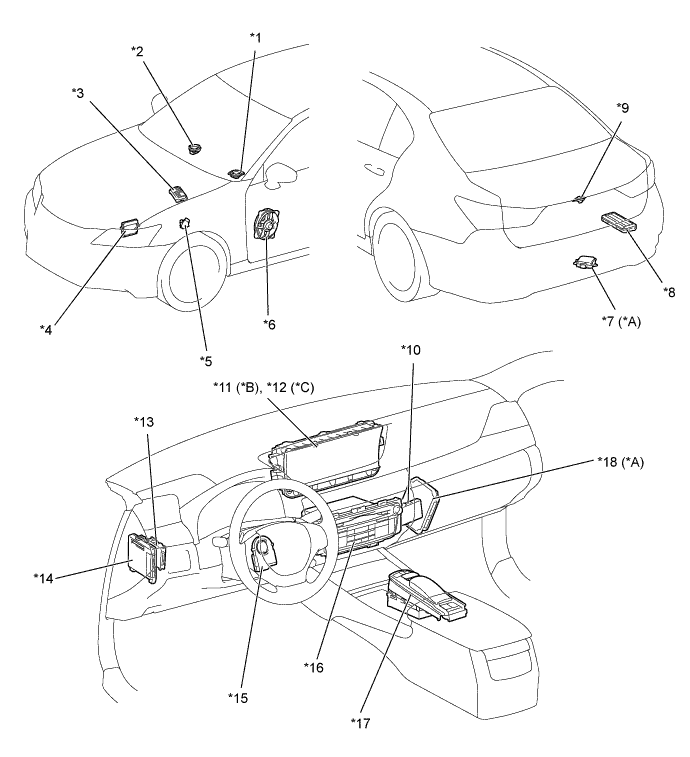

| *A |
Models with Lexus Dynamic Handling System |
*B |
Models with 8-inch Display |
| *C |
Models with 12.3-inch Display |
- |
- |
| *1 |
Front No. 2 Speaker Assembly |
*2 |
Front No. 3 Speaker Assembly |
| *3 |
Skid Control ECU Assembly |
*4 |
ECM |
| *5 |
Park/Neutral Position Switch Assembly |
*6 |
Front No. 1 Speaker Assembly |
| *7 |
Rear Steering Control ECU |
*8 |
Stereo Component Amplifier Assembly |
| *9 |
Rear Television Camera Assembly |
*10 |
Network Gateway ECU |
| *11 |
Multi-display |
*12 |
Accessory Meter Assembly |
| *13 |
Clearance Warning ECU Assembly |
*14 |
Main Body ECU (Multiplex Network Body ECU) |
| *15 |
Steering Control Sensor |
*16 |
Multi-media Module Receiver Assembly |
| *17 |
Remote Touch |
*18 |
Front Steering Control ECU |
