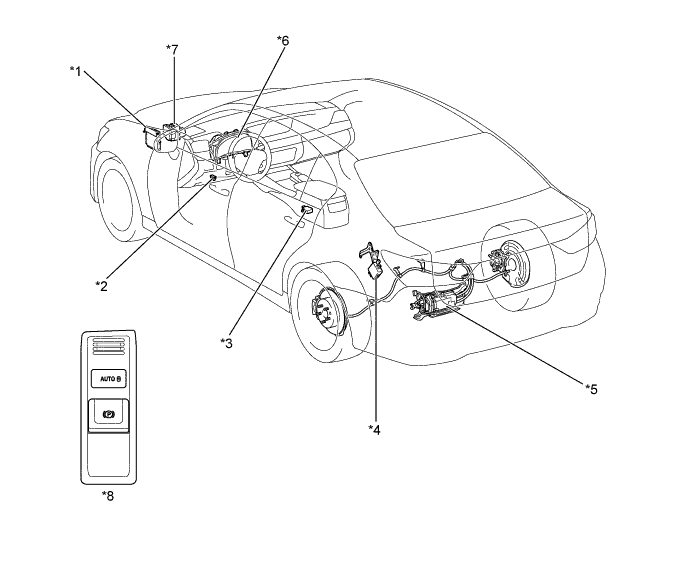

ELECTRIC PARKING BRAKE SYSTEM PARTS LOCATION
| *1 | ECM | *2 | DLC3 |
| *3 | Yawrate Sensor | *4 | Parking Brake ECU Assembly |
| *5 | Parking Brake with Bracket Actuator Assembly | *6 | Combination Meter Assembly - Parking Brake Indicator Light - Brake System Warning Light (Yellow Indicator) - Master Warning Light - Multi-information Display - Multi Buzzer |
| *7 | Brake Actuator Assembly - Skid Control ECU |
*8 | Electric Parking Brake Switch Assembly - Manual Switch - Auto Switch - Indicator Light |
