ELECTRIC PARKING BRAKE SYSTEM PARTS LOCATION

A01FC7XE01

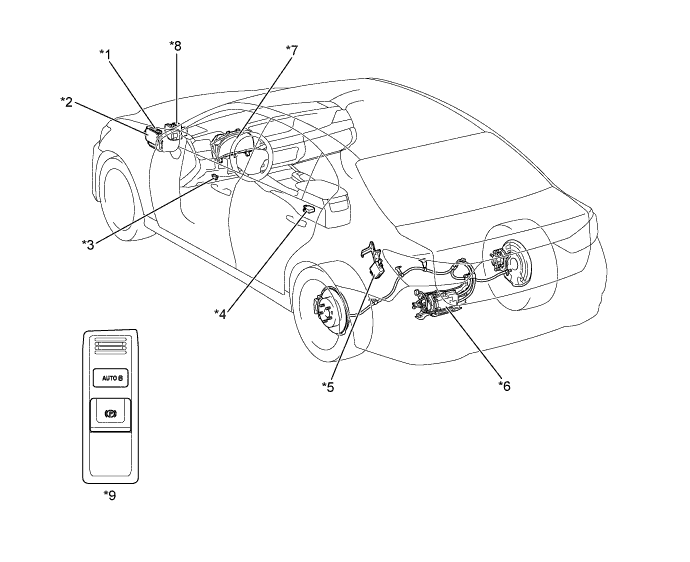

Text in Illustration
*1 ECM *2 TCM (Models with AA81E Automatic Transmission)
*3 DLC3 *4 Yawrate Sensor
*5 Parking Brake ECU Assembly *6 Parking Brake with Bracket Actuator Assembly
*7

Combination Meter Assembly


  • Parking Brake Indicator Light

  • Brake System Warning Light (Yellow Indicator)

  • Master Warning Light

  • Multi-information Display

  • Multi Buzzer

 *8

Brake Actuator Assembly


  • Skid Control ECU
*9

Electric Parking Brake Switch Assembly


  • Manual Switch

  • Auto Switch

  • Indicator Light

 - -
