ABOUT THIS VEHICLE STRUCTURAL OUTLINE


  1. for Wagon

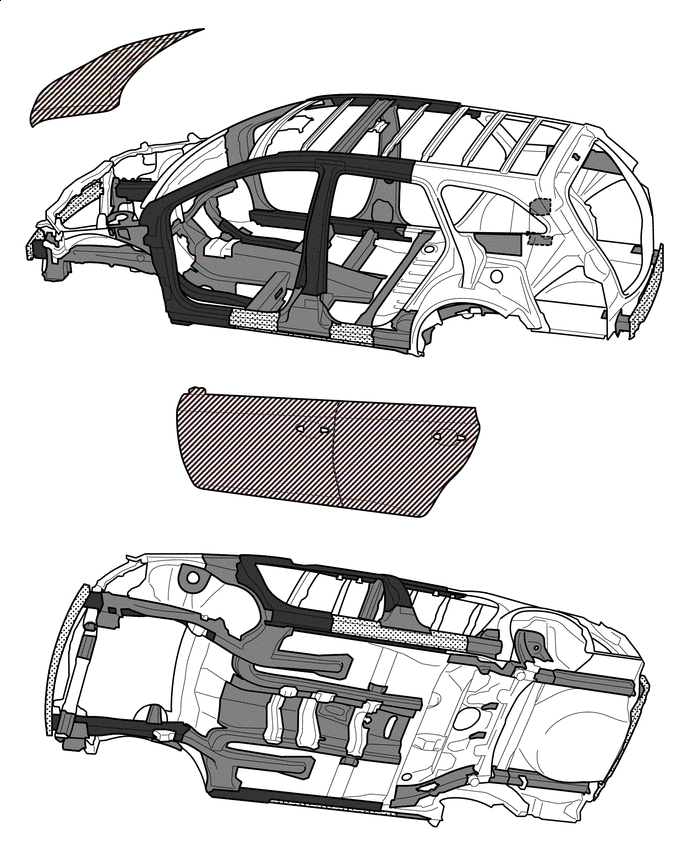

    A0032NYC01
    A0032OB 980 MPa Ultra High Strength Steel A0032D0 590 MPa High Strength Steel
    A0032L0 440 MPa High Strength Steel A0032E4 340 MPa High Strength Steel

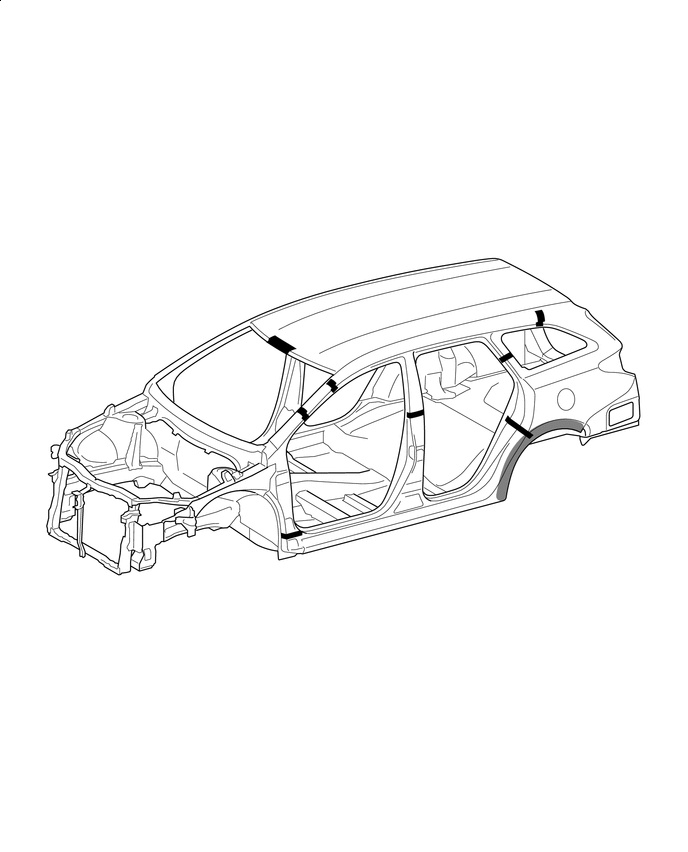

    A0032MUC01
    A0032D0 Foamed Sealing Material Application Areas (See the painting/coating) A0032L0 Adhesive Application Area

  2. for Hatchback

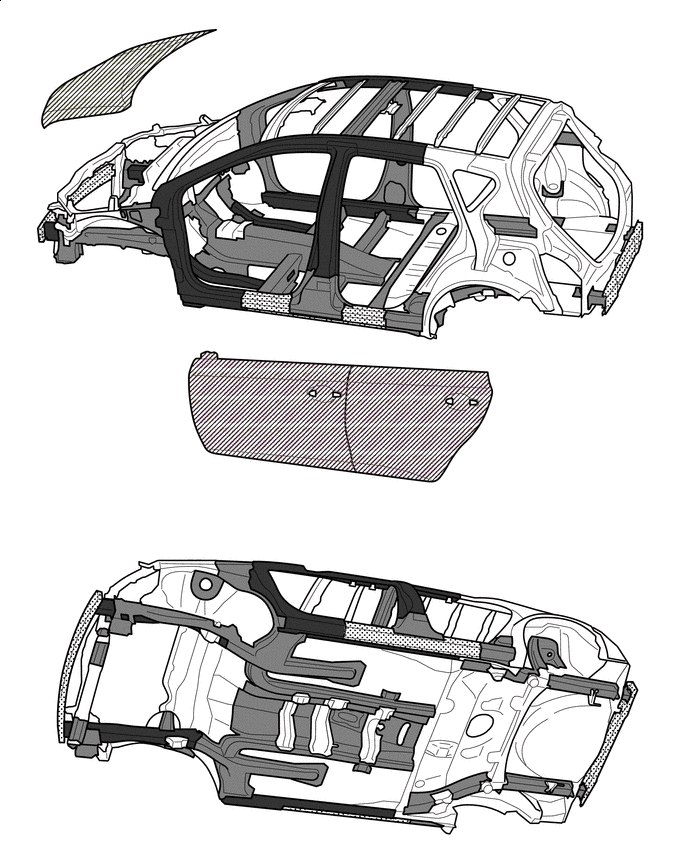

    A0032DJC01
    A0032OB 980 MPa Ultra High Strength Steel A0032D0 590 MPa High Strength Steel
    A0032L0 440 MPa High Strength Steel A0032E4 340 MPa High Strength Steel

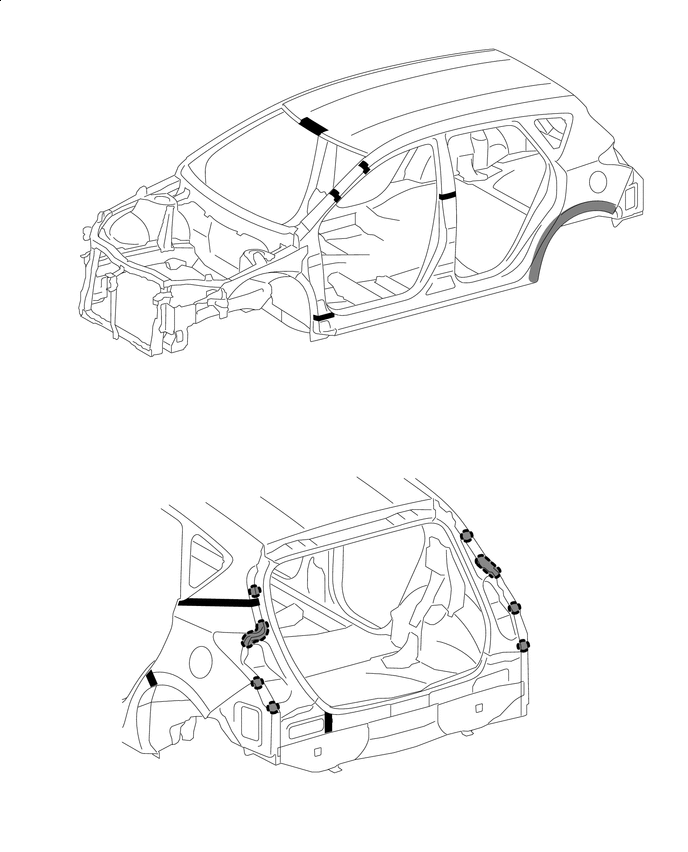

    A0032KGC01
    A0032D0 Foamed Sealing Material Application Areas (See the painting/coating) A0032L0 Adhesive Application Area
    A0032LU Laser Welding - -
