WHEN REMOVING,INSTALLING,REPAIRING OR REPLACING PARTS COMPONENTS

Tech Tips

The shapes and names of parts and the general layout may differ depending on the vehicle grade and options.


  1. FRONT BUMPER

    A0032LGC04
    *1 FRONT SPOILER PROTECTOR - -
    A0032KNC02
    *1 FRONT BUMPER ASSEMBLY - -
    A0032E3C01
    *1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    *3 FRONT BUMPER SIDE RETAINER LH *4 FRONT BUMPER SIDE RETAINER RH
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  2. REAR BUMPER (for Wagon)

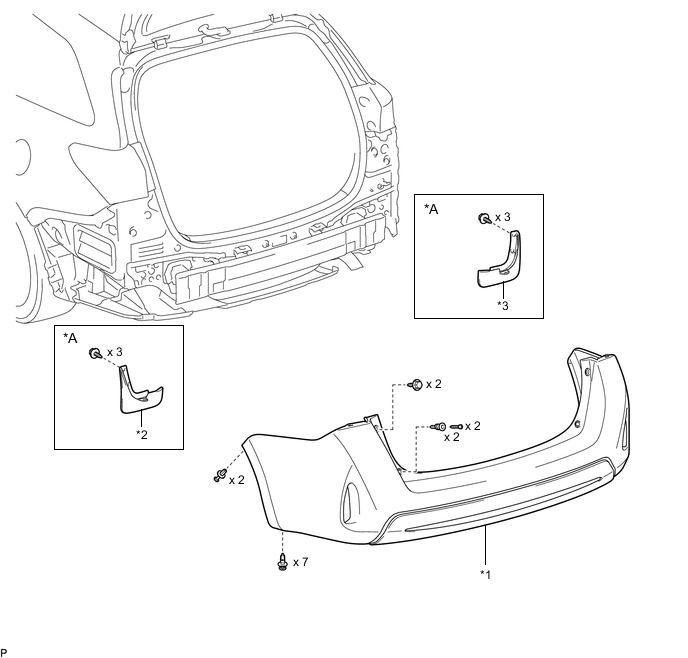

    A0032FUC01
    *A w/ Mudguard - -
    *1 REAR BUMPER ASSEMBLY *2 REAR QUARTER PANEL MUDGUARD LH
    *3 REAR QUARTER PANEL MUDGUARD RH - -

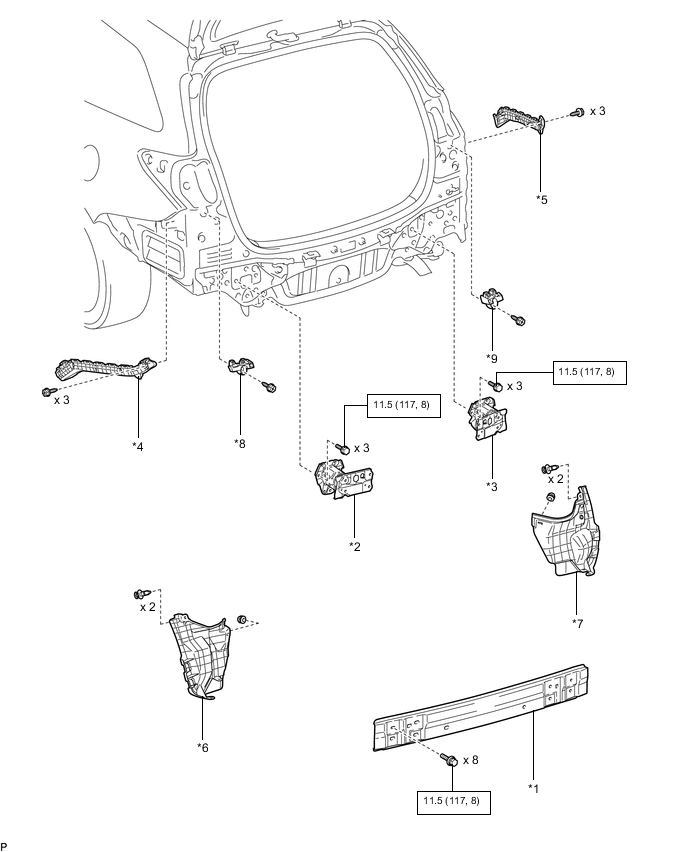

    A0032FTC01
    *1 NO. 1 REAR BUMPER REINFORCEMENT *2 REAR BUMPER ARM SUB-ASSEMBLY LH
    *3 REAR BUMPER ARM SUB-ASSEMBLY RH *4 REAR BUMPER SIDE RETAINER LH
    *5 REAR BUMPER SIDE RETAINER RH *6 REAR BUMPER SIDE SEAL LH
    *7 REAR BUMPER SIDE SEAL RH *8 UPPER REAR BUMPER RETAINER LH
    *9 UPPER REAR BUMPER RETAINER RH - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  3. REAR BUMPER (for Hatchback)

    A0032BQC02
    *A w/ Mudguard - -
    *1 LICENSE PLATE LIGHT ASSEMBLY *2 REAR BUMPER ASSEMBLY
    *3 REAR QUARTER PANEL MUDGUARD LH *4 REAR QUARTER PANEL MUDGUARD RH
    A0032DGC01
    *1 NO. 1 REAR BUMPER REINFORCEMENT *2 REAR BUMPER ARM SUB-ASSEMBLY LH
    *3 REAR BUMPER ARM SUB-ASSEMBLY RH *4 REAR BUMPER SIDE RETAINER LH
    *5 REAR BUMPER SIDE RETAINER RH *6 REAR BUMPER SIDE SEAL LH
    *7 REAR BUMPER SIDE SEAL RH *8 UPPER REAR BUMPER RETAINER LH
    *9 UPPER REAR BUMPER RETAINER RH - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  4. UPPER INSTRUMENT PANEL

    A0032P6C01
    *1 STEERING WHEEL ASSEMBLY *2 STEERING WHEEL ASSEMBLY SET NUT
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

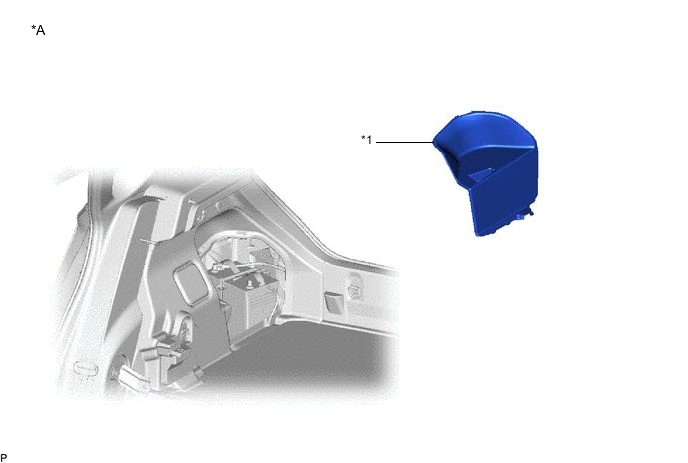

    A0032O7C30
    *A for Hatchback - -
    *1 BATTERY BOX COVER - -

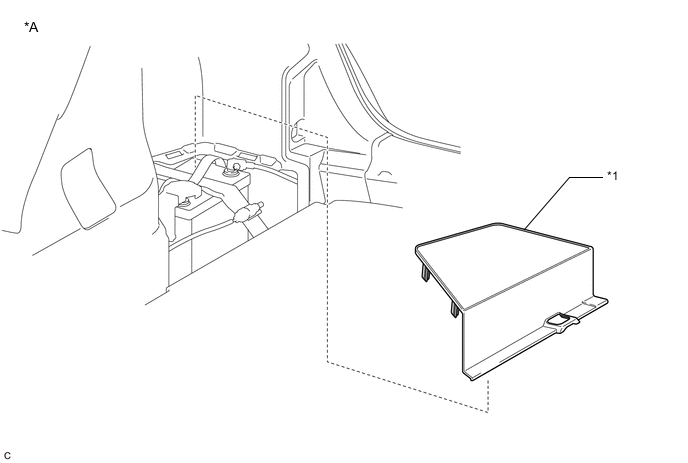

    A0032ICC03
    *A for Wagon - -
    *1 BATTERY BOX COVER - -
    A0032LPC01
    *1 CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
    *3 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY *4 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
    *5 NO. 1 METER HOOD CLUSTER - -
    A0032ELC02
    *1 CENTER INSTRUMENT CLUSTER FINISH PANEL *2 FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    *3 FRONT PILLAR GARNISH LH *4 INSTRUMENT SIDE PANEL LH
    *5 UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY *6 FRONT PILLAR GARNISH CLIP
    A0032JWC02
    *1 FRONT DOOR OPENING TRIM WEATHERSTRIP RH *2 FRONT PILLAR GARNISH RH
    *3 INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY *4 INSTRUMENT SIDE PANEL RH
    *5 FRONT PILLAR GARNISH CLIP - -
    A0032H3C01
    *1 UPPER INSTRUMENT PANEL ASSEMBLY - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  5. LOWER INSTRUMENT PANEL

    A0032B5C01
    *A w/o Power Outlet Socket - -
    *1 CONSOLE BOX CARPET *2 FRONT NO. 1 CONSOLE BOX INSERT
    *3 FRONT NO. 2 CONSOLE BOX INSERT *4 LOWER CONSOLE COVER
    *5 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL *6 REAR CONSOLE BOX COVER
    *7 UPPER CONSOLE PANEL *8 UPPER CONSOLE PANEL SUB-ASSEMBLY
    A0032J9C01
    *A w/ Power Outlet Socket *B w/o Power Outlet Socket
    *1 REAR CONSOLE BOX ASSEMBLY - -
    A0032IAC01
    *A for LHD *B for RHD
    *C w/ Instrument Panel Under Cover - -
    *1 CONSOLE BOX ASSEMBLY *2 COWL SIDE TRIM BOARD LH
    *3 FRONT DOOR SCUFF PLATE LH *4 LOWER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    *5 LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY *6 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    *7 NO. 1 SWITCH HOLE BASE *8 NO. 2 SWITCH HOLE BASE
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -
    A0032GWC01
    *A w/o Radio Receiver *B w/ Radio Receiver
    *1 AIR CONDITIONING CONTROL ASSEMBLY *2 RADIO RECEIVER ASSEMBLY WITH BRACKET
    *3 STEREO OPENING COVER WITH BRACKET - -
    A0032NXC01
    *A w/ Instrument Panel Under Cover - -
    *1 COWL SIDE TRIM BOARD RH *2 FRONT DOOR SCUFF PLATE RH
    *3 GLOVE COMPARTMENT DOOR ASSEMBLY *4 GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    *5 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY - -
    A0032DHC01
    *1 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY *2 LOWER INSTRUMENT PANEL SUB-ASSEMBLY

  6. INTERIOR TRIM (for Wagon)

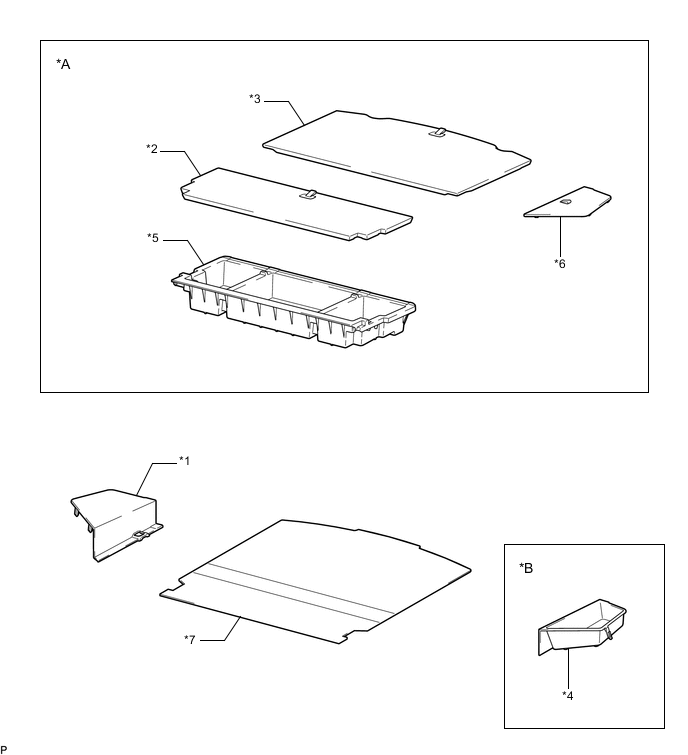

    A0032LQC01
    *A w/ Deck Board *B w/o Woofer
    *1 BATTERY BOX COVER *2 DECK BOARD ASSEMBLY
    *3 DECK BOARD SUB-ASSEMBLY *4 DECK FLOOR BOX LH
    *5 FRONT DECK FLOOR BOX *6 NO. 3 DECK BOARD SUB-ASSEMBLY
    *7 REAR FLOOR MAT ASSEMBLY - -

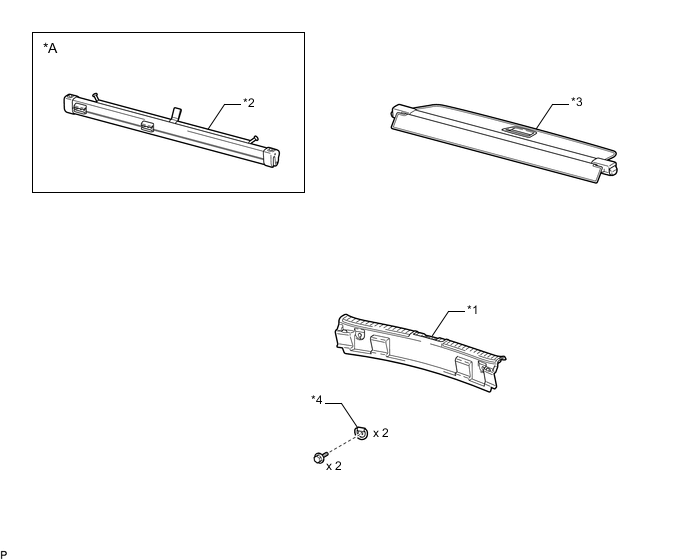

    A0032LFC01
    *A w/ Partition Net - -
    *1 REAR DECK TRIM COVER *2 ROOM PARTITION NET ASSEMBLY
    *3 TONNEAU COVER ASSEMBLY *4 LUGGAGE HOLD BELT STRIKER ASSEMBLY
    A0032IJC01
    *1 CENTER PILLAR GARNISH ASSEMBLY LH *2 CENTER PILLAR LOWER GARNISH LH
    *3 COWL SIDE TRIM BOARD LH *4 FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    *5 FRONT DOOR SCUFF PLATE LH *6 FRONT PILLAR GARNISH LH
    *7 FRONT SEAT OUTER BELT ASSEMBLY LH *8 LAP BELT OUTER ANCHOR COVER
    *9 REAR DOOR OPENING TRIM WEATHERSTRIP LH *10 REAR DOOR SCUFF PLATE LH
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

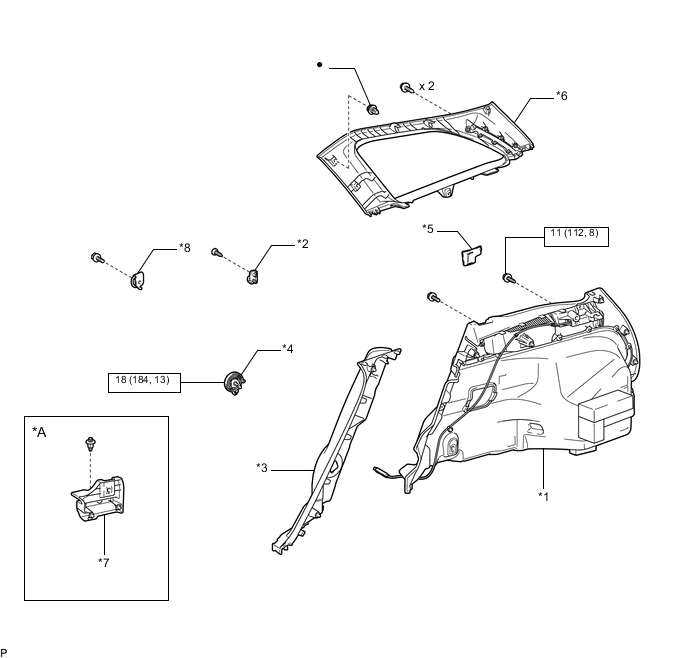

    A0032PCC01
    *A w/ Deck Board - -
    *1 DECK TRIM SIDE PANEL ASSEMBLY LH *2 NO. 2 DECK SIDE TRIM HOOK
    *3 REAR SEAT SIDE GARNISH LH *4 REAR SEATBACK HINGE SUB-ASSEMBLY LH
    *5 RECLINING REMOTE CONTROL BEZEL LH *6 ROOF SIDE INNER GARNISH ASSEMBLY LH
    *7 DECK SIDE TRIM BOX LH *8 LUGGAGE HOLD BELT STRIKER ASSEMBLY
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

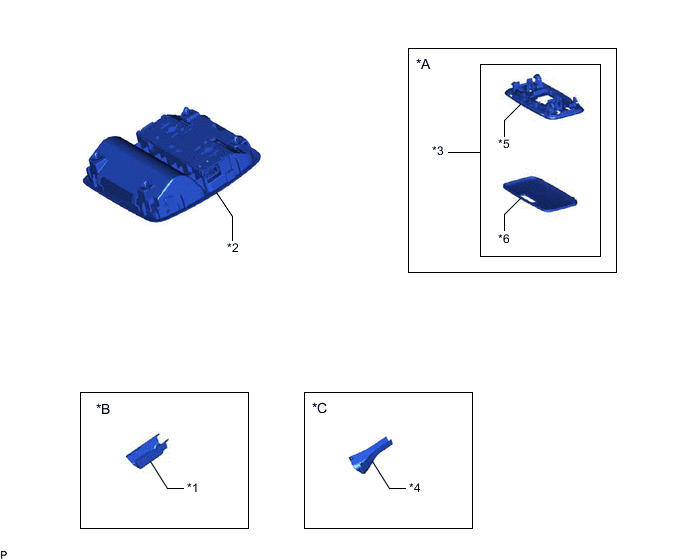

    A0032KCC01
    *A for Slide Switch Type *B w/ EC Mirror
    *C w/ Rain Sensor - -
    *1 INNER REAR VIEW MIRROR STAY HOLDER COVER *2 MAP LIGHT ASSEMBLY
    *3 NO. 1 ROOM LIGHT ASSEMBLY *4 RAIN SENSOR COVER
    *5 NO. 1 ROOM LIGHT HOUSING *6 NO. 1 ROOM LIGHT LENS

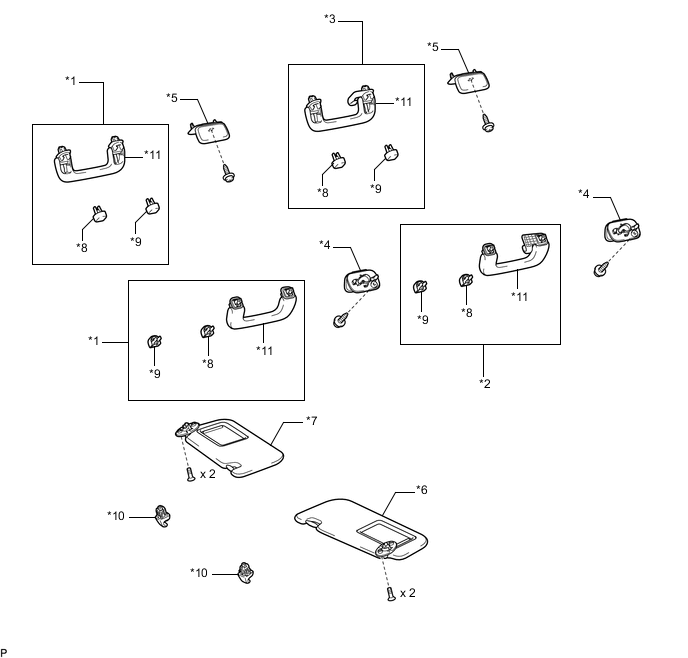

    A0032FGC01
    *1 ASSIST GRIP ASSEMBLY *2 REAR ASSIST GRIP ASSEMBLY LH
    *3 REAR ASSIST GRIP ASSEMBLY RH *4 REAR ROOM PARTITION NET HOOK LH
    *5 REAR ROOM PARTITION NET HOOK RH *6 VISOR ASSEMBLY LH
    *7 VISOR ASSEMBLY RH *8 ASSIST GRIP COVER LH
    *9 ASSIST GRIP COVER RH *10 VISOR HOLDER
    *11 ASSIST GRIP - -

  7. INTERIOR TRIM (for Hatchback)

    A0032I1C01
    *A w/ Deck Board *B w/o Deck Floor Box
    *C w/ Deck Floor Box *D w/o Woofer
    *E w/ Woofer - -
    *1 DECK BOARD ASSEMBLY *2 DECK FLOOR BOX LH
    *3 DECK FLOOR BOX RH *4 REAR DECK FLOOR BOX
    *5 REAR FLOOR MAT ASSEMBLY - -
    A0032ONC13
    *A for Clip Type *B for Hook Type
    *C w/ Deck Board *D w/o Deck Board
    *E w/ Package Tray Trim - -
    *1 PACKAGE TRAY TRIM PANEL ASSEMBLY *2 REAR DECK TRIM COVER
    *3 LUGGAGE HOLD BELT STRIKER ASSEMBLY - -
    A0032IJC01
    *1 CENTER PILLAR GARNISH ASSEMBLY LH *2 CENTER PILLAR LOWER GARNISH LH
    *3 COWL SIDE TRIM BOARD LH *4 FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    *5 FRONT DOOR SCUFF PLATE LH *6 FRONT PILLAR GARNISH LH
    *7 FRONT SEAT OUTER BELT ASSEMBLY LH *8 LAP BELT OUTER ANCHOR COVER
    *9 REAR DOOR OPENING TRIM WEATHERSTRIP LH *10 REAR DOOR SCUFF PLATE LH
    *11 REAR UNDER SIDE COVER LH - -
    ● Non-reusable part A0032NG N*m (kgf*cm, ft.*lbf): Specified torque
    A0032J8C01
    *A for Clip Type *B for Hook Type
    *C w/ Deck Board - -
    *1 DECK TRIM SIDE PANEL ASSEMBLY LH *2 LOWER DECK TRIM SIDE BOARD LH
    *3 NO. 2 DECK SIDE TRIM HOOK *4 REAR SEAT SIDE GARNISH LH
    *5 REAR SEATBACK HINGE SUB-ASSEMBLY LH *6 ROOF SIDE INNER GARNISH ASSEMBLY LH
    *7 DECK TRIM SERVICE HOLE COVER *8 LUGGAGE HOLD BELT STRIKER ASSEMBLY
    *9 DECK SIDE TRIM BOX LH - -
    ● Non-reusable part A0032NG N*m (kgf*cm, ft.*lbf): Specified torque
    A0032KCC02
    *A for Slide Switch Type *B w/ EC Mirror
    *C w/ Rain Sensor - -
    *1 INNER REAR VIEW MIRROR STAY HOLDER COVER *2 MAP LIGHT ASSEMBLY
    *3 NO. 1 ROOM LIGHT ASSEMBLY *4 RAIN SENSOR COVER
    *5 NO. 1 ROOM LIGHT HOUSING *6 NO. 1 ROOM LIGHT LENS
    A0032FDC01
    *1 ASSIST GRIP ASSEMBLY *2 REAR ASSIST GRIP ASSEMBLY LH
    *3 REAR ASSIST GRIP ASSEMBLY RH *4 VISOR ASSEMBLY LH
    *5 VISOR ASSEMBLY RH *6 ASSIST GRIP COVER LH
    *7 ASSIST GRIP COVER RH *8 VISOR HOLDER
    *9 ASSIST GRIP - -

  8. FRONT SEAT OUTER BELT ASSEMBLY

    A0032HGC01
    *1 CENTER PILLAR GARNISH ASSEMBLY *2 CENTER PILLAR LOWER GARNISH
    *3 FRONT DOOR OPENING TRIM WEATHERSTRIP *4 FRONT DOOR SCUFF PLATE
    *5 FRONT SEAT OUTER BELT ASSEMBLY *6 FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
    *7 LAP BELT OUTER ANCHOR COVER *8 REAR DOOR OPENING TRIM WEATHERSTRIP
    *9 REAR DOOR SCUFF PLATE *10 REAR UNDER SIDE COVER
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  9. REAR SEAT INNER BELT ASSEMBLY

    A0032OEC01
    *1 REAR SEAT CUSHION ASSEMBLY *2 REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    *3 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH *4 REAR CENTER SEAT OUTER BELT ASSEMBLY
    *5 WASHER - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  10. REAR SEAT OUTER BELT ASSEMBLY (for Wagon)

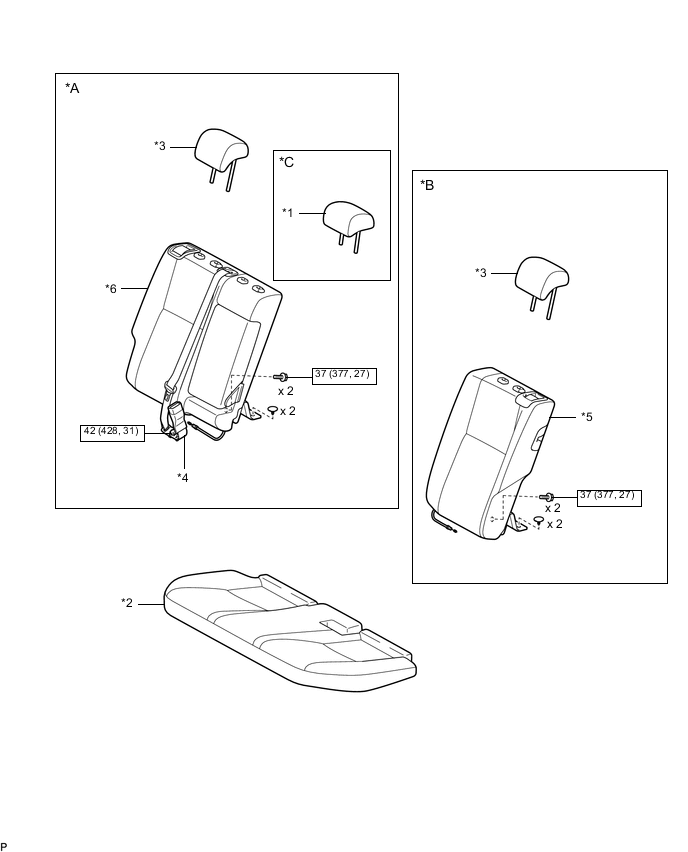

    A0032NMC01
    *A for RH Side *B for LH Side
    *C w/ Center Headrest - -
    *1 REAR SEAT CENTER HEADREST ASSEMBLY *2 REAR SEAT CUSHION ASSEMBLY
    *3 REAR SEAT HEADREST ASSEMBLY *4 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    *5 REAR SEATBACK ASSEMBLY LH *6 REAR SEATBACK ASSEMBLY RH
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

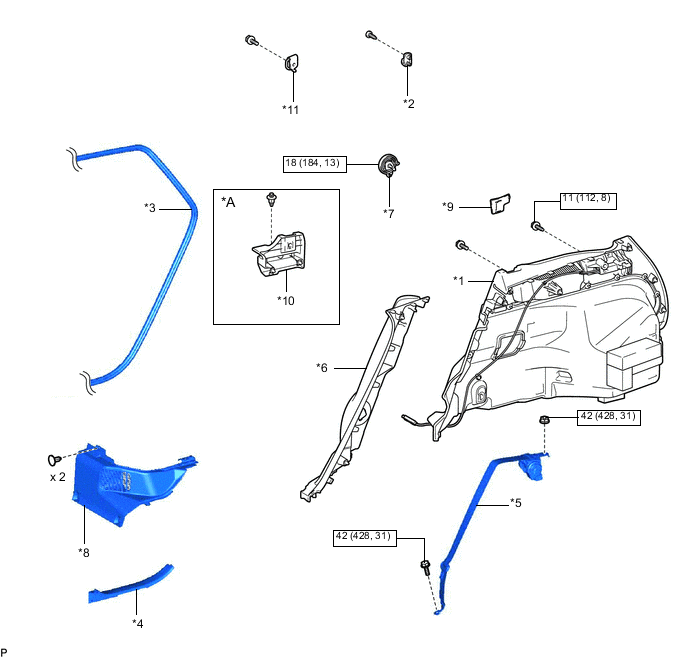

    A0032EAC02
    *A w/ Deck Board - -
    *1 DECK TRIM SIDE PANEL ASSEMBLY *2 NO. 2 DECK SIDE TRIM HOOK
    *3 REAR DOOR OPENING TRIM WEATHERSTRIP *4 REAR DOOR SCUFF PLATE
    *5 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY *6 REAR SEAT SIDE GARNISH
    *7 REAR SEATBACK HINGE SUB-ASSEMBLY *8 REAR UNDER SIDE COVER
    *9 RECLINING REMOTE CONTROL BEZEL *10 DECK SIDE TRIM BOX LH
    *11 LUGGAGE HOLD BELT STRIKER ASSEMBLY - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  11. REAR SEAT OUTER BELT ASSEMBLY (for Hatchback)

    A0032OOC01
    *A for Clip Type *B for Hook Type
    *C w/ Deck Board - -
    *1 DECK TRIM SIDE PANEL ASSEMBLY *2 LOWER DECK TRIM SIDE BOARD
    *3 NO. 2 DECK SIDE TRIM HOOK *4 REAR DOOR OPENING TRIM WEATHERSTRIP
    *5 REAR DOOR SCUFF PLATE *6 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY
    *7 REAR SEAT SIDE GARNISH *8 REAR SEATBACK HINGE SUB-ASSEMBLY
    *9 REAR UNDER SIDE COVER *10 DECK TRIM SERVICE HOLE COVER
    *11 LUGGAGE HOLD BELT STRIKER ASSEMBLY *12 DECK SIDE TRIM BOX
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  12. REAR CENTER SEAT OUTER BELT ASSEMBLY (for Wagon)

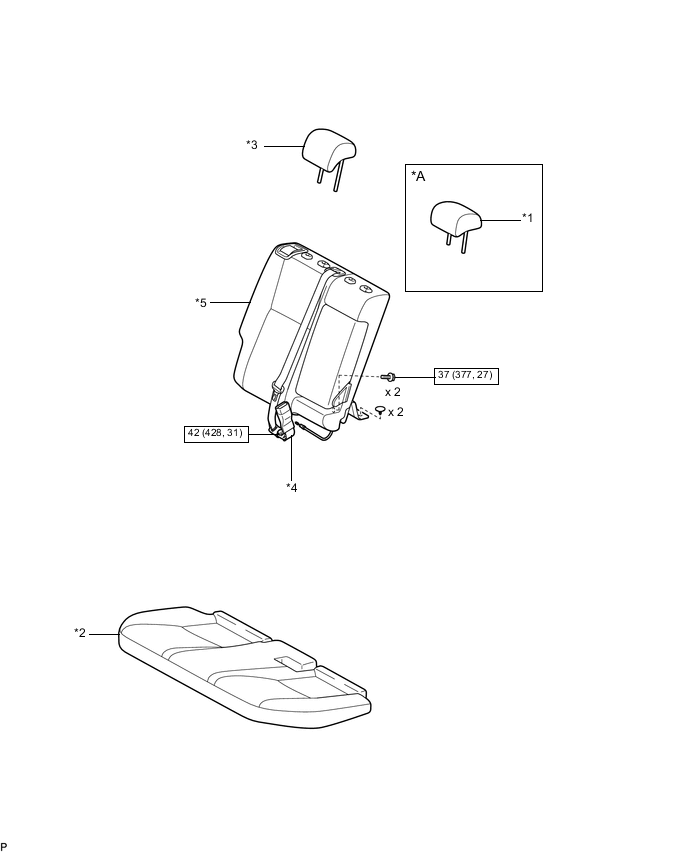

    A0032PEC01
    *A w/ Center Headrest - -
    *1 REAR SEAT CENTER HEADREST ASSEMBLY *2 REAR SEAT CUSHION ASSEMBLY
    *3 REAR SEAT HEADREST ASSEMBLY *4 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    *5 REAR SEATBACK ASSEMBLY RH - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

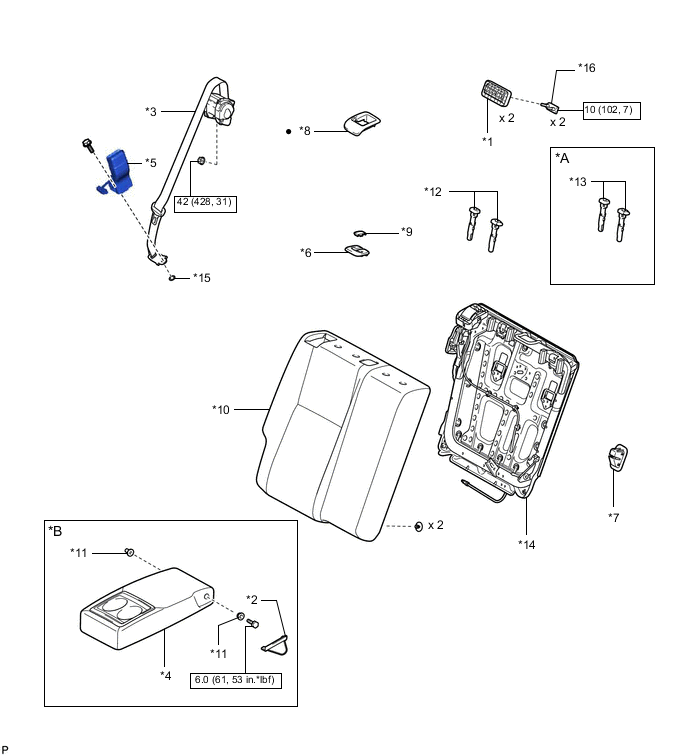

    A0032FBC01
    *A w/ Center Headrest *B w/ Center Armrest
    *1 BACK PANEL TRIM COVER *2 CENTER ARMREST HINGE COVER
    *3 REAR CENTER SEAT OUTER BELT ASSEMBLY *4 REAR SEAT CENTER ARMREST ASSEMBLY
    *5 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH *6 REAR SEAT SHOULDER BELT COVER
    *7 REAR SEATBACK COVER *8 REAR SEATBACK LOCK BEZEL RH
    *9 SEAT BELT ANCHOR COVER CAP *10 SEATBACK COVER WITH PAD
    *11 BUSH *12 REAR SEAT HEADREST SUPPORT
    *13 REAR SEAT CENTER HEADREST SUPPORT *14 REAR SEATBACK FRAME SUB-ASSEMBLY RH
    *15 WASHER *16 ROOM PARTITION NET ANCHOR
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

  13. REAR CENTER SEAT OUTER BELT ASSEMBLY (for Hatchback)

    A0032L8C01
    *A w/ Center Headrest - -
    *1 REAR SEAT CENTER HEADREST ASSEMBLY *2 REAR SEAT CUSHION ASSEMBLY
    *3 REAR SEAT HEADREST ASSEMBLY *4 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    *5 REAR SEATBACK ASSEMBLY RH - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -
    A0032JTC04
    *A w/ Center Headrest *B w/ Center Armrest
    *1 CENTER ARMREST HINGE COVER *2 REAR CENTER SEAT OUTER BELT ASSEMBLY
    *3 REAR SEAT CENTER ARMREST ASSEMBLY *4 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    *5 REAR SEAT SHOULDER BELT COVER *6 REAR SEATBACK COVER
    *7 REAR SEATBACK LOCK BEZEL RH *8 SEAT BELT ANCHOR COVER CAP
    *9 SEATBACK COVER WITH PAD *10 BUSH
    *11 REAR SEAT HEADREST SUPPORT *12 REAR SEAT CENTER HEADREST SUPPORT
    *13 REAR SEATBACK FRAME SUB-ASSEMBLY RH *14 WASHER
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

  14. FRONT SEAT ASSEMBLY

    A0032K2C01
    *A for Cold Area Specification Vehicles - -
    *1 FRONT INNER SEAT TRACK BRACKET COVER *2 FRONT OUTER SEAT TRACK BRACKET COVER
    *3 FRONT SEAT ASSEMBLY *4 FRONT SEAT HEADREST ASSEMBLY
    *5 INNER SEAT TRACK BRACKET COVER *6 OUTER SEAT TRACK COVER
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

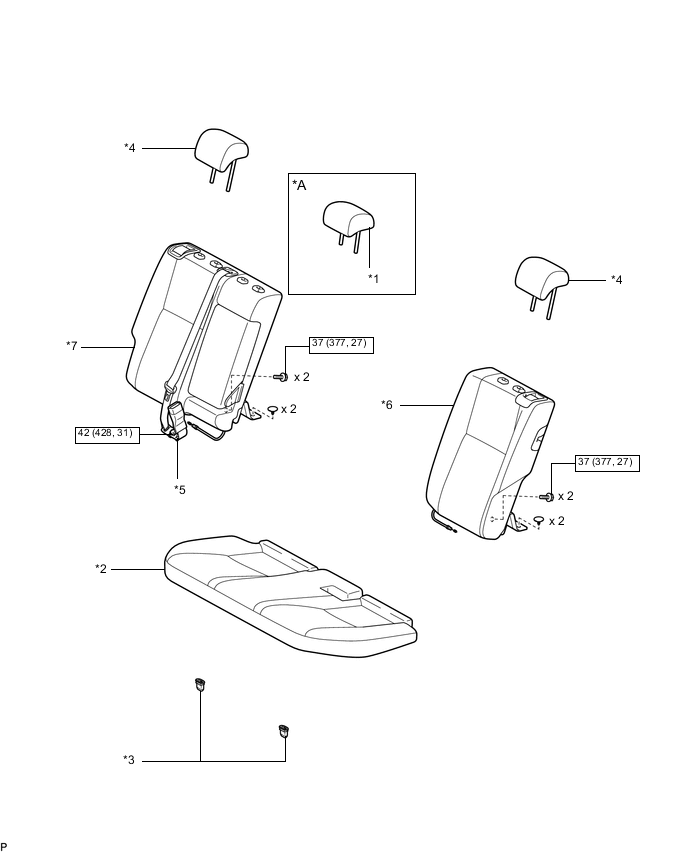

  15. REAR SEAT ASSEMBLY (for Wagon)

    A0032FNC01
    *A w/ Center Headrest - -
    *1 REAR SEAT CENTER HEADREST ASSEMBLY *2 REAR SEAT CUSHION ASSEMBLY
    *3 REAR SEAT CUSHION LOCK HOOK *4 REAR SEAT HEADREST ASSEMBLY
    *5 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH *6 REAR SEATBACK ASSEMBLY LH
    *7 REAR SEATBACK ASSEMBLY RH - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -

  16. REAR SEAT ASSEMBLY (for Hatchback)

    A0032NOC02
    *A w/ Center Headrest - -
    *1 REAR SEAT CENTER HEADREST ASSEMBLY *2 REAR SEAT CUSHION ASSEMBLY
    *3 REAR SEAT CUSHION LOCK HOOK *4 REAR SEAT HEADREST ASSEMBLY
    *5 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH *6 REAR SEATBACK ASSEMBLY LH
    *7 REAR SEATBACK ASSEMBLY RH - -
    A0032NG N*m (kgf*cm, ft.*lbf): Specified torque - -
