CAUTION LABEL ATTACHMENT POSITION


  1. After using a degreasing agent to clean the surfaces of the body where the caution labels will be attached, attach the caution labels to the positions shown in the illustration.

    Tech Tips


    • Make sure the caution label is not attached over a spot weld.

    • When attaching the caution label, make sure not to touch the label's adhesive surface.

    • To prevent the edges of the caution label from peeling, apply extra pressure to the label's periphery.

    • If the work area's temperature is 5°C or less, the caution label's adhesive will deteriorate. It is recommended that you heat the label to 20 to 40°C.


  1. for Sedan

    A0031UIC01
    *1 ECE SMOKE APPROVED NUMBER PLATE *2 COOLANT NOTICE LABEL (1NR-FE, 1ND-TV)
    *3 AIR CONDITIONER INFORMATION LABEL *4 COMBUSTION HEATER LABEL (w/ COMBUSTION HEATER)
    *5 ENGINE OIL INFORMATION LABEL(1ND-TV) *6 CHILD PROTECTION CAUTION LABEL
    *7 FUEL LABEL - -
    A0031DHC01
    *A for LHD *B LH Side
    *C RH Side - -
    *1 NAME LABEL *2 TIRE PRESSURE INFORMATION LABEL
    *3 SIDE AIRBAG CAUTION LABEL - -
    A0031TPC01
    *A for RHD *B LH Side
    *C RH Side - -
    *1 NAME LABEL *2 TIRE PRESSURE INFORMATION LABEL
    *3 SIDE AIRBAG CAUTION LABEL - -

  2. for Wagon

    A0031TOC01
    *1 ECE SMOKE APPROVED NUMBER PLATE *2 COOLANT NOTICE LABEL (1NR-FE, 1AD-FTV, 1ND-TV)
    *3 ENGINE OIL INFORMATION LABEL(1ND-TV) *4 AIR CONDITIONER INFORMATION LABEL
    *5 COMBUSTION HEATER LABEL (w/ COMBUSTION HEATER) *6 CHILD PROTECTION CAUTION LABEL
    *7 FUEL LABEL - -
    A0031CJC01
    *A for LHD *B LH Side
    *C RH Side - -
    *1 NAME LABEL *2 TIRE PRESSURE INFORMATION LABEL
    *3 SIDE AIRBAG CAUTION LABEL - -
    A0031NTC01
    *A for RHD *B LH Side
    *C RH Side - -
    *1 NAME LABEL *2 TIRE PRESSURE INFORMATION LABEL
    *3 SIDE AIRBAG CAUTION LABEL - -

  3. for Hatchback

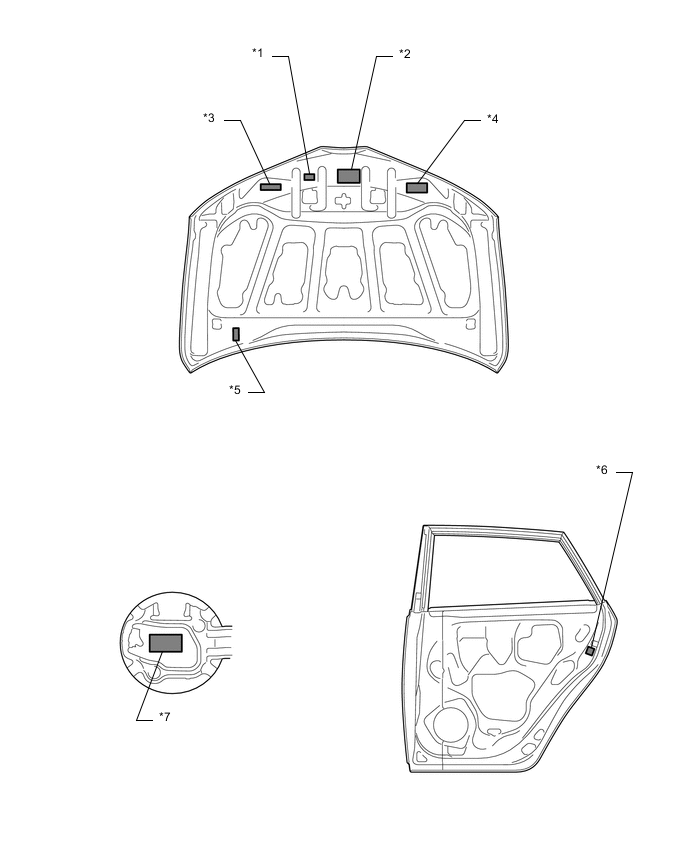

    A0031FJC01
    *1 ECE SMOKE APPROVED NUMBER PLATE *2 COOLANT NOTICE LABEL (1NR-FE, 1AD-FTV, 1ND-TV)
    *3 ENGINE OIL INFORMATION LABEL(1ND-TV) *4 AIR CONDITIONER INFORMATION LABEL
    *5 COMBUSTION HEATER LABEL (w/ COMBUSTION HEATER) *6 CHILD PROTECTION CAUTION LABEL
    *7 FUEL LABEL - -
    A0031V0C01
    *A for LHD *B LH Side
    *C RH Side - -
    *1 NAME LABEL *2 TIRE PRESSURE INFORMATION LABEL
    *3 SIDE AIRBAG CAUTION LABEL - -
    A0031NSC01
    *A for RHD *B LH Side
    *C RH Side - -
    *1 NAME LABEL *2 TIRE PRESSURE INFORMATION LABEL
    *3 SIDE AIRBAG CAUTION LABEL - -
