QUARTER PANEL(for Wagon) CUT AND JOIN REPLACEMENT SECTIONS (SMALL AREAS)

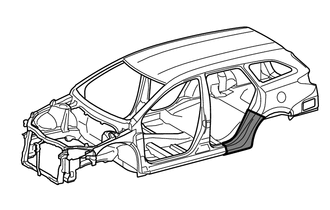

A0031QK


    Work Procedure

  1. Cut the wheel arch portion.

  2. Heat the quarter panel adhesive area and remove the quarter panel.

    Tech Tips

    Using an industrial heater gun or gas burner, heat the quarter panel to 110 to 140°C. Make sure the quarter panel does not warp.

  3. Clean off any adhesive that remains on the vehicle.

    Tech Tips


    • Using an industrial heater gun or gas burner, heat the adhesive to 110 to 140°C.

    • Using a scraper, scrape away the adhesive.

    • If adhesive remains, the strength of any subsequently applied adhesive will be weak.

  4. Using a disc sander or belt sander, scuff and sand any adhesive that remains on the vehicle.

    Tech Tips

    Scuff at a width of approximately 10 mm (0.39 in.) over the previous adhesive coating.

  5. Apply adhesive to the exposed metal areas on the vehicle. Using a spatula, spread the adhesive evenly.

  6. Apply adhesive to the vehicle again.

  7. Using #60-120 grit sandpaper, scuff the adhesive application area on the new quarter panel.

  8. Apply adhesive to the new quarter panel. Using a spatula, spread the adhesive evenly.

  9. Using a vise grip or the palms of your hands, press the quarter panel so that the thickness of the adhesive is even.

  10. Complete installation the new quarter panel.

  11. Dry the adhesive areas of the new quarter panel.

    Tech Tips


    • With dryer or equivalent (60°C): 60 minutes (complete hardening: 90 minutes)

    • Ambient temperature (25°C): 12 hours (complete hardening: 24 hours)


  1. REMOVAL

    Symbol Meaning
    A0031WT Remove Weld Points
    A0031EO Cut and Join Location
    A0031BN Cut Location for Supply Parts

      REMOVAL POINT

    1. *a in illustration indicates where the adhesive is located.

    2. Roughly cut open the panel so that the adhesive can be reached. Cut through the adhesive with a cut chisel to remove the panel.

      Tech Tips

      In cases where the adhesive cannot be removed with a cut chisel, heat the adhesive with an industrial heater gun or gas burner taking care not to cause panel deformation by overheating.

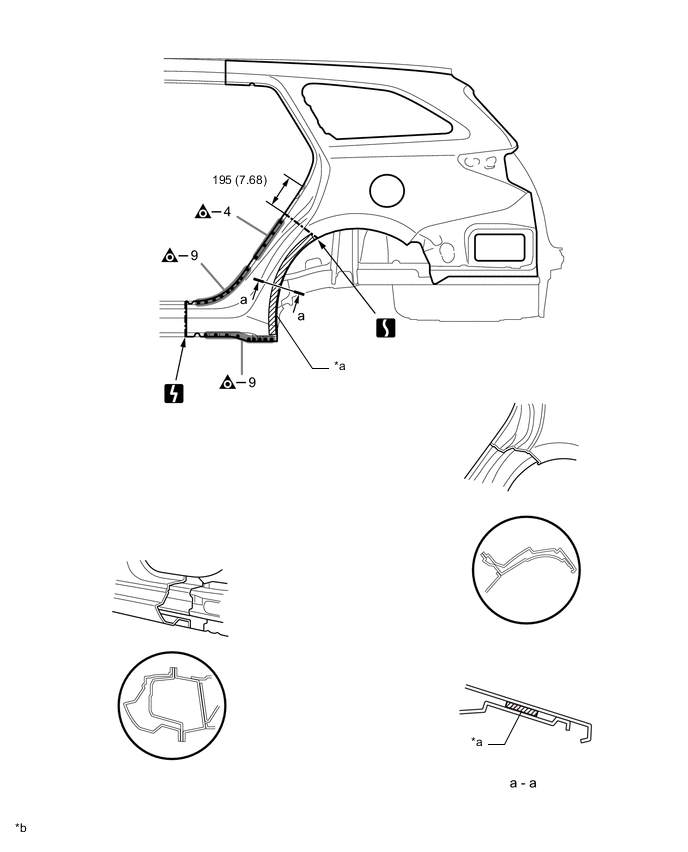

    A0031SJC01
    *b mm (in.) - -

  2. INSTALLATION

    Symbol Meaning
    A0031NN Spot Weld
    A0031JY Plug Weld
    A0031OI Butt Weld
    A0031NJ Body Sealer

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. Before installing a new part, apply body sealer.

      Tech Tips

      Apply body sealer in an even, continuous bead.

    4. Apply adhesive (3MTMAutomixTMPanel Bonding Adhesive #8115) to the area indicated by *a in the illustration.

      Tech Tips

      Apply enough adhesive to the panels.

    5. After welding, apply the foamed sealing material to the corresponding parts. (See the painting/coating)

    6. After welding, apply body sealer to the corresponding parts. (See the painting/coating)

    7. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

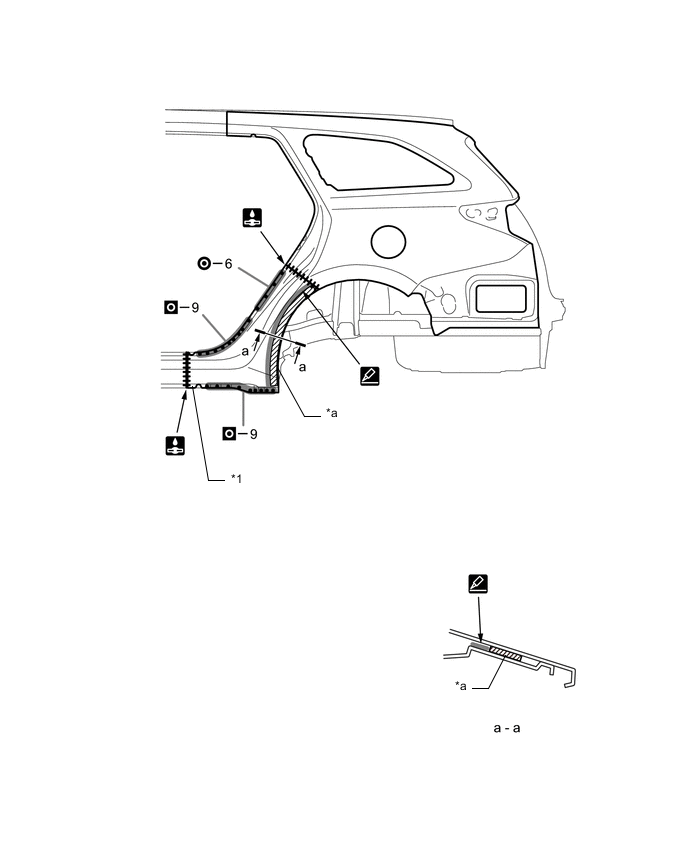

    A0031KTC01
    *1 QUARTER PANEL - -
