CENTER BODY PILLAR(for Hatchback, Wagon) CUT AND JOIN REPLACEMENT SECTIONS

A0031K9

  1. REMOVAL

    Symbol Meaning
    A0031WT Remove Weld Points
    A0031EO Cut and Join Location
    A0031BN Cut Location for Supply Parts

      REMOVAL POINT

    1. Carefully cut the center body pillar reinforcement sub-assembly so not to damage *a.

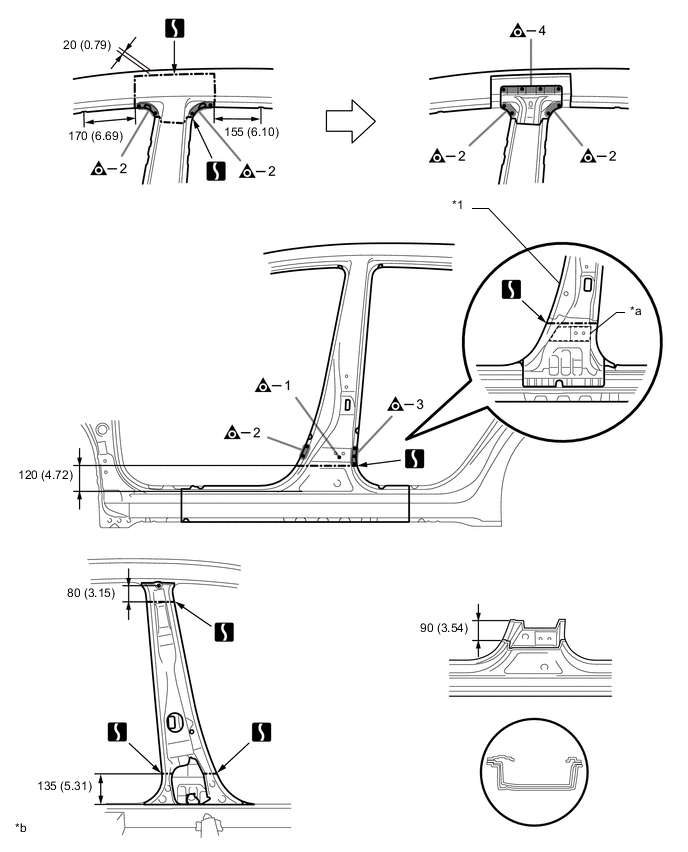

    A0031D9C01
    *1 CENTER BODY PILLAR REINFORCEMENT SUB-ASSEMBLY - -
    *b mm (in.) - -

  2. INSTALLATION

    Symbol Meaning
    A0031JY Plug Weld
    A0031UH Plug Weld
    A0031EO Cut and Join Location
    A0031OI Butt Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. If the entire supply part is not needed, remove the part of the supply part that is needed.

    4. Carefully cut the center body pillar reinforcement sub-assembly so not to damage *a.

    5. Before temporarily installing the new parts, weld the center body pillar reinforcement sub-assembly and center body pillar reinforce sub-assembly lower with the standard number of welding points.

    6. After welding the center body pillar reinforcement sub-assembly and center body pillar reinforce sub-assembly lower to the vehicle side, install the center body pillar outer.

    7. After welding, apply the foamed sealing material to the corresponding parts. (See the painting/coating)

    8. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A0031LRC03
    *1 CENTER BODY PILLAR REINFORCEMENT SUB-ASSEMBLY *2 CENTER BODY PILLAR REINFORCE SUB-ASSEMBLY LOWER
    *b mm (in.) - -

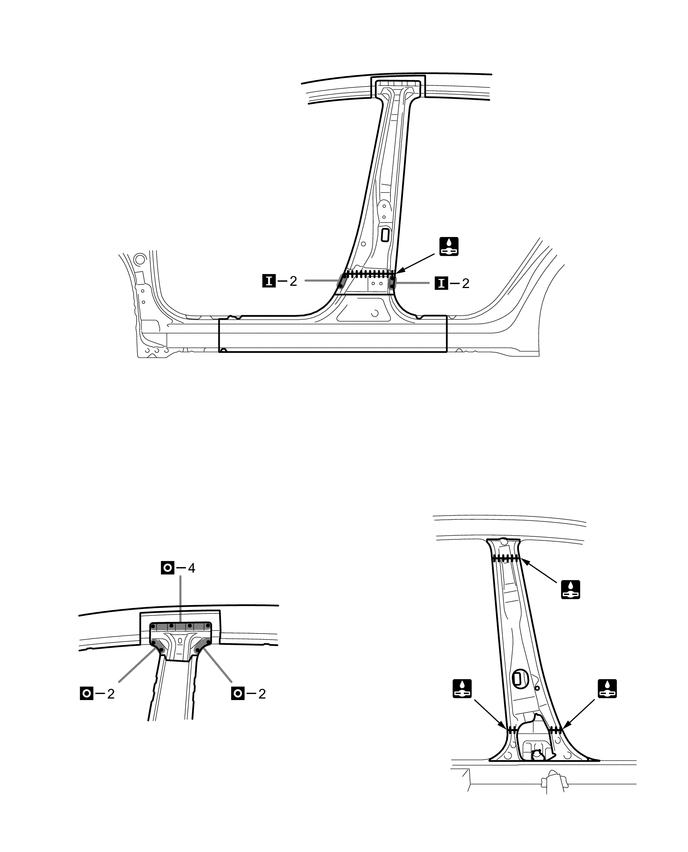

    A0031TL

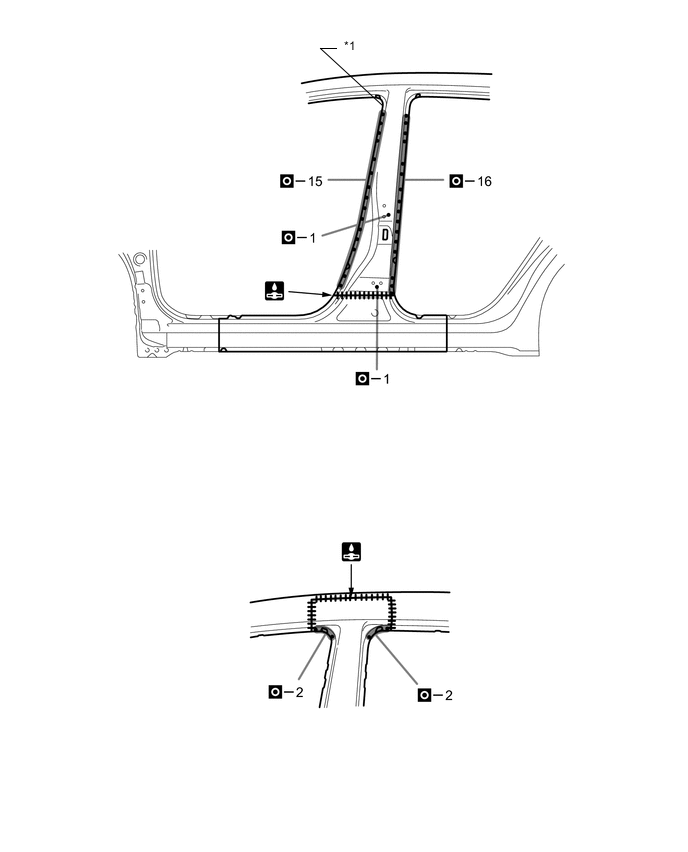

    A0031OVC01
    *1 CENTER BODY PILLAR OUTER - -
