SILENCER SHEET INSTALLATION AREAS

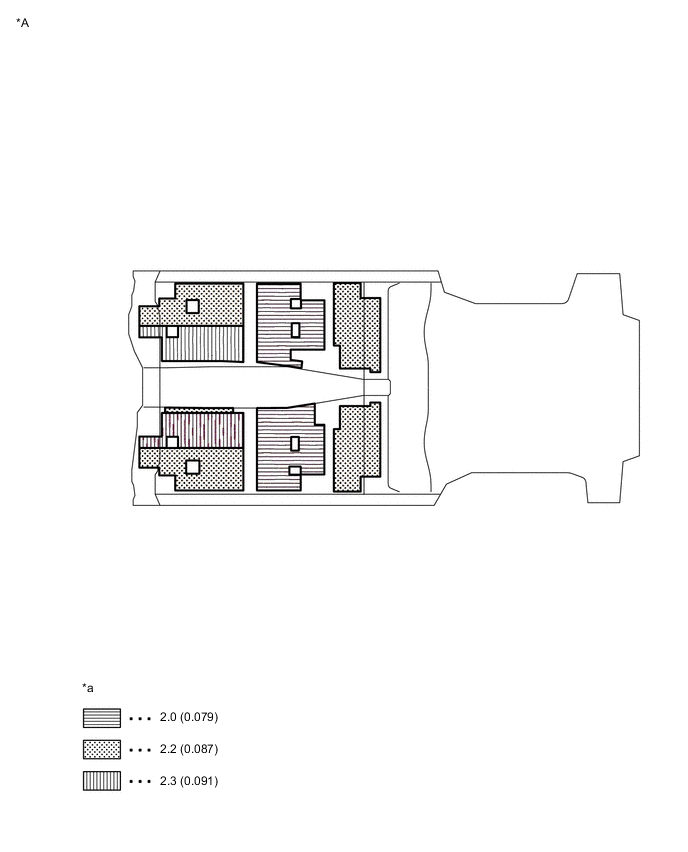

| *A | for 3 Door | - | - |
| *a | Thickness of Silencer Sheet mm (in.) | - | - |
-
Substitute silencer sheets for the laminate coat application areas.

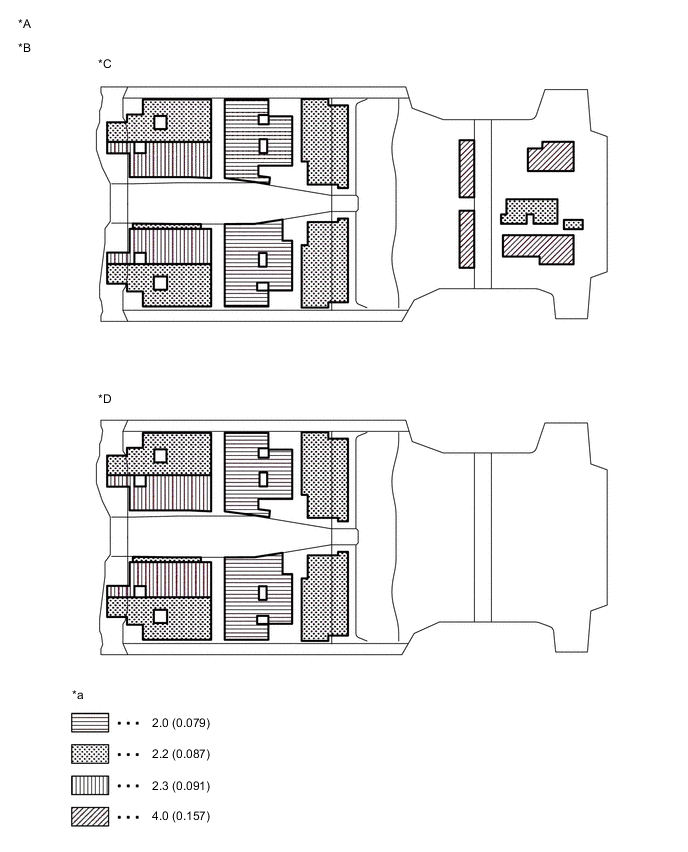

| *A | for 5 Door | *B | for Type A |
| *C | w/o Rear No. 2 Seat | *D | w/ Rear No. 2 Seat |
| *a | Thickness of Silencer Sheet mm (in.) | - | - |
-
Substitute silencer sheets for the laminate coat application areas.

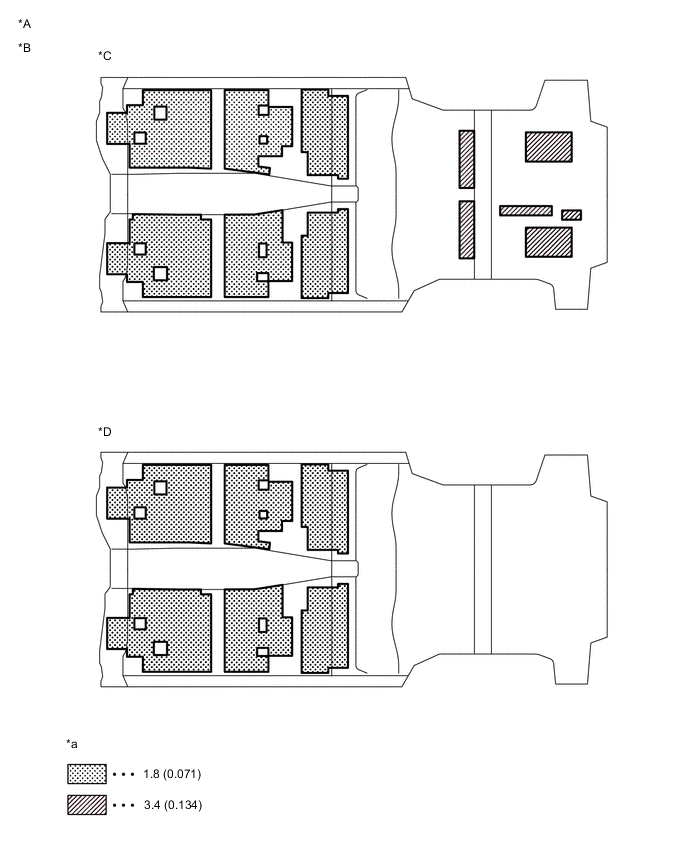

| *A | for 5 Door | *B | for Type B |
| *C | w/o Rear No. 2 Seat | *D | w/ Rear No. 2 Seat |
| *a | Thickness of Silencer Sheet mm (in.) | - | - |
-
Substitute silencer sheets for the laminate coat application areas.

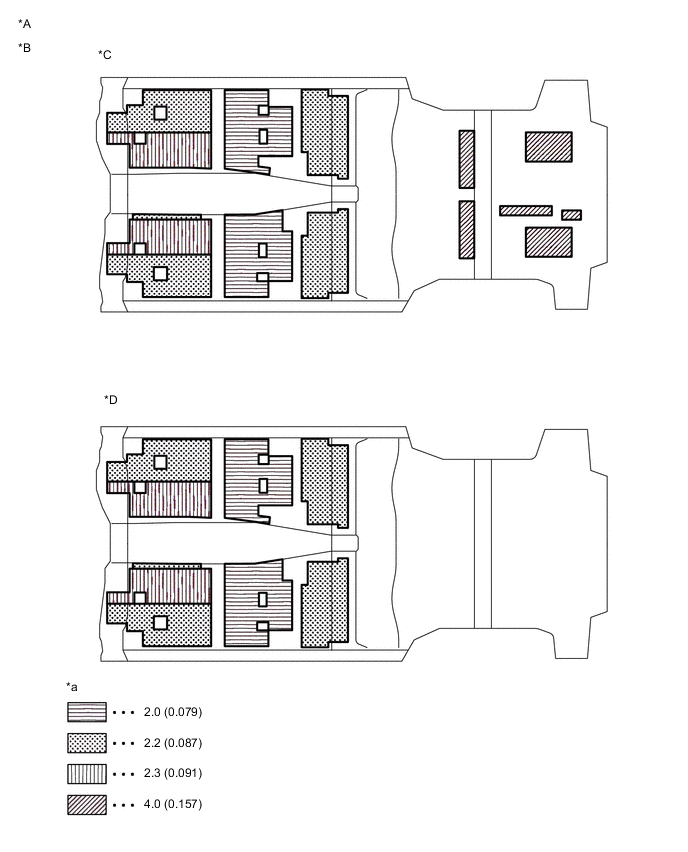

| *A | for 5 Door | *B | for Type C |
| *C | w/o Rear No. 2 Seat | *D | w/ Rear No. 2 Seat |
| *a | Thickness of Silencer Sheet mm (in.) | - | - |
-
Substitute silencer sheets for the laminate coat application areas.

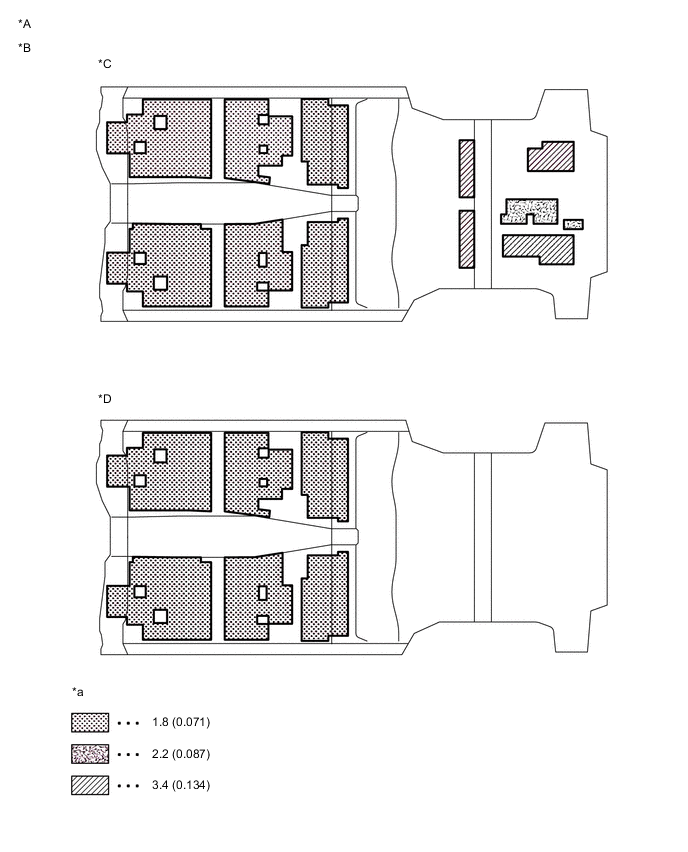

| *A | for 5 Door | *B | for Type D |
| *C | w/o Rear No. 2 Seat | *D | w/ Rear No. 2 Seat |
| *a | Thickness of Silencer Sheet mm (in.) | - | - |
-
Substitute silencer sheets for the laminate coat application areas.
