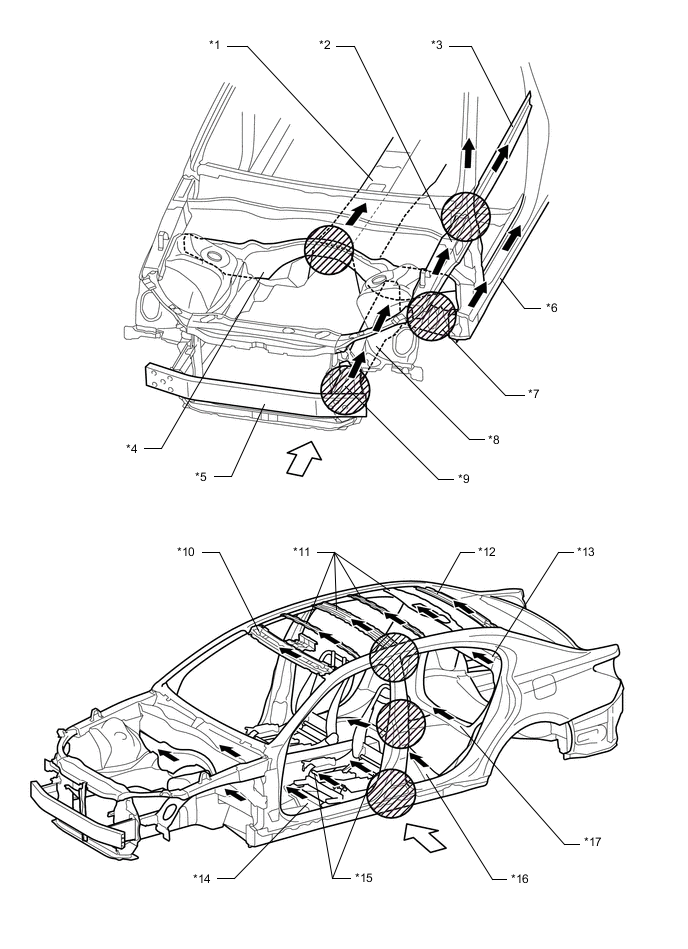

| *1 |
Front Floor Center Panel |
*2 |
Front Apron to Cowl Side Member |
| *3 |
Front Door Inside Panel Reinforcement |
*4 |
Front Side Member to Dash Panel Crossmember |
| *5 |
Front Bumper Reinforcement |
*6 |
Rocker Panel Reinforcement |
| *7 |
Front Torque Box |
*8 |
Front Side Member |
| *9 |
Front Bumper Mounting Reinforcement |
*10 |
Windshield Header Panel |
| *11 |
Roof Panel Reinforcement |
*12 |
Back Window Frame |
| *13 |
Upper Back Panel |
*14 |
Floor Crossmember |
| *15 |
Seat Rod |
*16 |
Center Floor Pan |
| *17 |
Floor Crossmember |
 |
Confirmation Point |
 |
Collision Direction |
 |
Collision Force Absorption Direction |
