ABOUT THIS VEHICLE STRUCTURAL OUTLINE

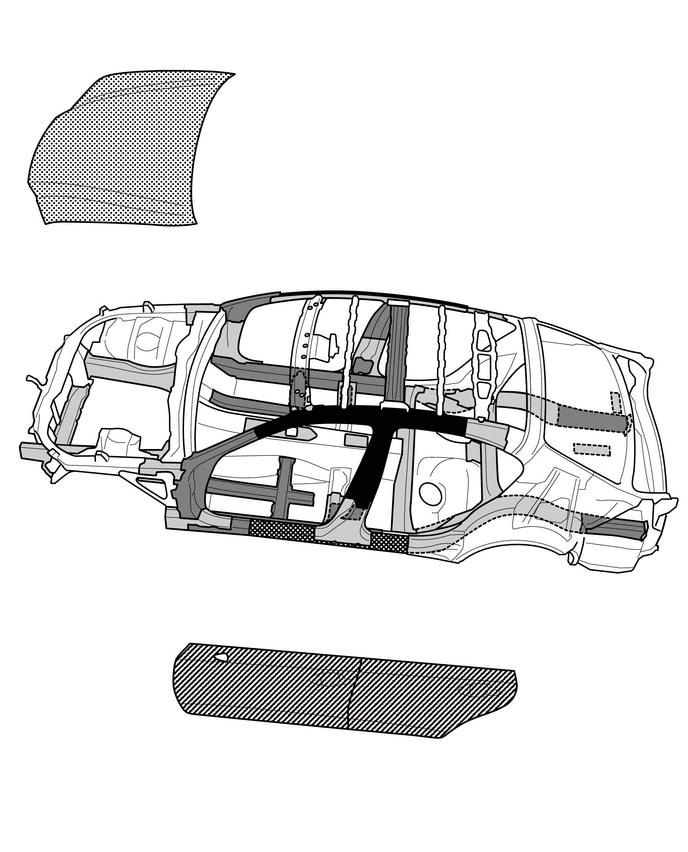

Text in Illustration
A003Q4Y 1500 MPa Ultra High Strength Steel A003Q91 980 MPa Ultra High Strength Steel
A003Q7Q 590 MPa High Strength Steel A003Q9W 440 MPa High Strength Steel
A003QCB 340 MPa High Strength Steel A003QAK Aluminum
A003QCV
A003QD0E02
*1 for LHD:
*2 for Type A:
*3 for Type B:
*4 for RHD:

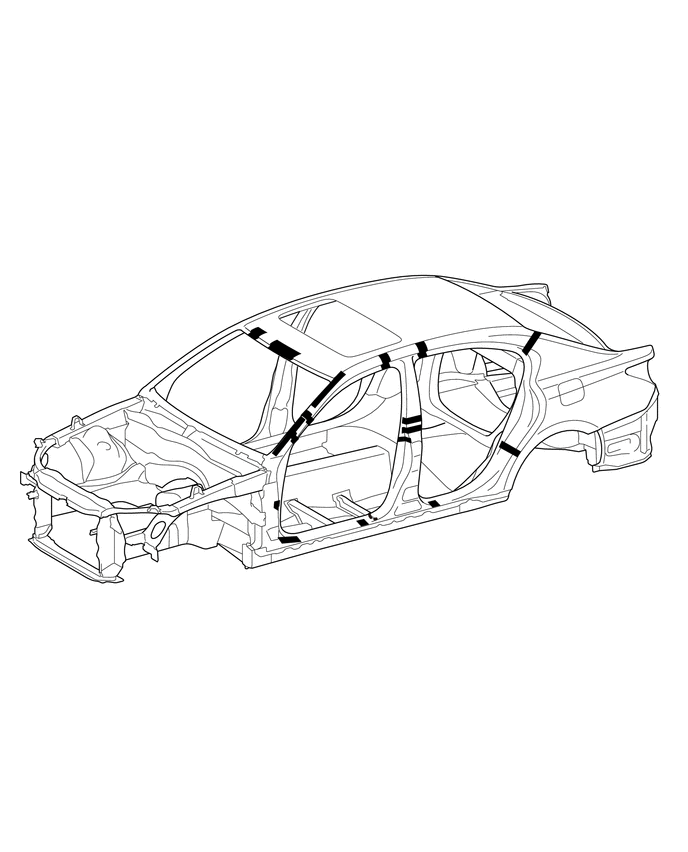

Text in Illustration
A003Q4Y

Foamed Sealing Material Application Areas

(See the painting / coating)

 - -
A003Q92

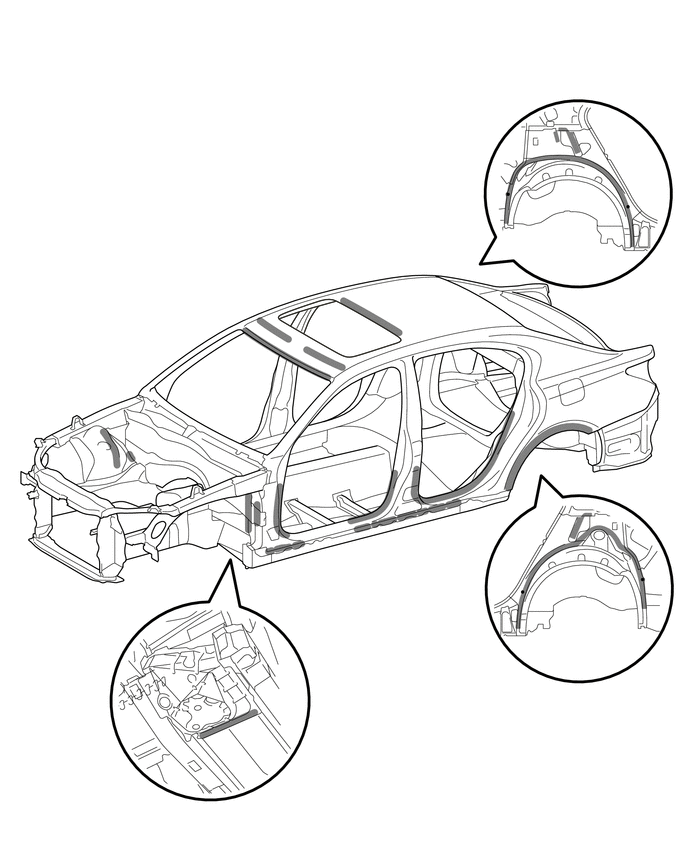

Text in Illustration
A003Q7Q Adhesive Application Areas - -
A003Q8S

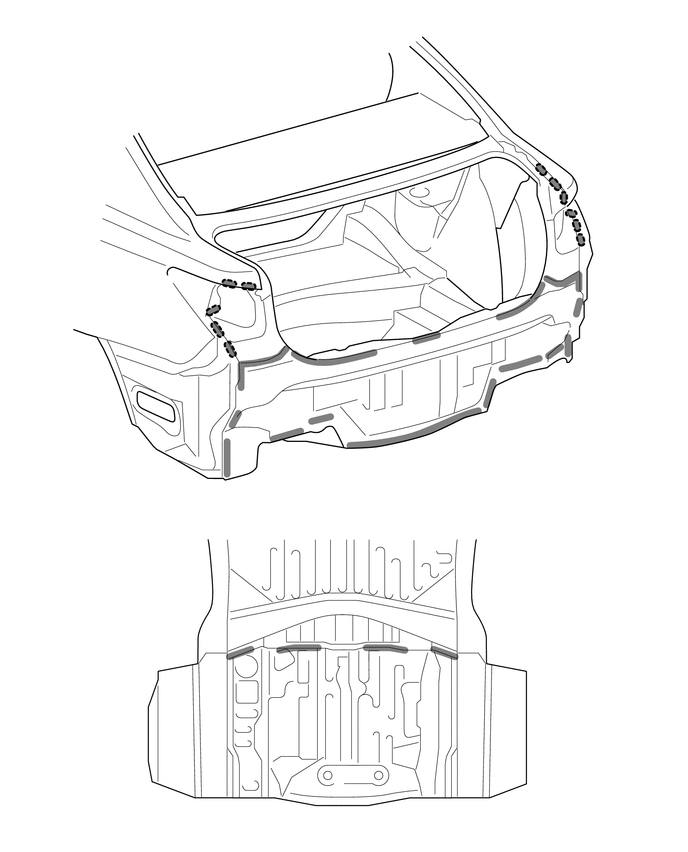

Text in Illustration
A003Q7Q Adhesive Application Areas A003Q7O Laser Welding
A003QFE

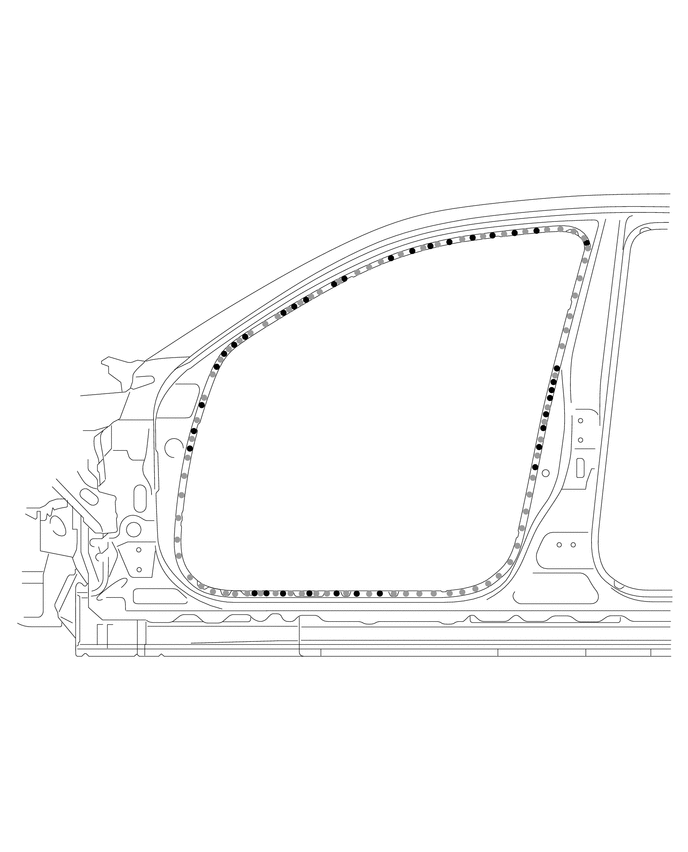

Text in Illustration
A003Q4Y Laser Screw Welding A003Q9W Spot Welding
A003QB2

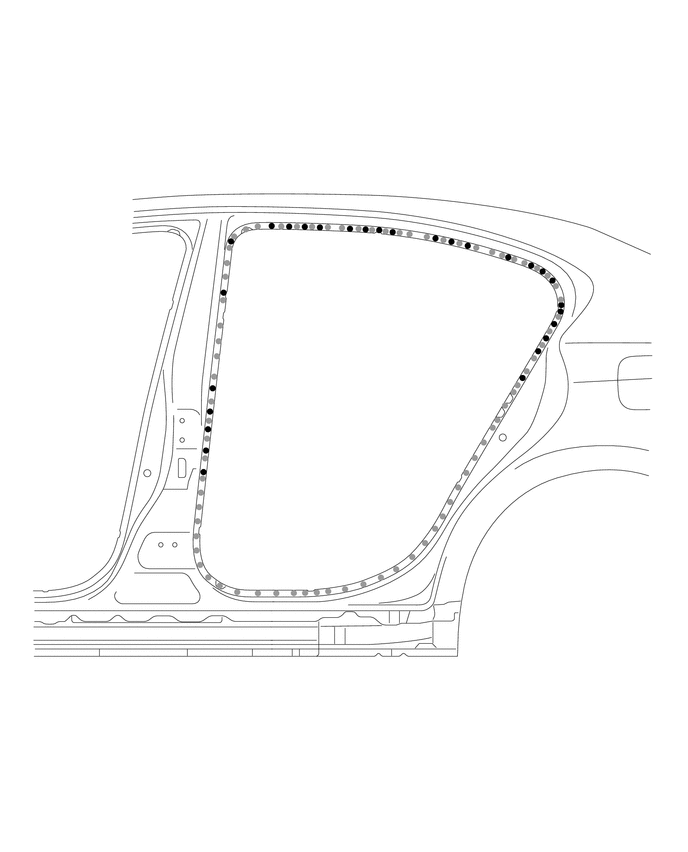

Text in Illustration
A003Q4Y Laser Screw Welding A003Q9W Spot Welding
A003QA5

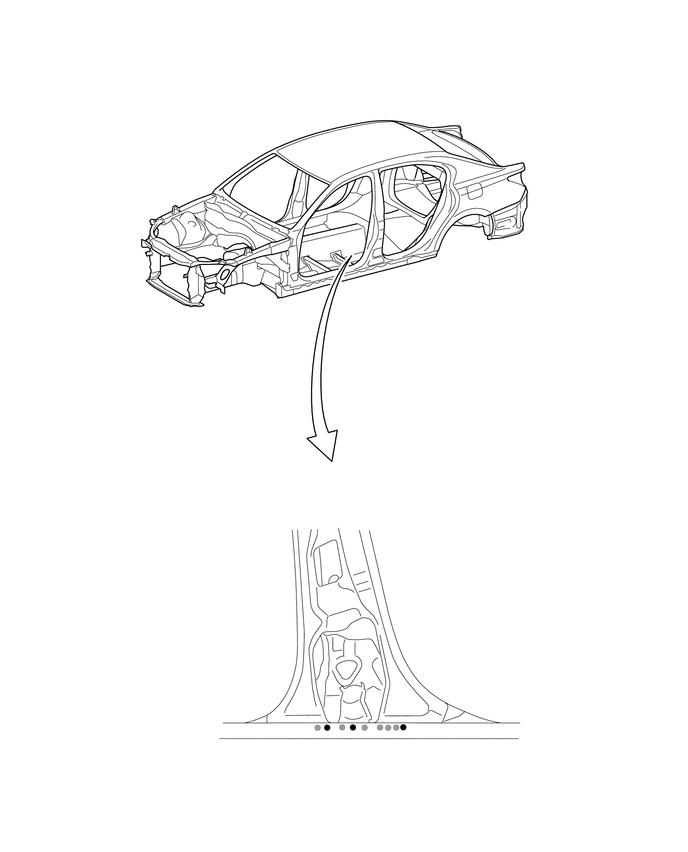

Text in Illustration
A003Q4Y Laser Screw Welding A003Q9W Spot Welding
A003QED
