WHEN REMOVING,INSTALLING,REPAIRING OR REPLACING PARTS COMPONENTS

Tech Tips

The shapes and names of parts and the general layout may differ depending on the vehicle grade and options.


  1. FRONT BUMPER (for Sport Package)

    A003QABE04
    *a ENGINE ROOM SIDE COVER
    *b COOL AIR INTAKE DUCT SEAL
    *c FRONT BUMPER COVER
    A003QD2E02
    A003Q7XE02

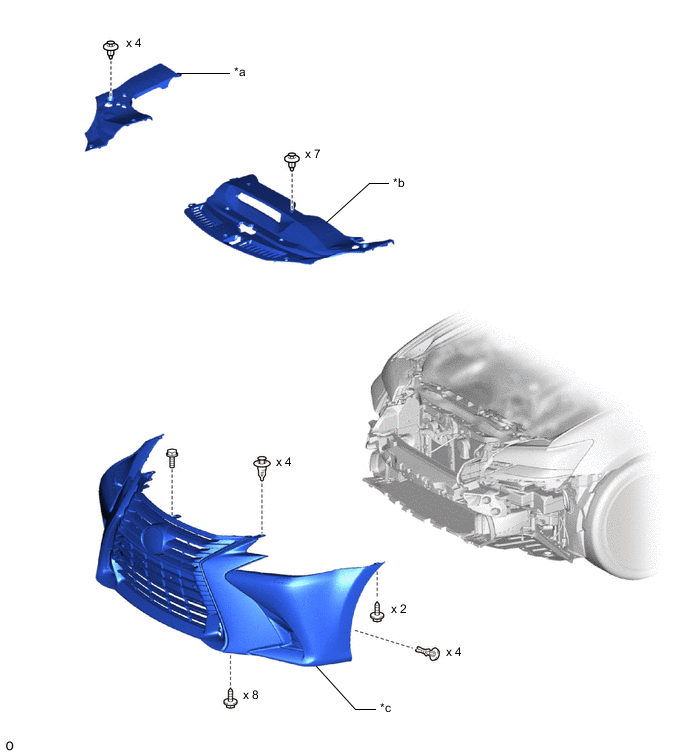

  2. FRONT BUMPER (except Sport Package)

    A003Q64E04
    *a ENGINE ROOM SIDE COVER
    *b COOL AIR INTAKE DUCT SEAL
    *c FRONT BUMPER COVER
    A003QD2E01
    A003Q7XE01

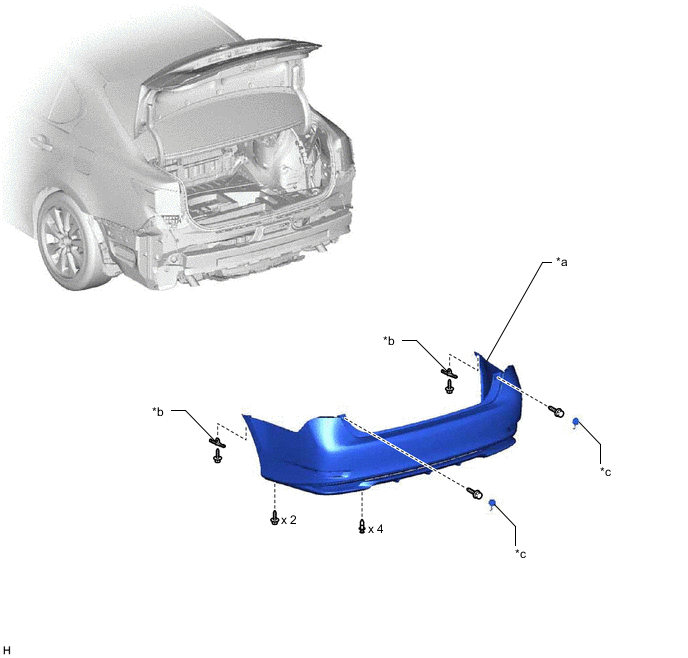

  3. REAR BUMPER

    A003Q5FE01
    *a REAR BUMPER COVER
    *b REAR BUMPER SEAL BRACKET
    *c REAR BUMPER NO. 1 PLATE

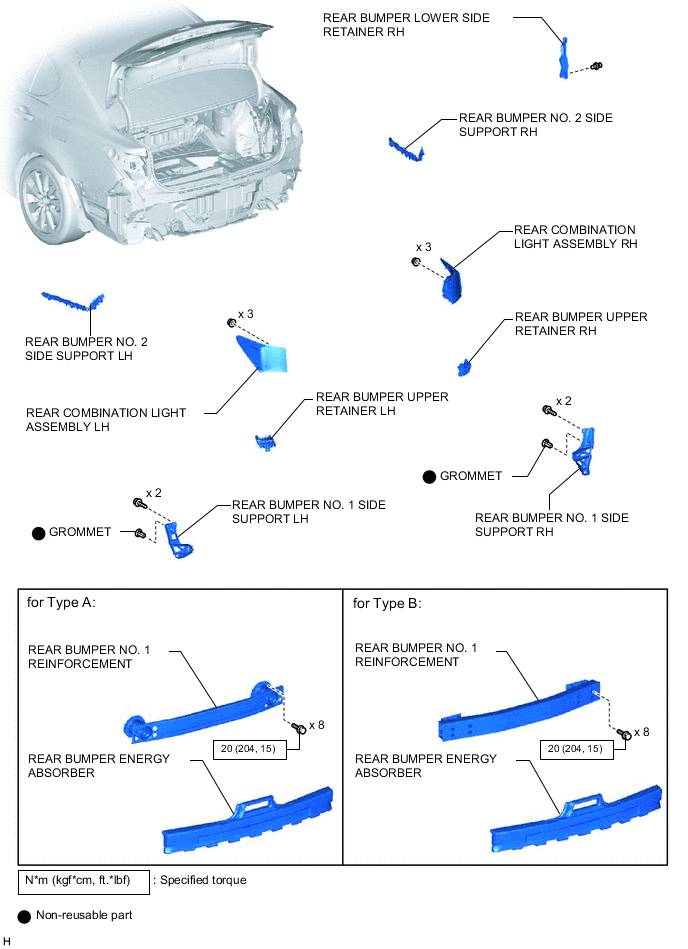

    A003Q97E02

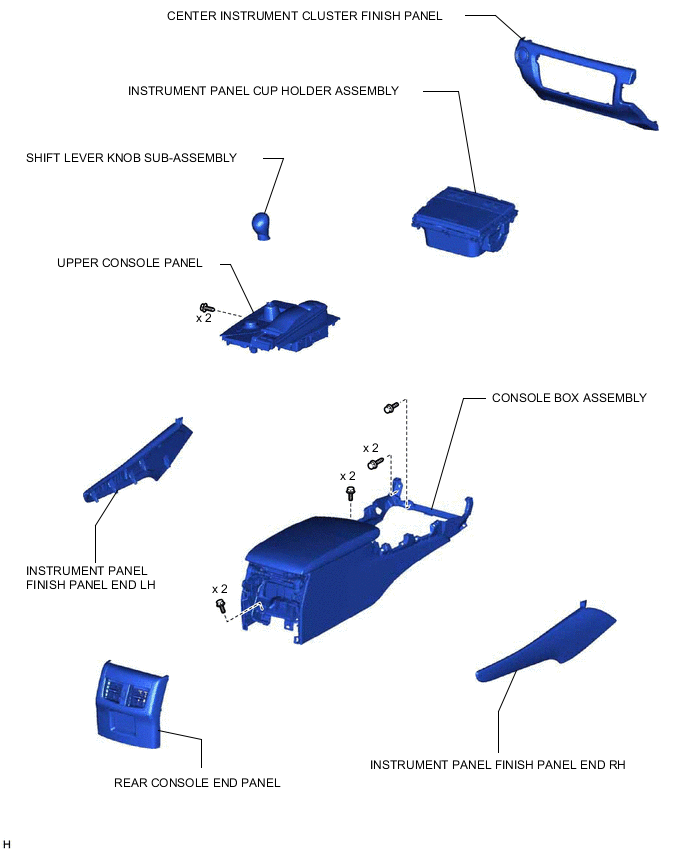

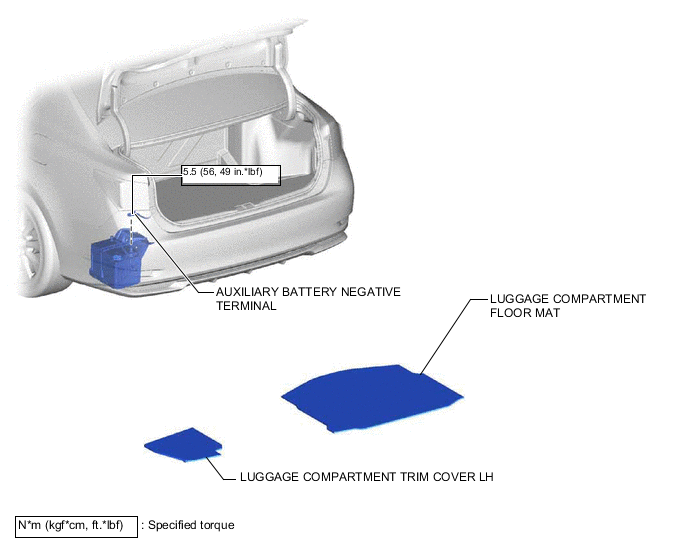

  4. INSTRUMENT PANEL

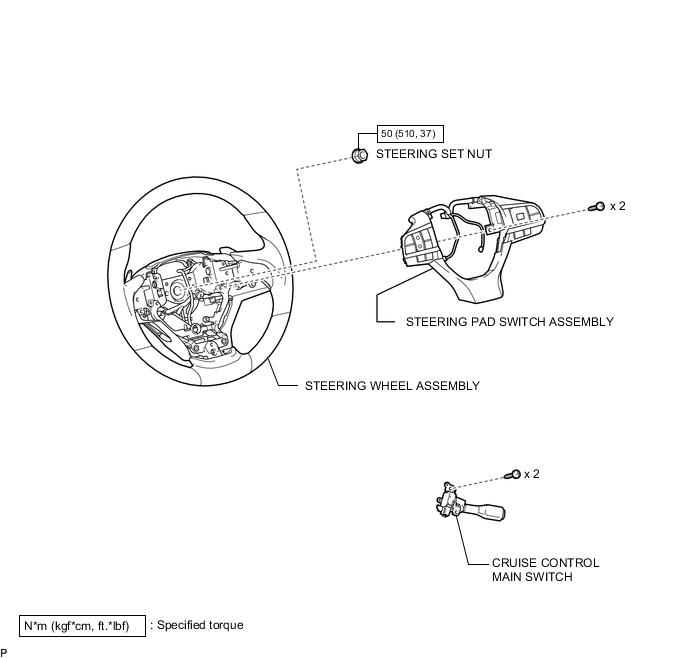

    A003Q5VE01
    A003Q9FE03
    A003Q4QE44

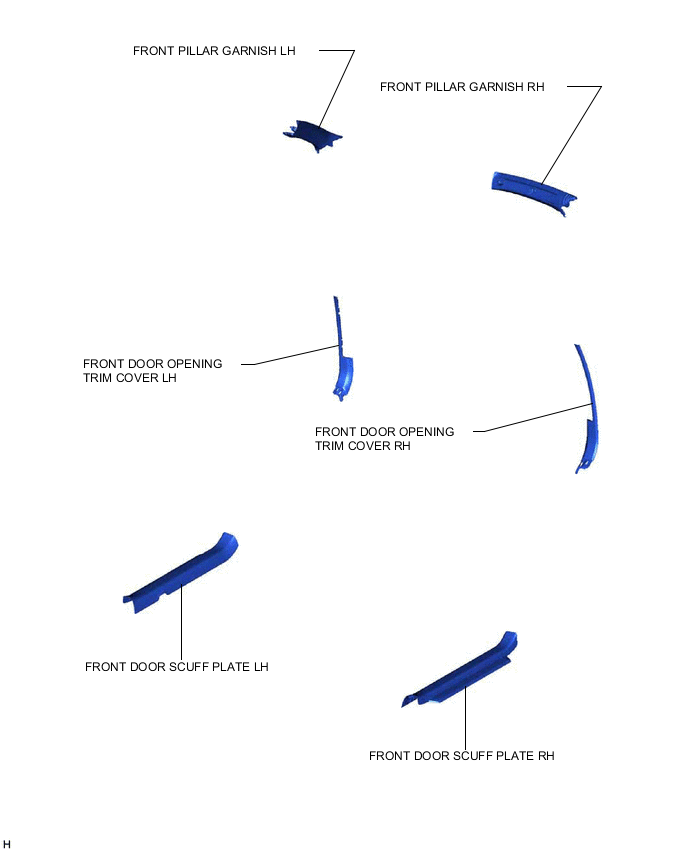

    A003Q6ME03

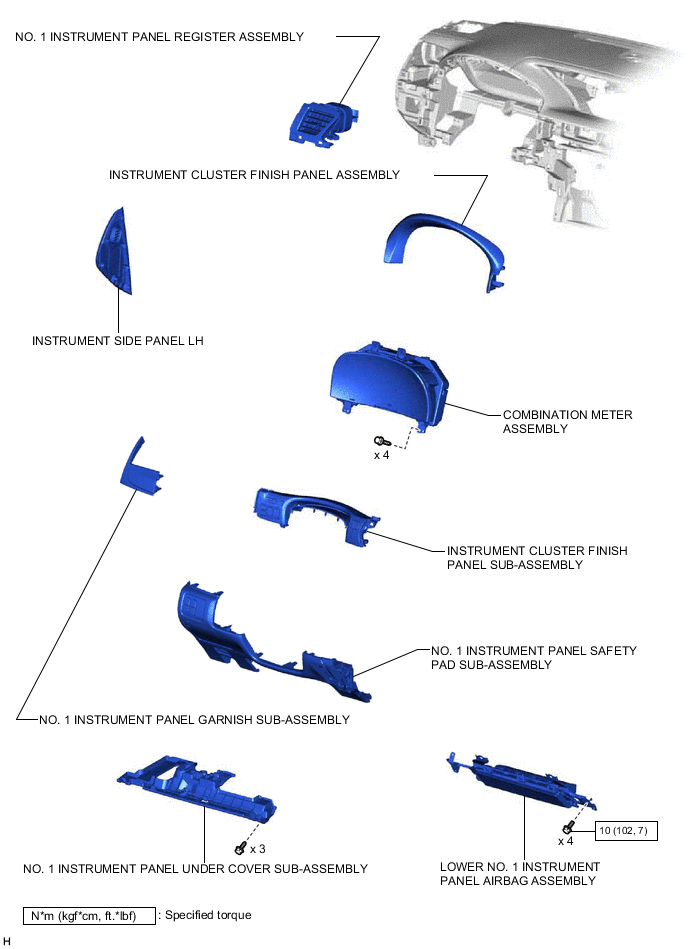

    A003QD1E01

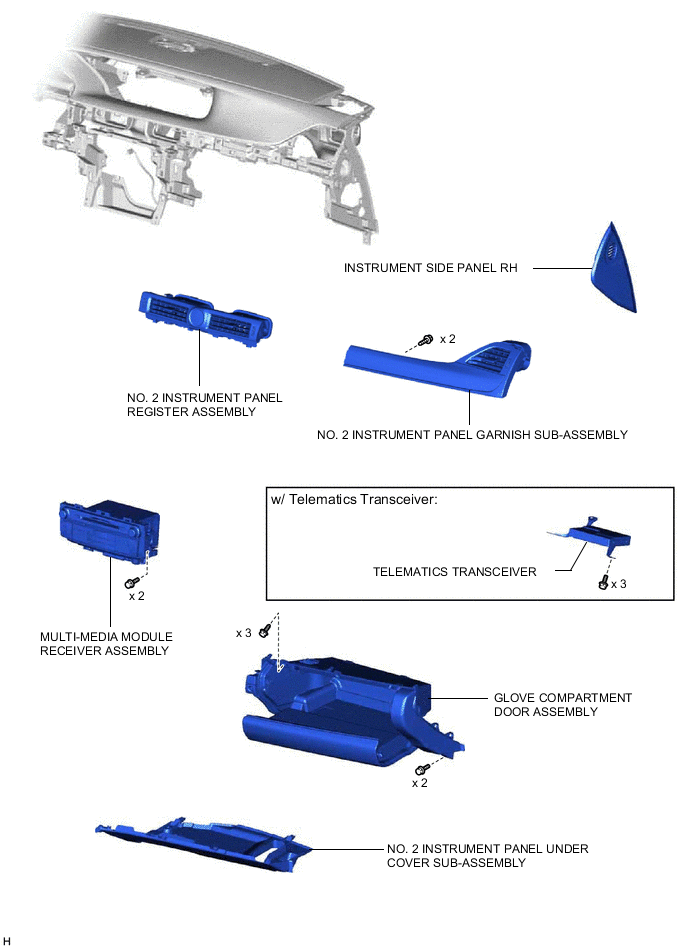

    A003QBME02

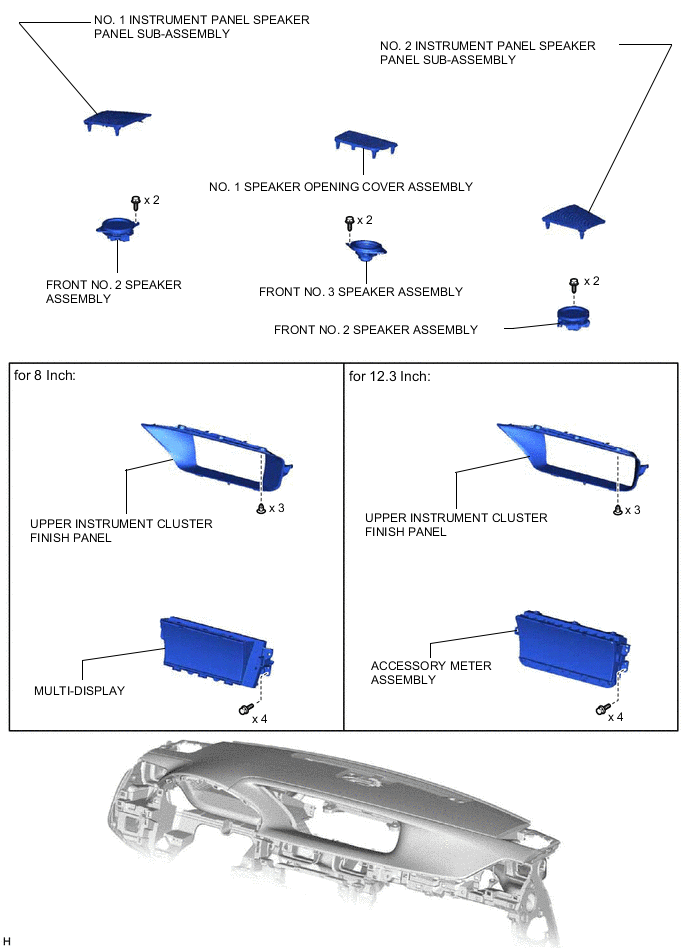

    A003Q7UE03

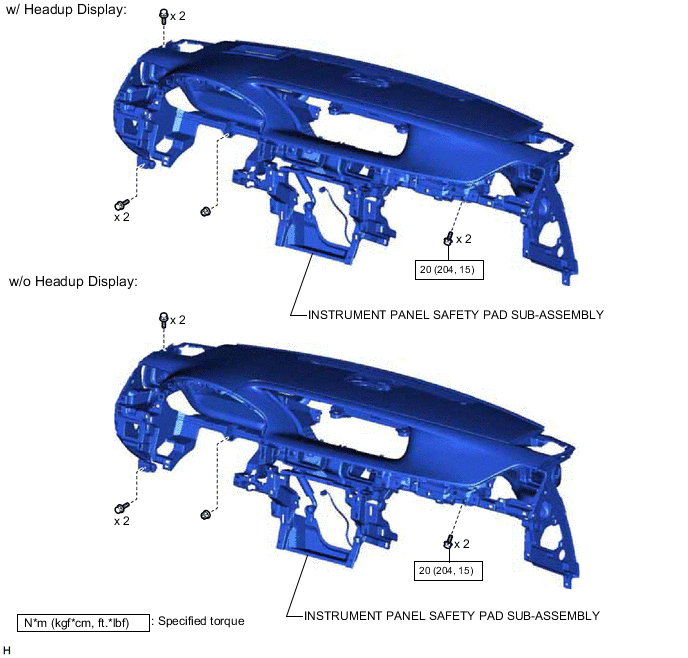

    A003QAME01

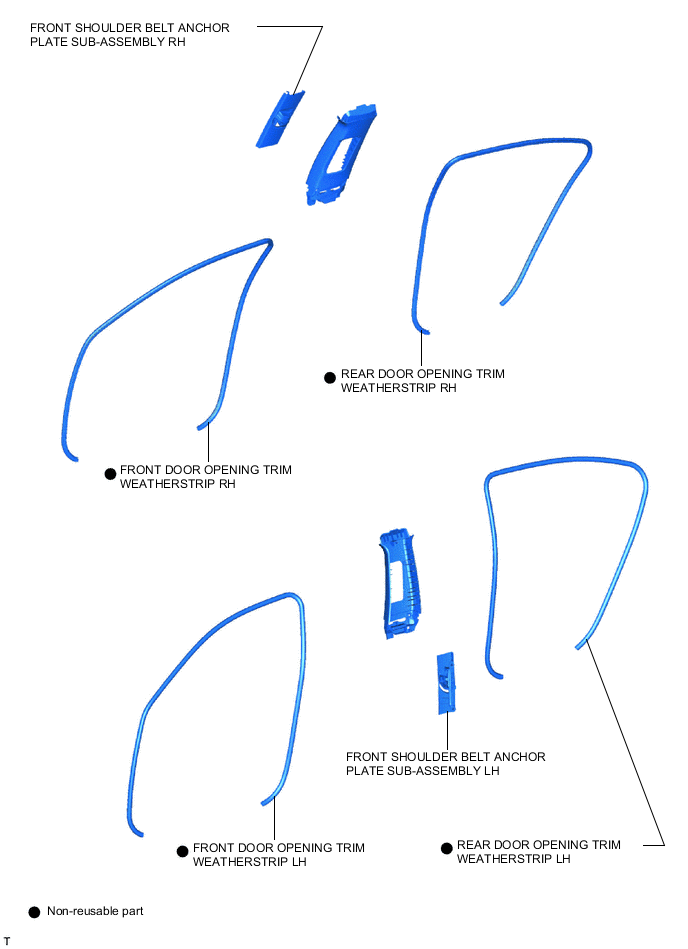

  5. INTERIOR TRIM

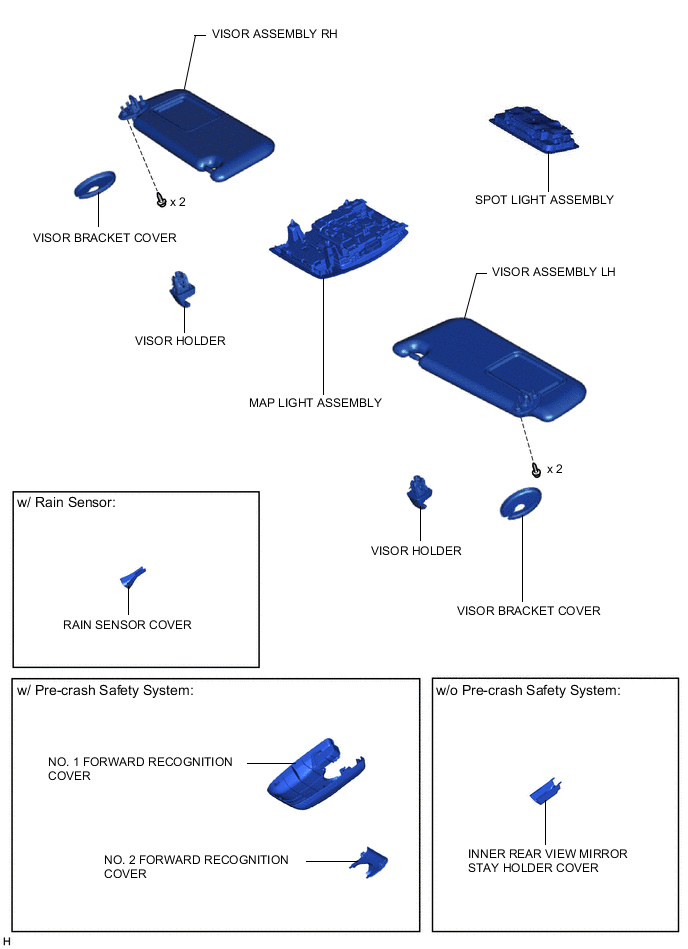

    A003Q7ME02
    A003Q6EE02

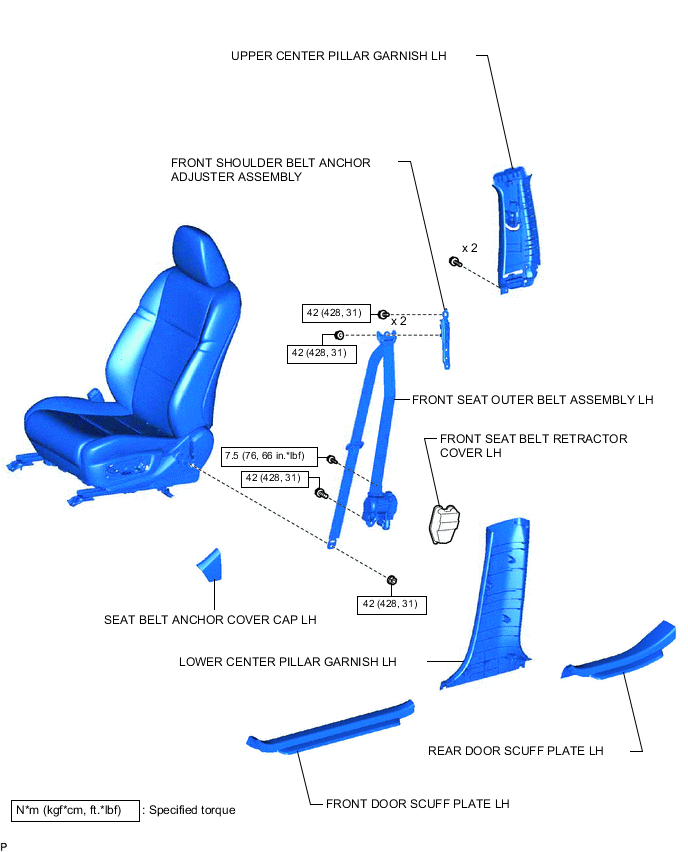

  6. SEAT BELT

    A003QDZE03

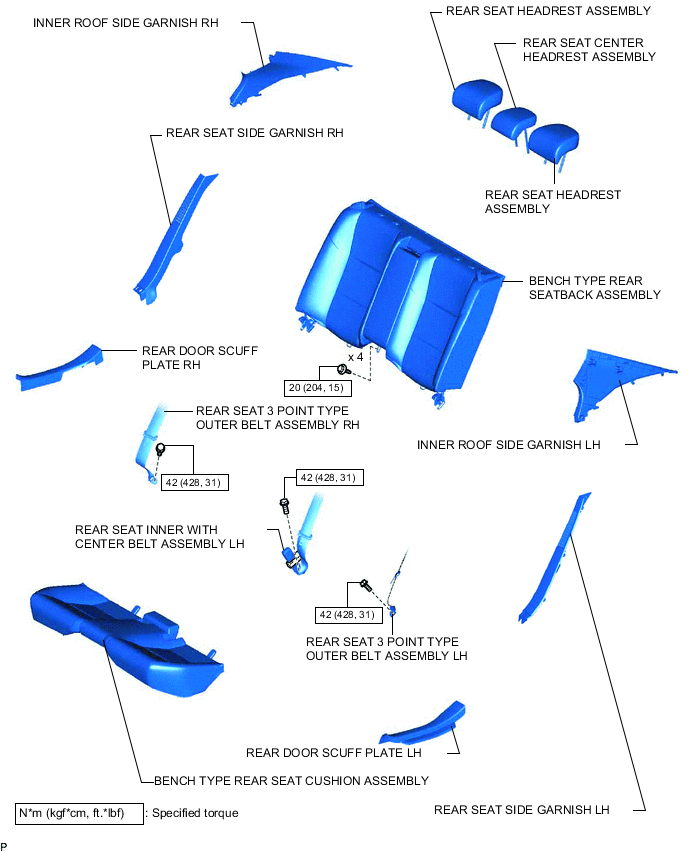

    A003QEJE04

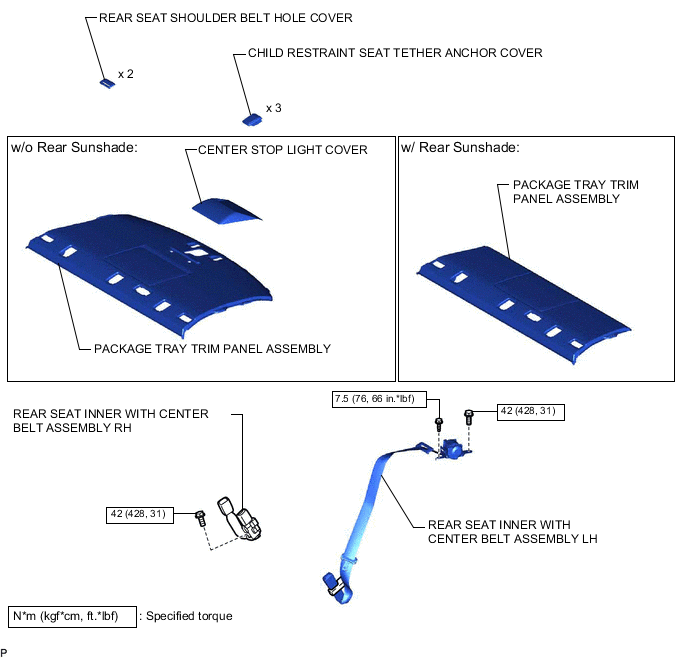

    A003Q78E05

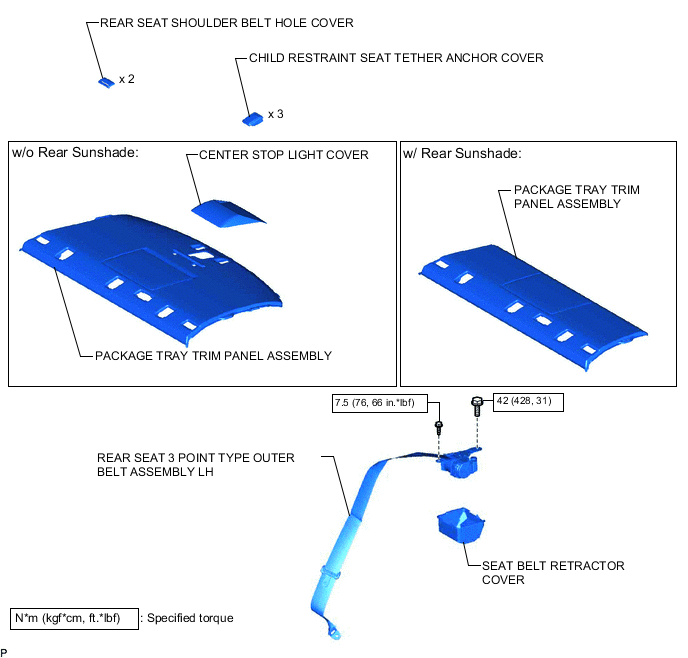

    A003Q98E03

  7. SEAT

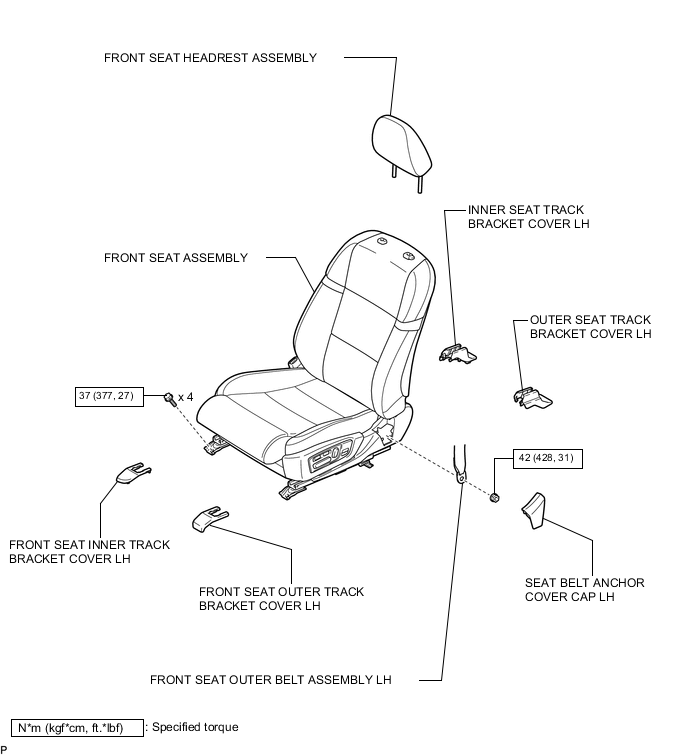

    1. FRONT SEAT ASSEMBLY (for Sports Seat Type)

      A003Q6QE01

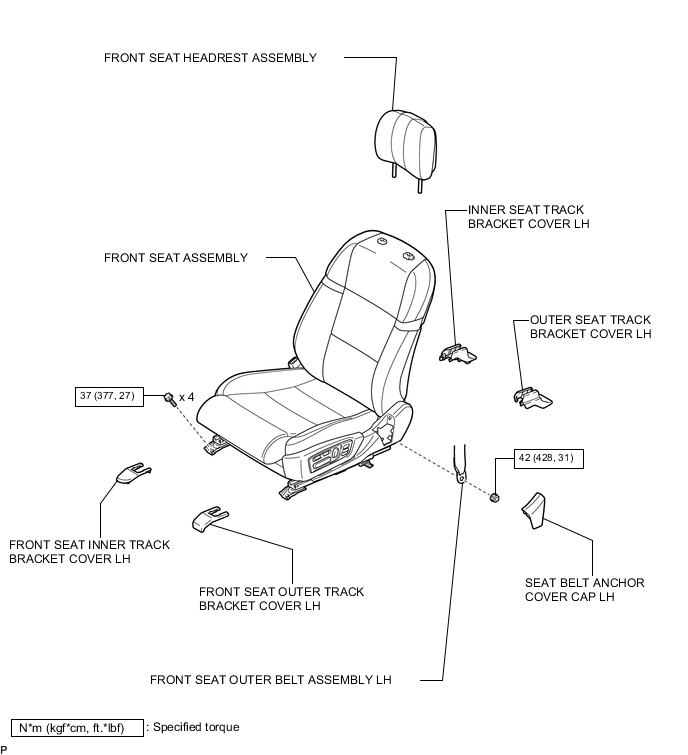

    2. FRONT SEAT ASSEMBLY (for Luxury Seat Type)

      A003Q5LE01

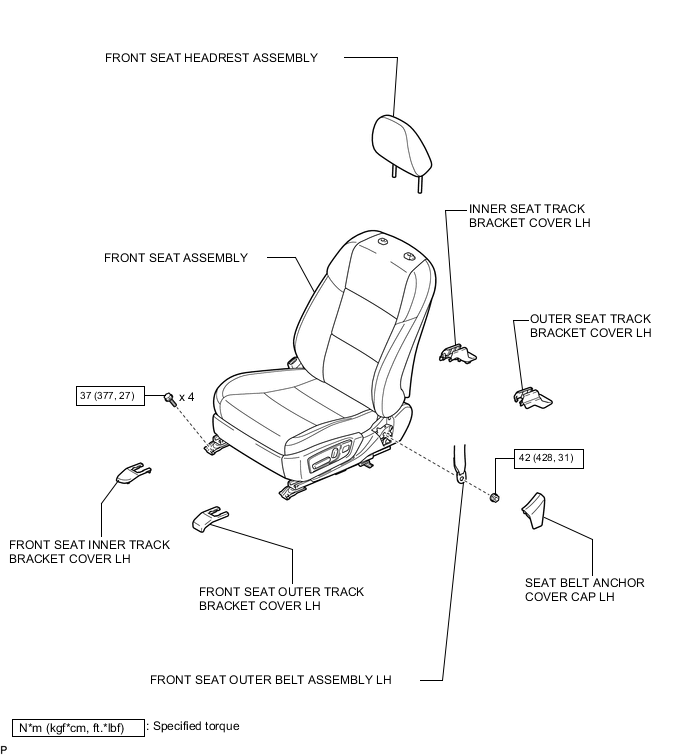

    3. FRONT SEAT ASSEMBLY (for Standard Seat Type)

      A003QBZE01

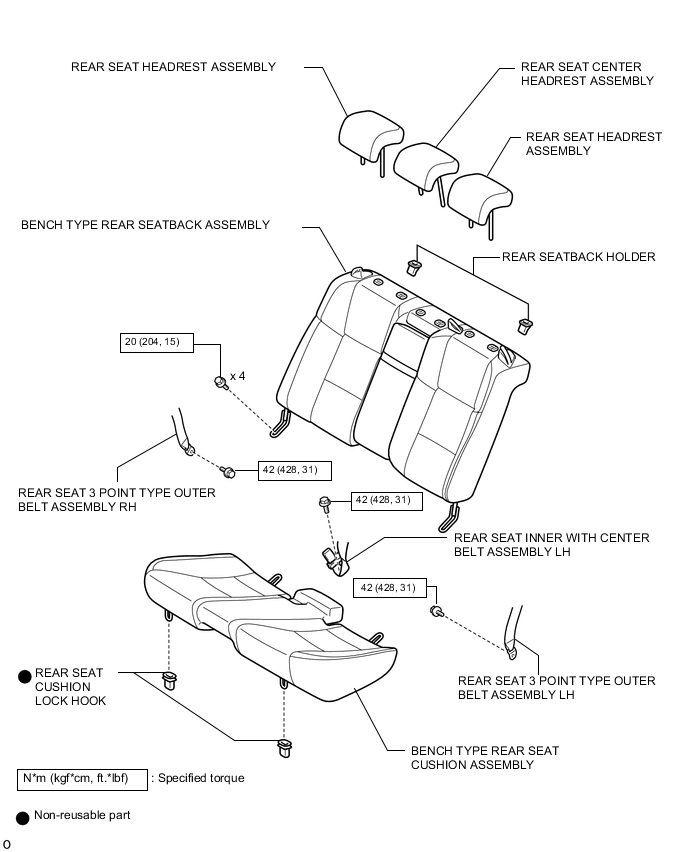

    4. REAR SEAT ASSEMBLY

      A003QF2E02
