WORK NOTICES AND PRECAUTIONS PRECAUTIONS FOR WELDING


  1. REMOVAL OF ADJACENT COMPONENTS

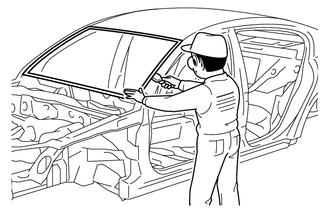

    1. A003QE1

      To prevent damage to the body and parts, apply protective tape to the body and tools before removing the parts.

      Note

      If the paint film is damaged, make sure to refinish the paint.

  2. CUTTING WORK

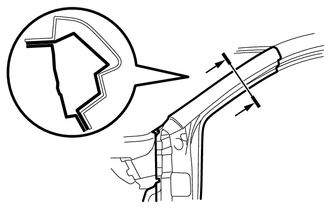

    1. A003Q7C

      When cutting a panel, be careful not to damage the surrounding panels or any panels underneath.

      Note

      If any panels are damaged, be sure to repair them.

  3. ANTI-RUST TREATMENT BEFORE WELDING

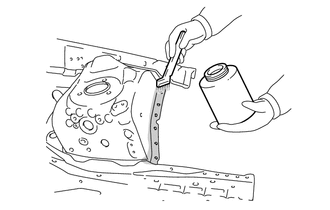

    1. A003QF9

      Apply welding primer to the contact surfaces of the welding areas to protect them from rust.

      Note

      Do not apply welding primer outside of the contact surfaces.

  4. WELDING WORK

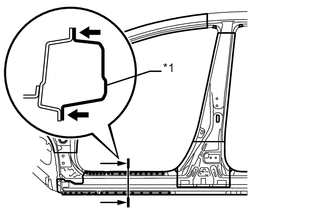

    1. A003Q6NE01
      Text in Illustration
      *1 1500 MPa or 980 MPa Ultra High Strength Steel

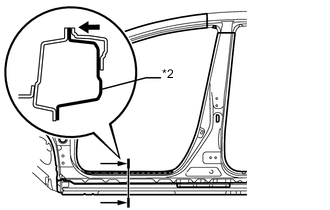

      A003Q6PE01
      Text in Illustration
      *2 1500 MPa or 980 MPa Ultra High Strength Steel

      Follow the welding conditions below when welding ultra high strength steel to assure sufficient weld strength.

      When welding 2 panels together including 1500 MPa ultra high strength steel.
      Plug weld Plug diameter 10 mm (0.39 in.)
      Wire type AWS A5.18 ER70S-3
      Shield gas Metal active gas
      When welding 2 panels together including 980 MPa ultra high strength steel.
      Spot weld Pressure 2940 N (300 kgf, 661 lbf)
      Weld current 10000 A
      Weld time 18 Cyc. (0.30 Sec.)
      Plug weld Plug diameter 10 mm (0.39 in.)
      Wire type AWS A5.18 ER70S-3
      Shield gas Metal active gas

      Note

      Be sure to use Metal active gas (Ar 80% + CO220%) as the shield gas when plug welding. Sufficient weld strength cannot be assured when using 100% CO2shield gas.

      When welding more than 3 panels together including 1500 MPa or 980 MPa ultra high strength steel. (When plug welding a third panel to 2 panels which are welded under the conditions described above.)
      Plug weld Plug diameter

      Same as the standard method

      (See the introduction)
      Wire type AWS A5.18 ER70S-3
      Shield gas Metal active gas

      Note

      Be sure to use Metal active gas (Ar 80% + CO220%) as the shield gas when plug welding. Sufficient weld strength cannot be assured when using 100% CO2shield gas.

    2. Standard Number of Welds

      Number of spot welds 980 MPa ultra high strength steel More than the number of welds made by the manufacturer
      Normal steel or high strength steel More than 1.3x the number of welds made by the manufacturer
      Number of plug welds 1500 MPa or 980 MPa ultra high strength steel More than the number of welds made by the manufacturer
      Normal steel or high strength steel

      Note

      Inspect the welds after spot welding. For points with insufficient weld strength join the panels using plug welds.

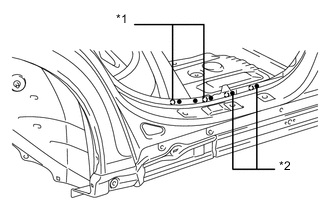

    3. A003QCIE01
      Text in Illustration
      *1 Old Spot Locations
      *2 New Spot Locations

      Spot weld locations

      Avoid welding over previously welded areas.

  5. MAKING HOLES FOR PLUG WELDING

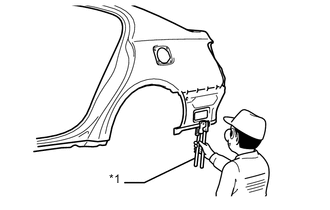

    A003QD6E01
    Text in Illustration
    *1 Puncher

    1. For areas where a spot welder cannot be used, use a puncher or drill to make holes for plug welding.

      Thickness of welded portion Diameter of plug hole
      Under 1.0 mm (0.04 in.) Over 5.0 mm (0.20 in.)
      1.0 to 1.6 mm (0.04 to 0.06 in.) Over 6.5 mm (0.26 in.)
      1.7 to 2.3 mm (0.07 to 0.09 in.) Over 8.0 mm (0.31 in.)
      Over 2.4 mm (0.09 in.) Over 10 mm (0.39 in.)
