WHEN REMOVING,INSTALLING,REPAIRING OR REPLACING PARTS COMPONENTS

Tech Tips

The shapes and names of parts and the general layout may differ depending on the vehicle grade and options.

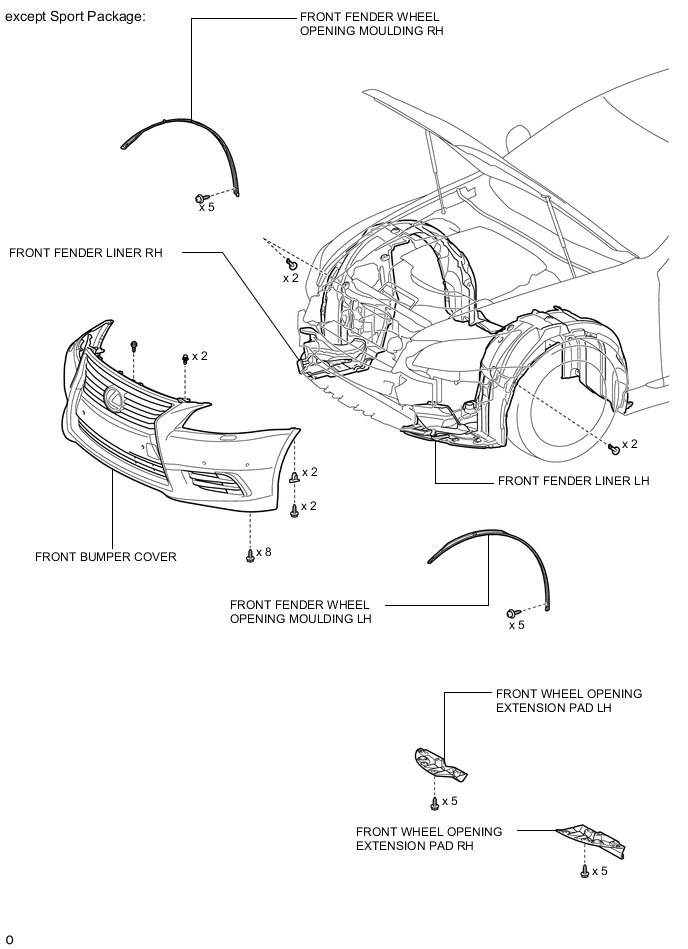

  1. FRONT BUMPER

    A003QK9E01
    *a ENGINE ROOM SIDE COVER RH
    *b AIR CLEANER INLET COVER SUB-ASSEMBLY
    *c ENGINE ROOM SIDE COVER LH
    *d COOL AIR INTAKE DUCT SEAL
    A003QQVE02

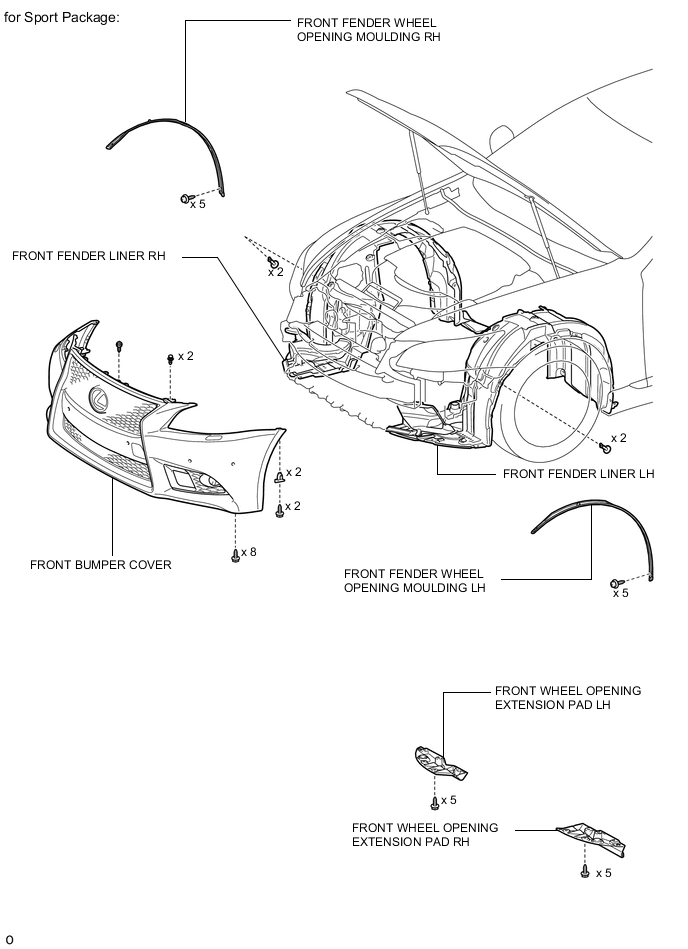

    A003QMVE02

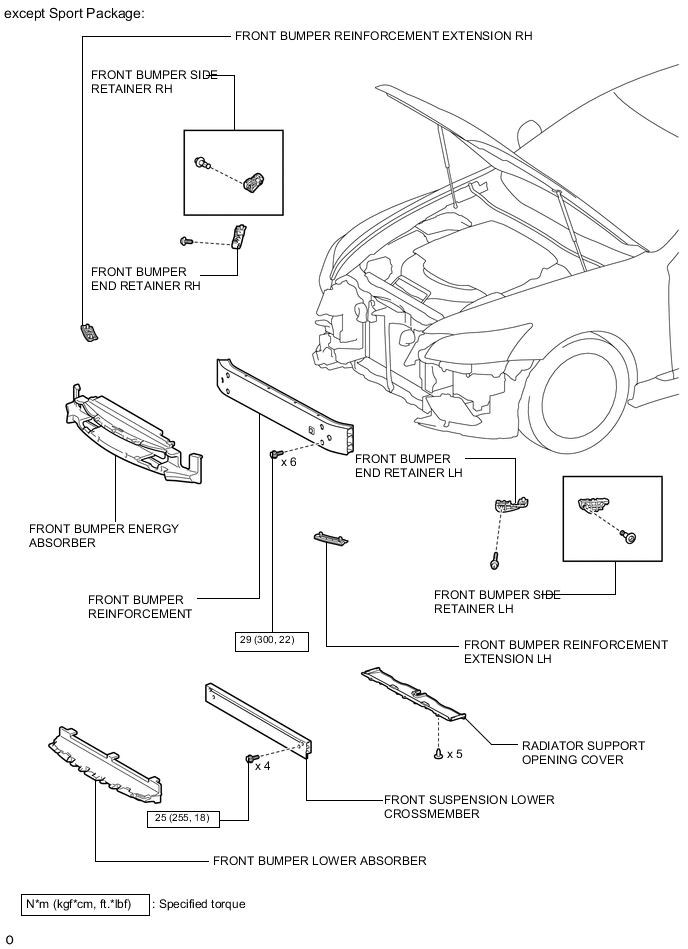

    A003QOFE06

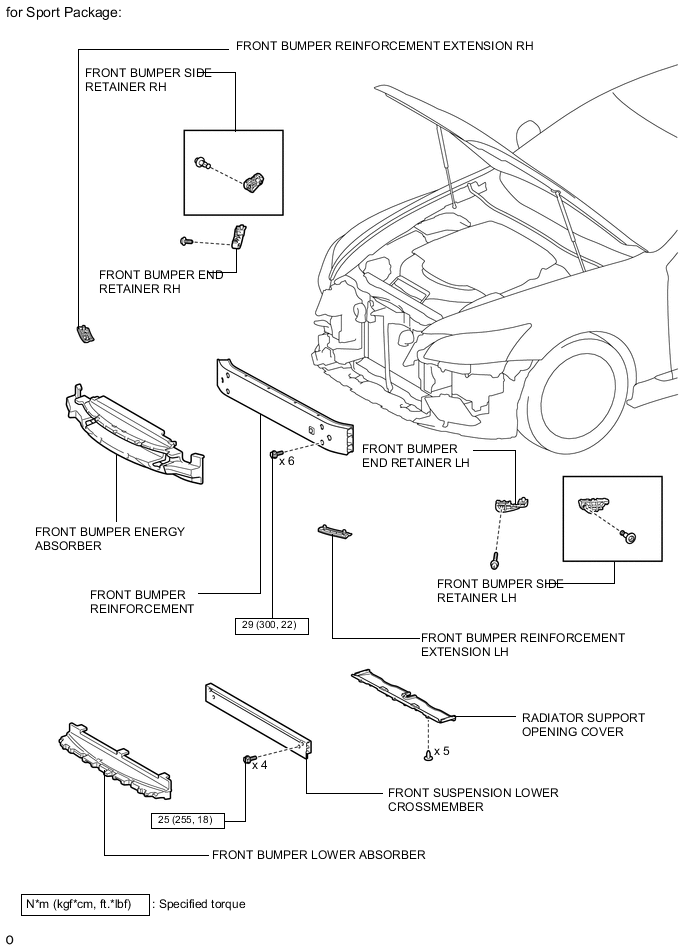

    A003QGBE04

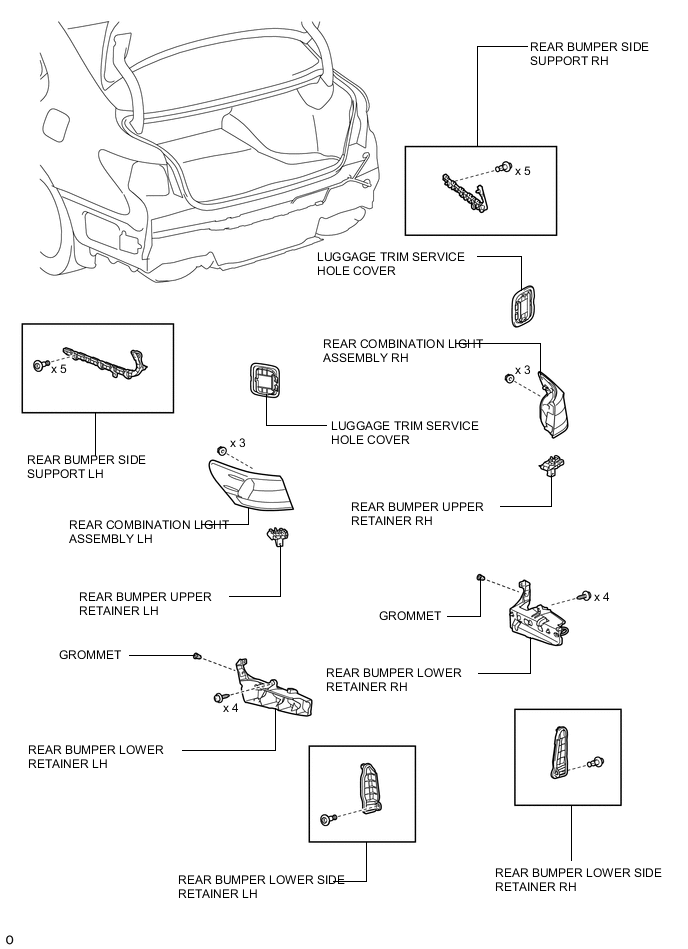

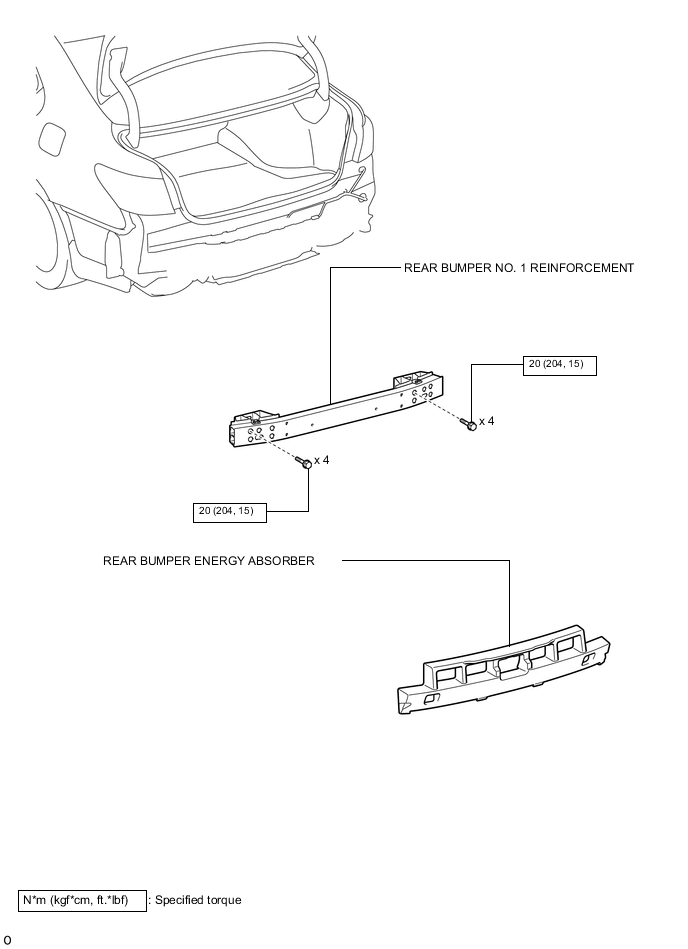

  2. REAR BUMPER

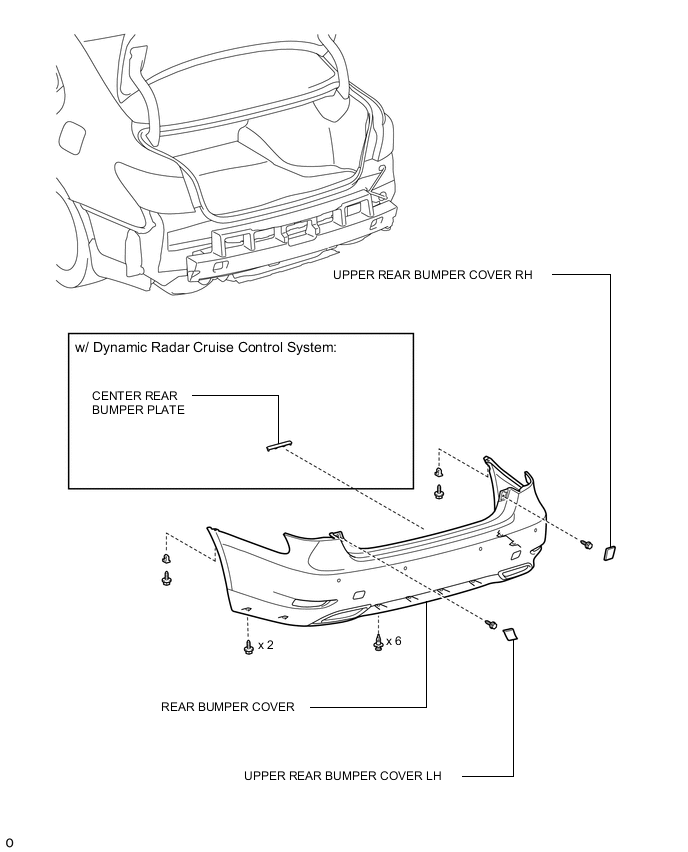

    A003QJGE04
    A003QHSE03
    A003QGAE05

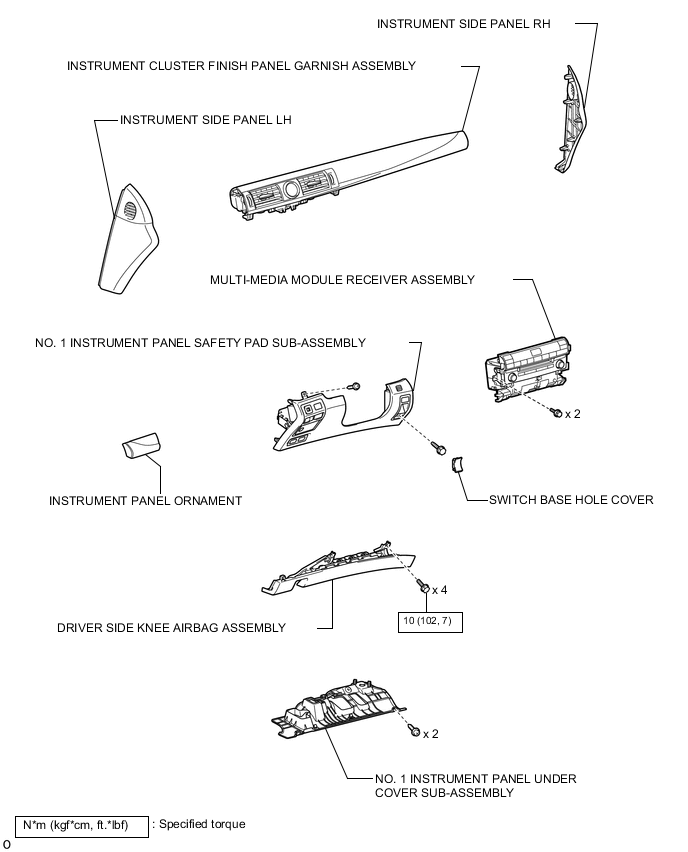

  3. INSTRUMENT PANEL

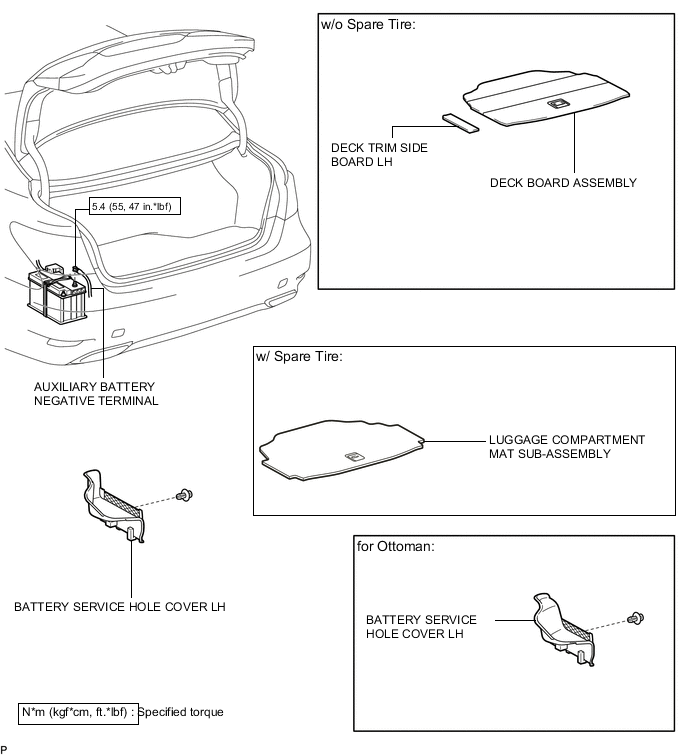

    A003QQ0E13

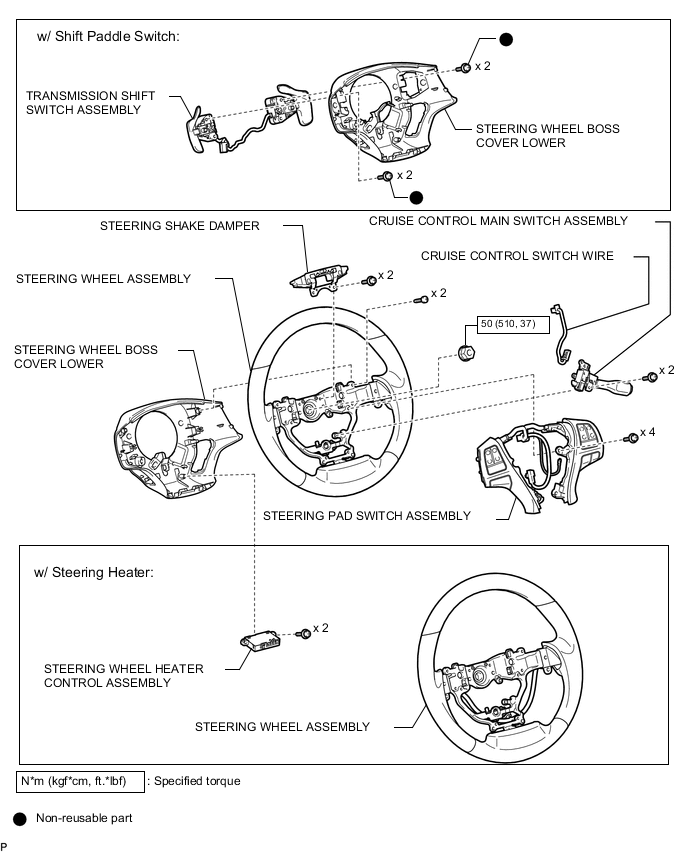

    A003QP7E03
    A003QR2E02

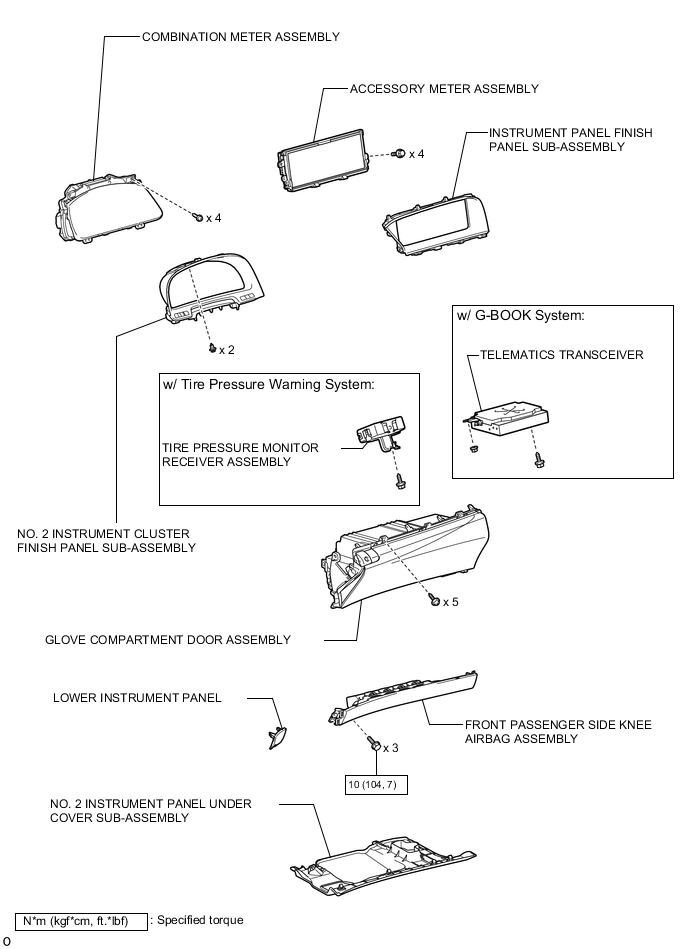

    A003QQ2E02

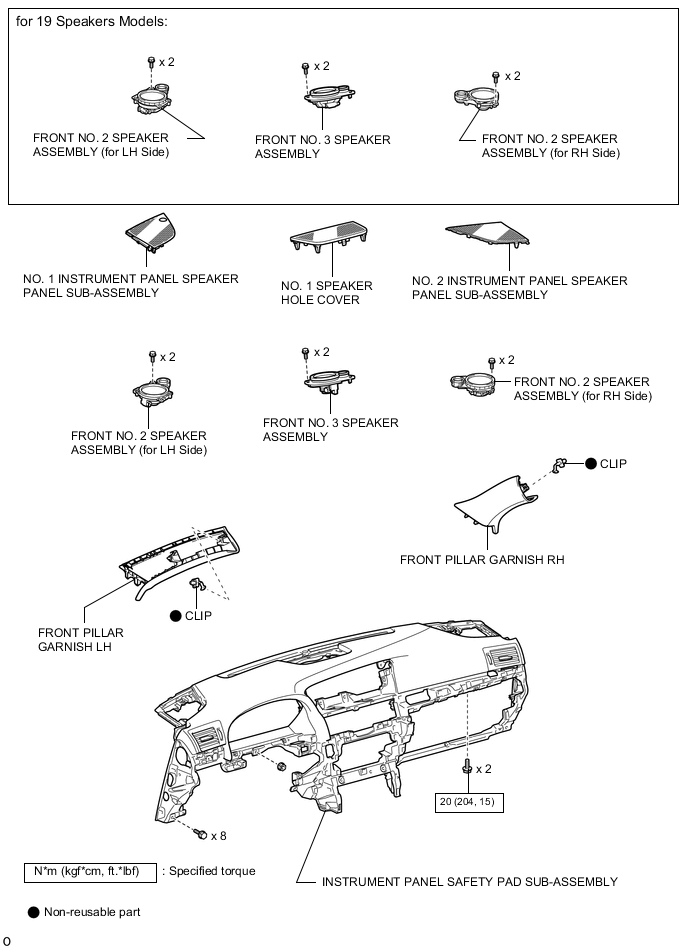

    A003QQXE02

    1. for 5-Passenger with Ottoman

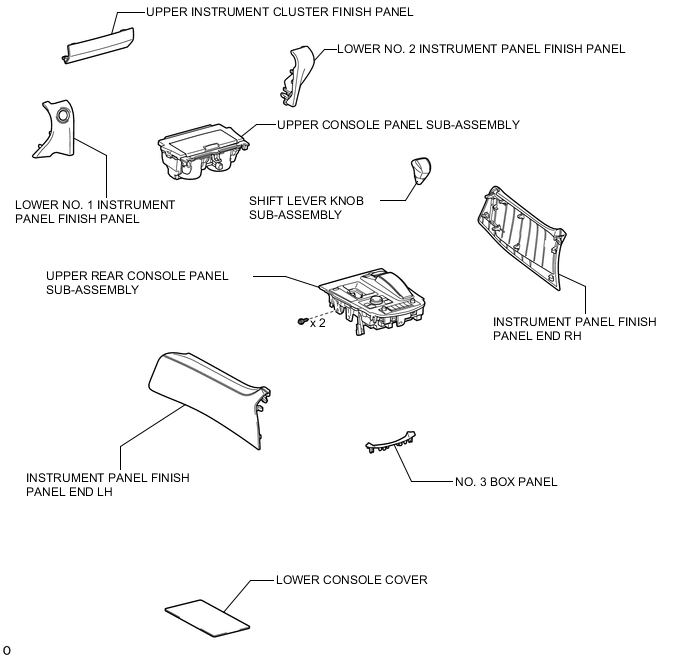

      A003QLME01

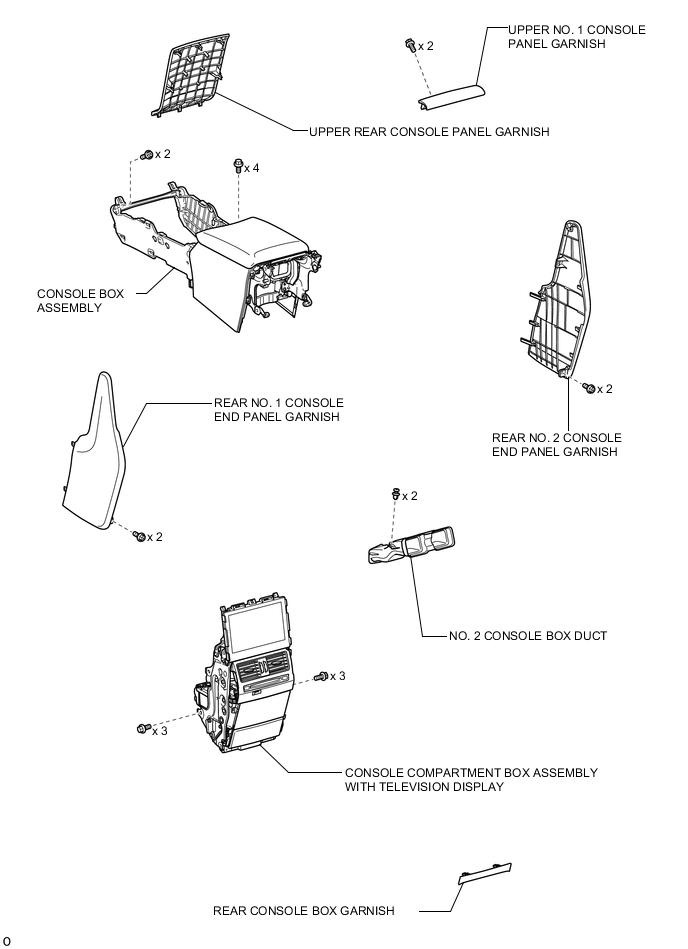

      A003QJIE02

    2. w/o Rear Seat Entertainment System

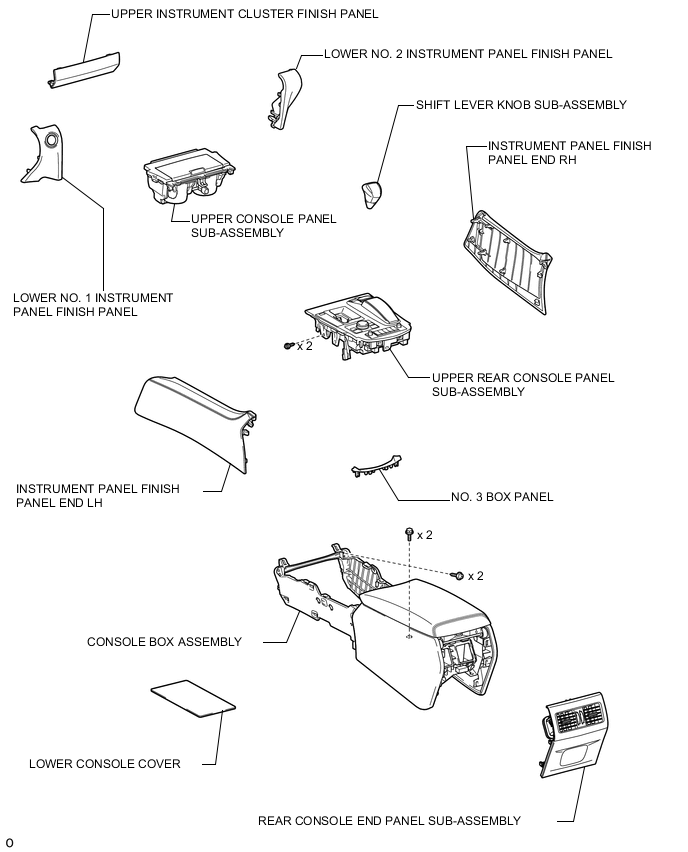

      A003QMWE02

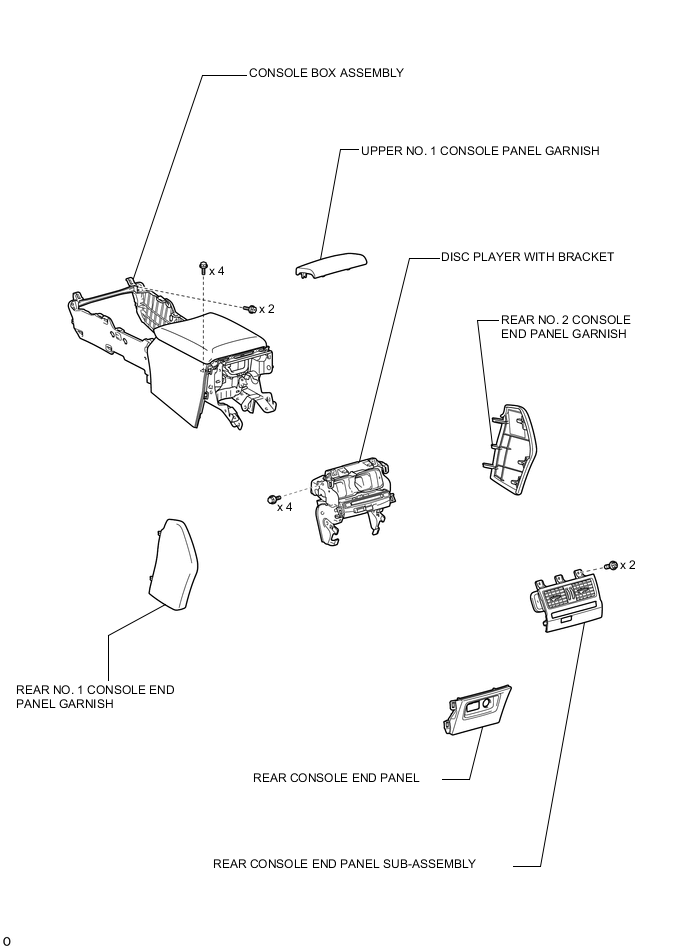

    3. w/ Disc Player

      A003QLME01
      A003QP9E02

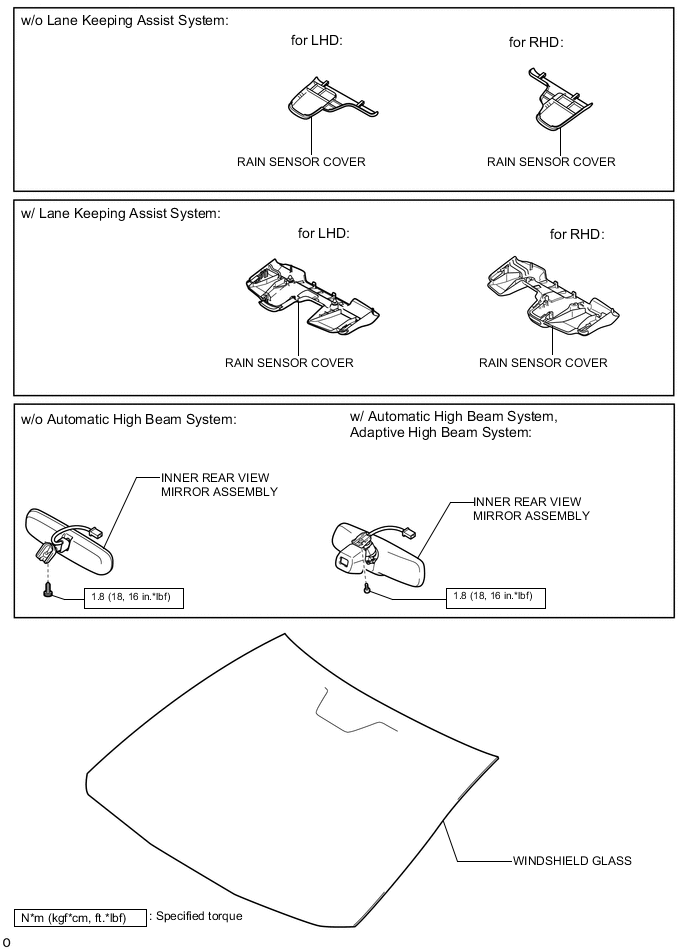

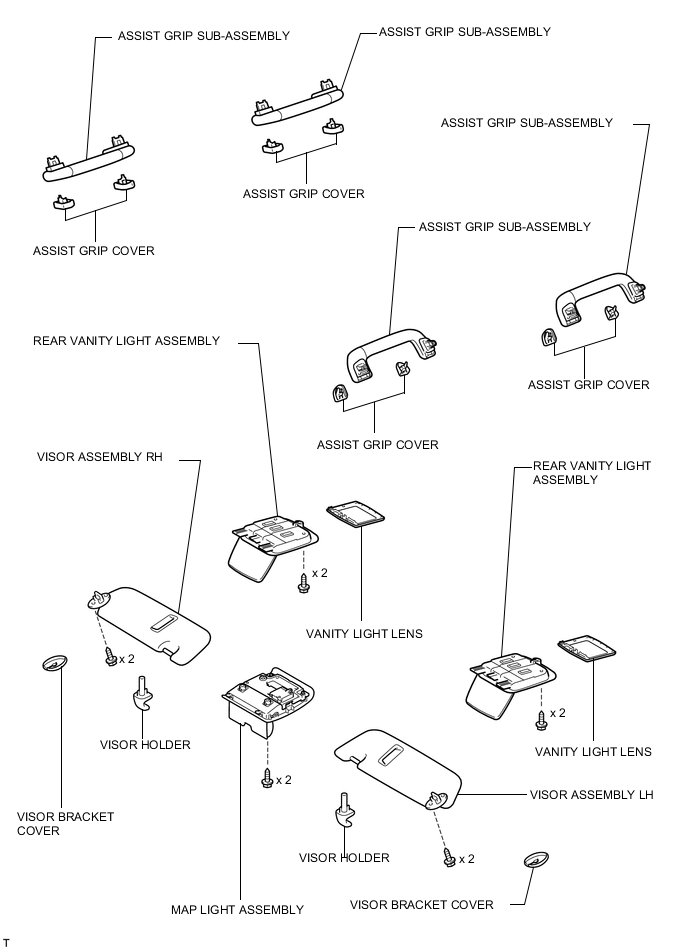

  4. INTERIOR TRIM


    1. for Standard Body

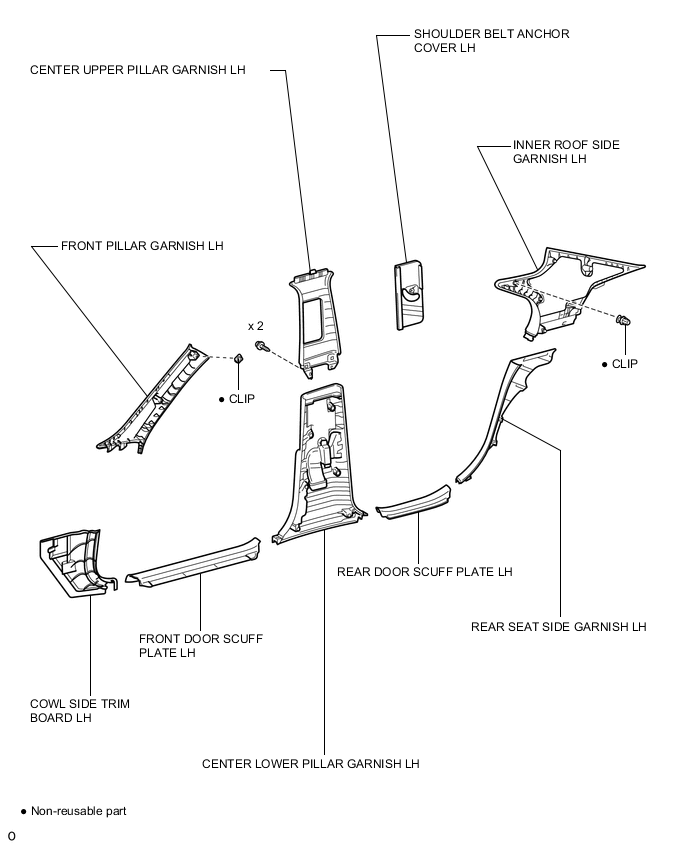

      A003QHNE01
      A003QPAE03
      A003QQLE02

    2. for Long Body

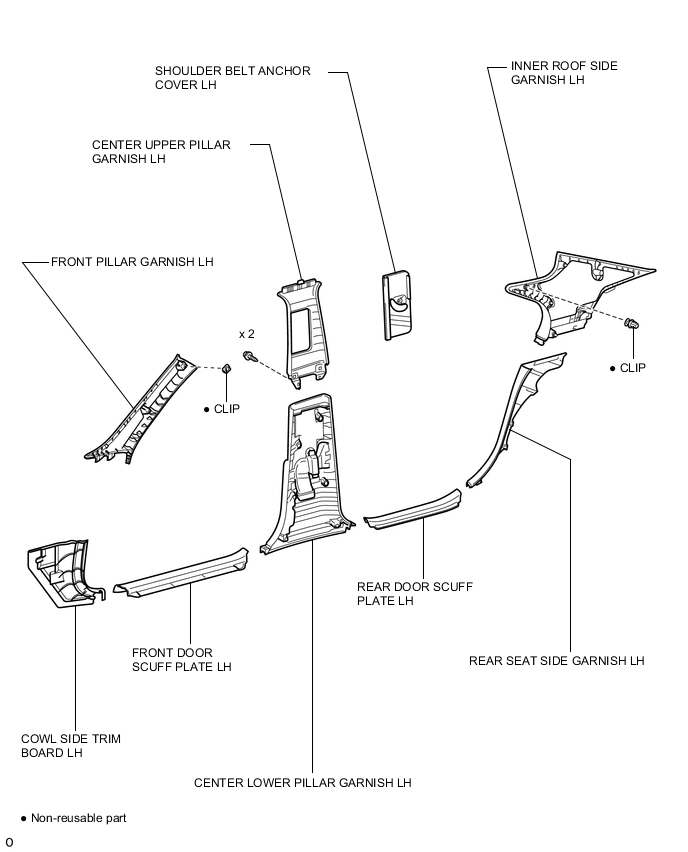

      A003QQJE01
      A003QPAE03
      A003QQLE02

  5. SEAT BELT

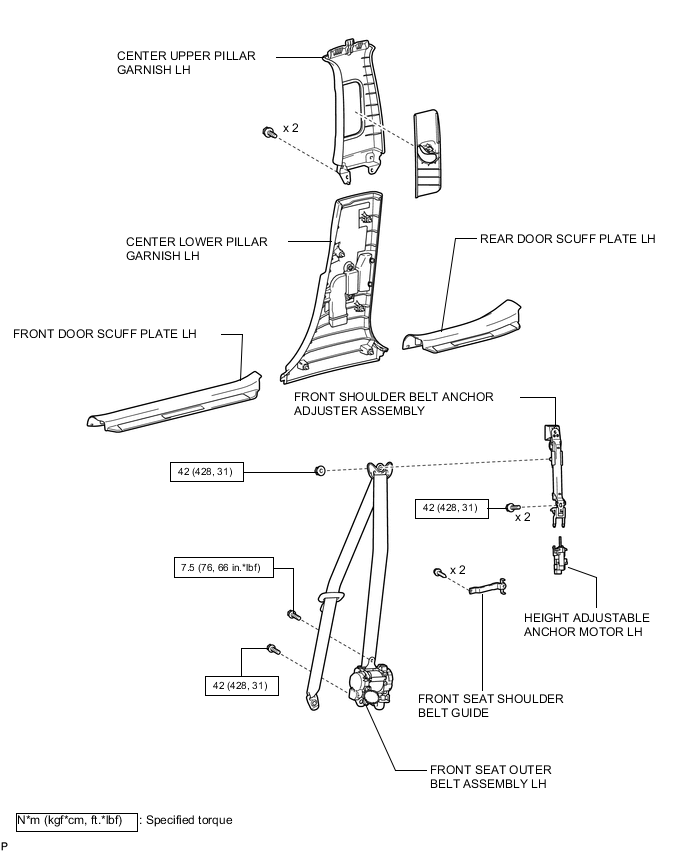

    A003QHCE01

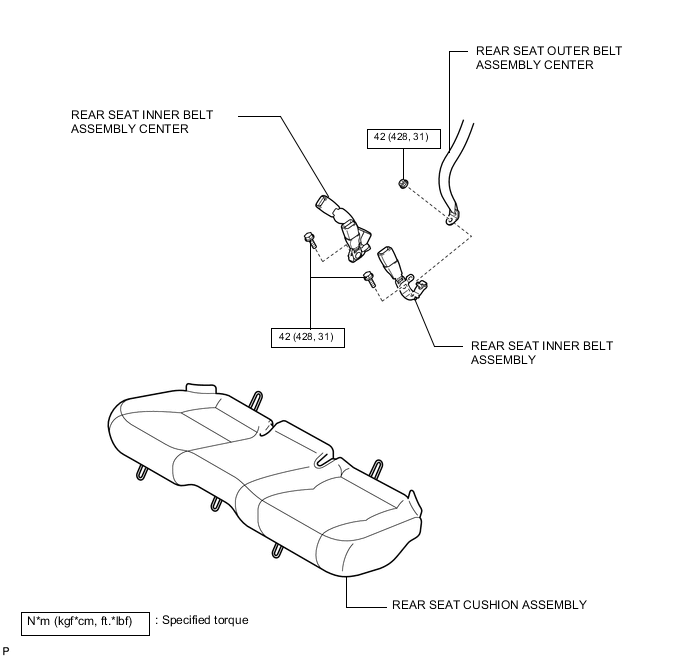

    A003QG8E02

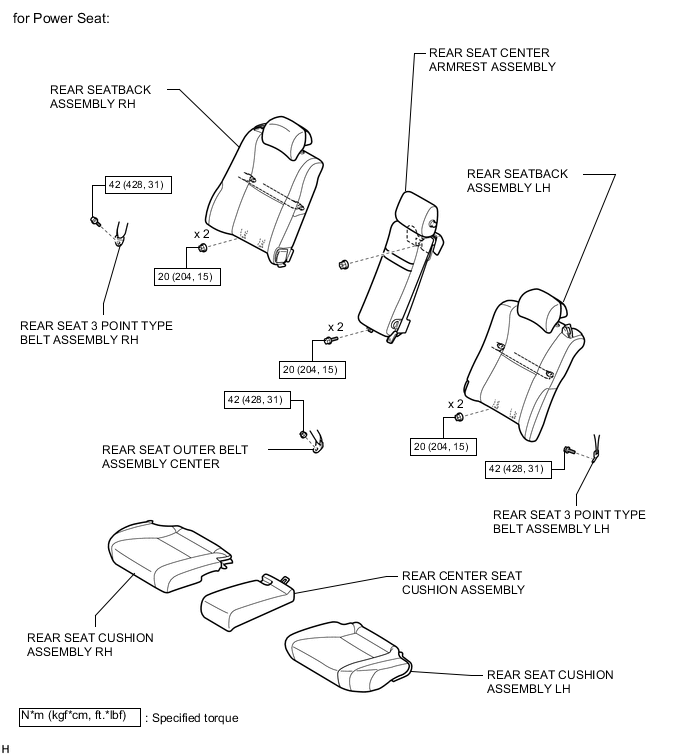

    A003QIBE01

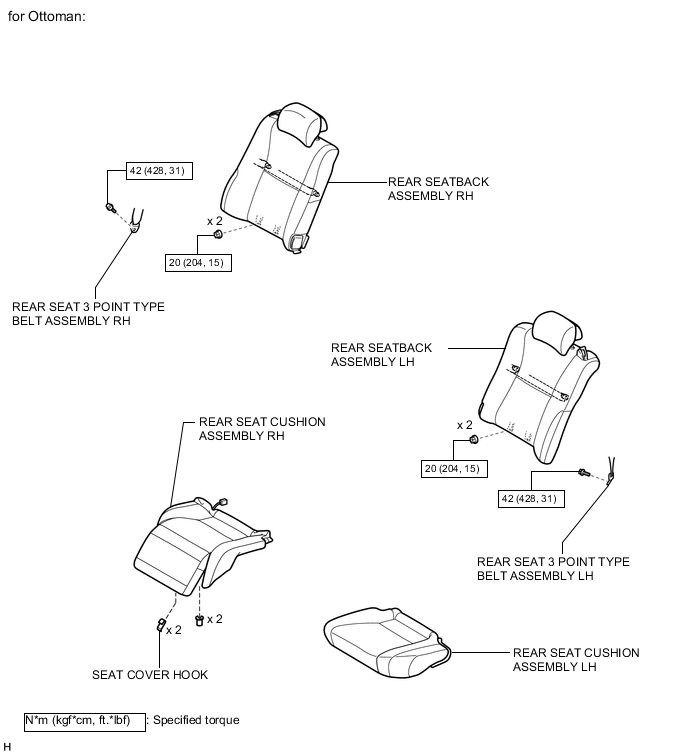

    A003QNYE01

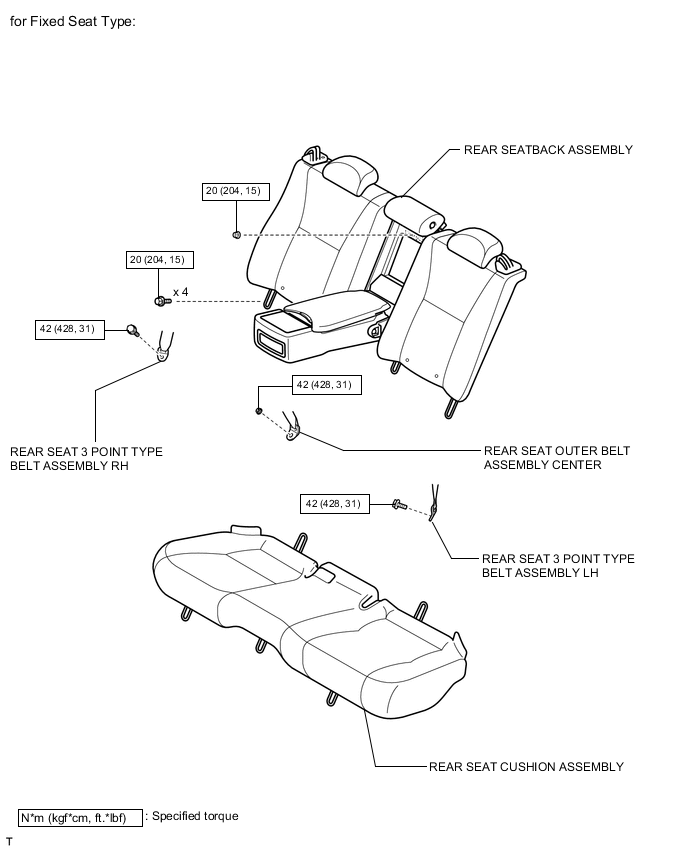

    A003QLYE14

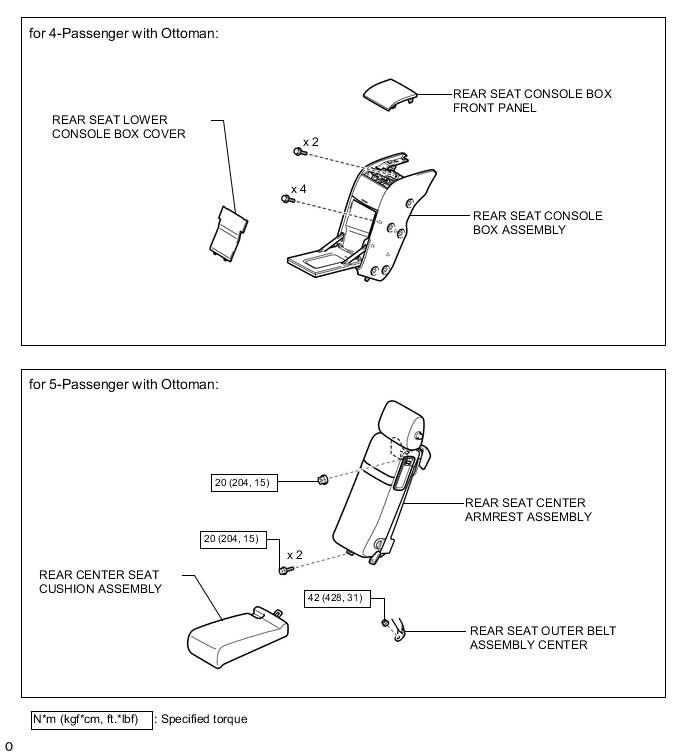

    A003QPSE01

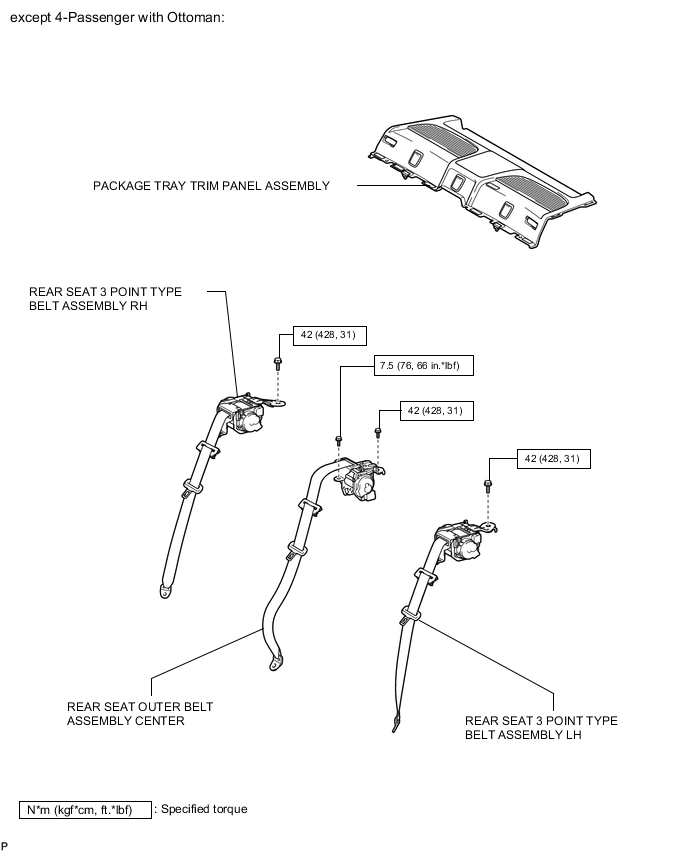

    A003QPPE01

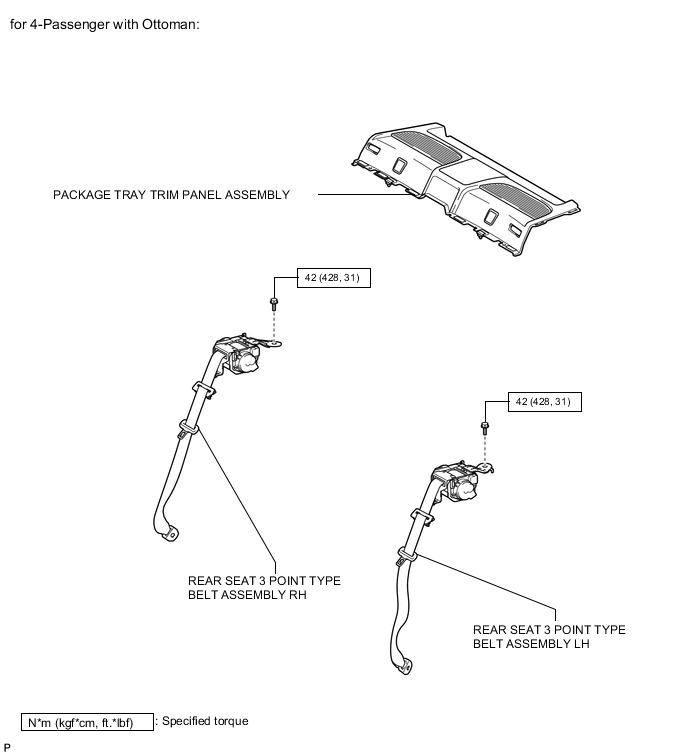

    A003QH8E01

  6. SEAT

    A003QN5E02

    1. REAR SEAT ASSEMBLY (for Power Seat)

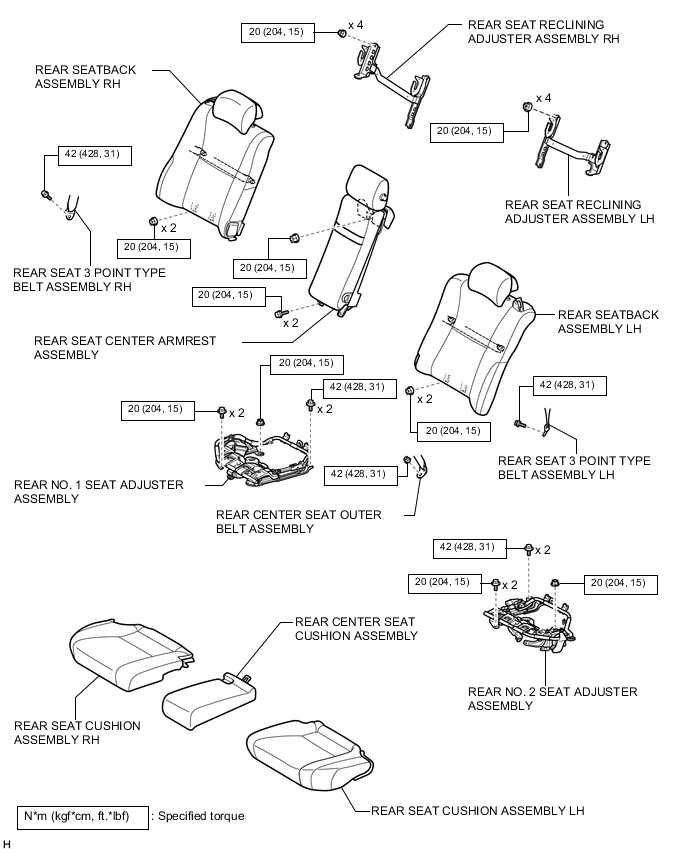

      A003QFSE02

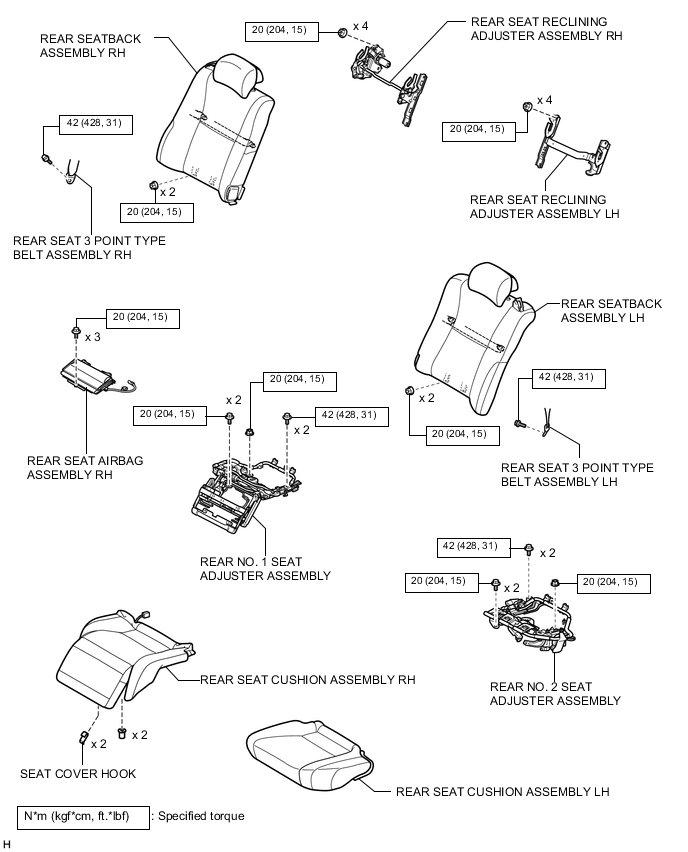

    2. REAR SEAT ASSEMBLY (for Ottoman)

      A003QK5E02

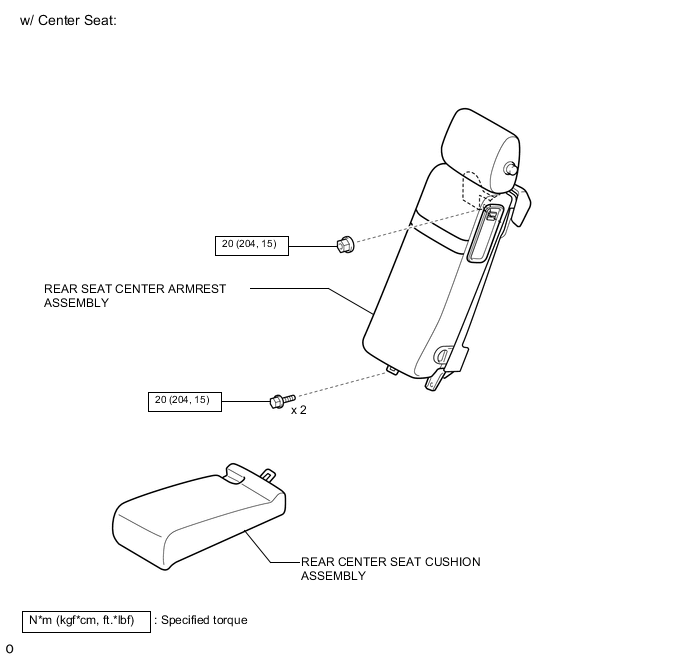

      A003QLWE03

    3. REAR SEAT ASSEMBLY (for Fixed Seat Type)

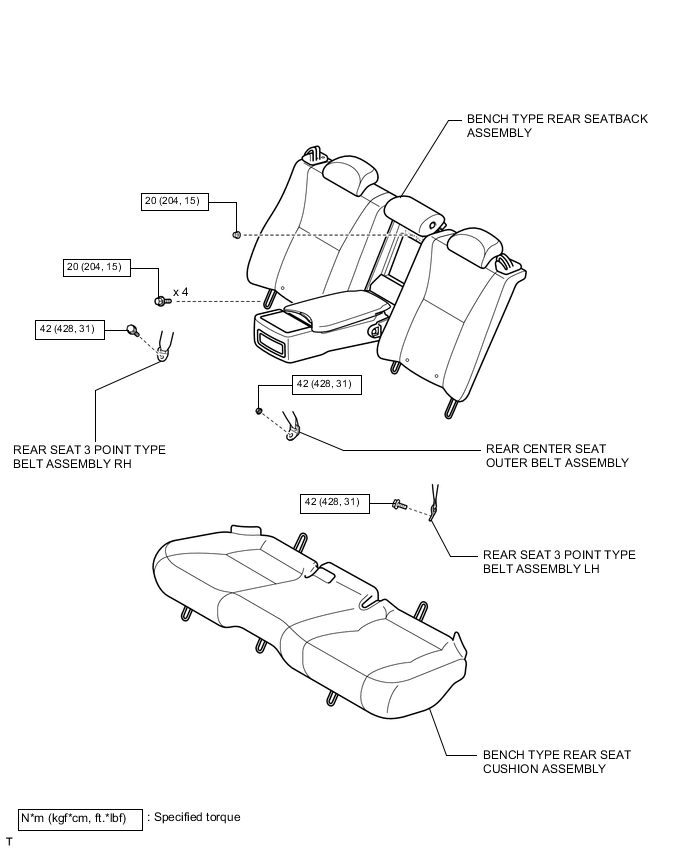

      A003QLYE15
