HOW TO USE THIS MANUAL ILLUSTRATION OF WELD POINT SYMBOLS

REMOVAL

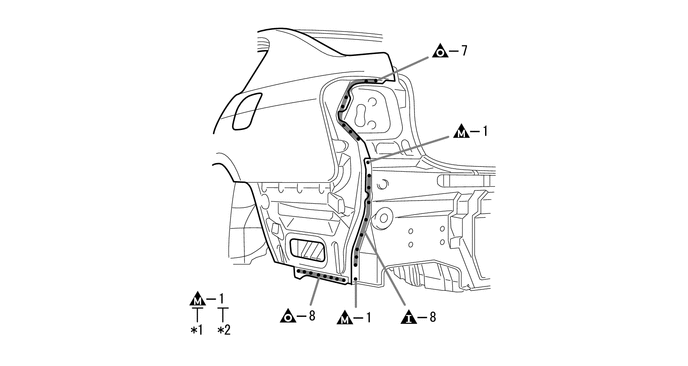

A003QHT
*1 Position of panels that are removed
*2 Weld points
SYMBOLS MEANING ILLUSTRATION

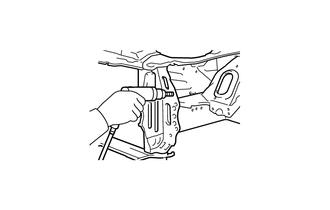

A003QHJ Remove Weld Points A003QMC

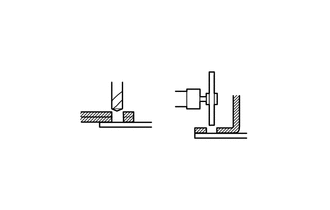

A003QI6 Position of Panel Being Replaced is on Outside A003QLQ

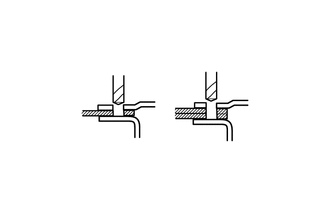

A003QIG Position of Panel Being Replaced is in Center A003QKN

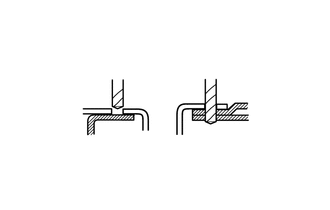

A003QGC Position of Panel Being Replaced is on Inside A003QIA
INSTALLATION
A003QKY
*1 Welding method and panel position
*2 Weld points
SYMBOLS MEANING ILLUSTRATION

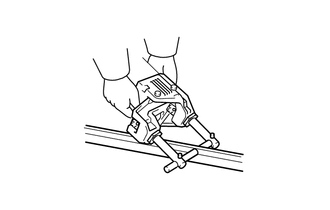

A003QGJ Spot Welding A003QGH

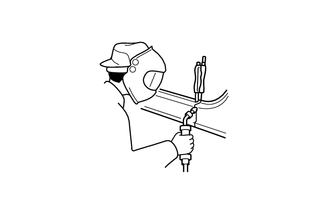

A003QJ7 Plug Welding A003QMU

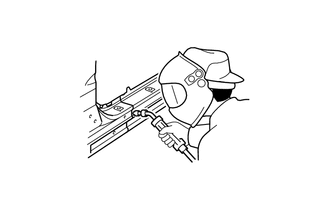

A003QK6 Spot MIG Welding A003QMX
