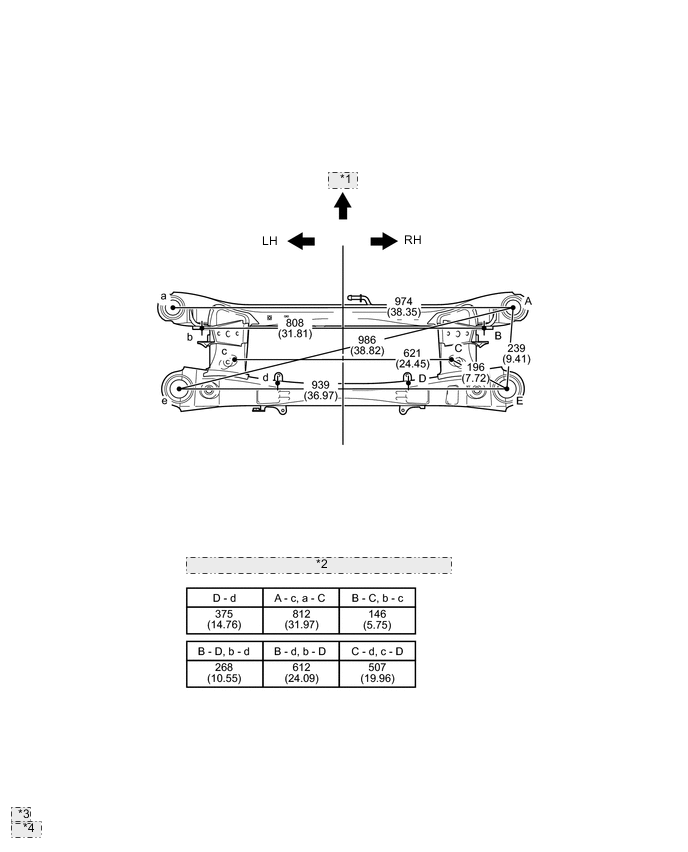

REAR SUSPENSION CROSSMEMBER THREE-DIMENSIONAL DISTANCE
Tech Tips
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Rear Suspension Member Installation Hole | φ55.2 (2.17) |
| B, b | Rear Suspension Lower Arm Installation Hole (Front) | 24.1X15.2 (0.95X0.60) |
| C, c | Stabilizer Installation Nut | M12 (0.47) |
| D, d | Rear Suspension Lower Arm Installation Hole (Rear) | φ7 (0.28) |
| E, e | Rear Suspension Member Installation Hole | φ67.6 (2.66) |
| *1 | Front |
| *2 | Distance between points other than those above |
| *3 | mm |
| *4 | (in.) |
