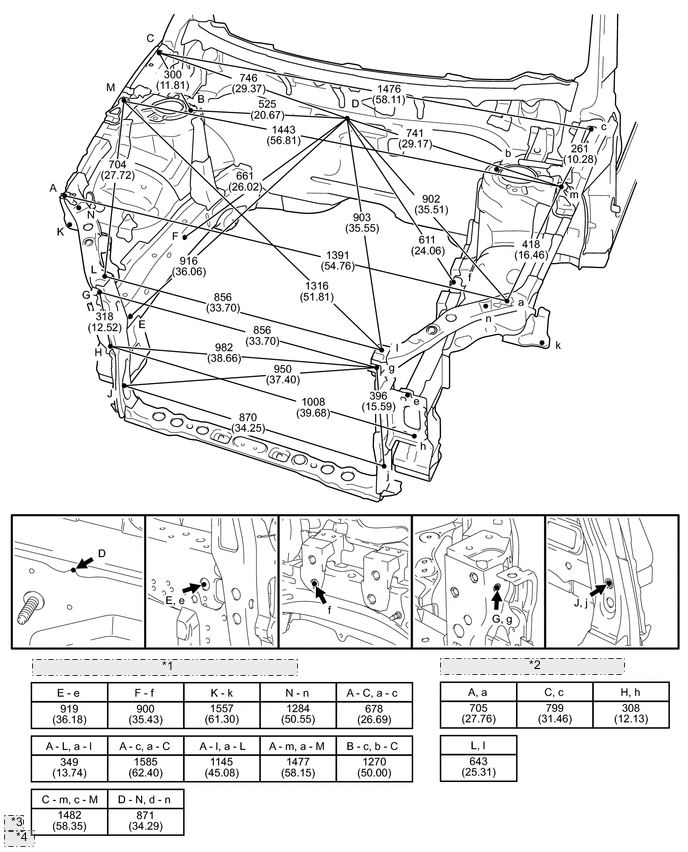

ENGINE COMPARTMENT THREE-DIMENSIONAL DISTANCE
Tech Tips
-
Point F, f on the vehicle are asymmetrical.
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Front Fender Installation Nut | M6 (0.24) |
| B, b | Front Spring Support Standard Hole | φ12.5 (0.49) |
| C, c | Hood Hinge Installation Nut | M8 (0.31) |
| D | Cowl Top Inner Panel Center Mark | - |
| E, e | Front Side Member Standard Hole | φ18 (0.71) |
| F | Front Side Member Standard Hole | φ16 (0.63) |
| f | Engine Mounting Bracket Installation Nut | M12 (0.47) |
| G, g | Radiator Upper Support Installation Nut | M6 (0.24) |
| H, h | Front Bumper Reinforcement Installation Nut | M10 (0.39) |
| J, j | Radiator Support Standard Hole | φ10 (0.39) |
| K, k | Front Fender Extension Standard Hole | φ10 (0.39) |
| L, l | Radiator Upper Support Installation Nut | M6 (0.24) |
| M, m | Front Fender Installation Nut | M6 (0.24) |
| N, n | Radiator Upper Support Standard Hole | φ10 (0.39) |
| *1 | Distance between points other than those above |
| *2 | Height from Imaginary Datum Line |
| *3 | mm |
| *4 | (in.) |
