NAME PLATE ATTACHMENT POSITION
-
Heat the double-sided tape remaining on the body with an infrared lamp or equivalent.
Tech Tips
Heat the tape to 40 to 60°C for approximately 1 to 2 minutes.
-
Wipe off the remaining double-sided tape using a clean cloth or equivalent.
Note
If a name plate is installed without thoroughly removing the remaining double-sided tape from the body, the name plate will not adhere properly. Make sure to thoroughly wipe off the double-sided tape.
-
After cleaning the installation area of the body with degreasing agent, attach the name plate to the position shown in the illustration.
Tech Tips
The working environment should be 20°C when installing the name plate. If the working environment is below 20°C, heat the installation area of the body to 20 to 30°C and then install the name plate.

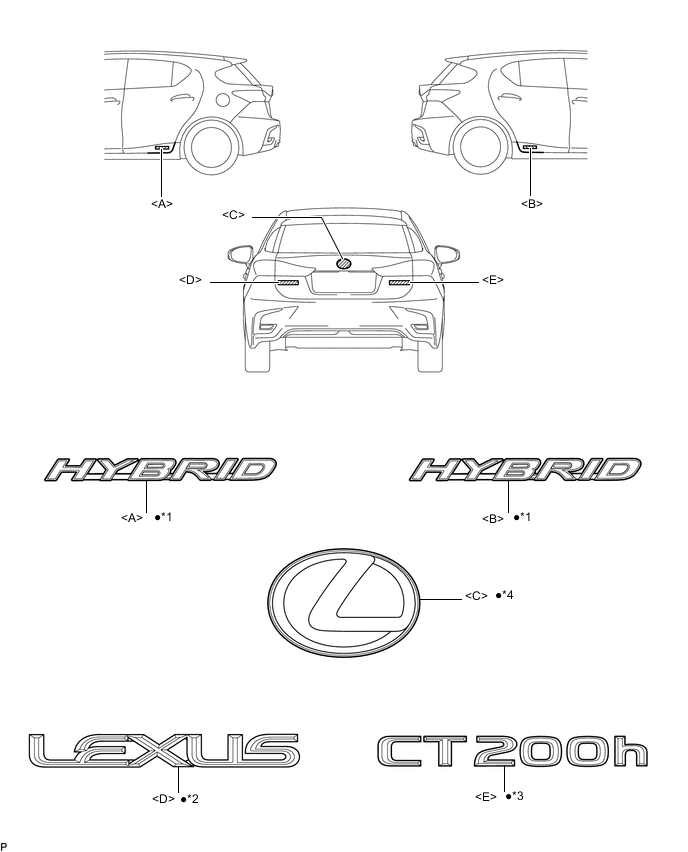

| *1 | BODY SIDE NAME PLATE | *2 | NO. 1 BACK DOOR NAME PLATE |
| *3 | NO. 2 BACK DOOR NAME PLATE | *4 | SYMBOL EMBLEM |
| ● | Non-reusable part | - | - |
| *1 | NO. 2 FRONT FENDER NAME PLATE |
| *2 | NO. 1 FRONT FENDER NAME PLATE |
| *3 | Non-reusable part |
-

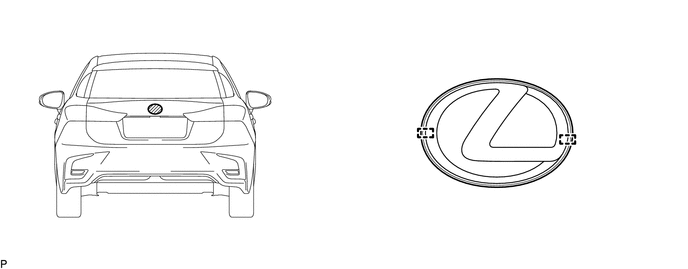

INSTALL SYMBOL EMBLEM
-
Install the symbol emblem.
-
-

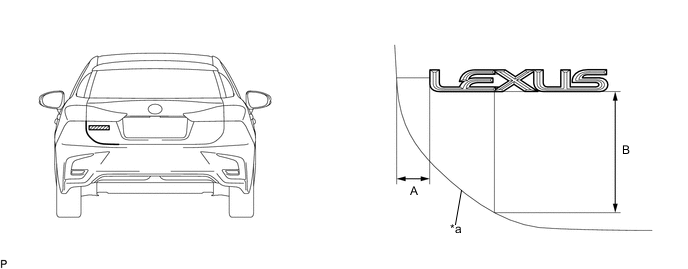

INSTALL NO. 1 BACK DOOR NAME PLATE
-
Install the No. 1 back door name plate.
*a Profile of Luggage Compartment Door Panel - -
-
-

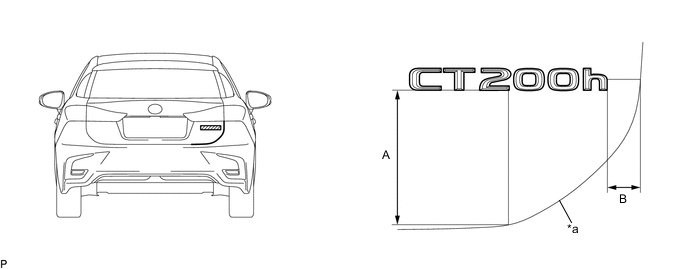

INSTALL NO. 2 BACK DOOR NAME PLATE
-
Install the No. 2 back door name plate.
*a Profile of Luggage Compartment Door Panel - -
-
-

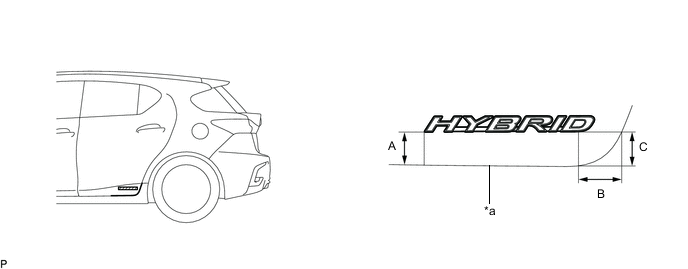

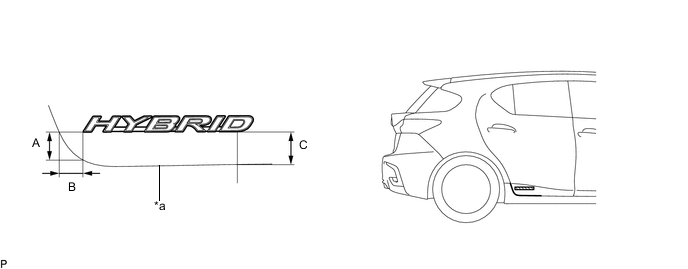

INSTALL BODY SIDE NAME PLATE
-
Install the body side name plate.
for LH Side:
*a Profile of Rear Door Panel - - for RH Side:
*a Profile of Rear Door Panel - -
-
-

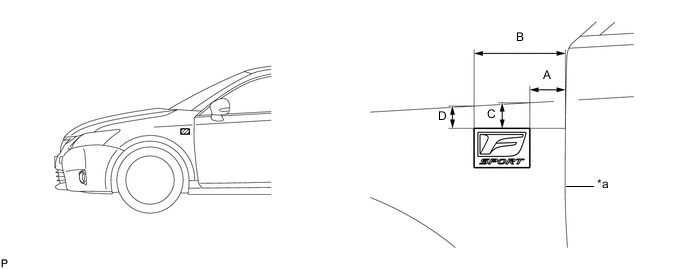

INSTALL NO. 2 FRONT FENDER NAME PLATE
-
Install the No. 2 front fender name plate.
Text in Illustration *1 Profile of Front Fender Panel - -
-
-

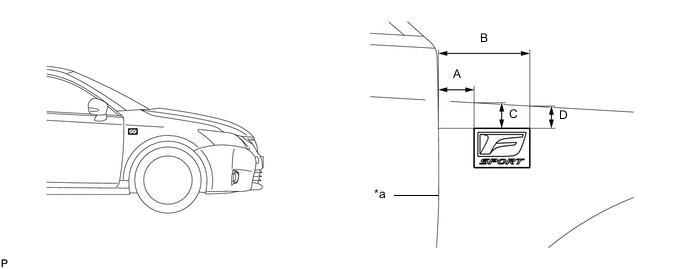

INSTALL NO. 1 FRONT FENDER NAME PLATE
-
Install the No. 1 front fender name plate.
Text in Illustration *1 Profile of Front Fender Panel - -
-
