NAME PLATE ATTACHMENT POSITION


  1. Heat the double-sided tape remaining on the body with an infrared lamp or equivalent.

    Tech Tips

    Heat the tape to 40 to 60°C for approximately 1 to 2 minutes.

  2. Wipe off the remaining double-sided tape using a clean cloth or equivalent.

    Note

    If a name plate is installed without thoroughly removing the remaining double-sided tape from the body, the name plate will not adhere properly. Make sure to thoroughly wipe off the double-sided tape.

  3. After cleaning the installation area of the body with degreasing agent, attach the name plate to the position shown in the illustration.

    Tech Tips

    The working environment should be 20°C when installing the name plate. If the working environment is below 20°C, heat the installation area of the body to 20 to 30°C and then install the name plate.

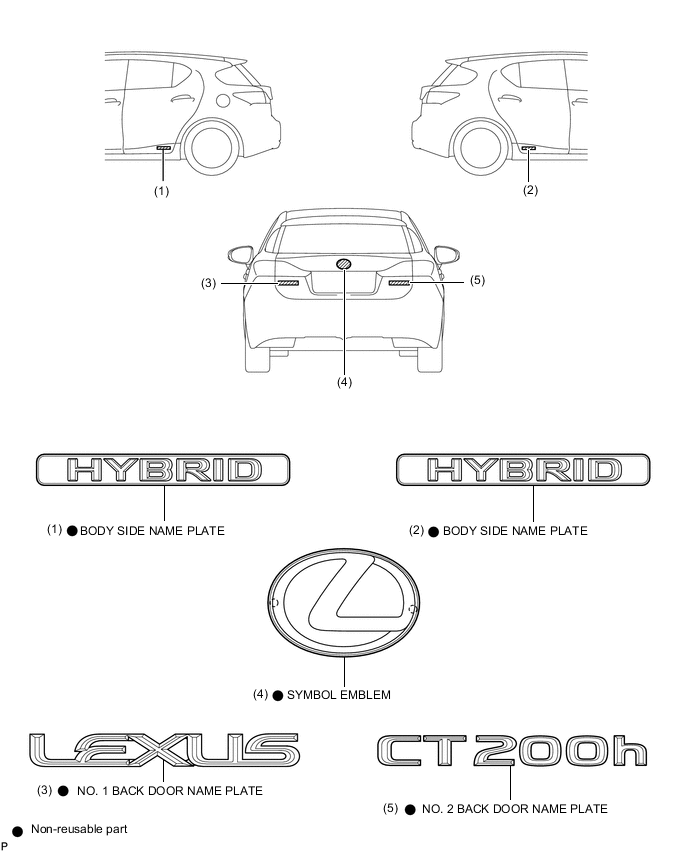

A004UKBE03

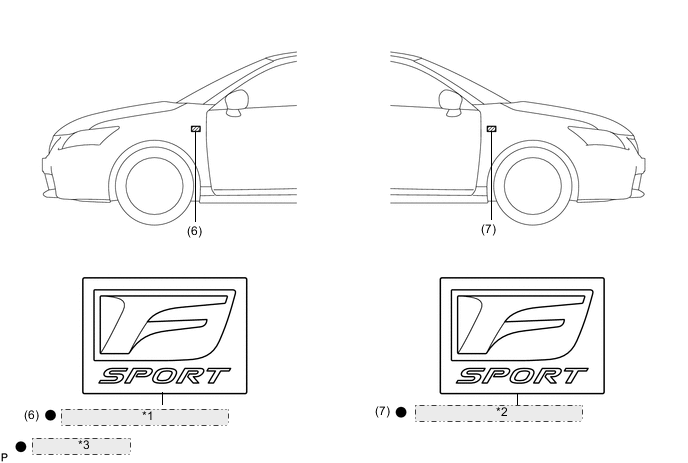

A004UOLE03
*1 NO. 2 FRONT FENDER NAME PLATE
*2 NO. 1 FRONT FENDER NAME PLATE
*3 Non-reusable part

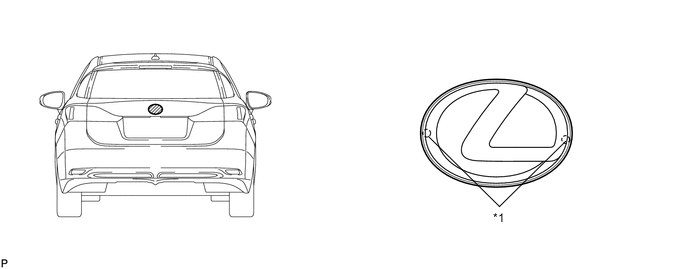

  1. INSTALL SYMBOL EMBLEM


    1. Install the symbol emblem.

      A004UNDE01
      Text in Illustration
      *1 Location Pin - -

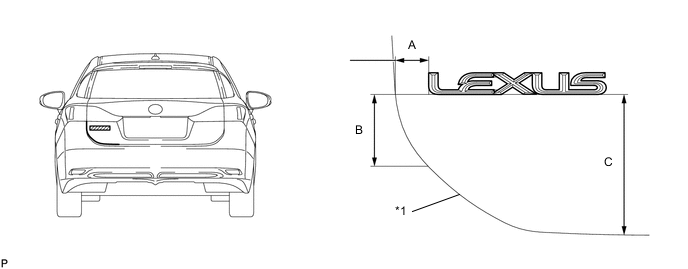

  2. INSTALL NO. 1 BACK DOOR NAME PLATE


    1. Install the No. 1 back door name plate.

      A004UJNE03
      Text in Illustration
      *1 Profile of Back Door Panel - -

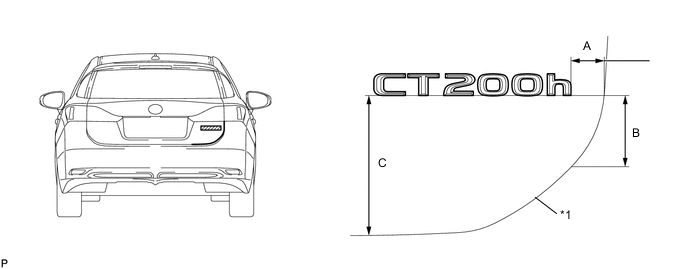

    2. INSTALL NO. 2 BACK DOOR NAME PLATE


      1. Install the No. 2 back door name plate.

        A004UOTE03
      3. Text in Illustration
      *1 Profile of Back Door Panel - -

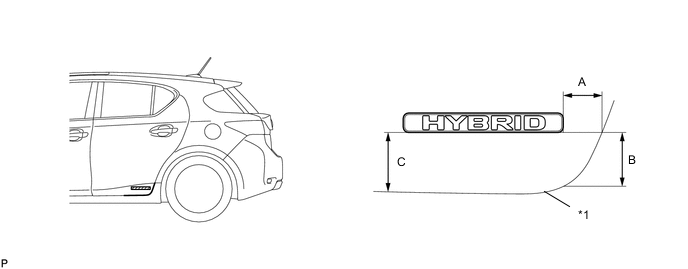

    3. INSTALL BODY SIDE NAME PLATE


      1. Install the body side name plate.

        A004UKTE05
      4. Text in Illustration
      *1 Profile of Rear Door Panel - -

    Tech Tips

    Use the same procedure for the RH side and LH side.

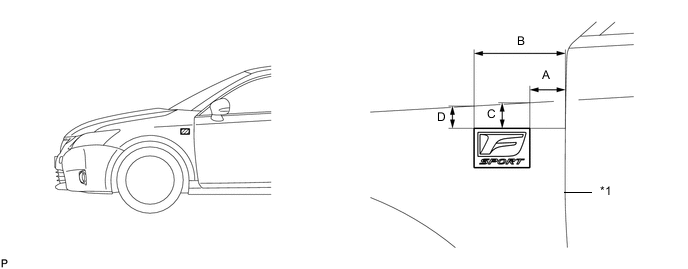

  3. INSTALL NO. 2 FRONT FENDER NAME PLATE


    1. Install the No. 2 front fender name plate.

      B001IXQE05
    4. Text in Illustration
    *1 Profile of Front Fender Panel - -

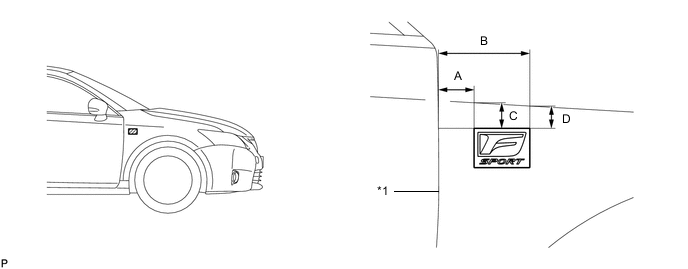

  • INSTALL NO. 1 FRONT FENDER NAME PLATE


    1. Install the No. 1 front fender name plate.

      A004UNPE05
    • Text in Illustration
    *1 Profile of Front Fender Panel - -
