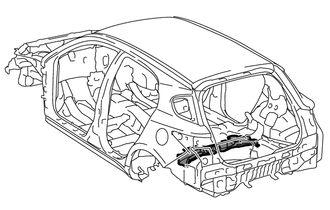

REAR FLOOR LOWER FRONT CROSSMEMBER ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points
    B001IXF Remove Weld Points

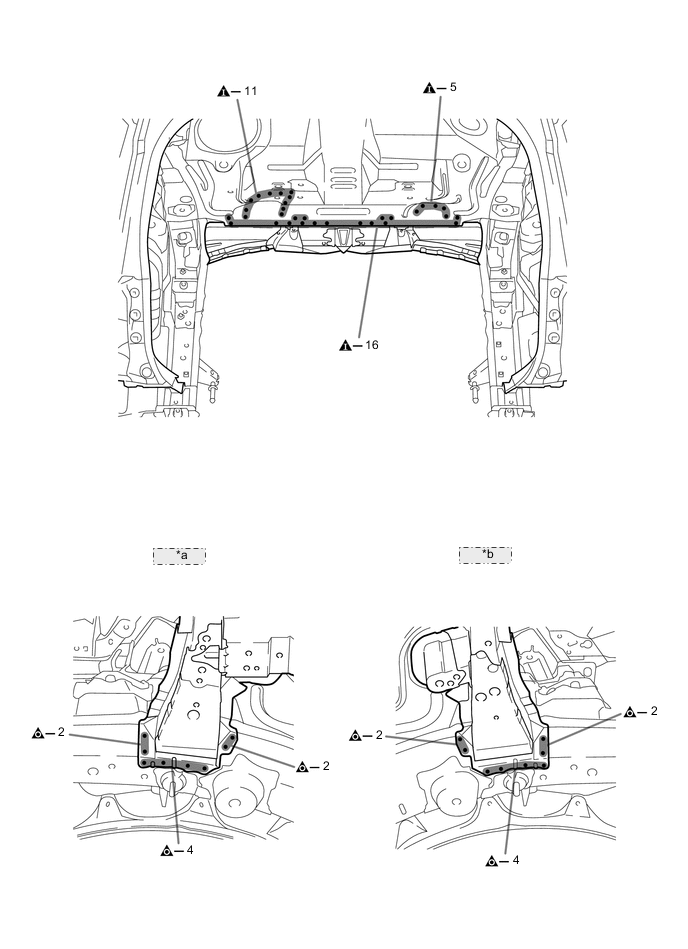

    A004UM9E01
    *a [LH Side]
    *b [RH Side]

  2. INSTALLATION

    Symbol meaning
    B001IY5 Plug Weld
    B001IVR Plug Weld

      INSTALLATION POINT

    1. After welding, apply undercoating to the corresponding parts. (See the paint / coating)

    2. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

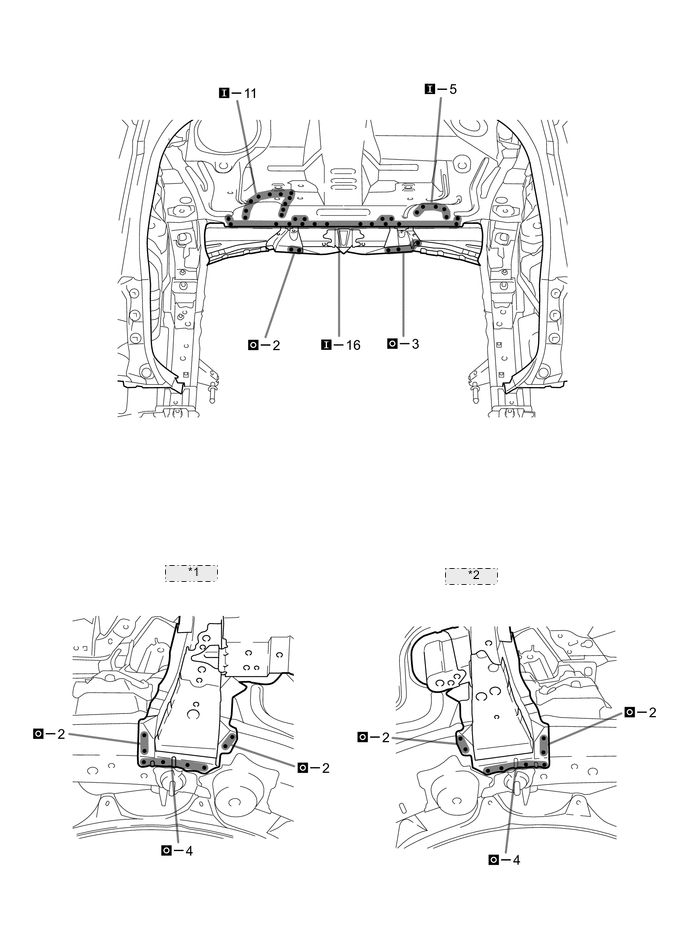

    A004UJEE01
    *1 [LH Side]
    *2 [RH Side]
