REAR FLOOR SIDE PANEL ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol meaning
    B001IYB Remove Weld Points
    B001IXF Remove Weld Points

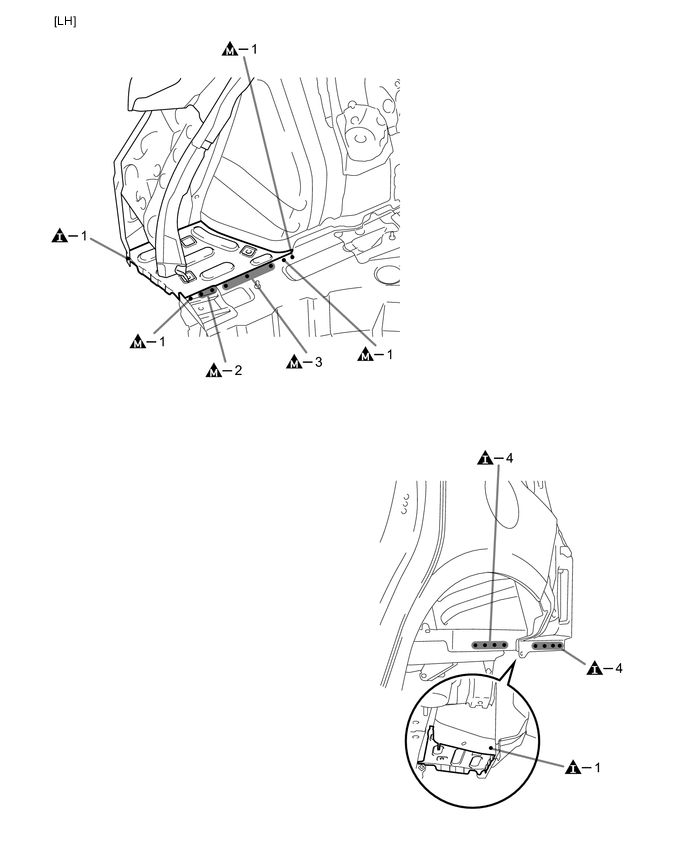

    B001IURE01
    B001ITYE01

  2. INSTALLATION

    Symbol meaning
    B001ISB Plug Weld
    B001IVR Plug Weld

      INSTALLATION POINT

    1. When welding *1, make a hole on a new part for plug welding and weld the panel with the panel behind completely.

    2. After welding, apply body sealer and undercoating to the corresponding parts. (See the paint / coating)

    3. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

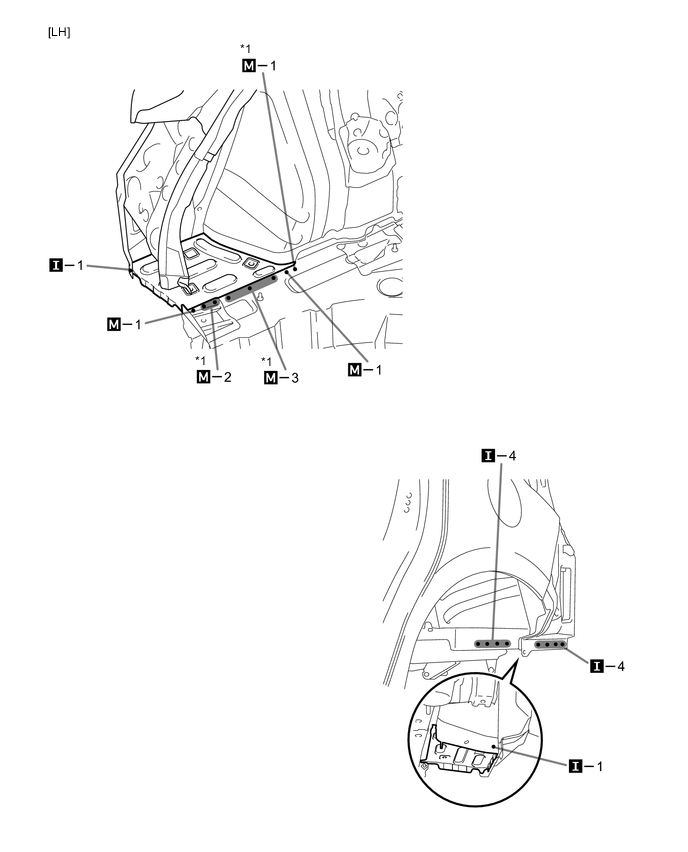

    B001IVCE01
    B001IUGN01
