BODY LOWER BACK PANEL ASSEMBLY REPLACEMENT

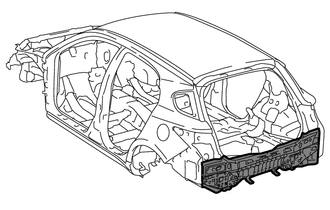

B001IVQ

  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points
    B001IXF Remove Weld Points

      REMOVAL POINT

    1. *1 in illustration above indicates where the adhesive is located.

    2. Roughly cut open the panel so that the adhesive can be reached. Cut through the adhesive with a cut chisel to remove the panel.

      Tech Tips

      In cases where the adhesive cannot be removed with a cut chisel, heat the adhesive with an industrial heater gun or gas burner taking care not to cause panel deformation by overheating.

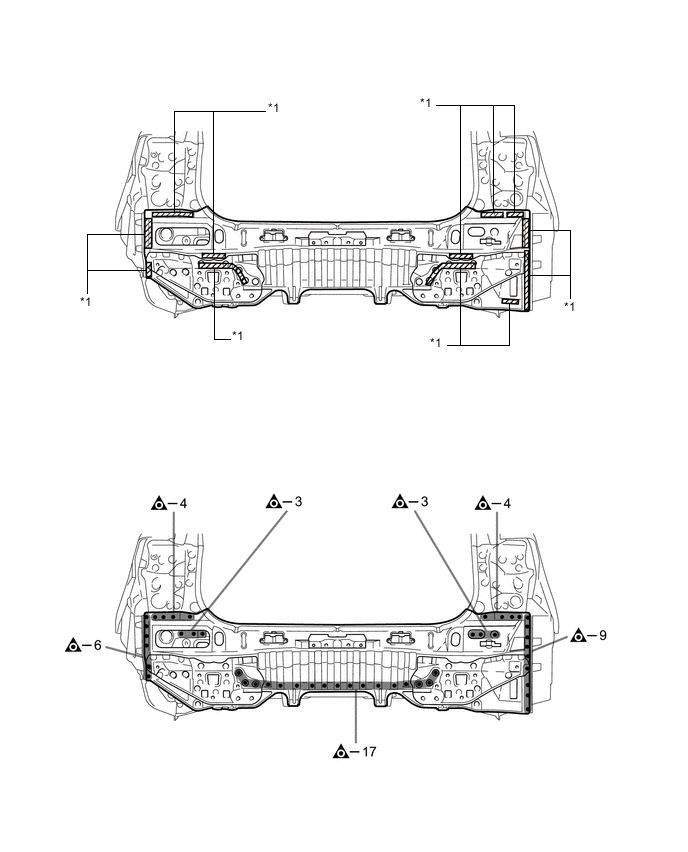

    B001IX5E01

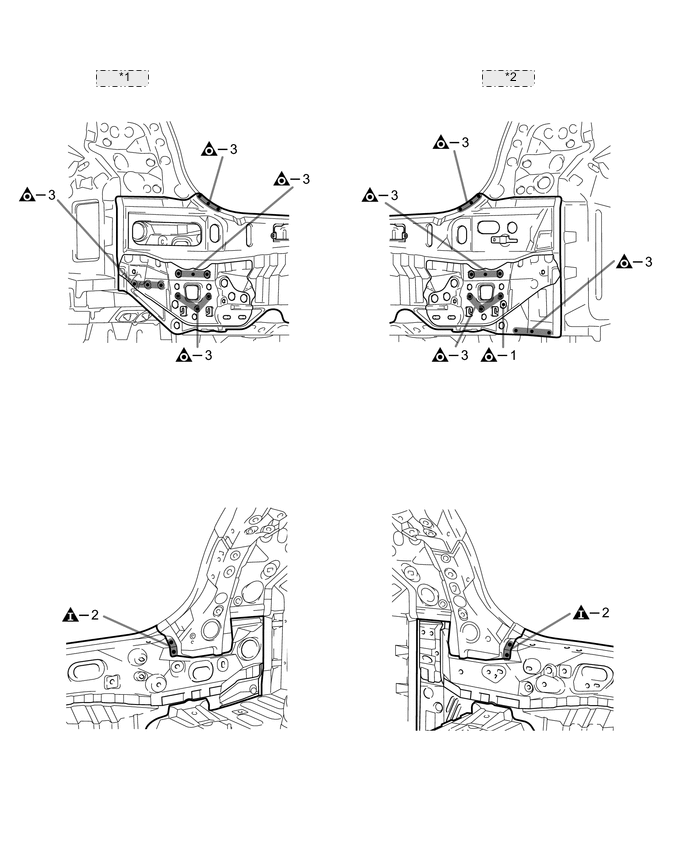

    B001IXVE01
    *1 [LH Side]
    *2 [RH Side]

  2. INSTALLATION

    Symbol meaning
    B001IY5 Plug Weld
    B001IVR Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. Apply adhesive (3MTM AutomixTM Panel Bonding Adhesive #8115) to the area indicated by *1 in the illustration.

      Tech Tips

      Apply enough adhesive for the panels to stick to each other.

    4. After welding, apply body sealer to the corresponding parts. (See the paint / coating)

    5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

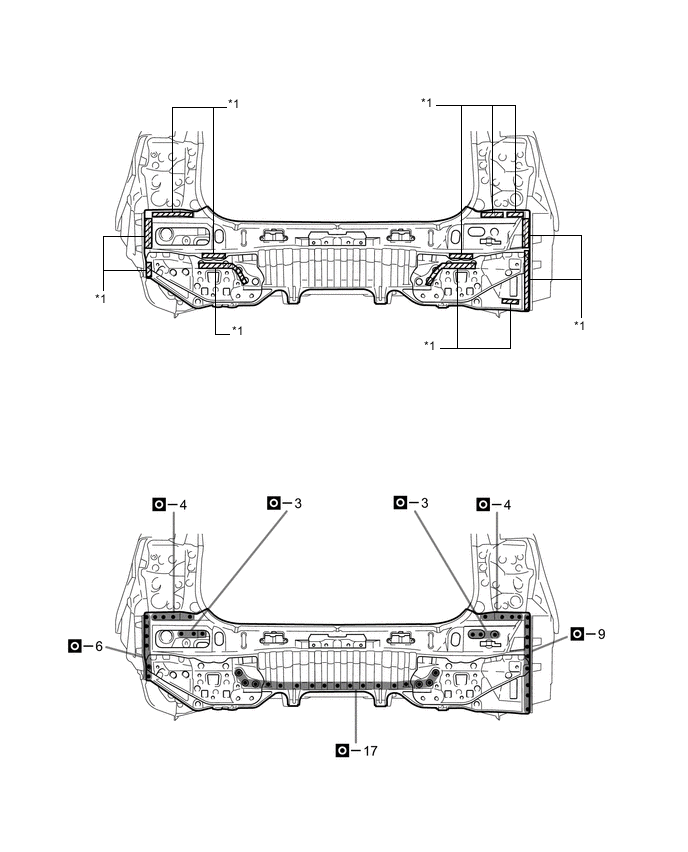

    B001IWWE01

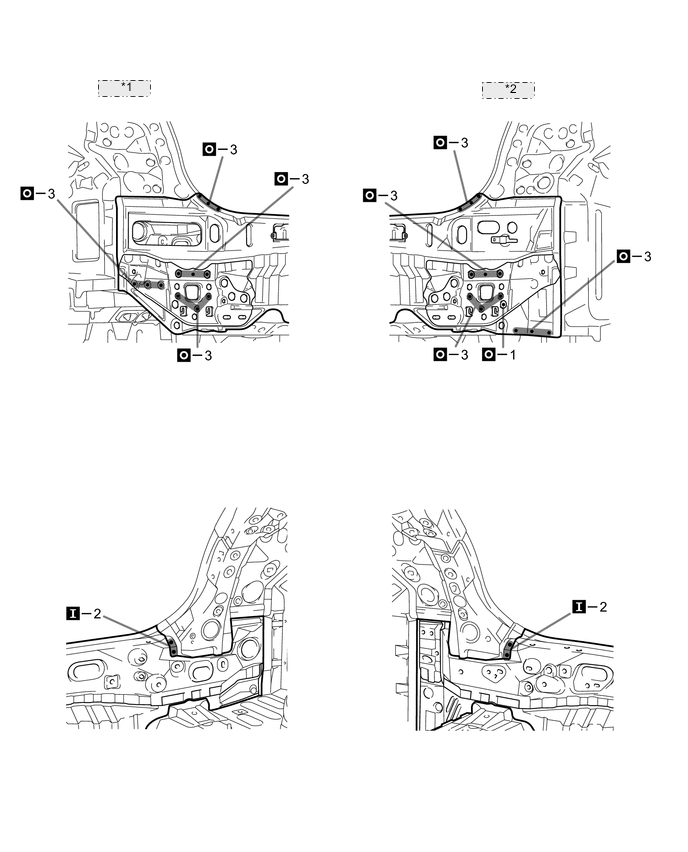

    B001IWRE01
    *1 [LH Side]
    *2 [RH Side]
