BODY LOWER BACK PANEL ASSEMBLY REPLACEMENT

B001IVQ

  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points
    B001IXF Remove Weld Points

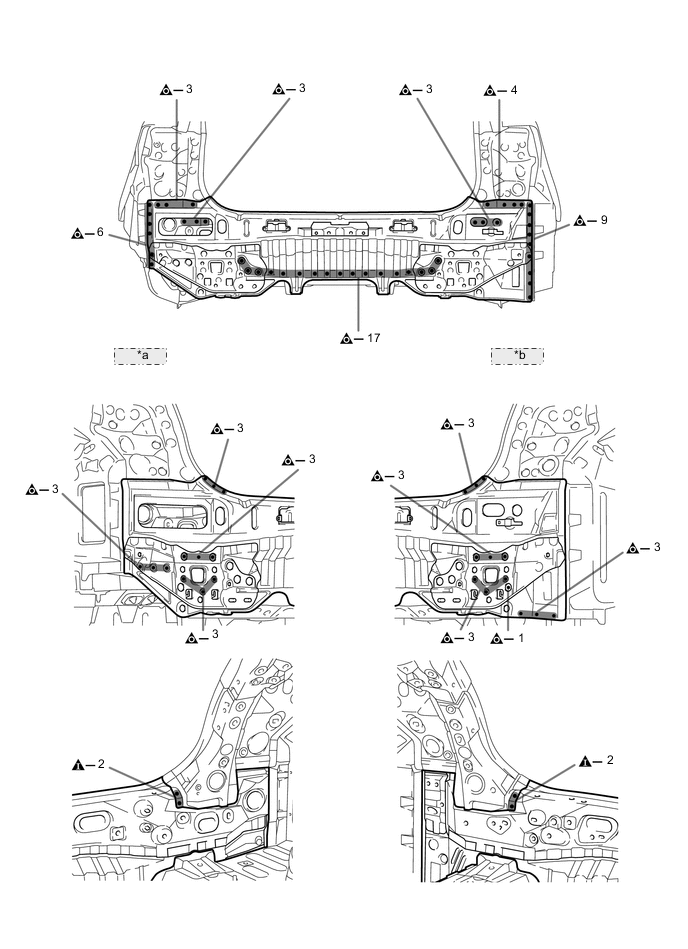

    A004UP3E01
    *a [LH Side]
    *b [RH Side]

  2. INSTALLATION

    Symbol meaning
    B001IY5 Plug Weld
    B001IVR Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. After welding, apply body sealer to the corresponding parts. (See the paint / coating)

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A004UMDE01
    *1 [LH Side]
    *2 [RH Side]
