CENTER BODY PILLAR CUT AND JOIN REPLACEMENT SECTIONS

B001IVB



Note

Be sure to use Metal active gas (Ar 80% + CO220%) as the shield gas when plug welding. Sufficient weld strength cannot be assured when using 100% CO2shield gas.

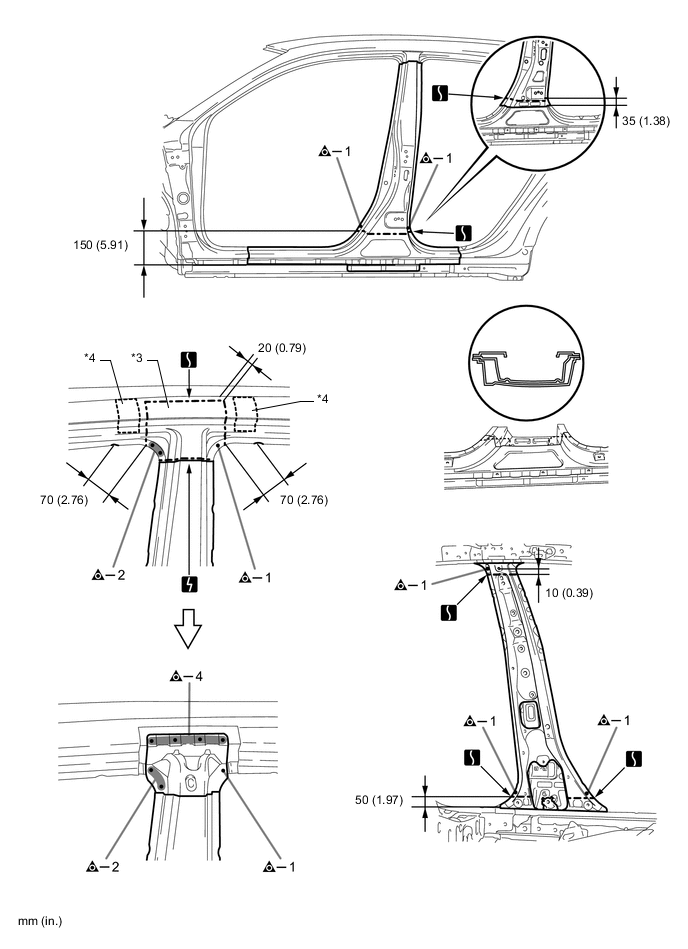

  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points
    B001IUX Cut and Join Location
    B001IX7 Cut Location for Supply Parts

      REMOVAL POINT

    1. Do not butt weld or heat repair because the heat decreases the strength of areas where ultra high strength steel is used. (See the introduction)

    2. *3 is reused.

    3. *4 indicates the location of the foamed sealing material. Be careful when cutting as the foamed sealing material is located near the cutting position.

    B001IVIN01

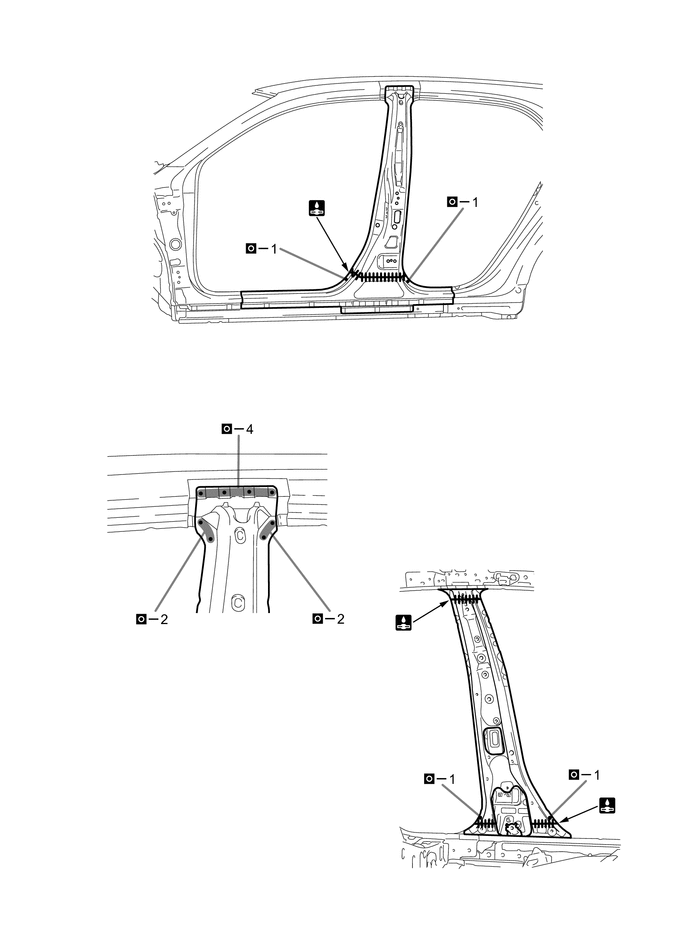

  2. INSTALLATION

    Symbol meaning
    B001IS7 Spot Weld
    B001IY5 Plug Weld
    B001IUX Cut and Join Location
    B001ITX Butt Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. Follow the welding conditions when welding *1 and *2 to assure sufficient weld strength. (See the introduction)

    4. Before temporarily installing the new parts, weld the center body pillar lower reinforce and center body pillar reinforcement with the standard number of welding points.

    5. After welding the center body pillar lower reinforce and center body pillar reinforcement to the vehicle side, install the center body outer pillar and *3.

    6. After welding, apply the foamed sealing material to the corresponding parts. (See the paint / coating)

    7. After welding, apply body sealer to the corresponding parts. (See the paint / coating)

    8. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    B001ISDE01
    A004UHO
    B001ITVE01
