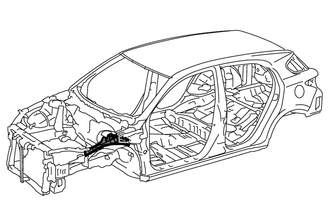

FRONT APRON TO COWL SIDE MEMBER ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points
    B001IYB Remove Weld Points
    B001IXF Remove Weld Points

      REMOVAL POINT

    1. After removing the front apron to cowl side lower front member, remove the front apron to cowl side member.

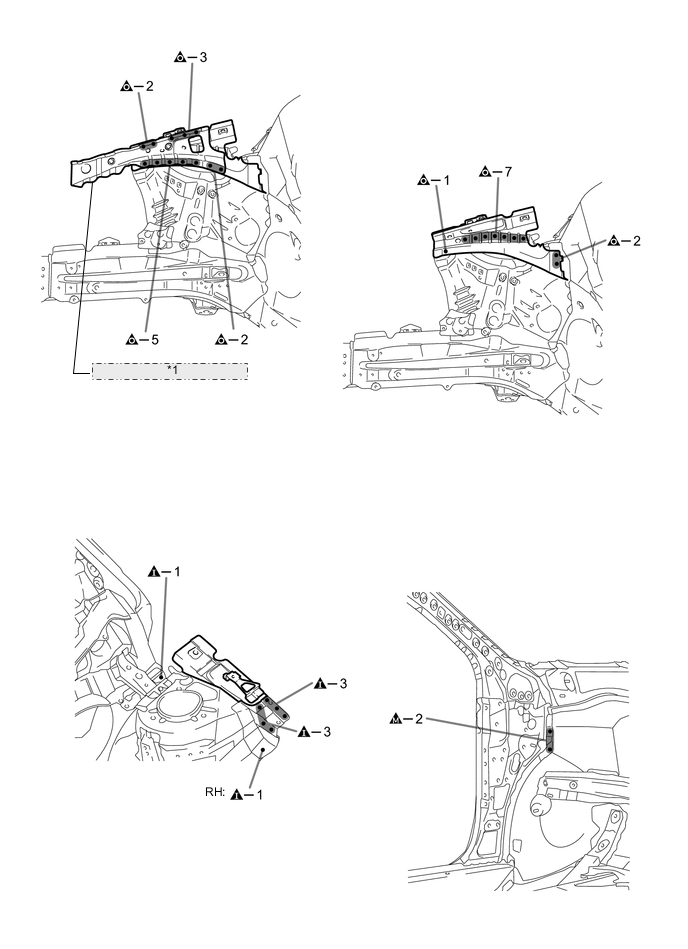

    A004UEPE01
    *1 Front Apron To Cowl Side Lower Front Member

  2. INSTALLATION

    Symbol meaning
    B001IY5 Plug Weld
    B001ISB Plug Weld
    B001IVR Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. After welding the front apron to cowl side member to the vehicle side, install the front apron to cowl side lower front member.

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

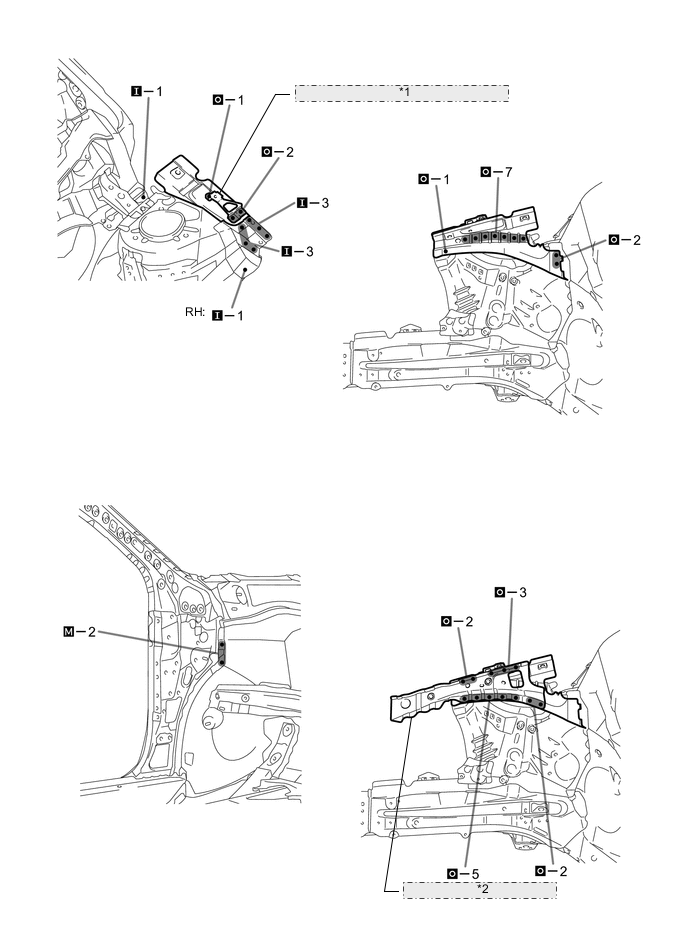

    A004UIBE01
    *1 Front Apron To Cowl Side Member Plate
    *2 Front Apron To Cowl Side Lower Front Member
