FRONT FENDER FRONT APRON ASSEMBLY REPLACEMENT



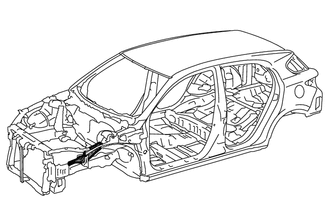

  1. REMOVAL

    Symbol meaning

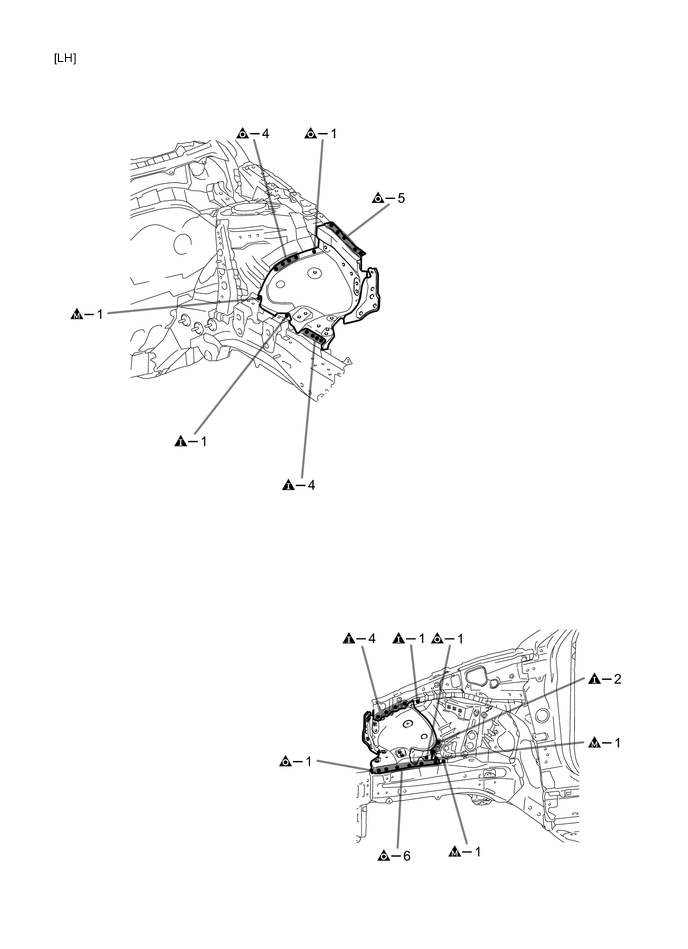

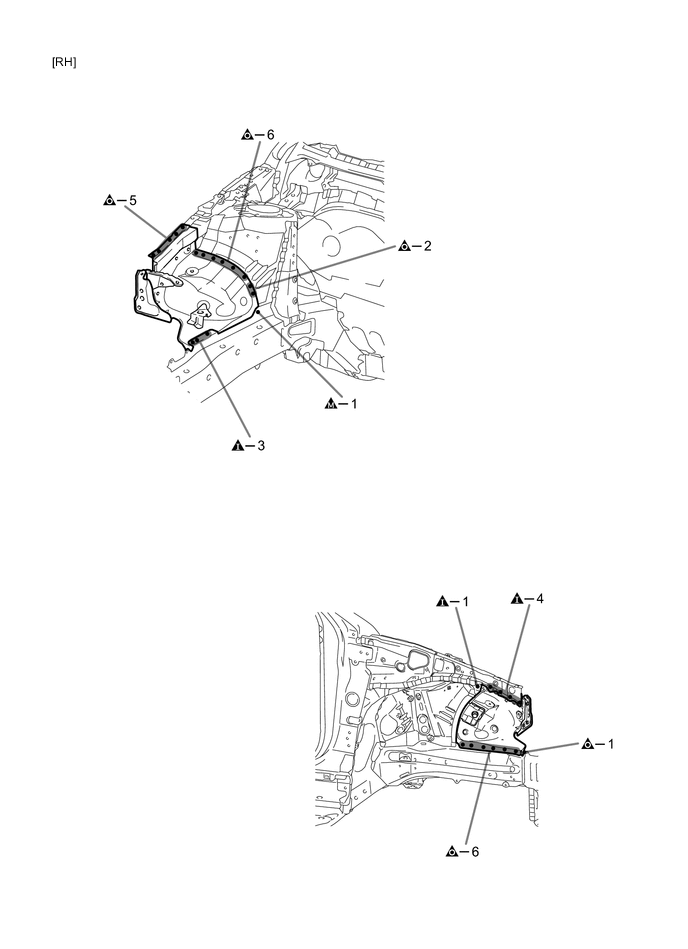

    B001IVH Remove Weld Points
    B001IYB Remove Weld Points
    B001IXF Remove Weld Points
    A004UMJE01
    A004UF8E01

  2. INSTALLATION

    Symbol meaning

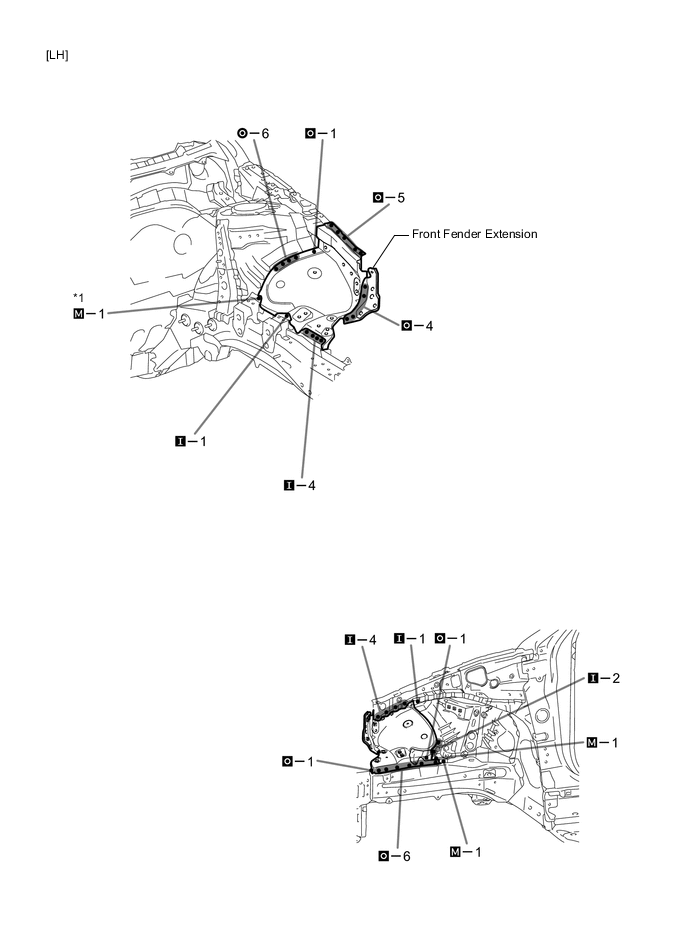

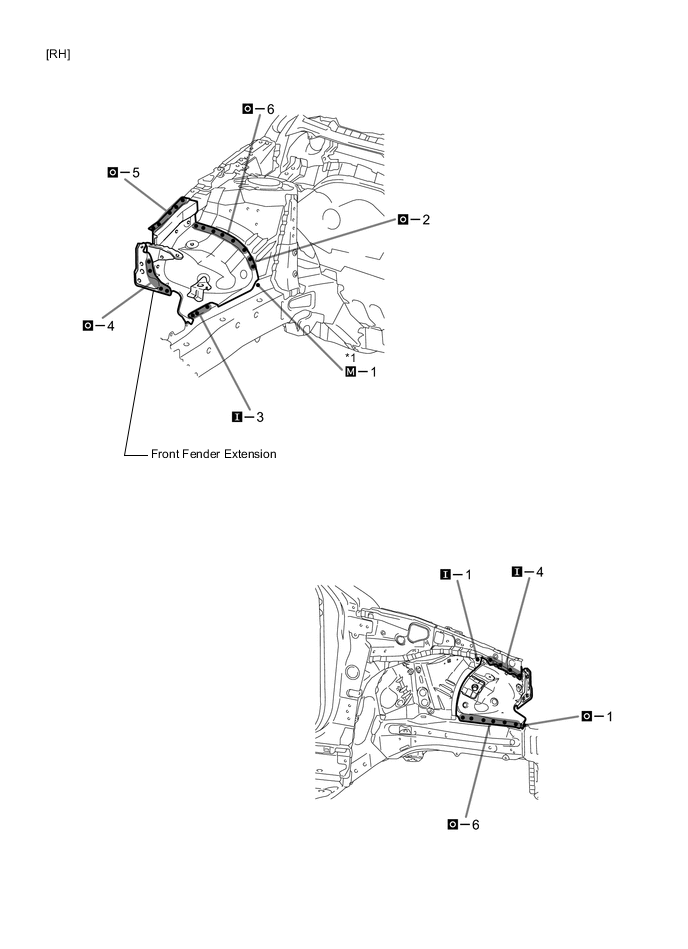

    B001IS7 Spot Weld
    B001IY5 Plug Weld
    B001ISB Plug Weld
    B001IVR Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. When welding *1, make a hole on a new part for plug welding and weld the panel with the panel behind completely.

    4. After welding, apply body sealer and undercoating to the corresponding parts. (See the paint / coating)

    5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A004UPDE01
    A004UK5E01
