RADIATOR SUPPORT ASSEMBLY REPLACEMENT

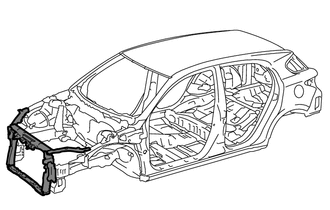

A004ULA

  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points

      REMOVAL POINT

    1. *1: Bolts.

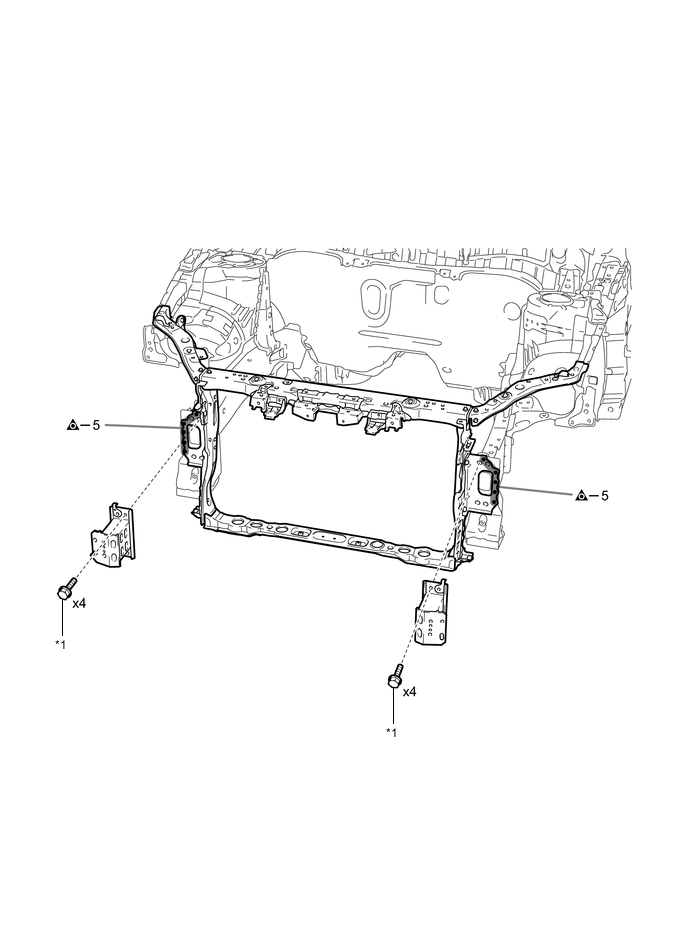

    A004UJHN01

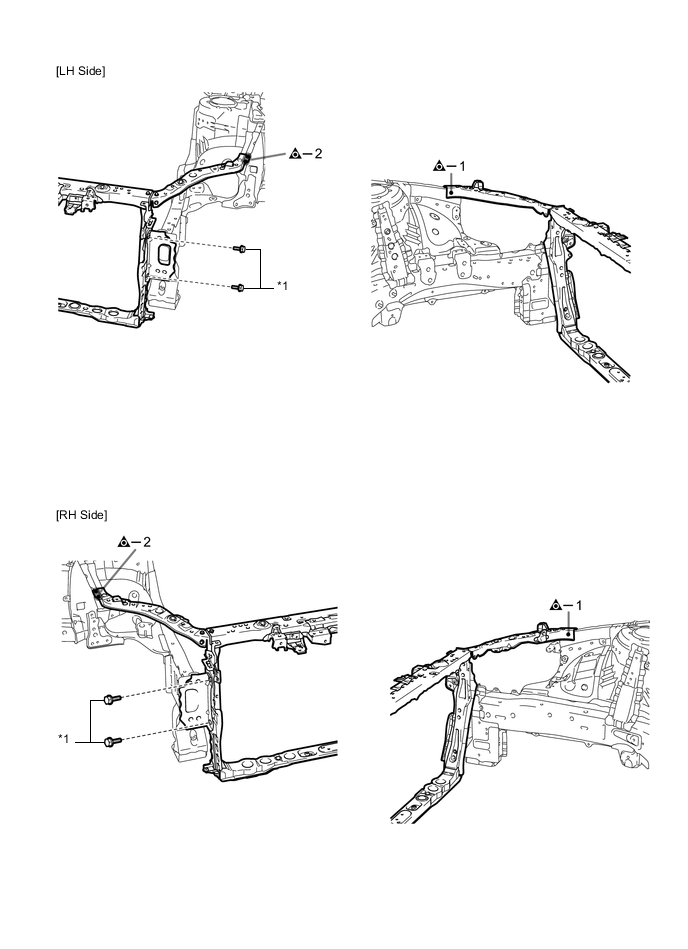

    A004UF6E01

  2. INSTALLATION

    Symbol meaning
    B001IY5 Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. *1: Bolts.

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    5. Measure the dimensions before installing the headlights.

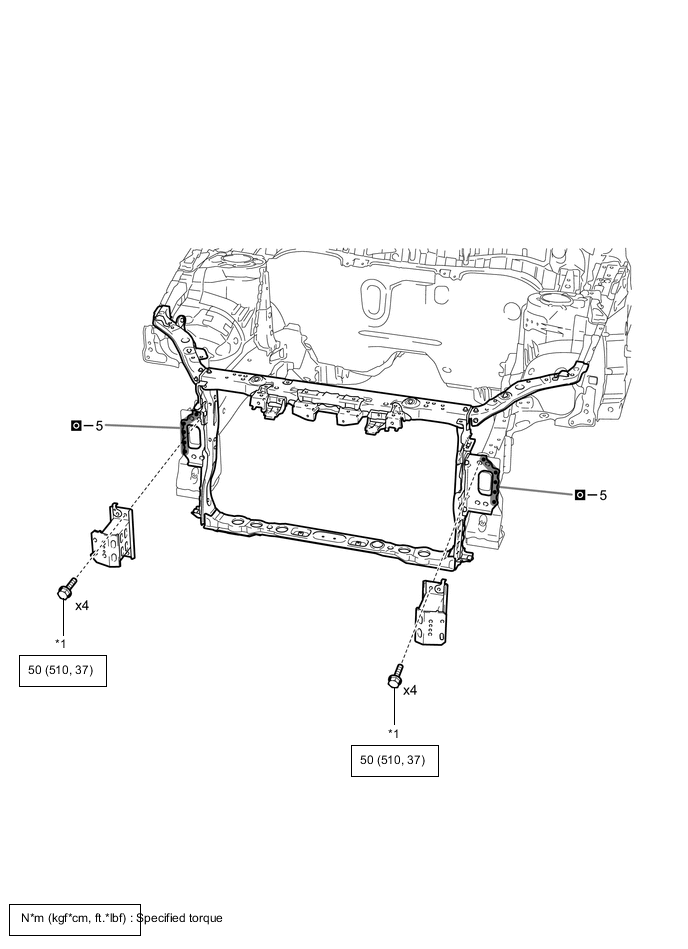

    A004UKPE01
    A004UIUE01

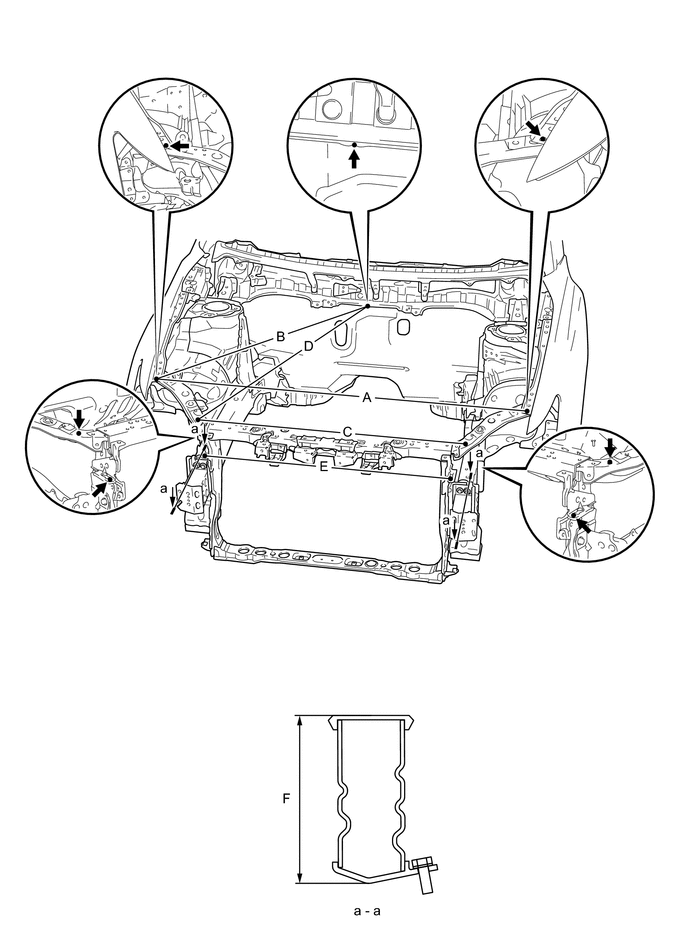

    A004UKW
    Reference Value
    Area Measurement Area Measurement
    A 1382 mm (54.41 in.) B 918 mm (36.14 in.)
    C 981 mm (38.62 in.) D 915 mm (36.02 in.)
    E 900 mm (35.43 in.) F 130.2 mm (5.13 in.)
