RADIATOR LOWER SUPPORT ASSEMBLY REPLACEMENT

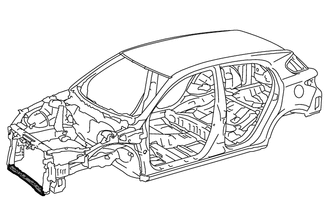

A004UIN

  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points

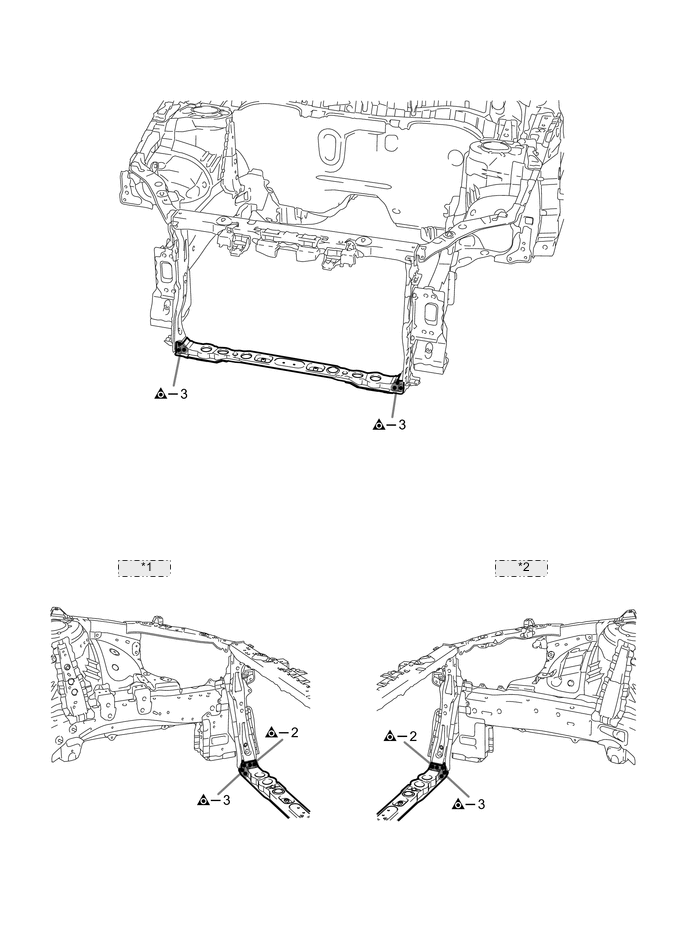

    A004ULHE01
    *1 [LH Side]
    *2 [RH Side]

  2. INSTALLATION

    Symbol meaning
    B001IY5 Plug Weld

      INSTALLATION POINT

    1. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    2. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

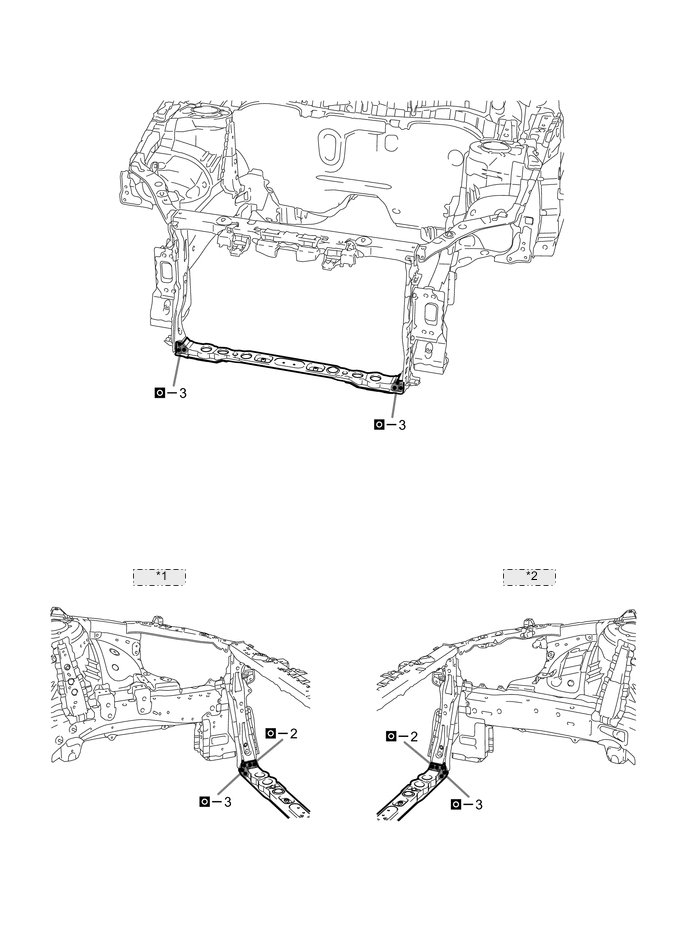

    A004UKFE01
    *1 [LH Side]
    *2 [RH Side]
