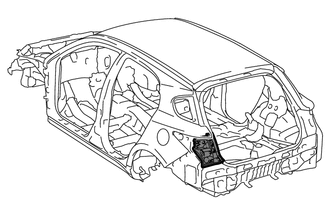

BACK DOOR OPENING TROUGH CUT AND JOIN REPLACEMENT SECTIONS



  1. REMOVAL

    Symbol meaning
    B001IXF Remove Weld Points
    B001IUX Cut and Join Location

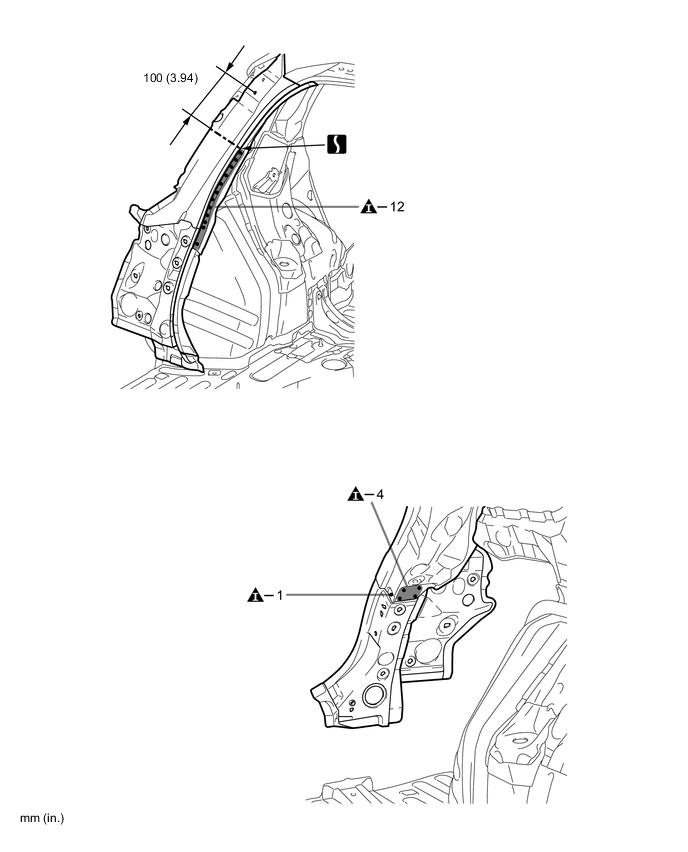

    B001ITCE01

  2. INSTALLATION

    Symbol meaning
    B001IXF Remove Weld Points
    B001IY5 Plug Weld
    B001IVR Plug Weld
    B001IUX Cut and Join Location
    B001ITX Butt Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. If the entire supply part is not needed, remove the part of the supply part that is needed.

    4. After welding, apply body sealer to the corresponding parts. (See the paint / coating)

    5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

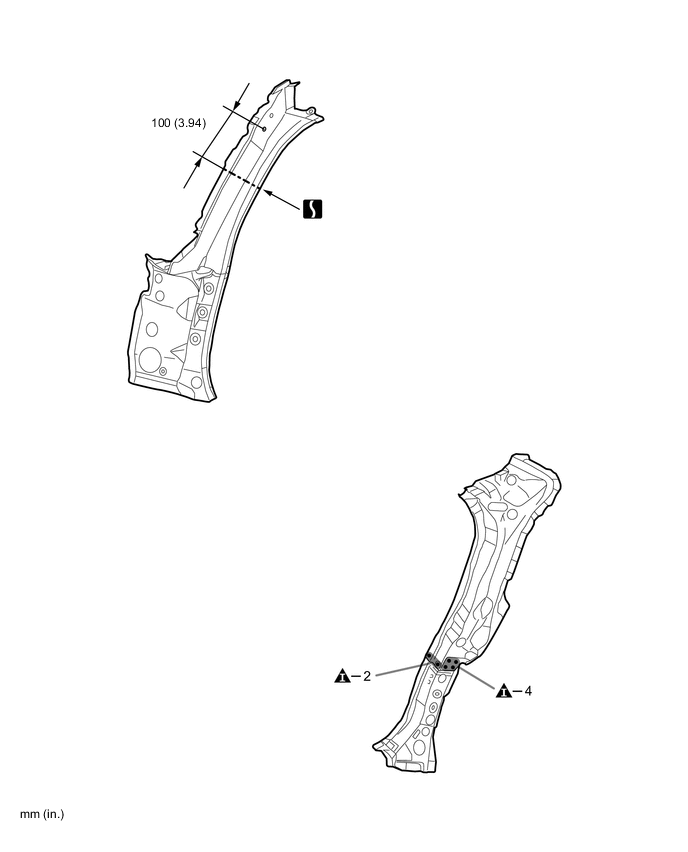

    B001IVDE01

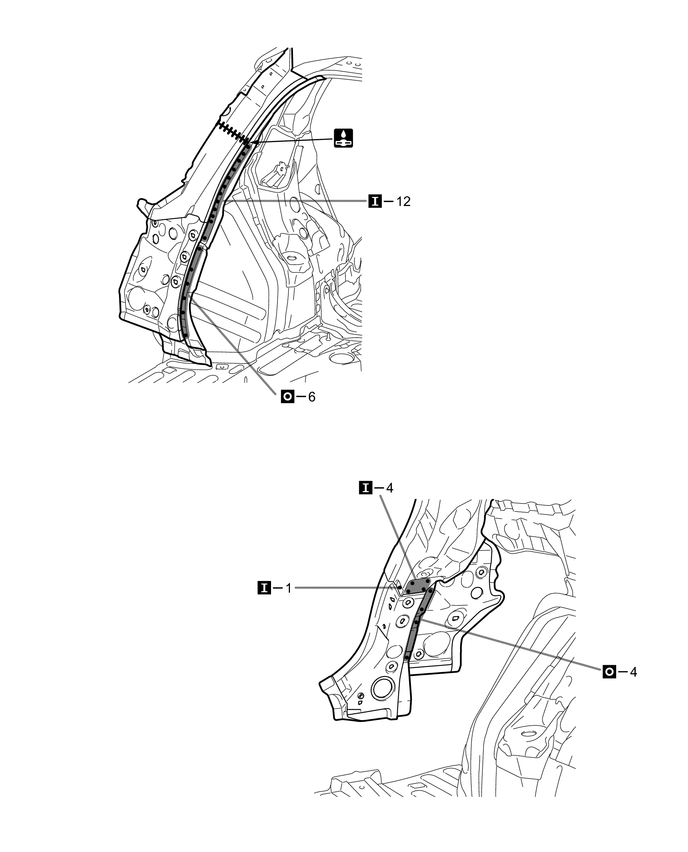

    B001ISW
