QUARTER WHEEL HOUSING OUTER PANEL ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol meaning
    B001IVH Remove Weld Points
    B001IYB Remove Weld Points
    B001IXF Remove Weld Points
    B001IUX Cut and Join Location

      REMOVAL POINT

    1. *1 is reused.

    2. After removing the *1, rear seat back lock striker reinforce and quarter panel extension reinforcement remove the quarter wheel housing outer panel.

    3. *2 in illustration above indicates where the adhesive is located.

    4. Roughly cut open the panel so that the adhesive can be reached. Cut through the adhesive with a cut chisel to remove the panel.

      Tech Tips

      In cases where the adhesive cannot be removed with a cut chisel, heat the adhesive with an industrial heater gun or gas burner taking care not to cause panel deformation by overheating.

    5. *3 indicates the location of the foamed sealing material. Be careful when cutting as the foamed sealing material is located near the cutting position.

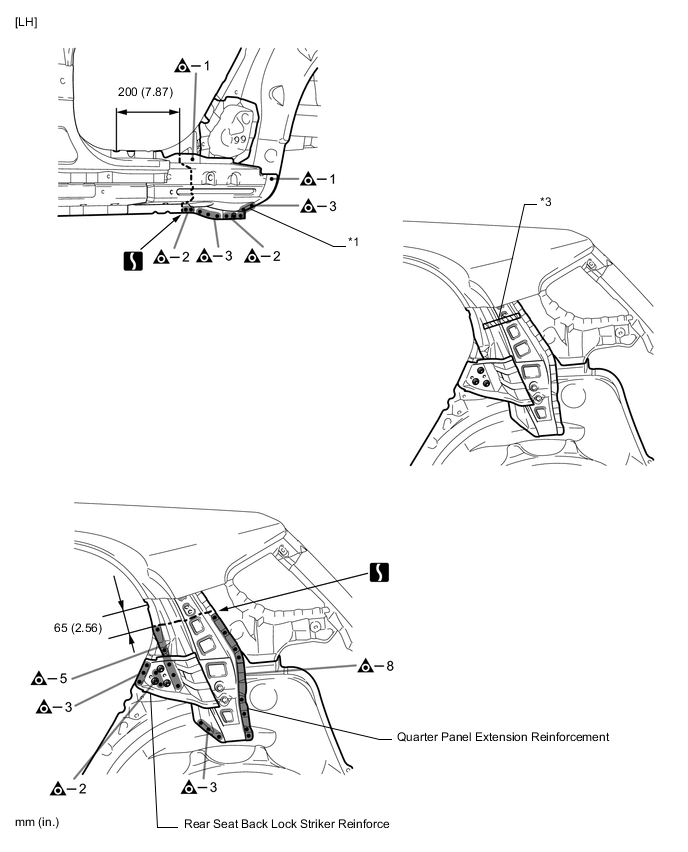

    B001IT9E01
    B001IUIE01

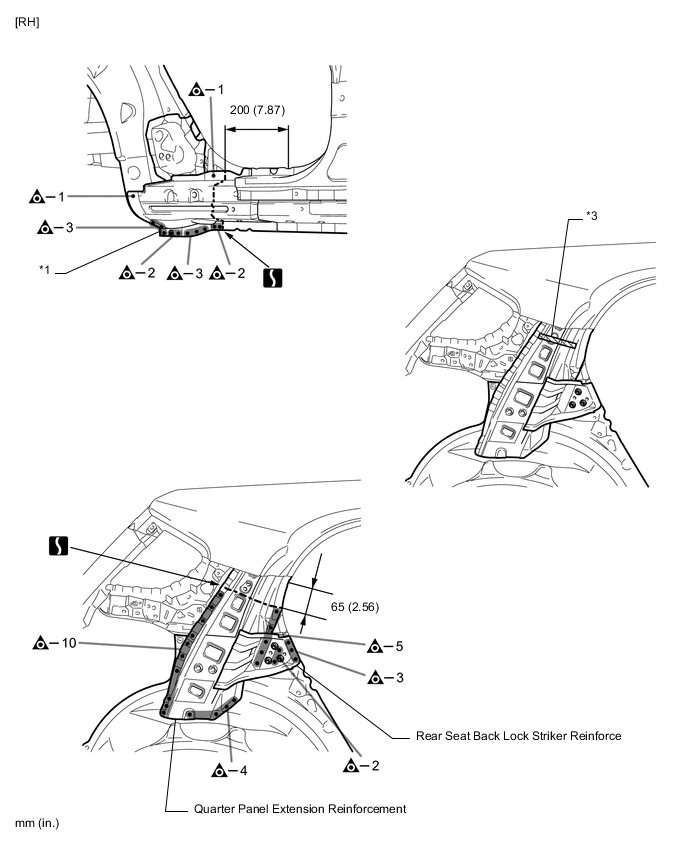

    B001IXCE01

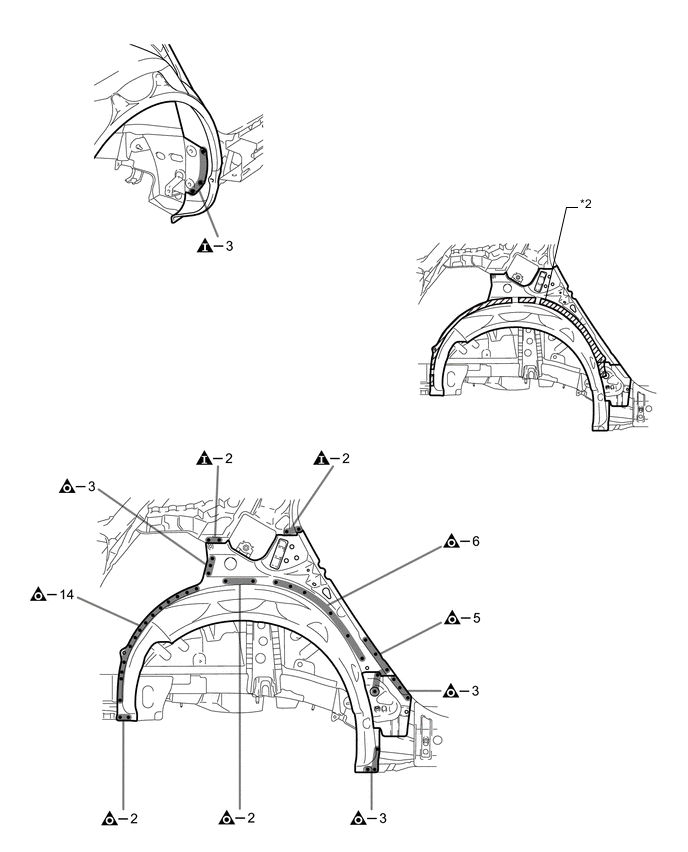

    B001ISNE01

  2. INSTALLATION

    Symbol meaning
    B001IS7 Spot Weld
    B001IY5 Plug Weld
    B001ISB Plug Weld
    B001IVR Plug Weld
    B001ITX Butt Weld
    B001IYH Assembly Mark

      INSTALLATION POINT

    1. For positioning of the new parts, align the installation standard holes of the outer panel and the inner panel.

    2. When welding *1, make a hole on a new part for plug welding and weld the panel with the panel behind completely.

    3. Before installing a new part, apply body sealer.

      Tech Tips

      Apply body sealer in an even, continuous bead.

    4. Apply adhesive (3MTM AutomixTM Panel Bonding Adhesive #8115) to the area indicated by *2 in the illustration.

      Tech Tips

      Apply enough adhesive for the panels to stick to each other.

    5. *3 indicates the location of the foamed sealing material. Be careful when welding as the foamed sealing material is located near the area that is cut and joined together.

    6. After welding the quarter wheel housing outer panel to the vehicle side, install the wheel house reinforcement, rear seat back lock striker reinforce, quarter panel extension reinforcement and *4.

    7. After welding, apply body sealer and undercoating to the corresponding parts. (See the paint / coating)

    8. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

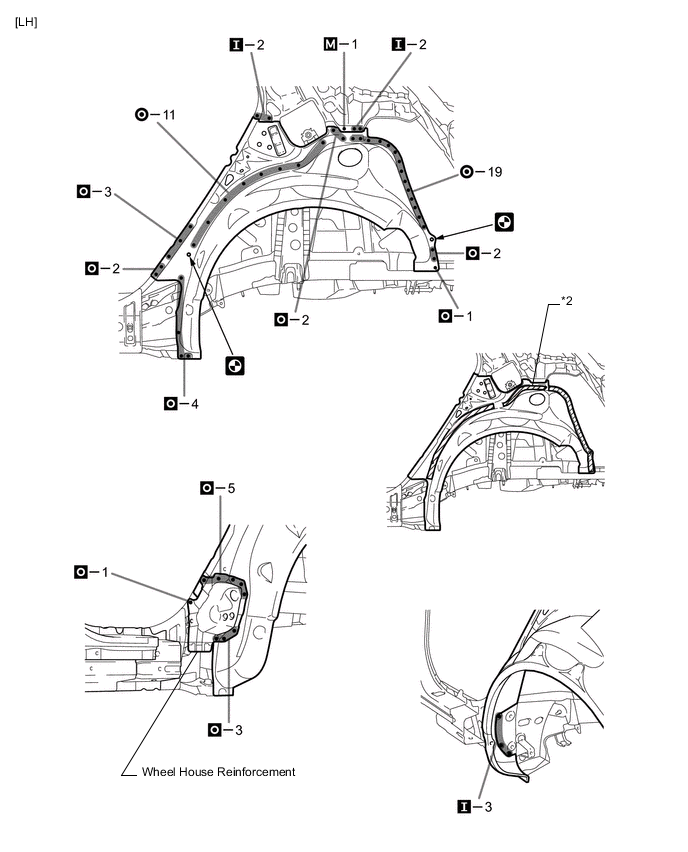

    B001IV2E01

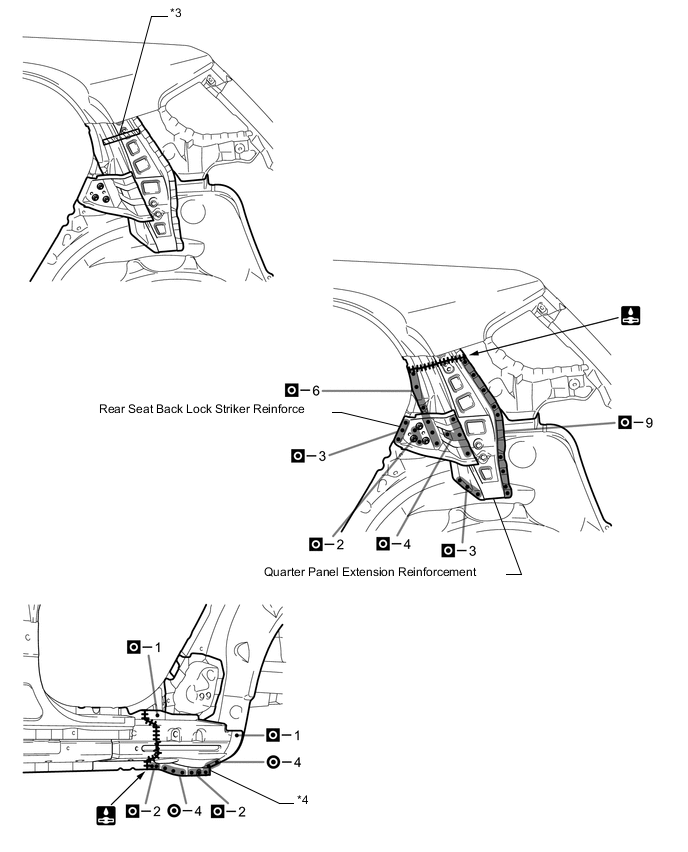

    B001ISCE01

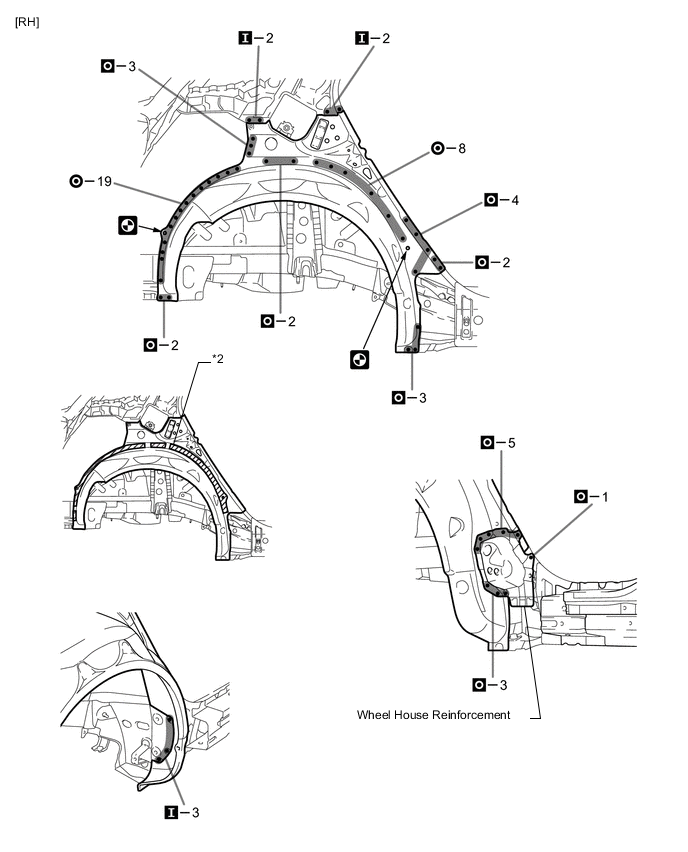

    B001IUTE01

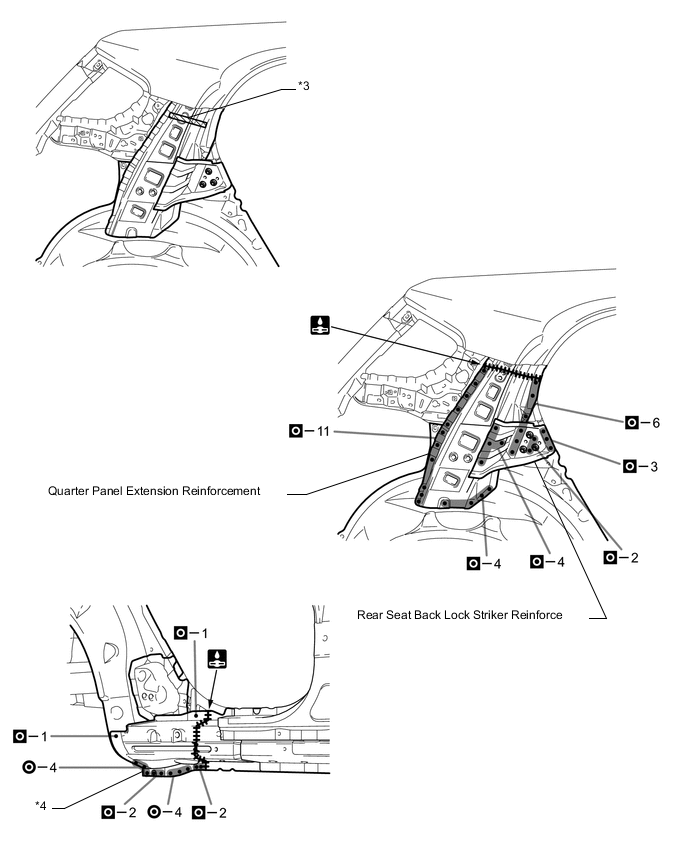

    B001IUFE01
