WHEN REMOVING,INSTALLING,REPAIRING OR REPLACING PARTS COMPONENTS

Tech Tips

The shapes and names of parts and the general layout may differ depending on the vehicle grade and options.


  1. FRONT BUMPER

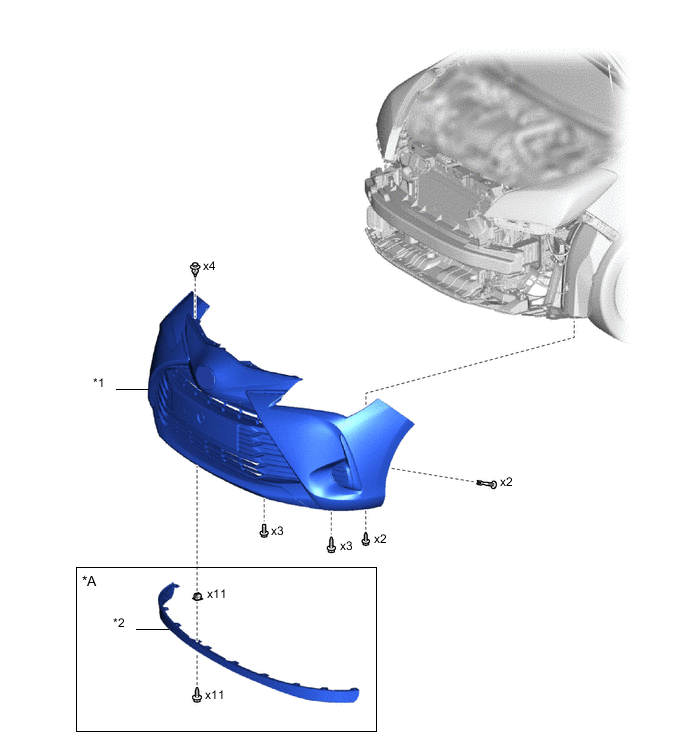

    A0044HJC01
    *A w/ Front Spoiler - -
    *1 FRONT BUMPER ASSEMBLY *2 FRONT SPOILER COVER

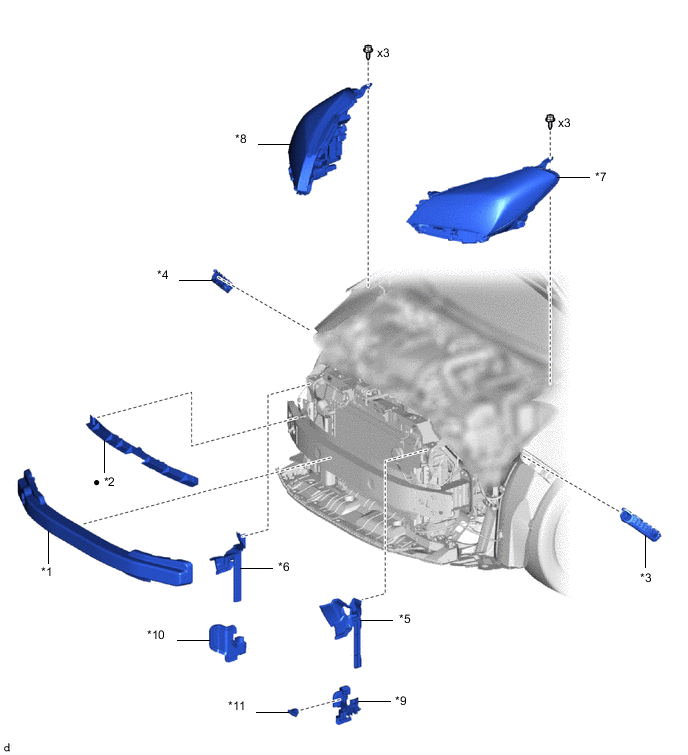

    A0044J7C01
    *1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER REINFORCEMENT EXTENSION
    *3 FRONT BUMPER SIDE RETAINER LH *4 FRONT BUMPER SIDE RETAINER RH
    *5 FRONT RADIATOR SIDE AIR GUIDE PLATE LH *6 FRONT RADIATOR SIDE AIR GUIDE PLATE RH
    *7 HEADLIGHT ASSEMBLY LH *8 HEADLIGHT ASSEMBLY RH
    *9 NO. 1 RADIATOR AIR GUIDE LH *10 NO. 1 RADIATOR AIR GUIDE RH
    *11 THERMISTOR ASSEMBLY - -
    ● Non-reusable part - -

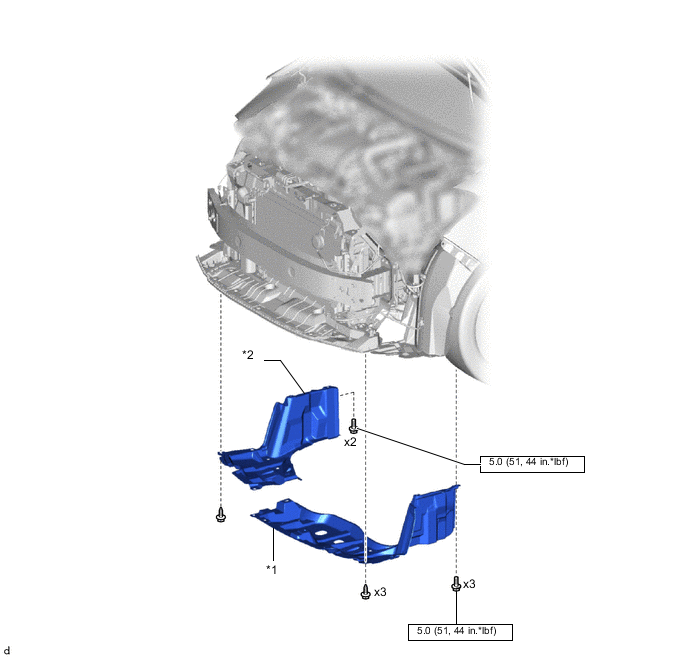

    A0044JPC02
    *1 ENGINE UNDER COVER LH *2 ENGINE UNDER COVER RH
    A0044HW N*m (kgf*cm, ft.*lbf): Specified torque - -

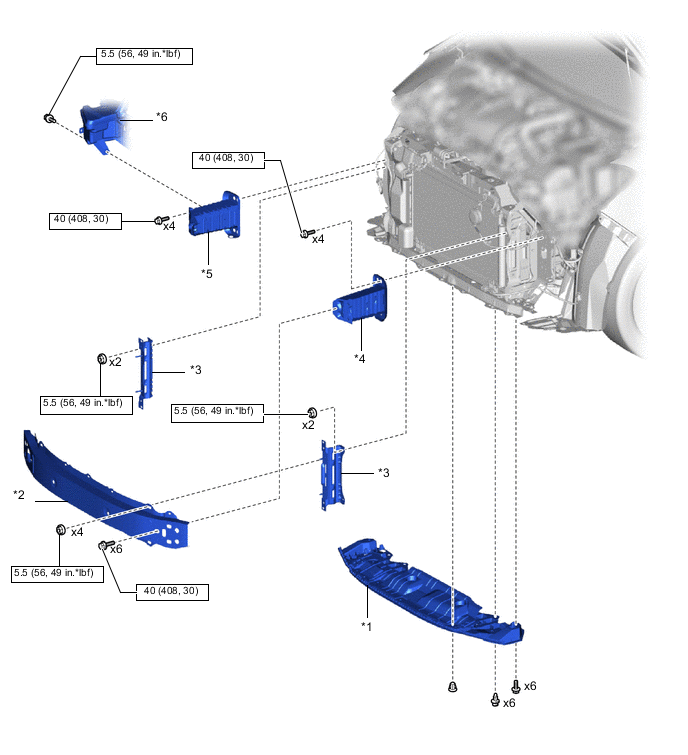

    A0044I3C01
    *1 FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY *2 FRONT BUMPER REINFORCEMENT
    *3 FRONT NO. 1 BUMPER STONE DEFLECTOR BRACKET *4 FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH
    *5 FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH *6 WINDSHIELD WASHER JAR ASSEMBLY
    A0044HW N*m (kgf*cm, ft.*lbf): Specified torque - -

  2. REAR BUMPER

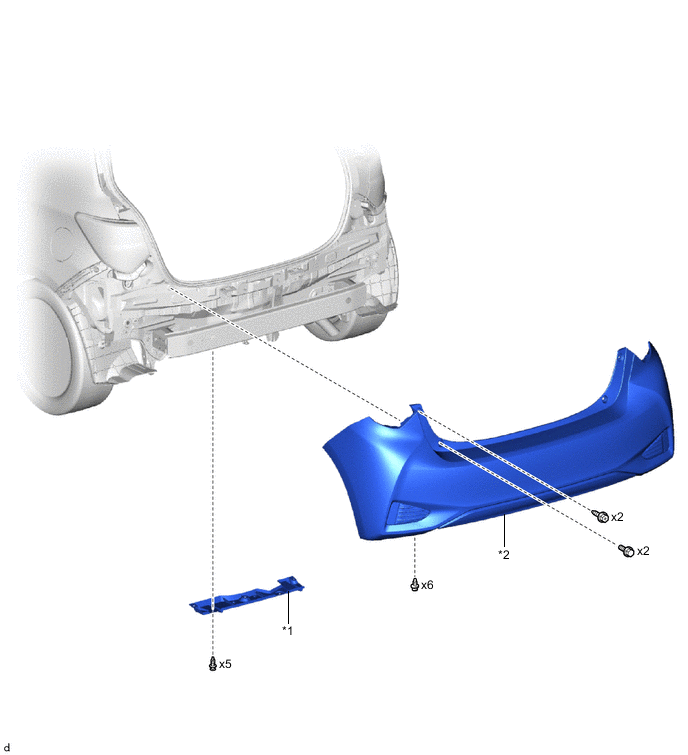

    A0044JLC01
    *1 NO. 1 FLOOR UNDER COVER *2 REAR BUMPER ASSEMBLY

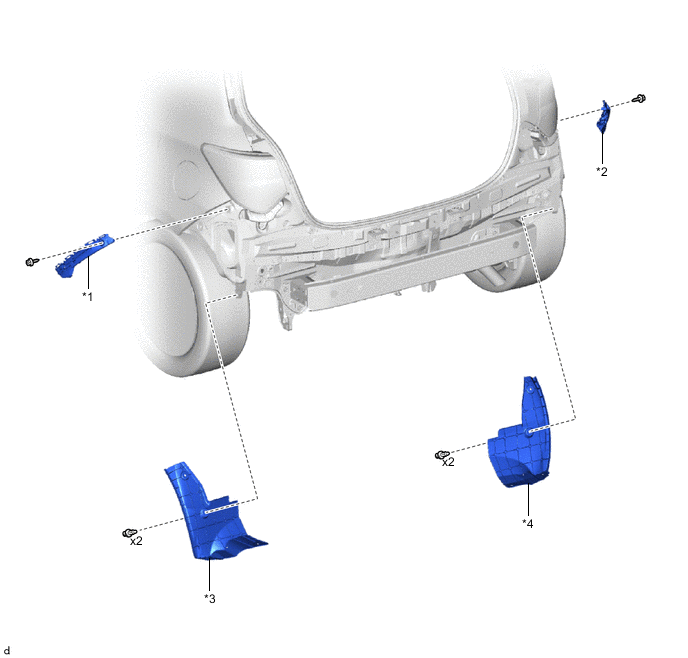

    A0044GUC01
    *1 REAR BUMPER SIDE RETAINER LH *2 REAR BUMPER SIDE RETAINER RH
    *3 REAR BUMPER SIDE SEAL LH *4 REAR BUMPER SIDE SEAL RH

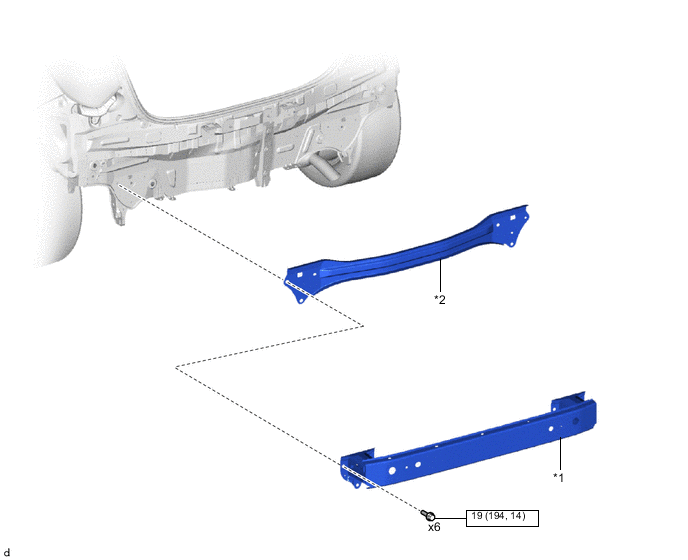

    A0044JTC01
    *1 NO. 1 REAR BUMPER REINFORCEMENT *2 NO. 2 REAR BUMPER REINFORCEMENT
    A0044HW N*m (kgf*cm, ft.*lbf): Specified torque - -

  3. UPPER INSTRUMENT PANEL

    Tech Tips

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown, along with their alphabetic codes, in the table below.

    A0044IHE01
    A0044J9E01
    *1 for Front Floor Cover Type A:
    *2 FRONT FLOOR COVER RH
    *3 for Front Floor Cover Type B:
    *4 CENTER FRONT FLOOR COVER
    A0044ITE02
    A0044GWE02
    A0044IOE01

  4. LOWER INSTRUMENT PANEL

    Tech Tips

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown, along with their alphabetic codes, in the table below.

    A0044HKE01
    A0044JKE02
    A0044H3E02
    *1 w/o Radio Receiver:
    *2 STEREO OPENING COVER WITH BRACKET
    *3 w/ Radio Receiver:
    *4 RADIO RECEIVER ASSEMBLY WITH BRACKET
    A0044H6E01

  5. INTERIOR TRIM

    A0044JGE01
    *1 DECK BOARD ASSEMBLY
    *2 SPARE WHEEL COVER
    A0044IUE01
    for 8 Speakers
    *1 FRONT NO. 2 SPEAKER ASSEMBLY
    A0044HHE01
    A0044JJE02
    A0044JNE01

  6. SEAT BELT

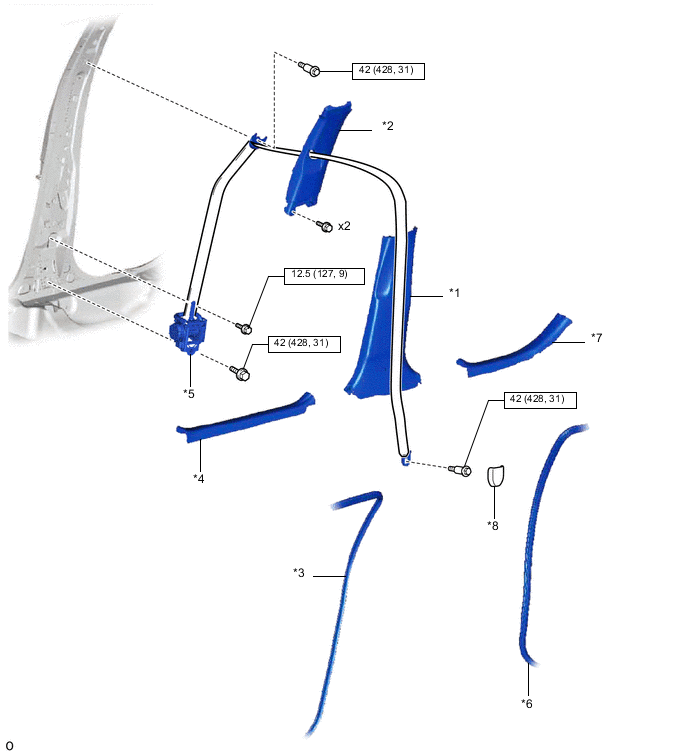

    A0044J3C03
    *1 CENTER PILLAR LOWER GARNISH *2 CENTER PILLAR UPPER GARNISH
    *3 FRONT DOOR OPENING TRIM WEATHERSTRIP *4 FRONT DOOR SCUFF PLATE
    *5 FRONT SEAT OUTER BELT ASSEMBLY *6 REAR DOOR OPENING TRIM WEATHERSTRIP
    *7 REAR DOOR SCUFF PLATE *8 LAP BELT OUTER ANCHOR COVER
    A0044HW N*m (kgf*cm, ft.*lbf): Specified torque - -
    A0044IEE02

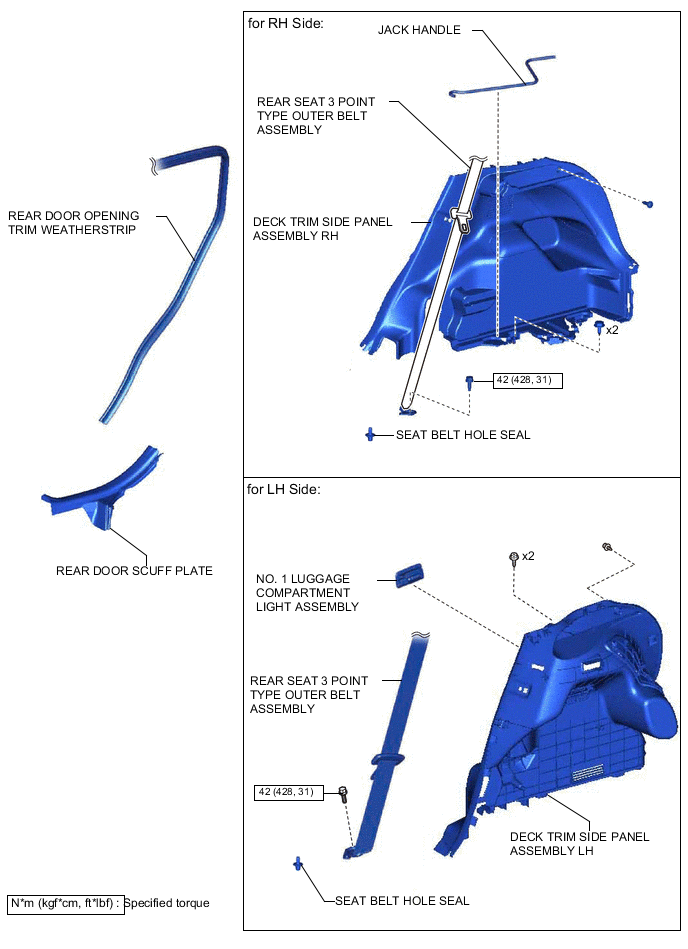

    A0044HOE06

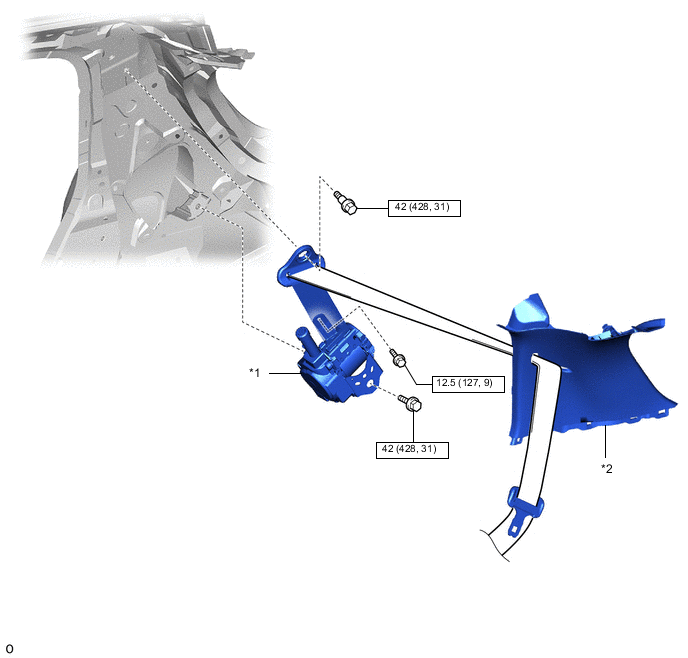

    A0044JHC02
    *1 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY *2 ROOF SIDE INNER GARNISH
    A0044HW N*m (kgf*cm, ft.*lbf): Specified torque - -

  7. SEAT

    A0044H8E12
    A0044IRE03
