WHEN REMOVING,INSTALLING,REPAIRING OR REPLACING PARTS COMPONENTS

Tech Tips

The shapes and names of parts and the general layout may differ depending on the vehicle grade and options.


  1. FRONT BUMPER

    A0044JME01
    *1 FRONT BUMPER COVER
    *2 w/ Front Spoiler:
    *3 FRONT SPOILER COVER

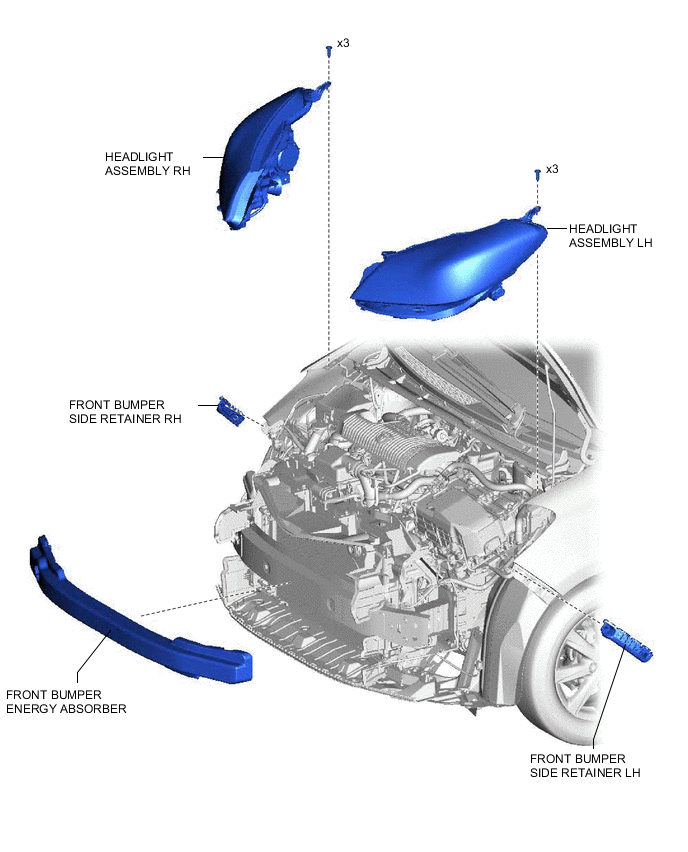

    A0044ICE01

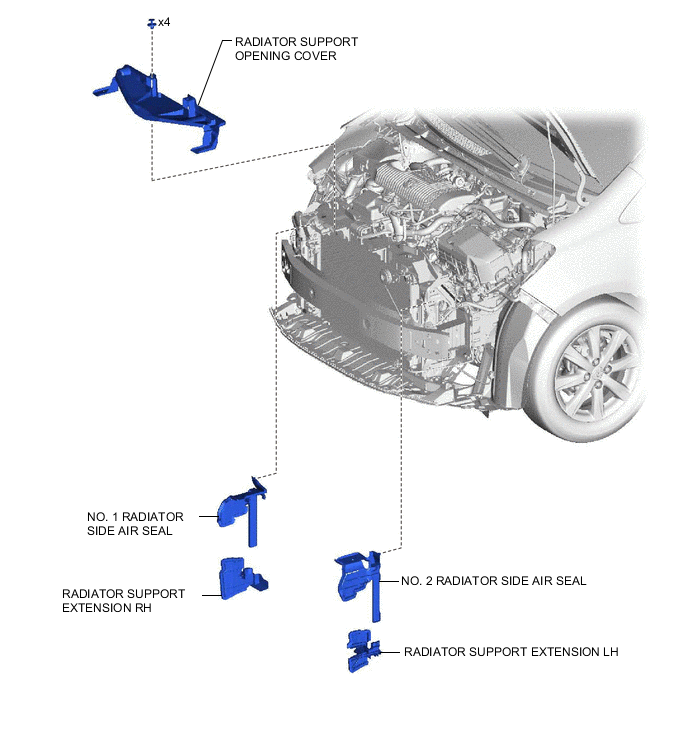

    A0044IXE02

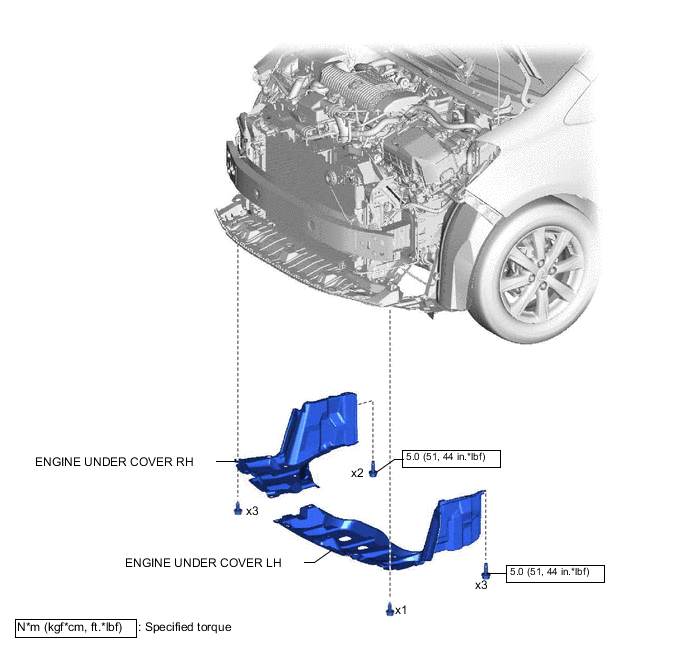

    A0044JBE01

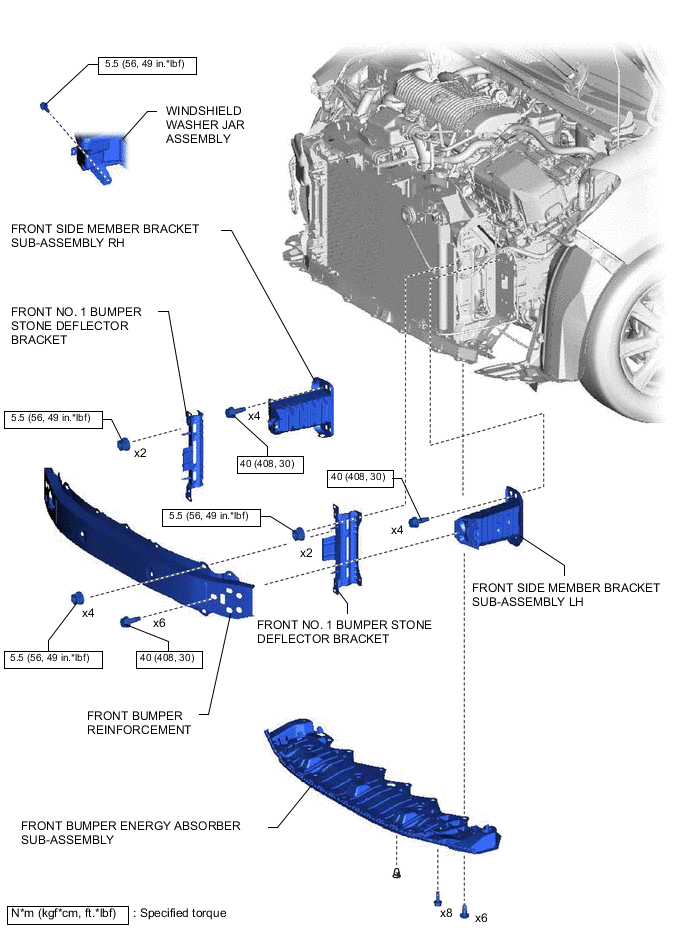

    A0044GTE02

  2. REAR BUMPER

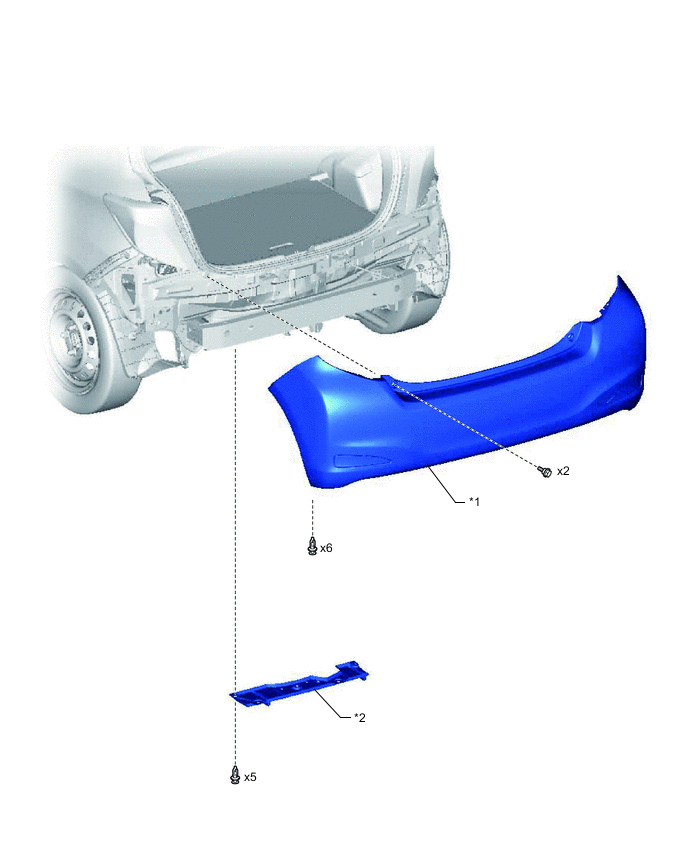

    A0044IBE01
    *1 REAR BUMPER COVER
    *2 NO. 1 FLOOR UNDER COVER

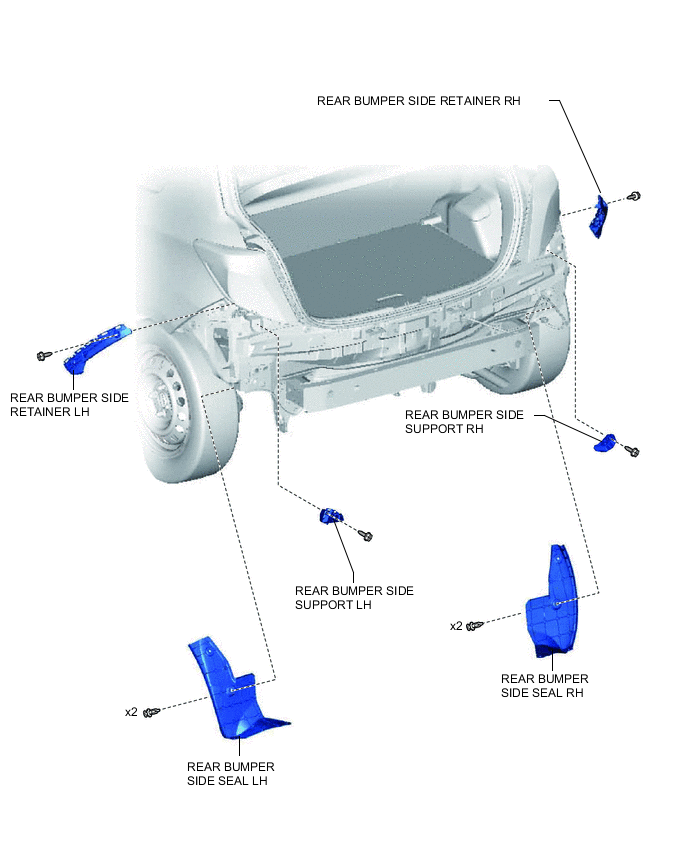

    A0044HRE03

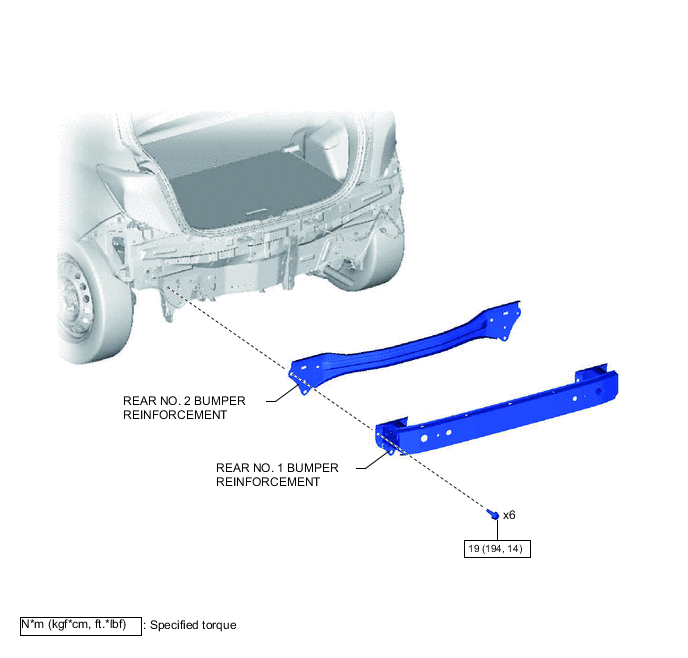

    A0044HYE02

  3. UPPER INSTRUMENT PANEL

    Tech Tips

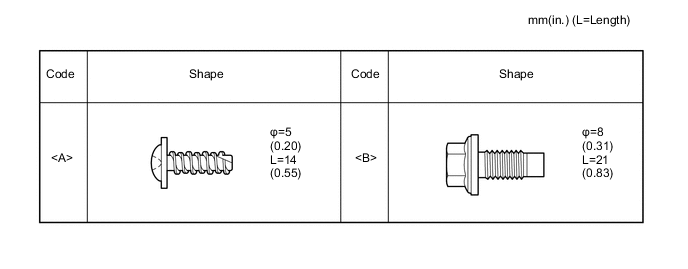

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown, along with their alphabetic codes, in the table below.

    A0044IHE01

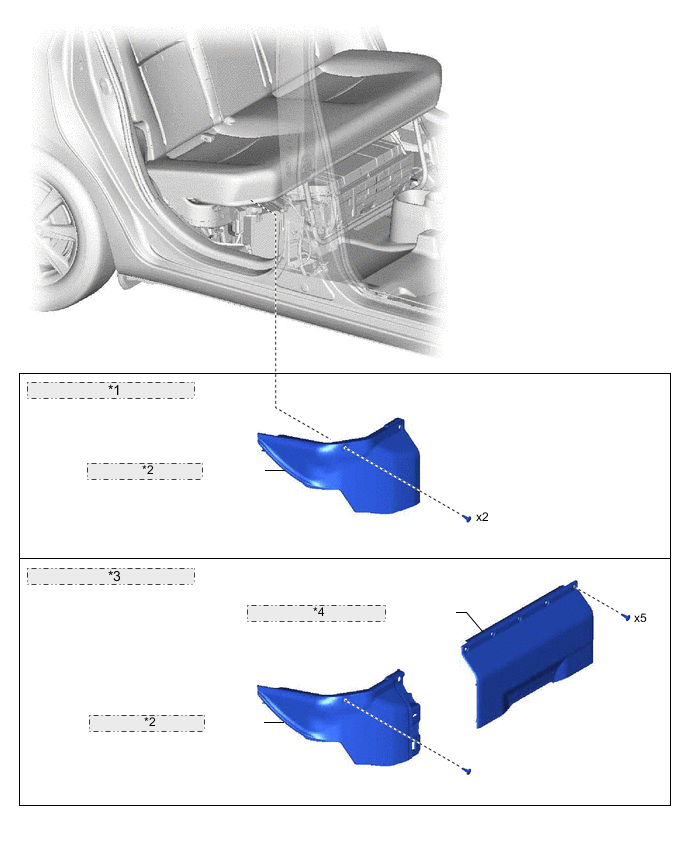

    A0044J9E01
    *1 for Front Floor Cover Type A:
    *2 FRONT FLOOR COVER RH
    *3 for Front Floor Cover Type B:
    *4 CENTER FRONT FLOOR COVER

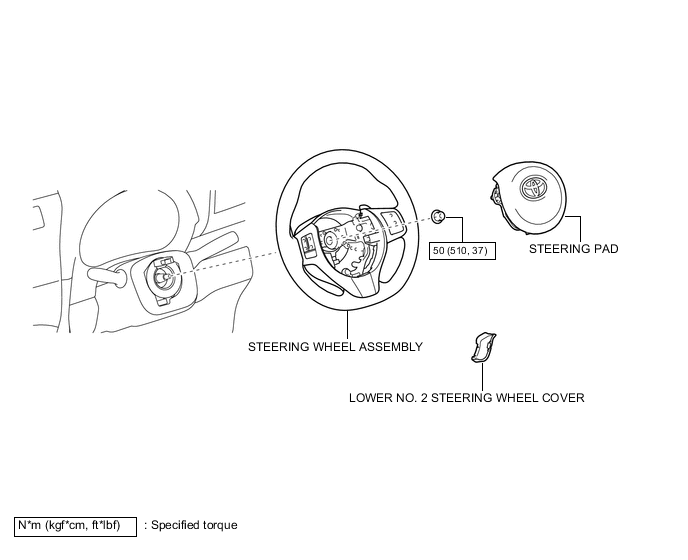

    A0044ITE02

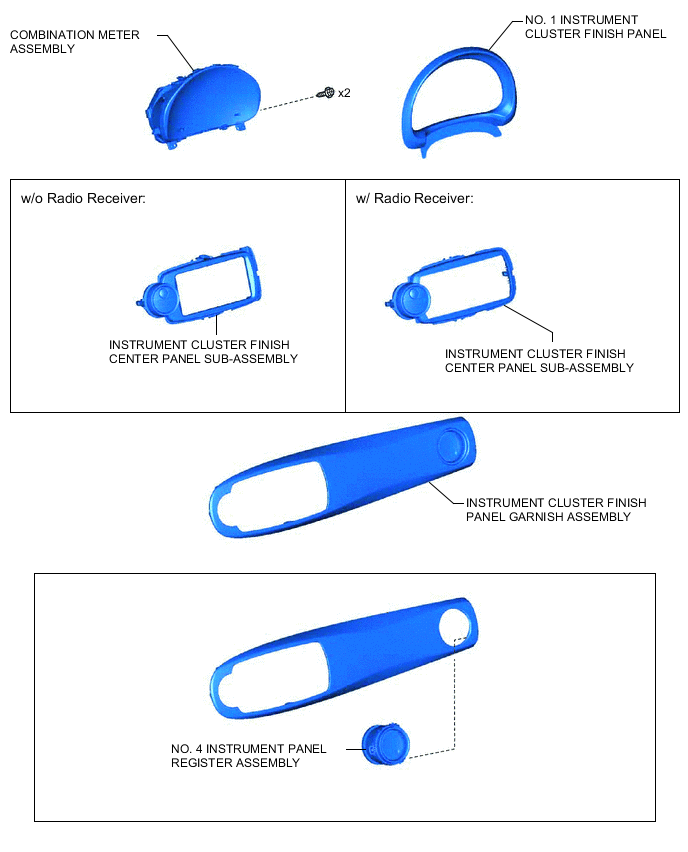

    A0044GWE02

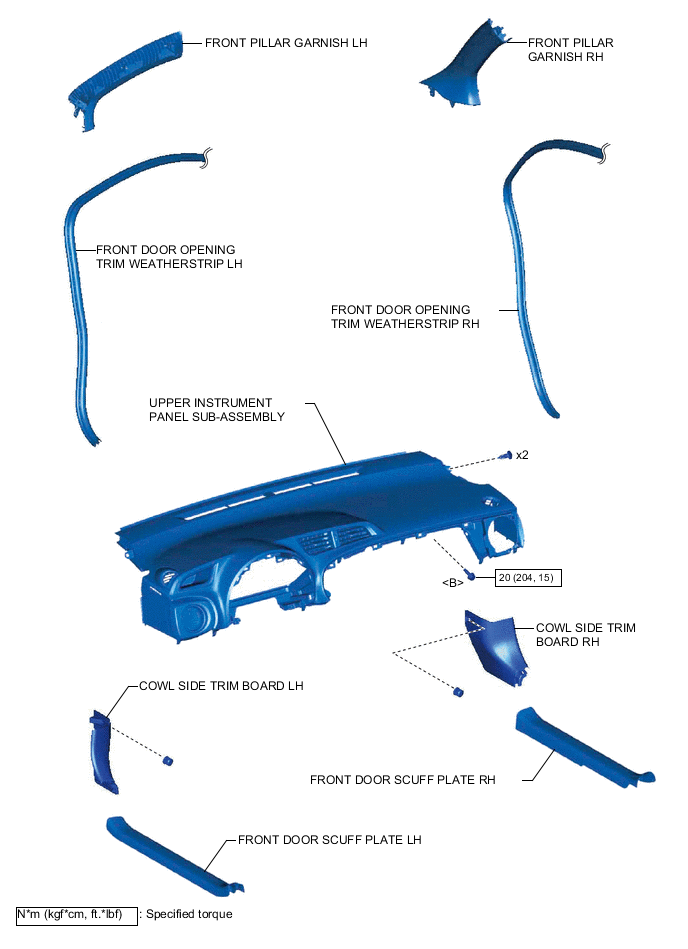

    A0044IOE01

  4. LOWER INSTRUMENT PANEL

    Tech Tips

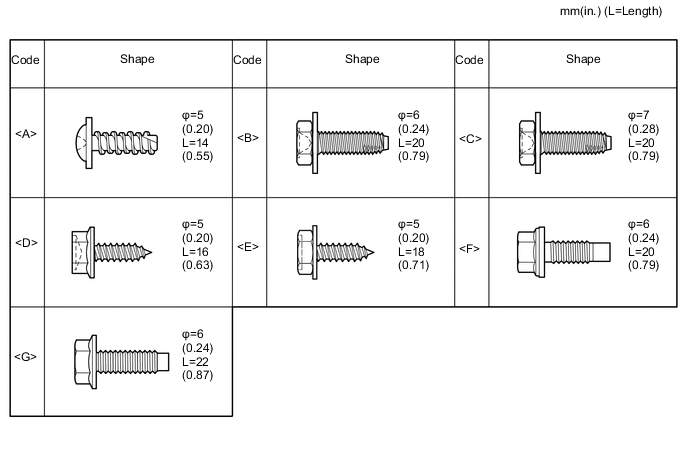

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown, along with their alphabetic codes, in the table below.

    A0044HKE01

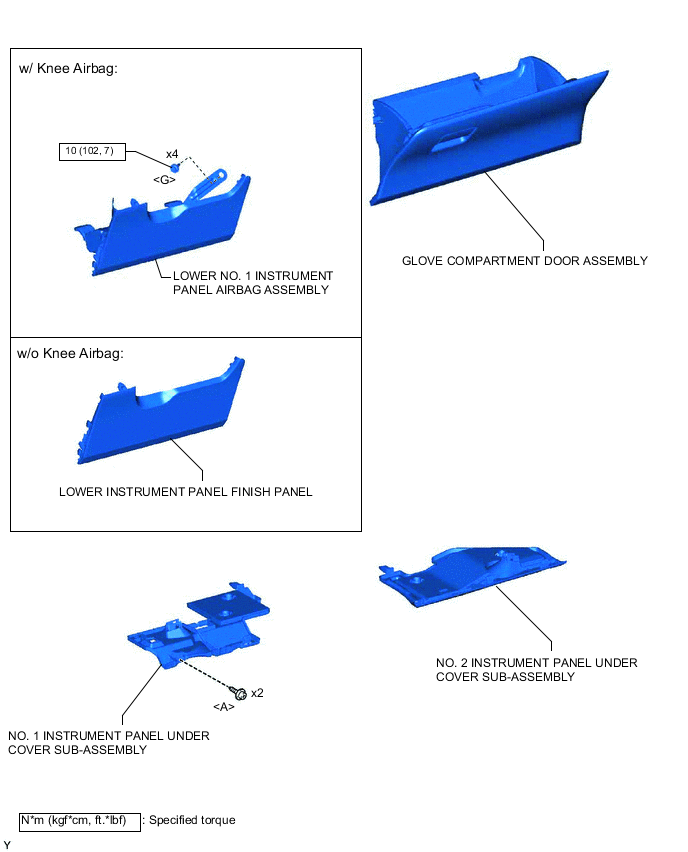

    A0044JKE02

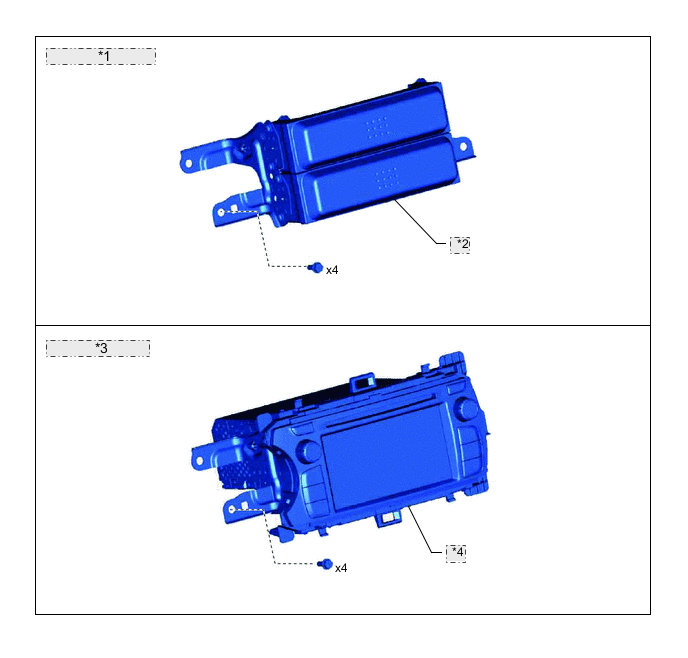

    A0044H3E02
    *1 w/o Radio Receiver:
    *2 STEREO OPENING COVER WITH BRACKET
    *3 w/ Radio Receiver:
    *4 RADIO RECEIVER ASSEMBLY WITH BRACKET

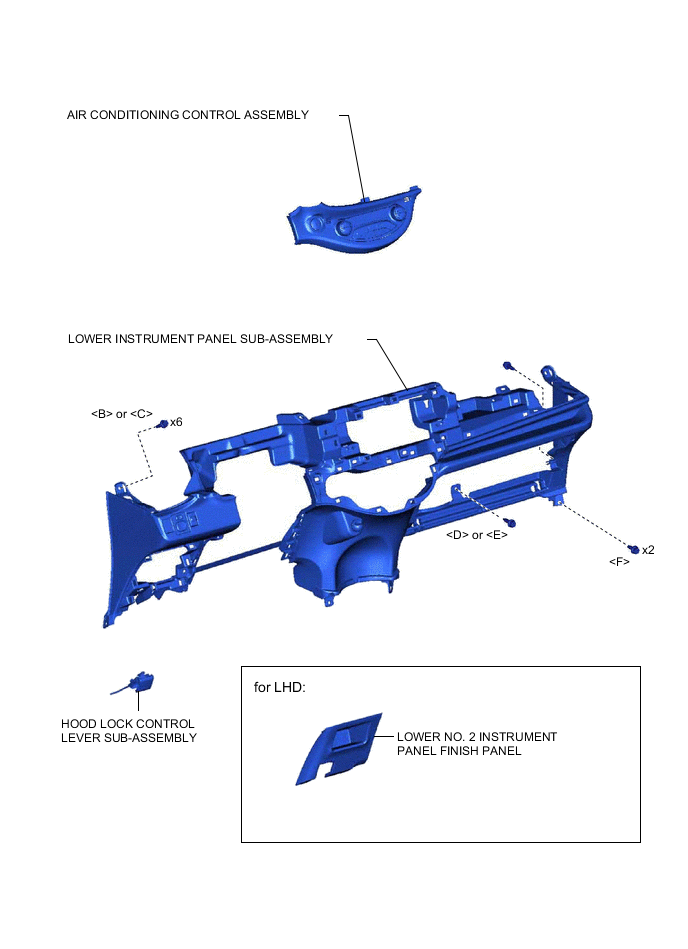

    A0044H6E01

  5. INTERIOR TRIM

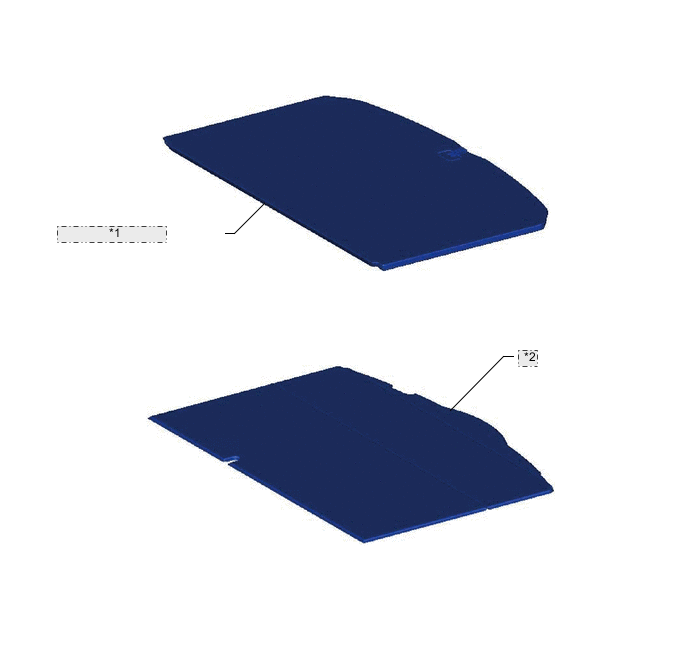

    A0044JGE01
    *1 DECK BOARD ASSEMBLY
    *2 SPARE WHEEL COVER

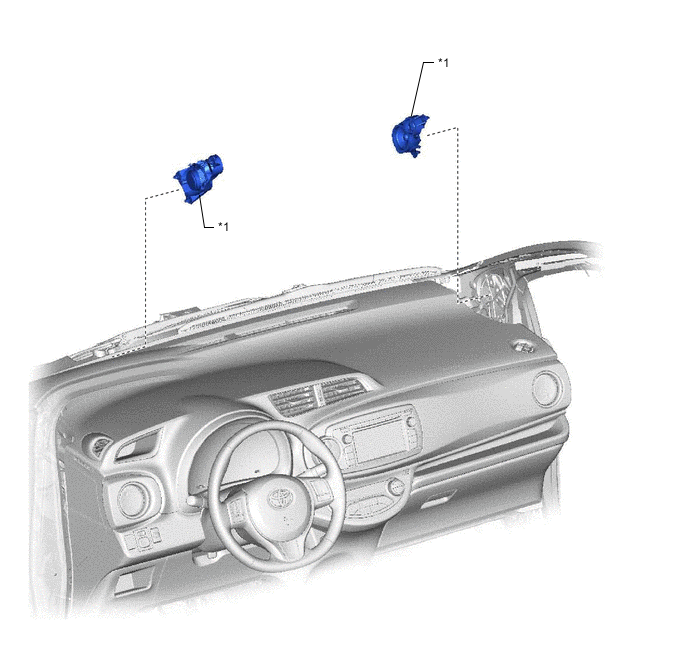

    A0044IUE01
    for 8 Speakers
    *1 FRONT NO. 2 SPEAKER ASSEMBLY

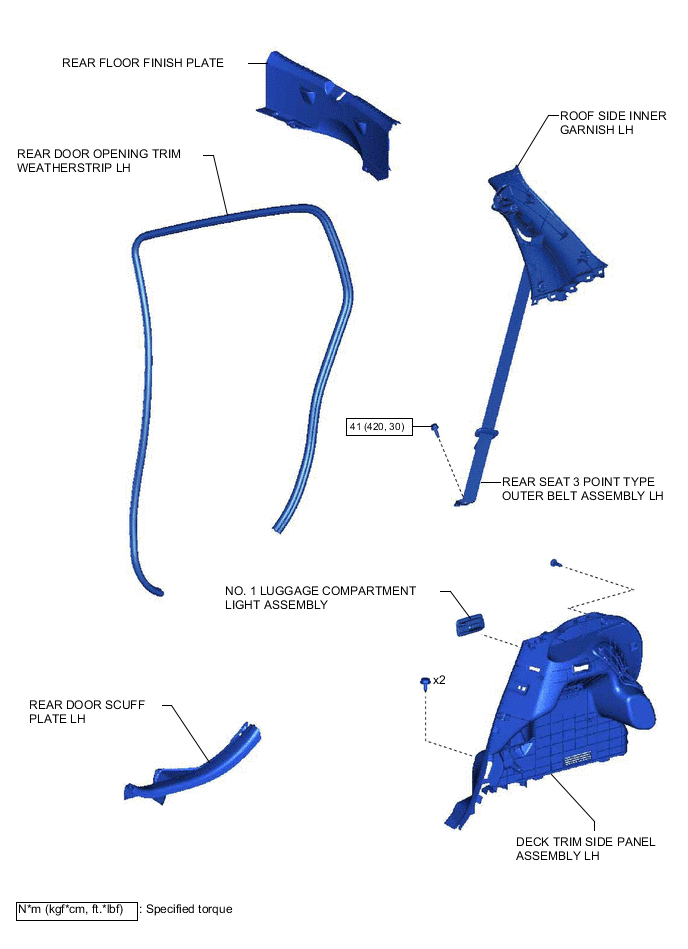

    A0044HHE01

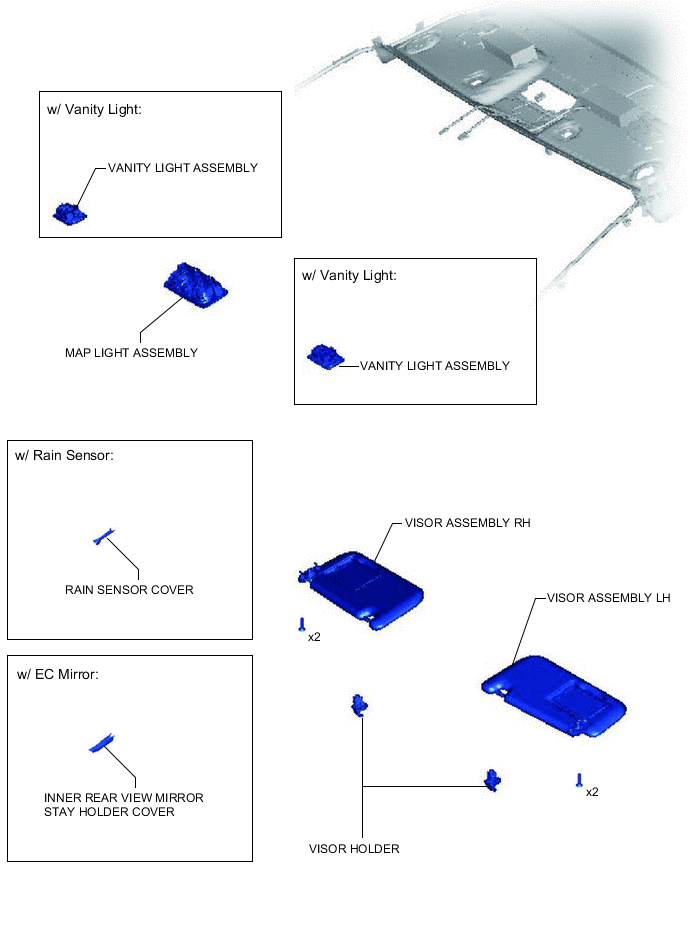

    A0044JJE02

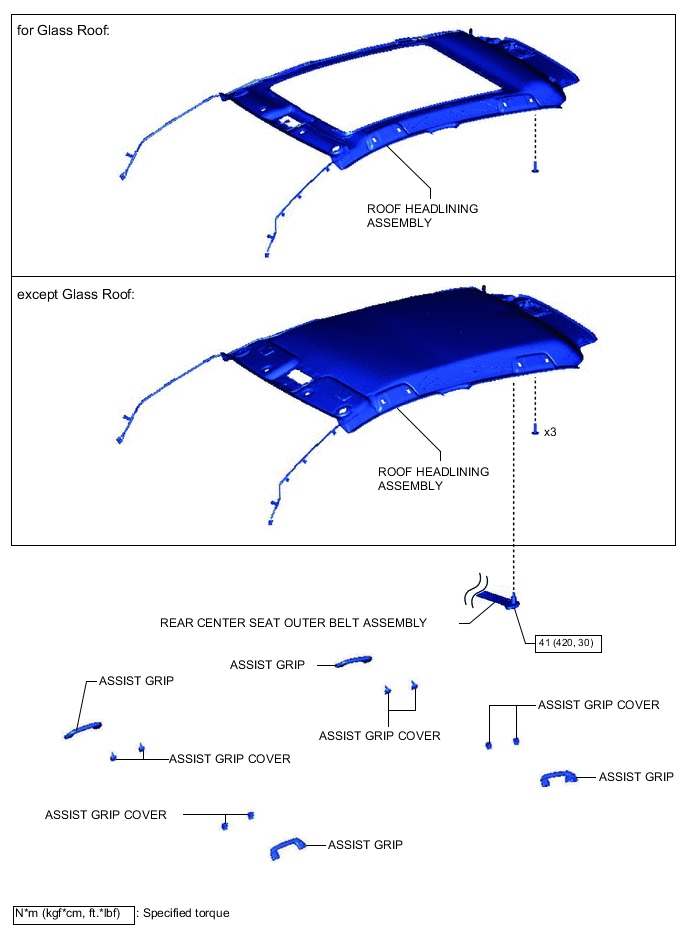

    A0044JNE01

  6. SEAT BELT

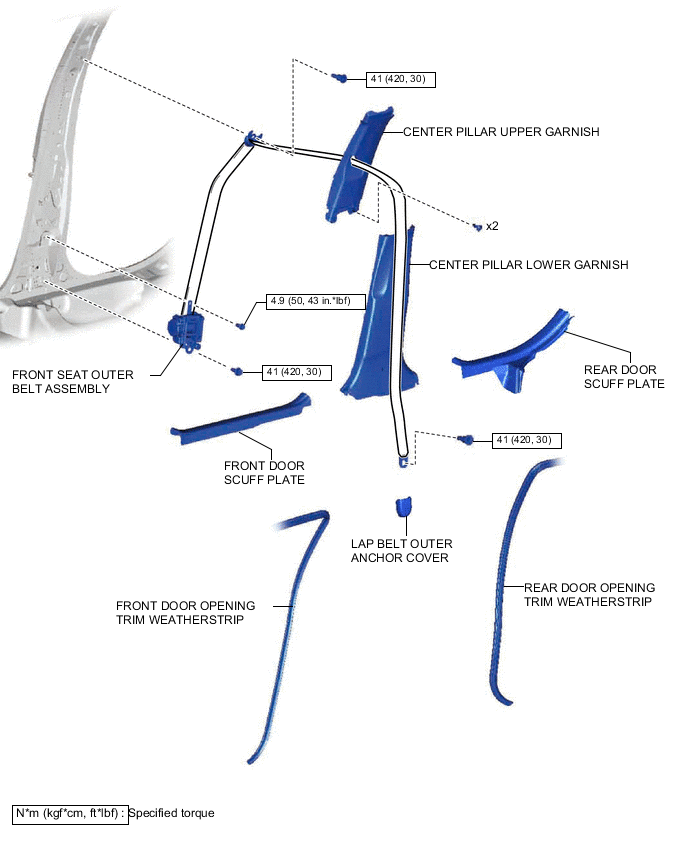

    A0044JXE03

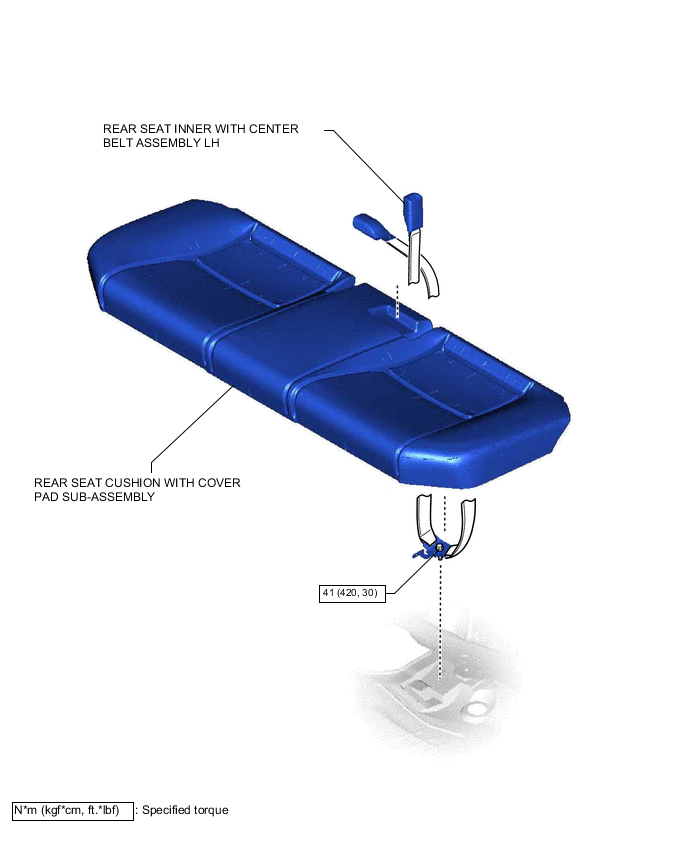

    A0044IEE02

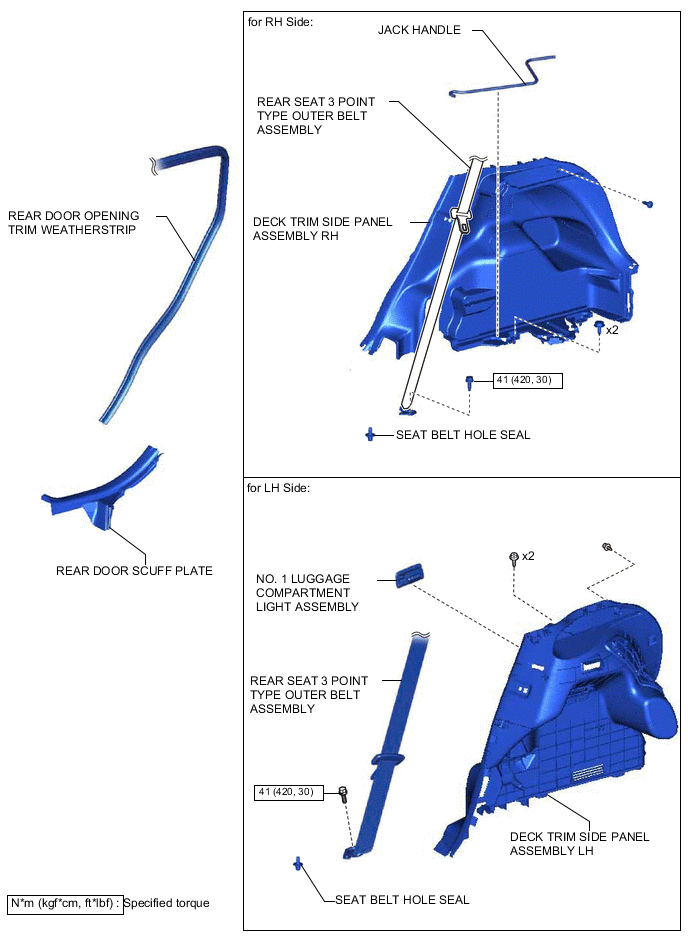

    A0044HOE05

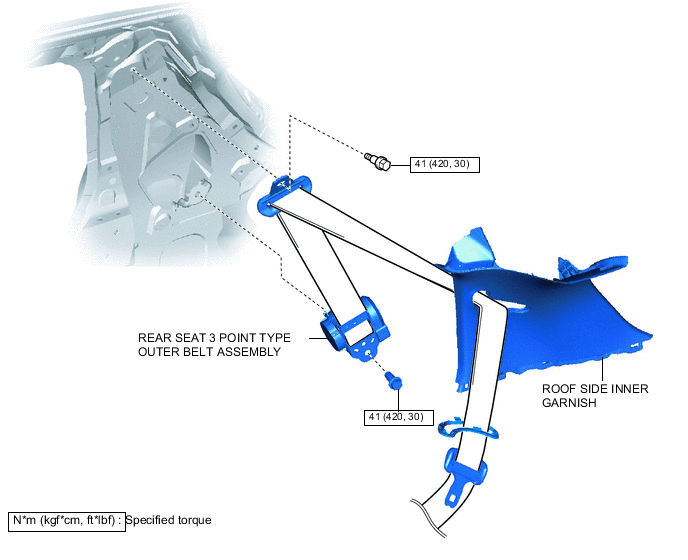

    A0044H5E08

  7. SEAT

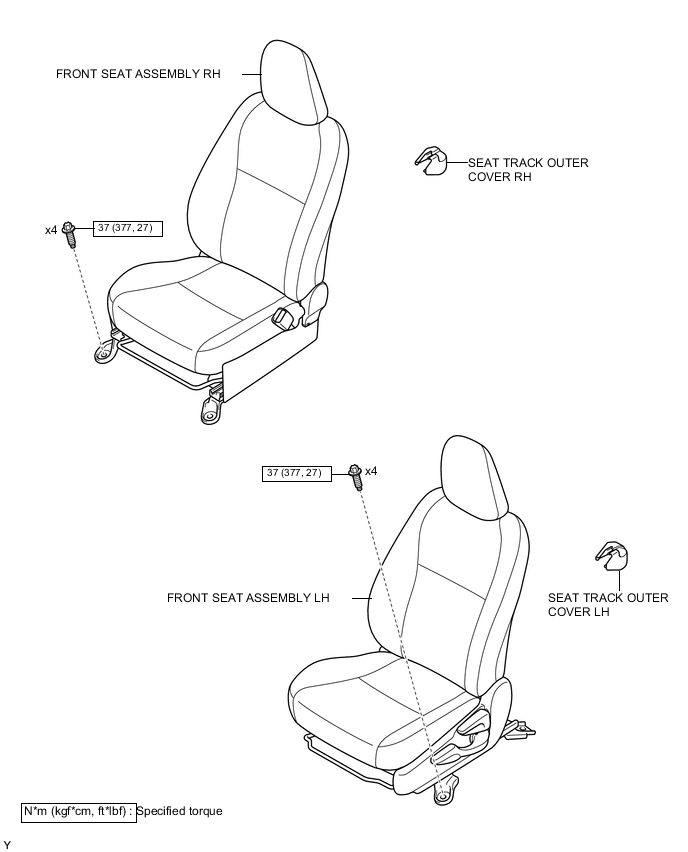

    A0044H8E12

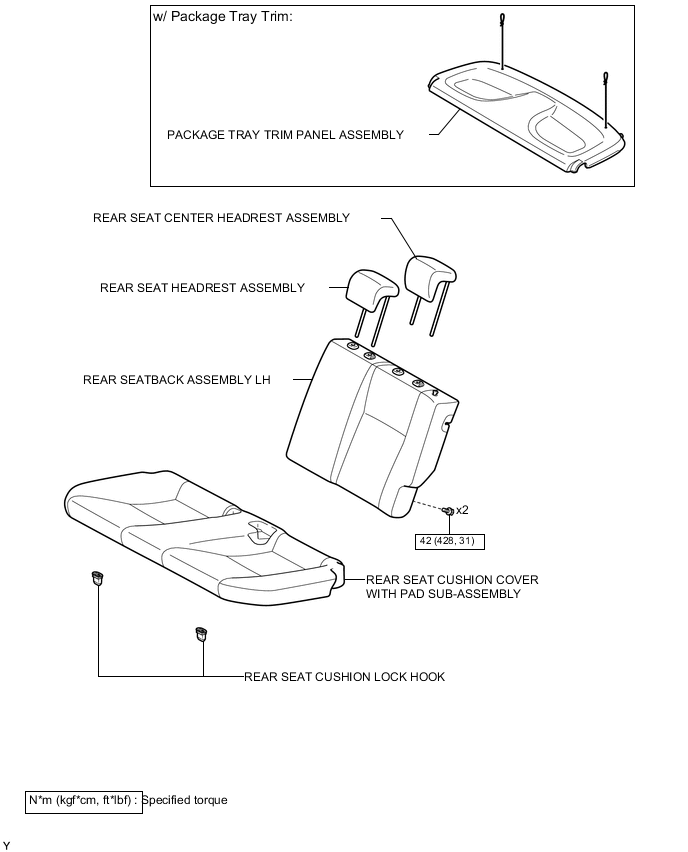

    A0044IRE03
