HOW TO USE THIS MANUAL ILLUSTRATION OF WELD POINT SYMBOLS

REMOVAL

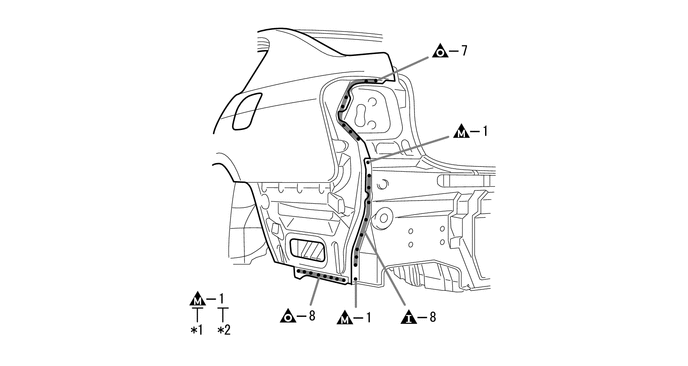

A003ILF
*1 Position of panels that are removed
*2 Weld points
SYMBOLS MEANING ILLUSTRATION

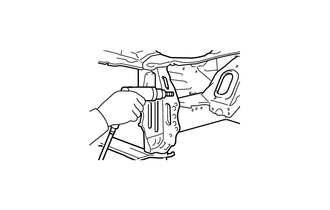

A003II0 Remove Weld Points A003IJF

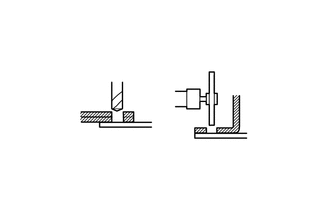

A003IMG Position of Panel Being Replaced is on Outside A003IGU

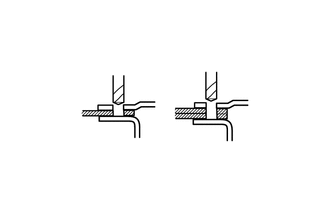

A003IKN Position of Panel Being Replaced is in Center A003IJU

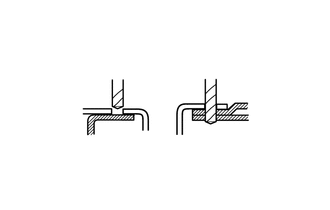

A003II6 Position of Panel Being Replaced is on Inside A003IOA
INSTALLATION
A003IHM
*1 Welding method and panel position
*2 Weld points
SYMBOLS MEANING ILLUSTRATION

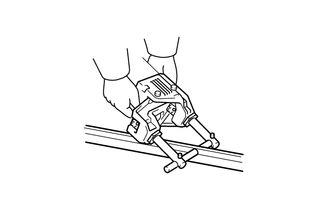

A003ILD Spot Welding A003IJ7

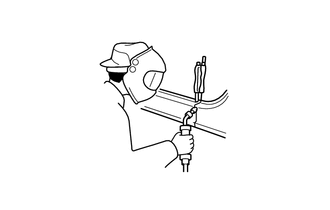

A003IIQ Plug Welding A003ILE

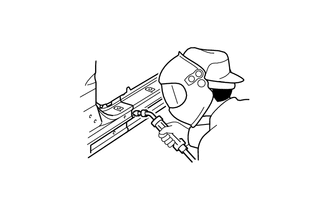

A003IMT Spot MIG Welding A003IG1
