ABOUT THIS VEHICLE DAMAGE DIAGNOSIS

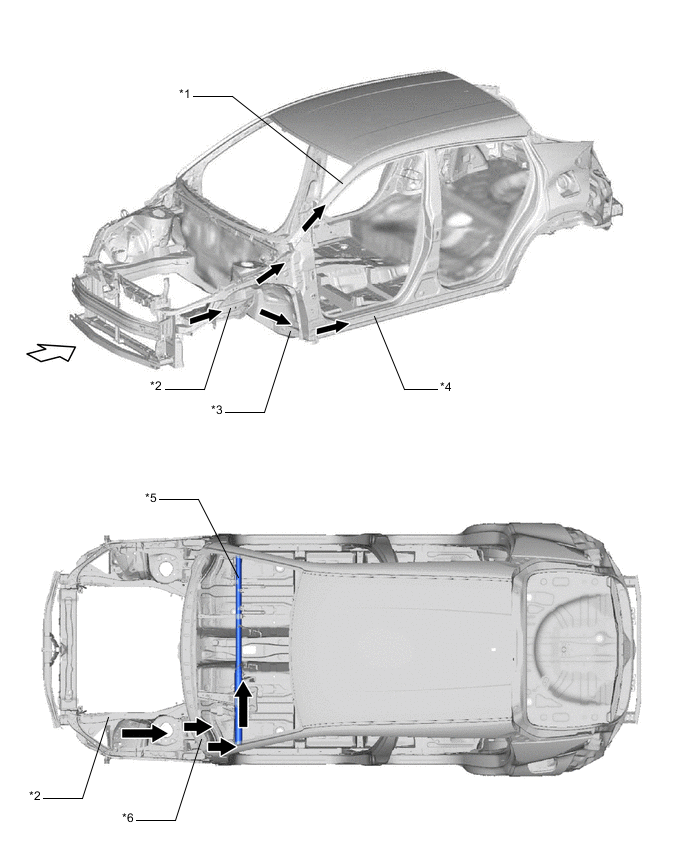

| *1 | Front Pillar Reinforcement | *2 | Front Side Member |
| *3 | Torque Front Box | *4 | Rocker Panel Reinforcement |
| *5 | Instrument Panel Reinforcement | *6 | Cowl Top Inner Reinforcement |
 |
Collision Direction |  |
Collision Force Absorption Direction |

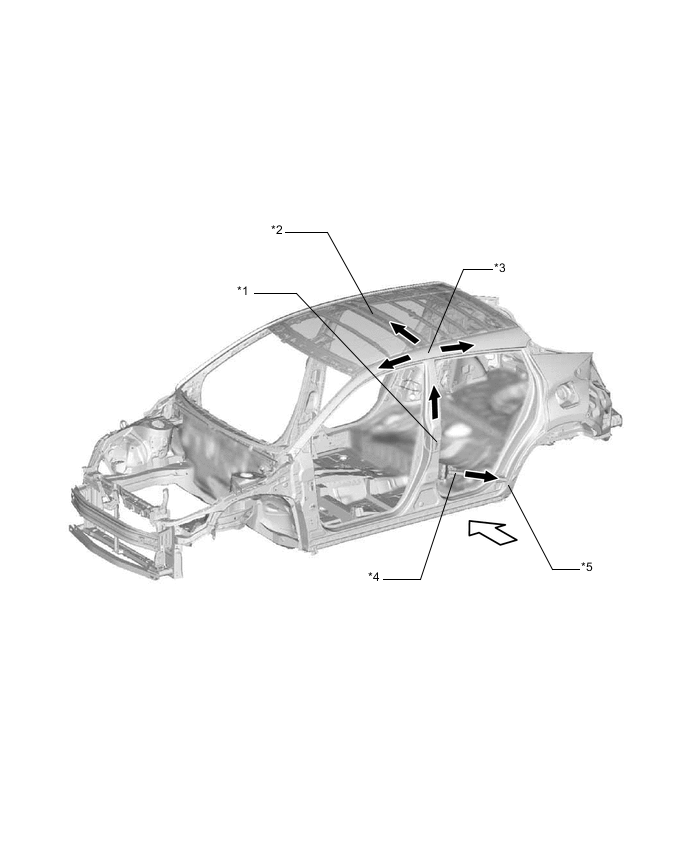

| *1 | Center Pillar Reinforcement | *2 | Roof Panel Reinforcement |
| *3 | Roof Side Rail Outer Reinforcement | *4 | Rear Door Protection Beam |
| *5 | Quarter Panel Outer Reinforcement | - | - |
| |
Collision Direction | |
Collision Force Absorption Direction |

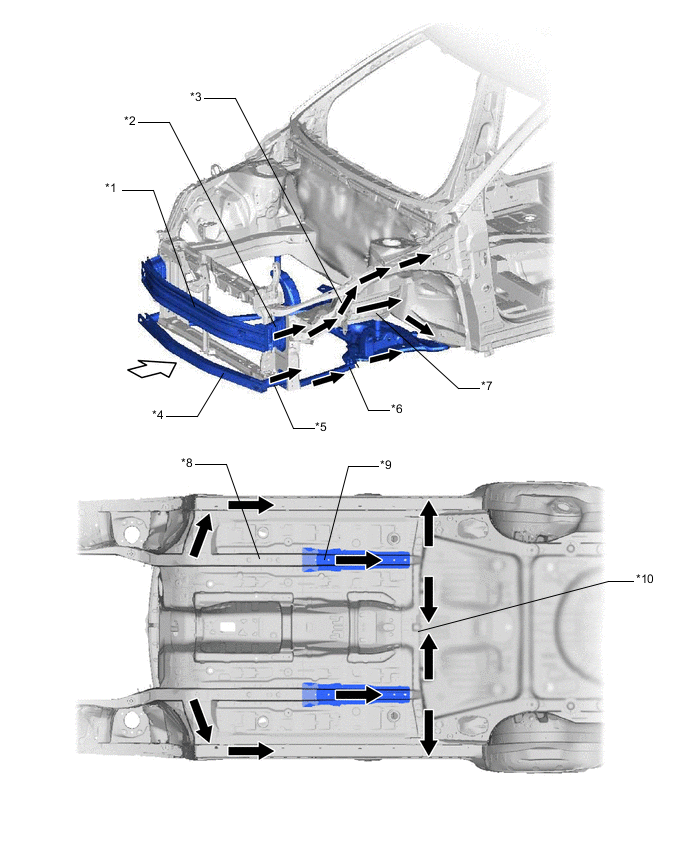

| *1 | Front Bumper Reinforcement No. 1 | *2 | Front Side Member Bracket |
| *3 | Front Apron to Cowl Side Lower Member | *4 | Front Bumper Reinforcement No. 2 |
| *5 | Front Bumper Bracket | *6 | Side Rail Reinforcement |
| *7 | Front Side Member | *8 | Front Side Inner Rear Member |
| *9 | Front Floor Under Reinforcement | *10 | Rear Floor Cross Member |
| |
Collision Direction | |
Collision Force Absorption Direction |
