ABOUT THIS VEHICLE STRUCTURAL OUTLINE
Info Added 2017-08-29

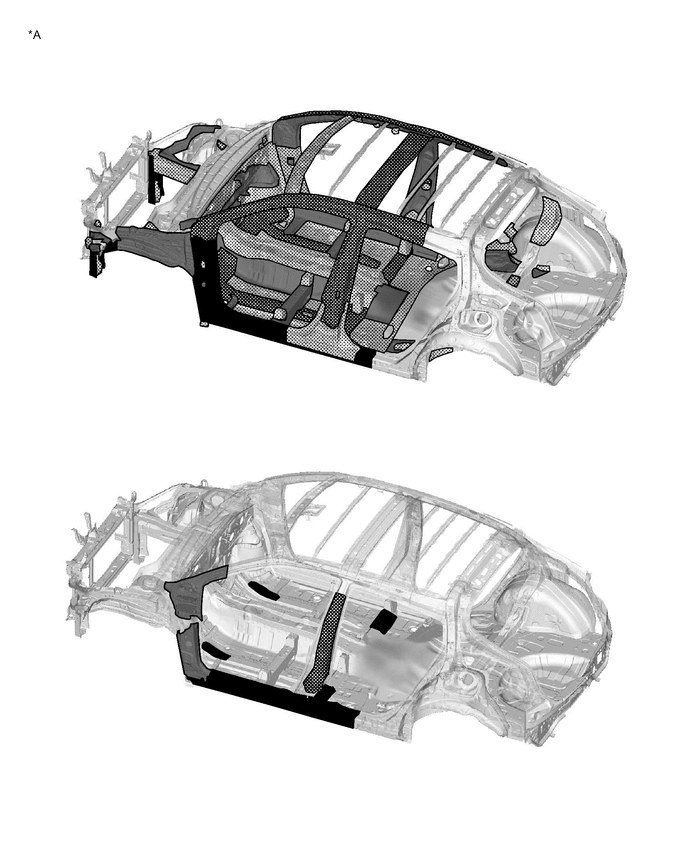

| *A | for LHD | - | - |
 |
1500 MPa Ultra High Strength Steel |  |
980 MPa Ultra High Strength Steel |
 |
590 MPa High Strength Steel |  |
440 MPa High Strength Steel |
 |
340 MPa High Strength Steel | - | - |
| *A | for RHD | - | - |
| |
1500 MPa Ultra High Strength Steel | |
980 MPa Ultra High Strength Steel |
| |
590 MPa High Strength Steel | |
440 MPa High Strength Steel |

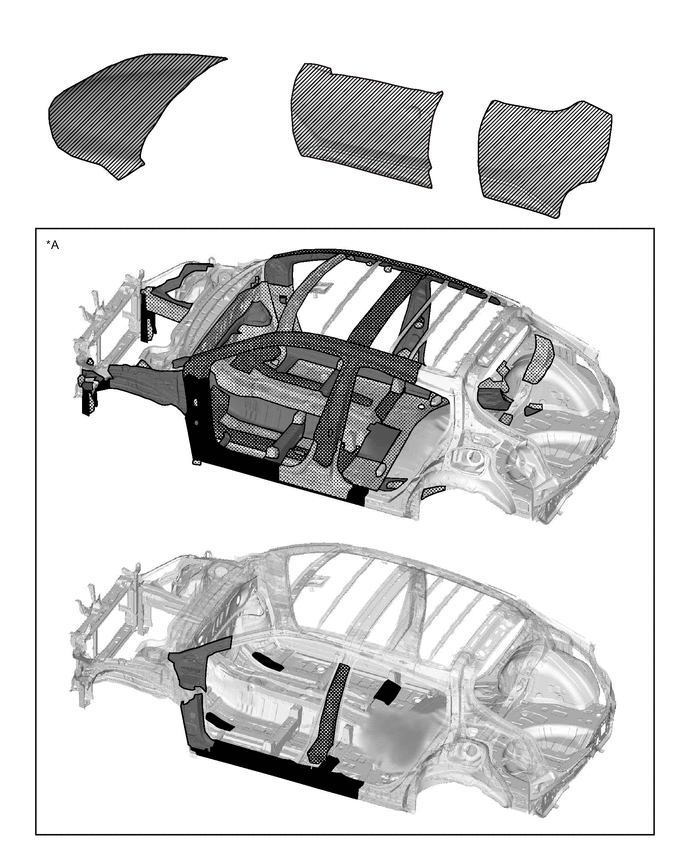

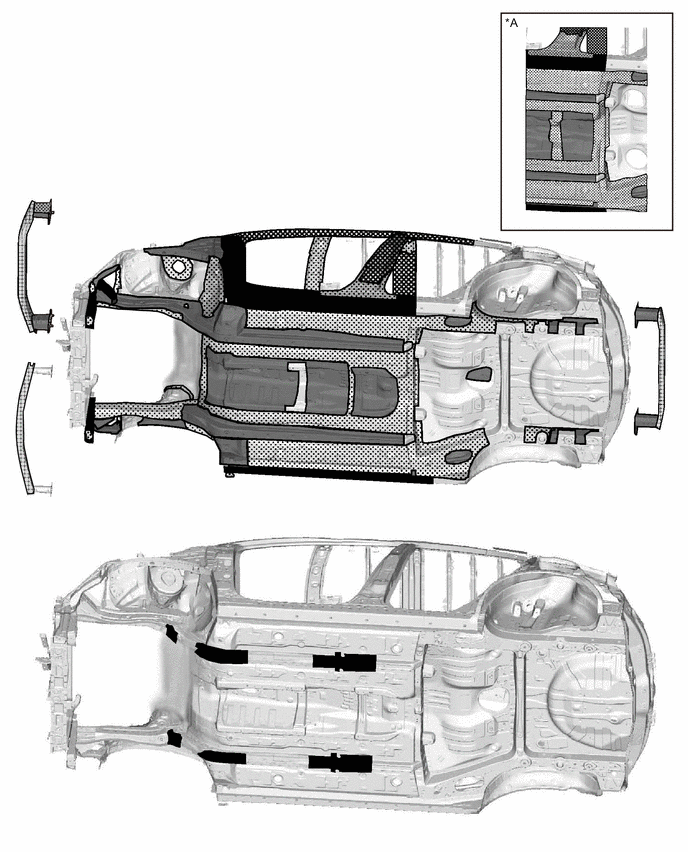

| *A | for AWD | - | - |
| |
1500 MPa Ultra High Strength Steel | |
980 MPa Ultra High Strength Steel |
| |
590 MPa High Strength Steel | |
440 MPa High Strength Steel |
 |
Aluminum | - | - |

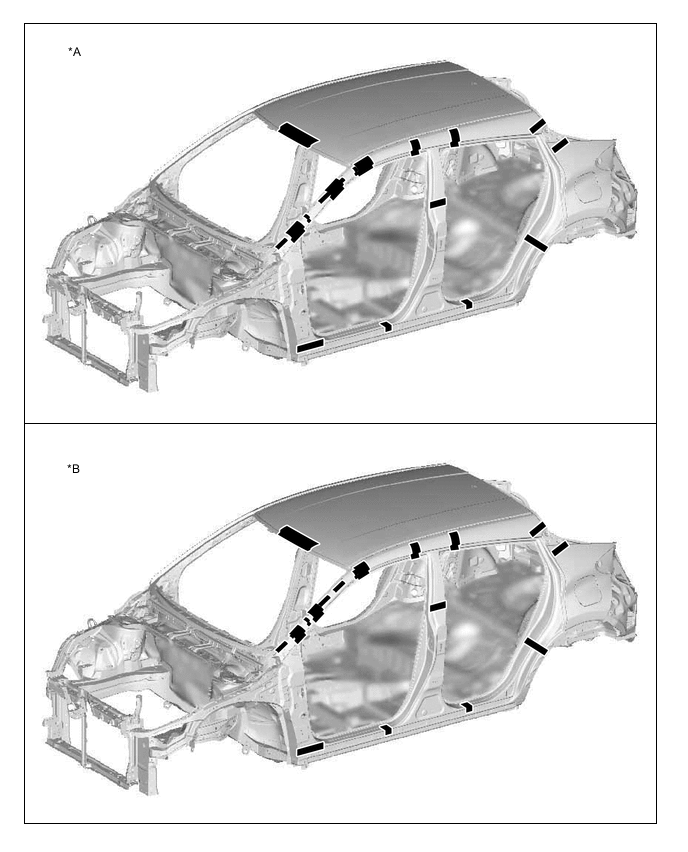

| *A | for TMMT Made | *B | for TMC Made |
| |
Foamed Sealing Material Application Areas (See the painting/coating) | - | - |
 |

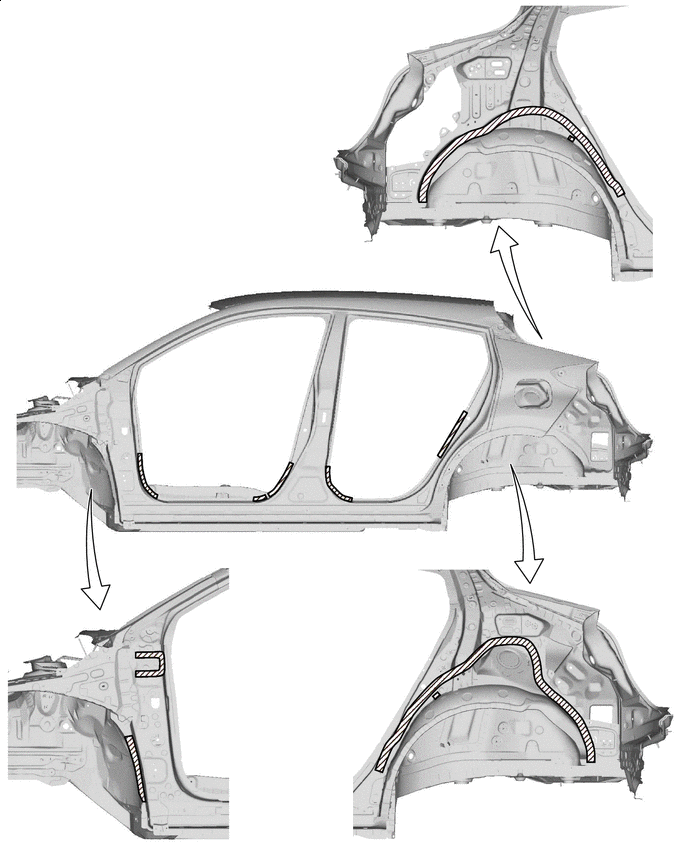

Adhesive Application Areas | - | - |

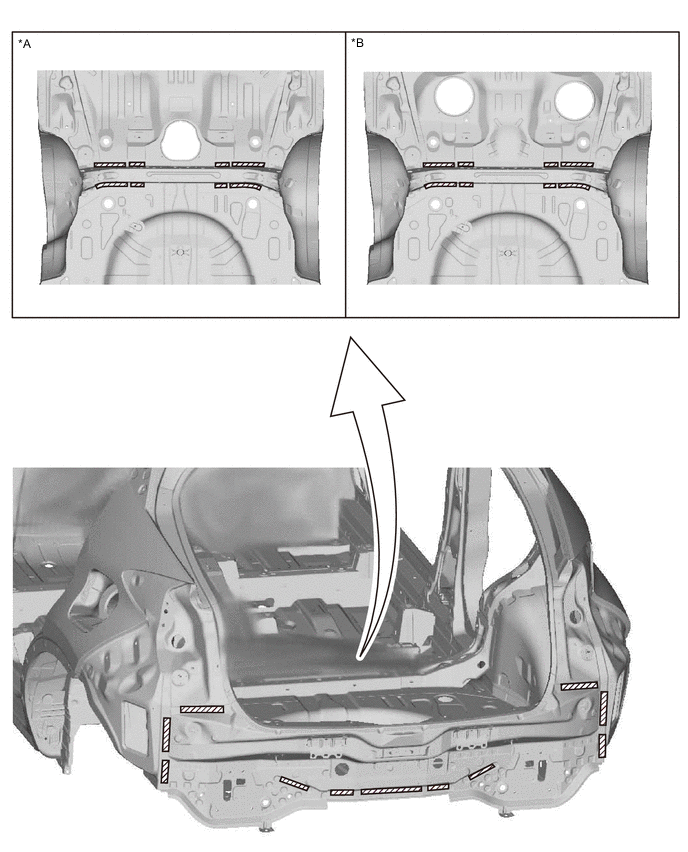

| *A | for 2WD | *B | for AWD |
| |
Adhesive Application Areas | - | - |
