ABOUT THIS VEHICLE STRUCTURAL OUTLINE

B0049HFC01
*A for LHD *B for Sliding Roof
B0049G4 1500 MPa Ultra High Strength Steel B0049GK 1180 MPa Ultra High Strength Steel
B0049HP 980 MPa Ultra High Strength Steel B0049HL 590 MPa High Strength Steel
B0049HZ 440 MPa High Strength Steel B0049FB Aluminum

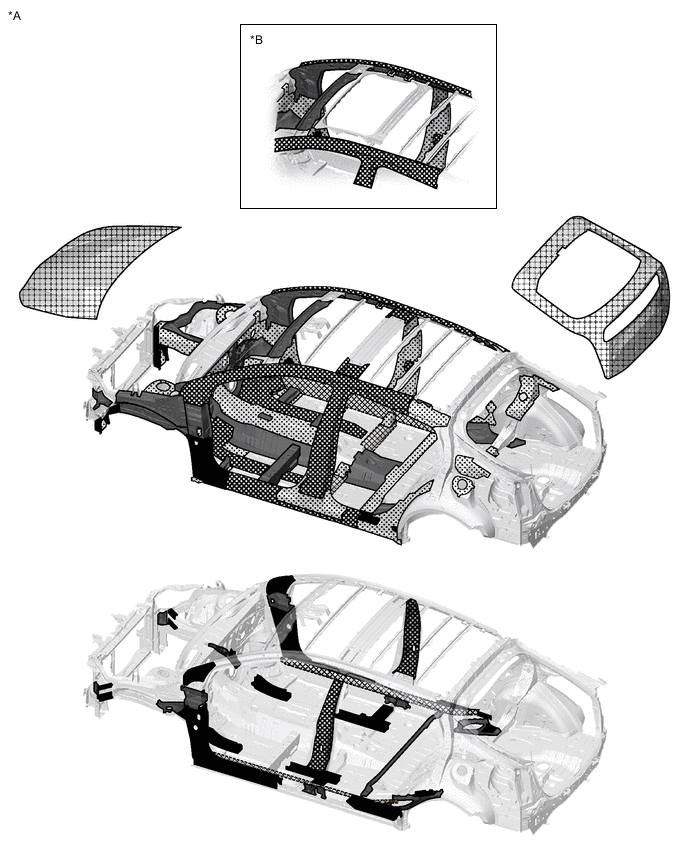

B0049GZC01
*A for RHD *B for Sliding Roof
B0049G4 1500 MPa Ultra High Strength Steel B0049GK 1180 MPa Ultra High Strength Steel
B0049HP 980 MPa Ultra High Strength Steel B0049HL 590 MPa High Strength Steel
B0049HZ 440 MPa High Strength Steel B0049FB Aluminum

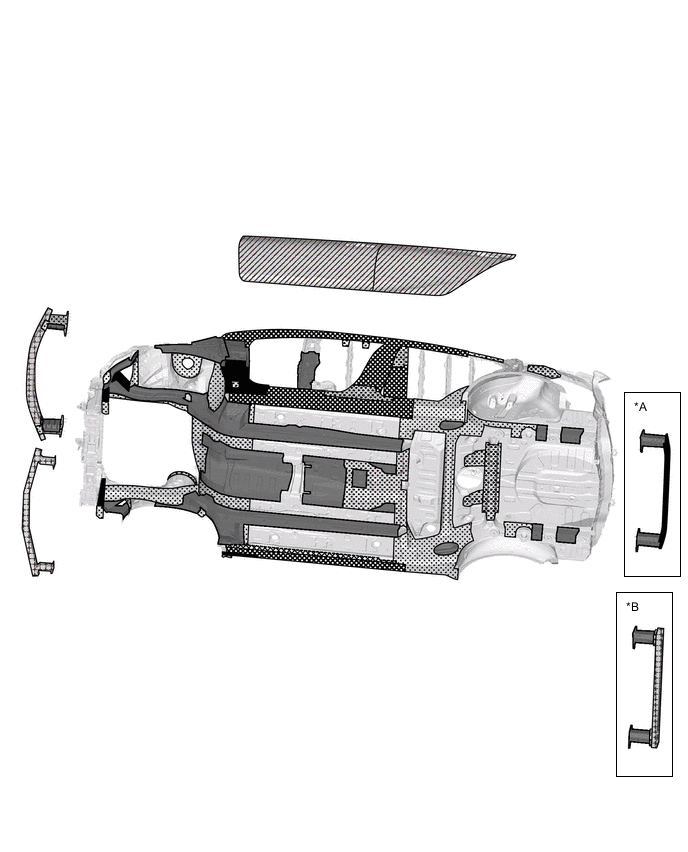

B0049G0C01
*A for Type A *B for Type B
B0049G4 1500 MPa Ultra High Strength Steel B0049GK 1180 MPa Ultra High Strength Steel
B0049HP 980 MPa Ultra High Strength Steel B0049HL 590 MPa High Strength Steel
B0049HZ 440 MPa High Strength Steel B0049GH 340 MPa High Strength Steel
B0049FB Aluminum - -

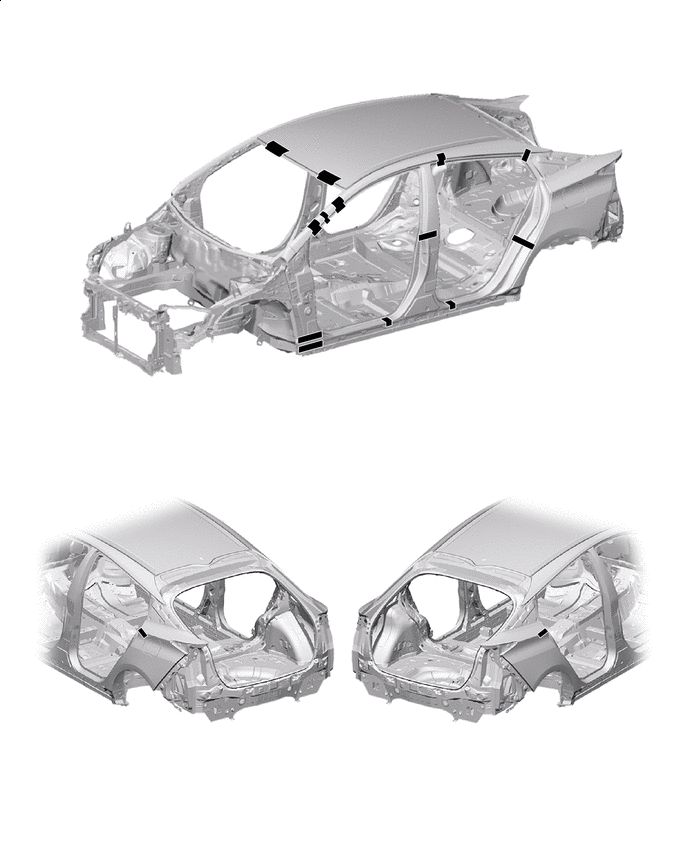

B0049GMC01
B0049HP Foamed Sealing Material Application Areas (See the painting/coating) - -

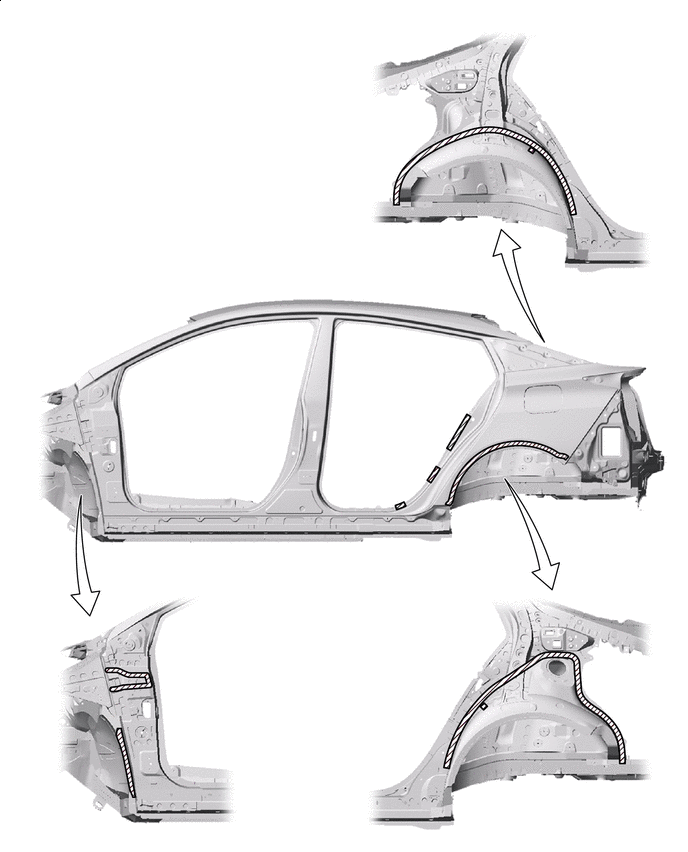

B0049FNC01
B0049G5 Adhesive Application Areas - -

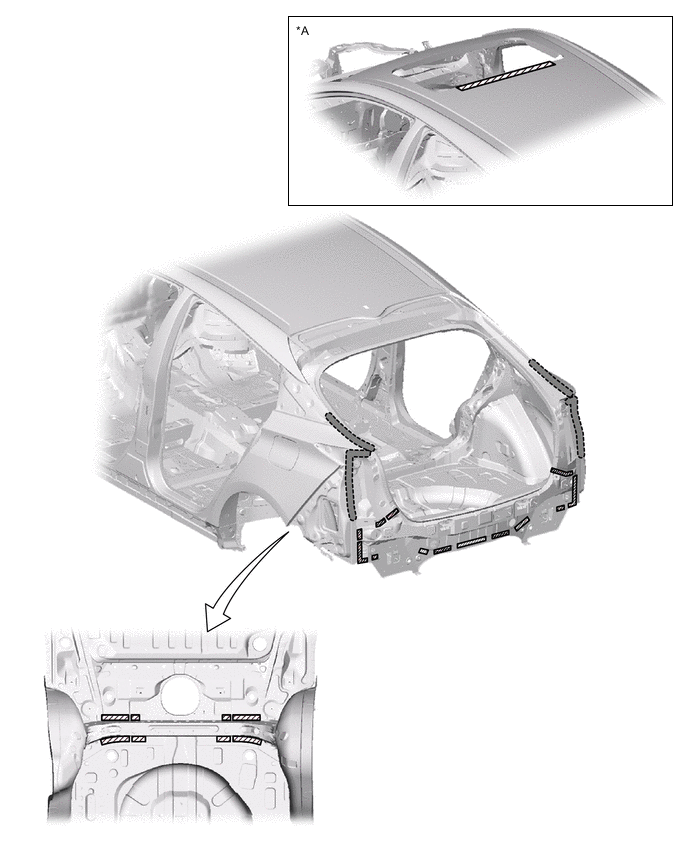

B0049FQC01
*A for Sliding Roof - -
B0049G5 Adhesive Application Areas B0049HJ Laser Welding

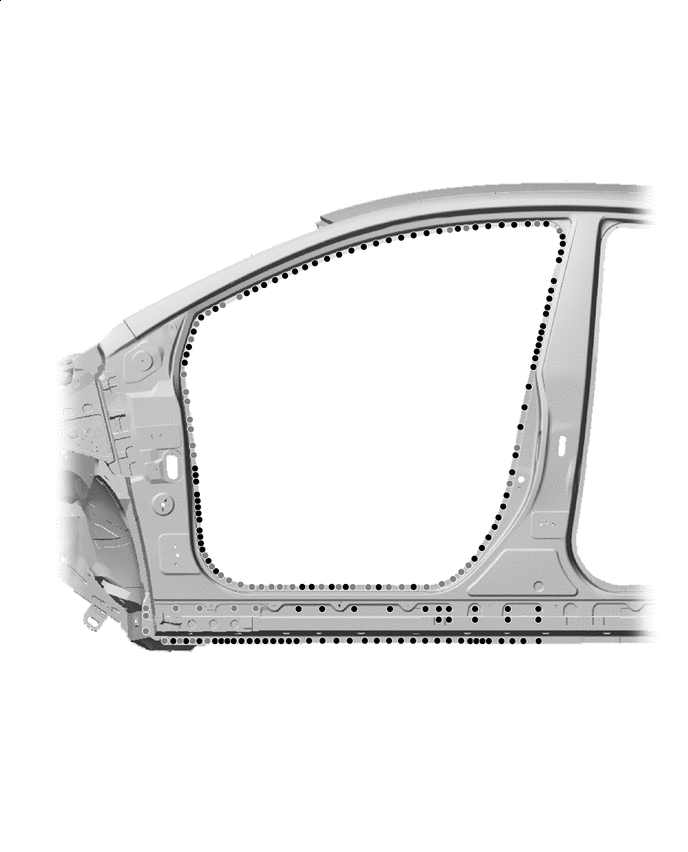

B0049ELC01
B0049HP Laser Screw Welding B0049EI Spot Welding

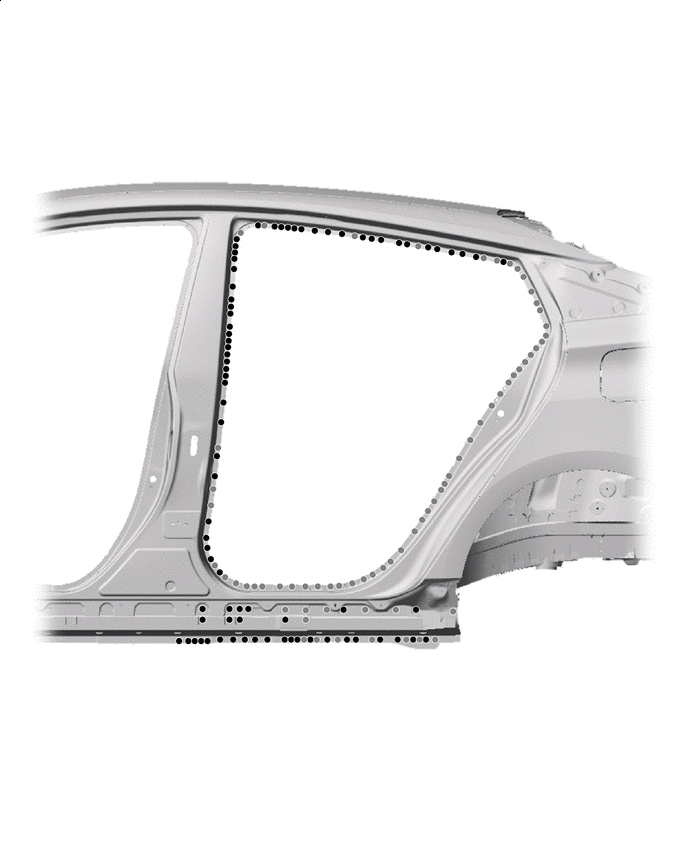

B0049GPC01
B0049HP Laser Screw Welding B0049EI Spot Welding

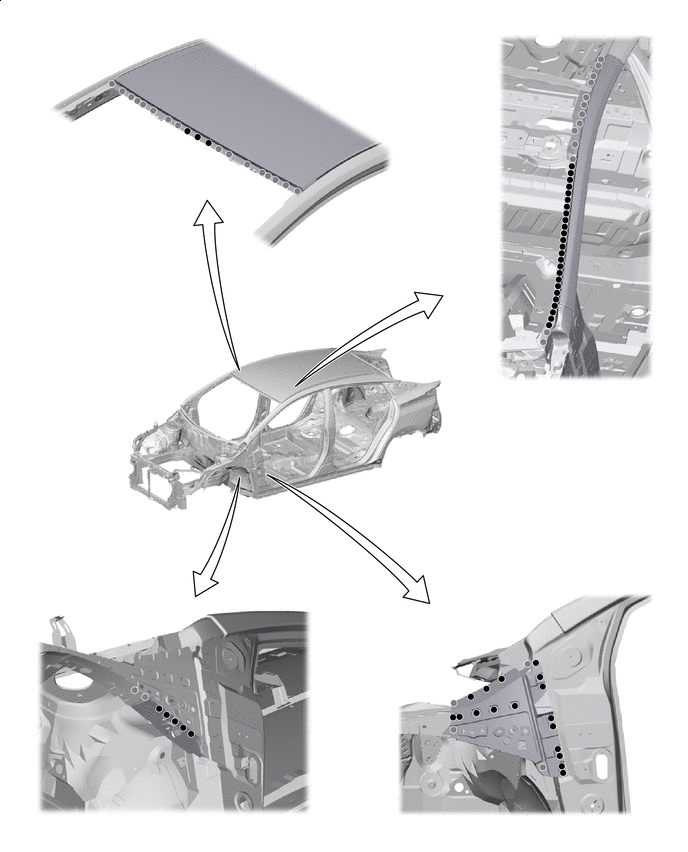

B0049H5C01
B0049HP Laser Screw Welding B0049EI Spot Welding

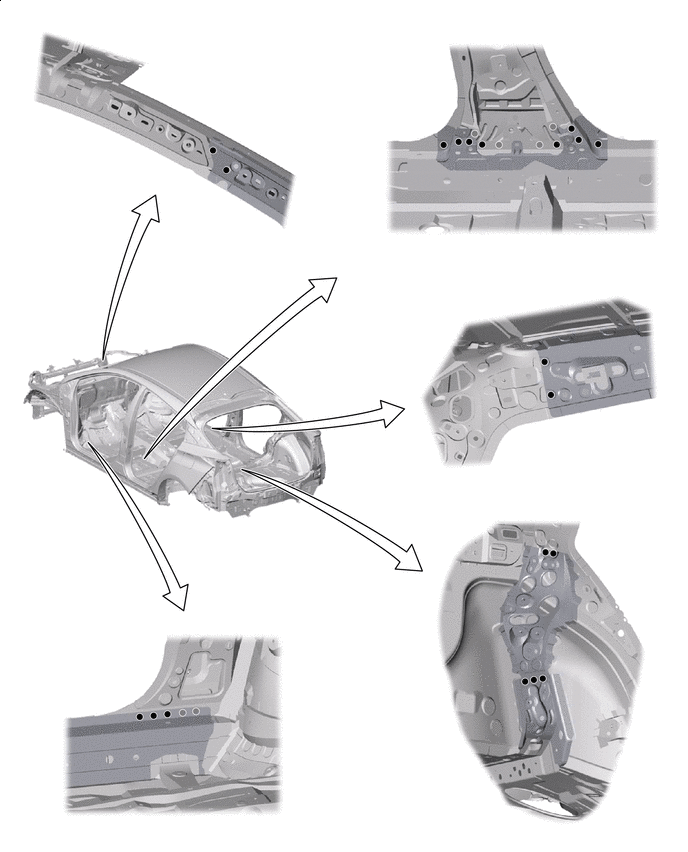

B0049HKC01
B0049HP Laser Screw Welding B0049EI Spot Welding
