ENGINE COMPARTMENT REFERENCE VALUES THREE-DIMENSIONAL DISTANCE
Tech Tips
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Radiator Grille Installation Screw | - |
| B, b | Headlight Installation Screw | - |
| C, c | Headlight Installation Screw | - |
| D, d | Front Fender Installation Bolt | M6 (0.24) |

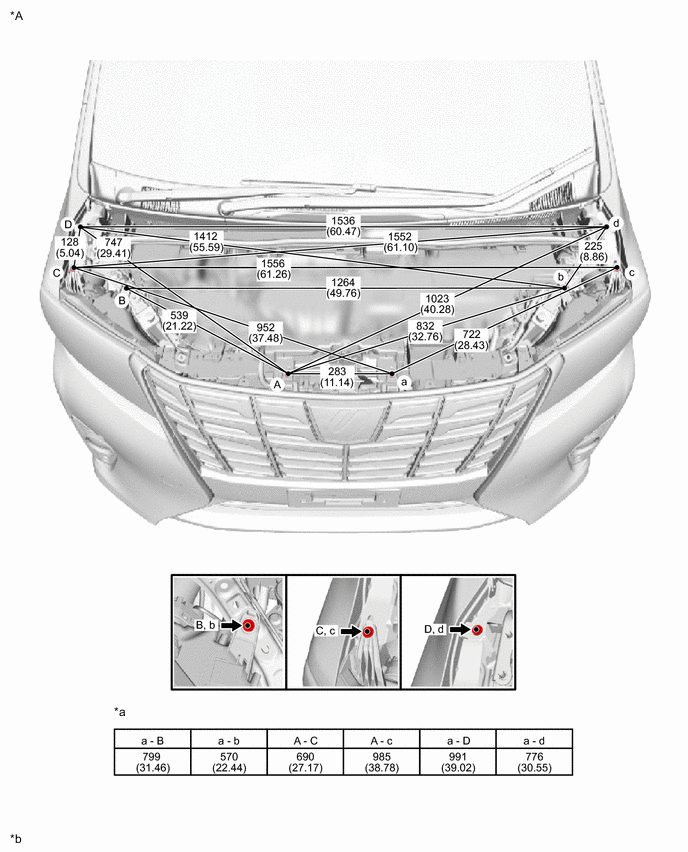

| *A | for ALPHARD | - | - |
| *a | Distance between points other than those above | *b | mm (in.) |

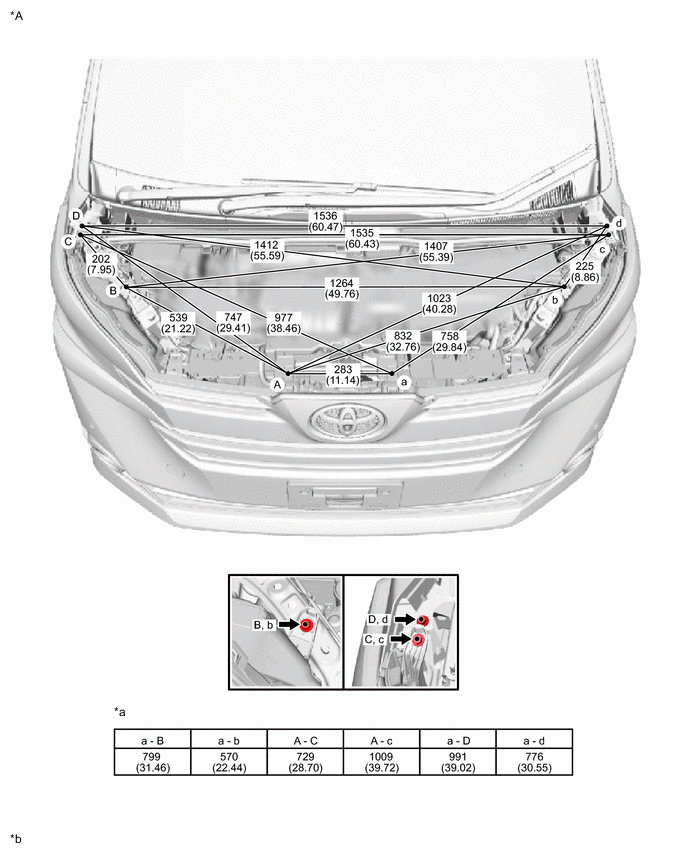

| *A | for VELLFIRE | - | - |
| *a | Distance between points other than those above | *b | mm (in.) |
