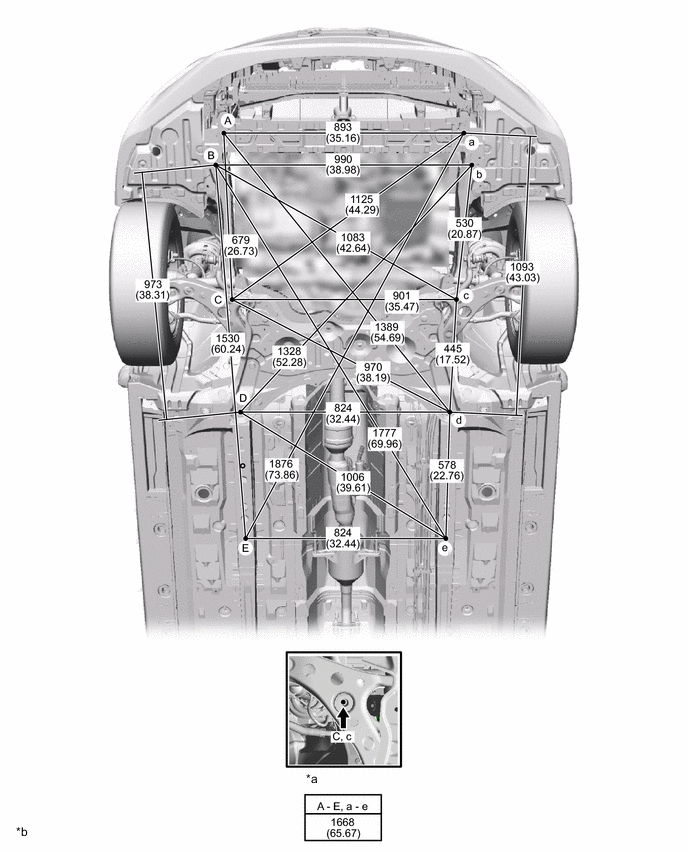

UNDER BODY REFERENCE VALUES THREE-DIMENSIONAL DISTANCE
Tech Tips
-
Measure points with the engine under cover no. 1, engine under cover no. 2, engine under rear cover and front floor cover removed.
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Front Body Mounting Reinforcement Standard Hole | φ18 (0.71) |
| B, b | Front Side Member Standard Hole | φ18 (0.71) |
| C, c | Front Suspension Crossmember Installation Bolt | M14 (0.55) |
| D, d | Front Suspension Crossmember Installation Bolt | M14 (0.55) |
| E, e | Front Side Inner Rear Member Standard Hole | φ18 (0.71) |
| *a | Distance between points other than those above | *b | mm (in.) |
